TOWING AND HOISTING

TSB Revision

GENERAL <BODY AND CHASSIS>

00-31

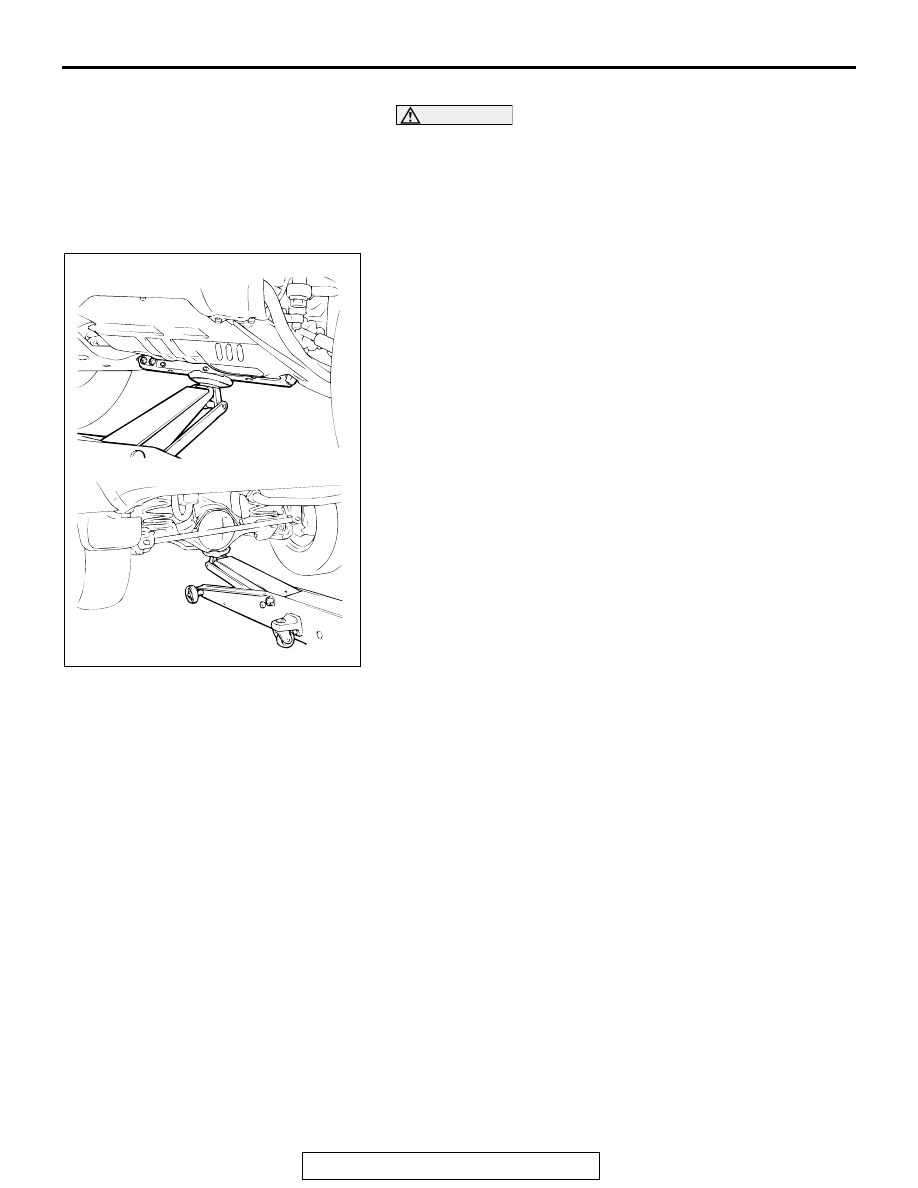

FLOOR JACK

CAUTION

• A floor jack must never be used on any part of the

underbody.

• Do not attempt to raise one entire side of the vehicle by

placing a jack midway between front and rear wheels.
This practice may result in permanent damage to the
body.

A regular floor jack may be used under the front crossmember
or rear frame.

.

AC003356

FRONT

REAR

AB

TOWING AND HOISTING

TSB Revision

GENERAL <BODY AND CHASSIS>

00-32

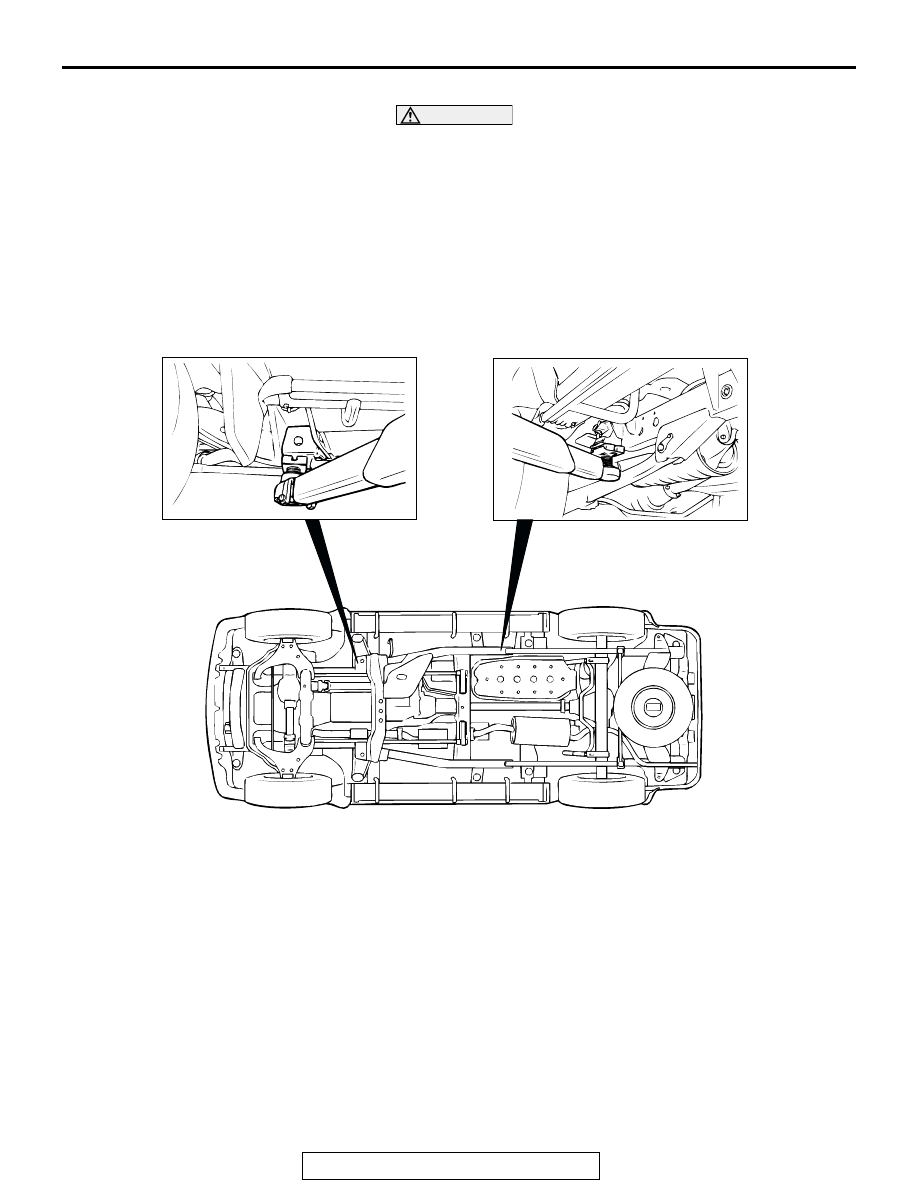

POST TYPE

CAUTION

When service procedures require removal of the rear sus-
pension, the fuel tank or the spare tire, place additional
weight on the rear end of the vehicle or anchor the vehicle
to a hoist to prevent center of gravity changes.
Special care should be taken when raising the vehicle on a
frame contact type hoist. The hoist must be equipped with the
proper adapters in order to support the vehicle at the proper
locations shown in the illustration.
Conventional hydraulic hoists may be used after determining
that the adapter plates will make firm contact with the side
frame.

AC003357

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-33

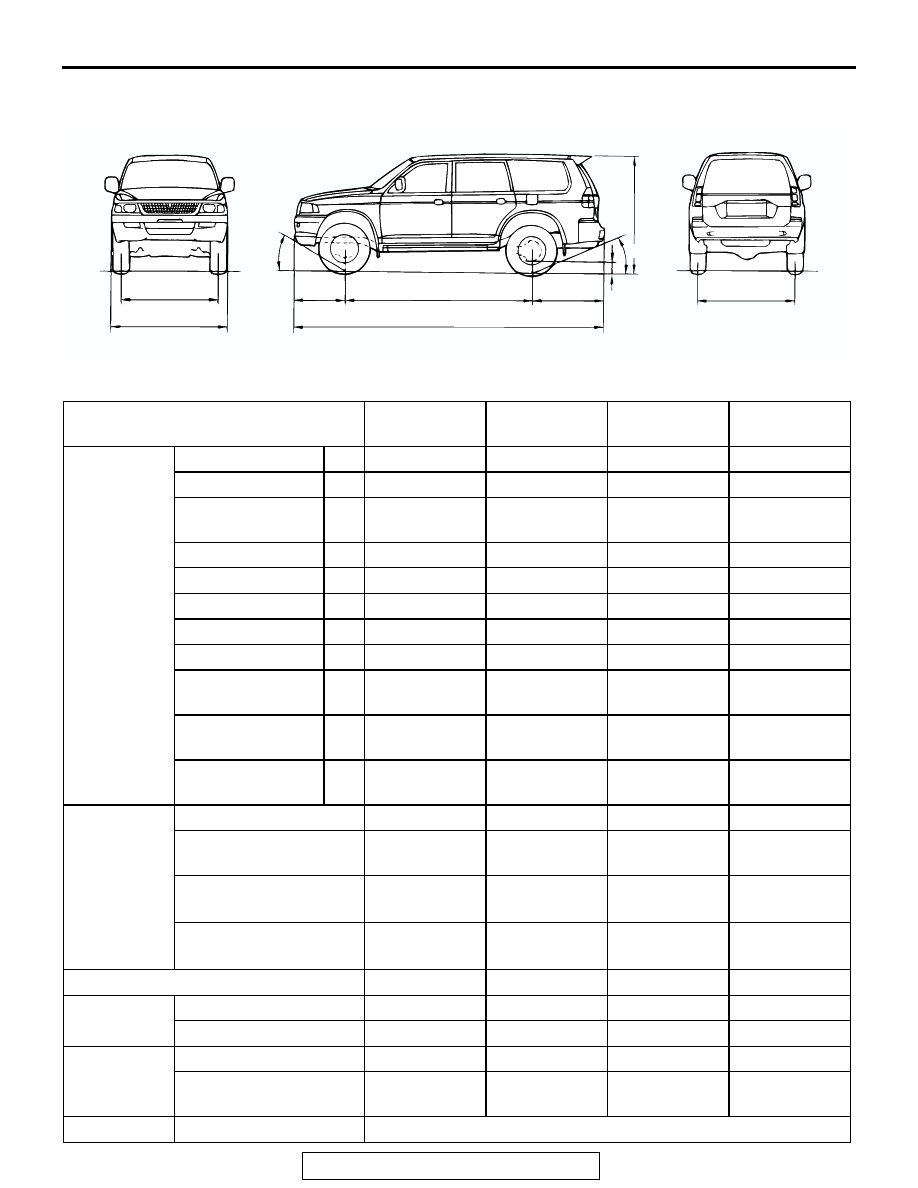

GENERAL DATA AND SPECIFICATIONS

M1001000900514

.

VEHICLES FOR USA

AC003358AB

5

2

10

7

4

1

8

9

3

11

6

ITEM

K89WG
RSEL2M

K89WG
RMEL2M

K99WG
RSEL2M

K99WG
RMEL2M

Vehicle
dimension
mm (in)

Overall length

1

4,600 (181.1)

4,600 (181.1)

4,600 (181.1)

4,600 (181.1)

Overall width

2

1,775 (66.7)

1,775 (69.9)

1,775 (69.9)

1,775 (69.9)

Overall height
(unladen)

3

1,735 (67.7)

1,735 (68.3)

1,735 (68.3)

1,735 (68.3)

Wheelbase

4

2,725 (107.3)

2,725 (107.3)

2,725 (107.3)

2,725 (107.3)

Tread

− front

5

1,465 (57.7)

1,465 (57.7)

1,465 (57.7)

1,465 (57.7)

Tread

− rear

6

1,480 (58.3)

1,480 (58.3)

1,480 (58.3)

1,480 (58.3)

Overhang

− front

7

820 (32.3)

820 (32.3)

820 (32.3)

820 (32.3)

Overhang

− rear

8

1,055 (41.5)

1,055 (41.5)

1,055 (41.5)

1,055 (41.5)

Minimum running
ground clearance

9

220 (8.7)

220 (8.7)

220 (8.7)

220 (8.7)

Angle of approach
degrees

10

32

°

32

°

32

°

32

°

Angle of departure
degrees

11

27

°

27

°

27

°

27

°

Vehicle
weight kg (lb)

Curb weight

1,755 (3,865)

1,805 (3,980)

1,880 (4,140)

1,930 (4,255)

Gross vehicle weight
rating

2,270 (5,000)

2,270 (5,000)

2,430 (5,350)

2,430 (5,350)

Gross axle weight rating
− front

1,200 (2,645)

1,200 (2,645)

1,200 (2,645)

1,200 (2,645)

Gross axle weight rating
− rear

1,600 (3,525)

1,600 (3,525)

1,600 (3,525)

1,600 (3,525)

Seating  capacity

5

5

5

5

Engine

Model No.

6G74

6G74

6G74

6G74

Piston displacement

3.5L

3.5L

3.5L

3.5L

Transmission Model No.

R4A51

R4A51

V4A51

V4A51

Type

4-speed
automatic

4-speed
automatic

4-speed
automatic

4-speed
automatic

Fuel system

Fuel supply system

Electronic-controlled multiport fuel injection

GENERAL DATA AND SPECIFICATIONS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-34

.

VEHICLES FOR CANADA

ITEMS

K99WG
RHEL3M

K99WG
RXEL3M

Vehicle
dimension mm
(in)

Overall length

1

4,600 (181.1)

4,600 (181.1)

Overall width

2

1,775 (66.9)

1,775 (69.9)

Overall height
(unladen)

3

1,735 (68.3)

1,735 (68.3)

Wheelbase

4

2,725 (107.3)

2,725 (107.3)

Tread

− front

5

1,465 (57.7)

1,465 (57.7)

Tread

− rear

6

1,480 (58.3)

1,480 (58.3)

Overhang

− front

7

820 (32.3)

820 (32.3)

Overhang

− rear

8

1,055 (41.5)

1,055 (41.5)

Minimum running
ground clearance

9

220 (8.7)

220 (8.7)

Angle of approach
degrees

10

32

°

32

°

Angle of departure
degrees

11

24

°

27

°

Vehicle weight
kg (lb)

Curb weight

1,915 (4,219)

1,930 (4,255)

Gross vehicle weight rating

2,430 (5,350)

2,430 (5,350)

Gross axle weight rating

−

front

1,200 (2,645)

1,200 (2,645)

Gross axle weight rating

−

rear

1,600 (3,525)

1,600(3,525)

Seating capacity

5

5

Engine

Model No.

6G74

6G74

Piston displacement

3.5L

3.5L

Transmission

Model No.

V4A51

V4A51

Type

4-speed automatic

4-speed automatic

Fuel system

Fuel supply system

Electronic-controlled multiport fuel injection
