TRANSMISSION CONTROL

TSB Revision

AUTOMATIC TRANSMISSION

23A-559

INSPECTION

M1231118000112

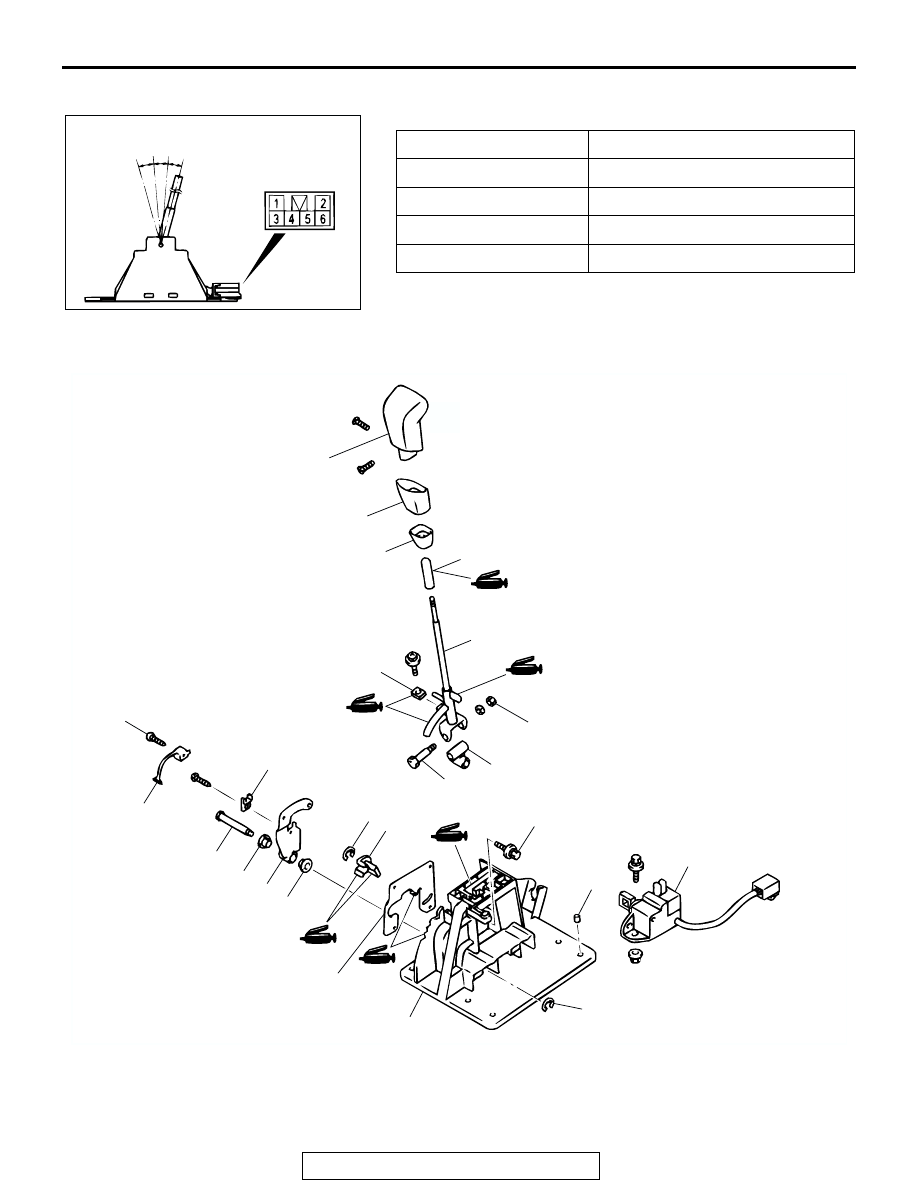

TRANSFER SHIFT LEVER SWITCH CONTINUITY CHECK

DISASSEMBLY AND ASSEMBLY

M1231006800426

SWITCH POSITION

MEASUREMENT TERMINAL

2H

1

− 3

4H

1

− 4

4HLc

1

− 5

4LLc

1

− 2

ACX01331AB

4LLc

4HLc

4H

2H

AC000024AC

1

2

3

4

13

14

12

11

5

7

9

8

9

10

16

17

20

6

19

15

4.9 ± 1.0 N·m
44 ± 8 in-lb

13 ± 2 N·m
115 ± 18 in-lb

2.5 ± 0.4 N·m
22 ± 4 in-lb

18

DISASSEMBLY STEPS

<<A>>

1.

SHIFT KNOB

2.

KNOB COVER A

3.

KNOB COVER B

4.

SLEEVE

DISASSEMBLY STEPS
(Continued)

TRANSMISSION CONTROL

TSB Revision

AUTOMATIC TRANSMISSION

23A-560

Required Special Tool:

• MB990784: Ornament Remover

REMOVAL SERVICE POINT

.

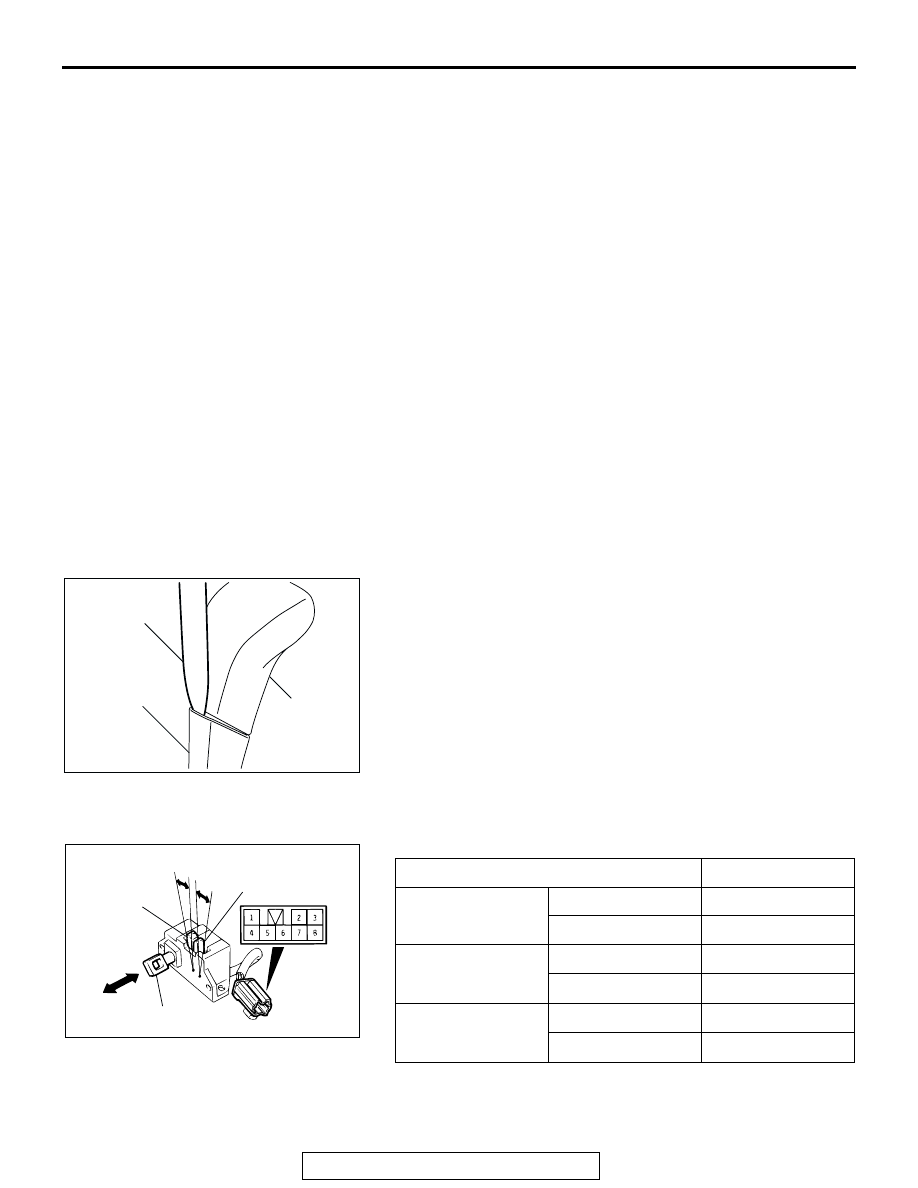

<<A>> SHIFT KNOB REMOVAL
Insert special tool MB990784 in the crack of knob cover A and
shift knob, and then push down on knob cover A and remove
screw.

INSPECTION

M1231118200031

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

•

FRONT FLOOR CONSOLE
(REFER TO GROUP 52A

P.52A-7

).

5.

DETENT SPRING

6.

SNAP RING

7.

SHAFT

8.

ARM ASSEMBLY

9.

BUSHING

10.

ARM COVER

11.

BOLT

12.

UNIVERSAL JOINT

13.

LEVER ASSEMBLY

14.

STAY COVER

15.

SHIFT SWITCH ASSEMBLY

16.

SNAP RING

17.

LOCK CAM

18.

DETENT PLATE ASSEMBLY

19.

COLLAR

20.

BASE BRACKET

DISASSEMBLY STEPS
(Continued)

AC100263AB

SHIFT KNOB

MB990784

KNOB COVER A

SWITCH POSITION

TERMINAL NO.

Select switch

ON

1

− 4

OFF

1

− 5

Shift switch (up
shift)

ON

3

− 7

OFF

−

Shift switch (down
shift)

ON

3

− 8

OFF

−

ACX01332AC

SHIFT SWITCH
(DOWN)

SELECT SWITCH

SHIFT SWITCH
(UP)

ON

ON

ON

OFF

OFF

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

TSB Revision

AUTOMATIC TRANSMISSION

23A-561

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

REMOVAL AND INSTALLATION

M1232001200529

WARNING

When removing and installing the shift lock cable unit, be careful not to hit the SRS-ECU.

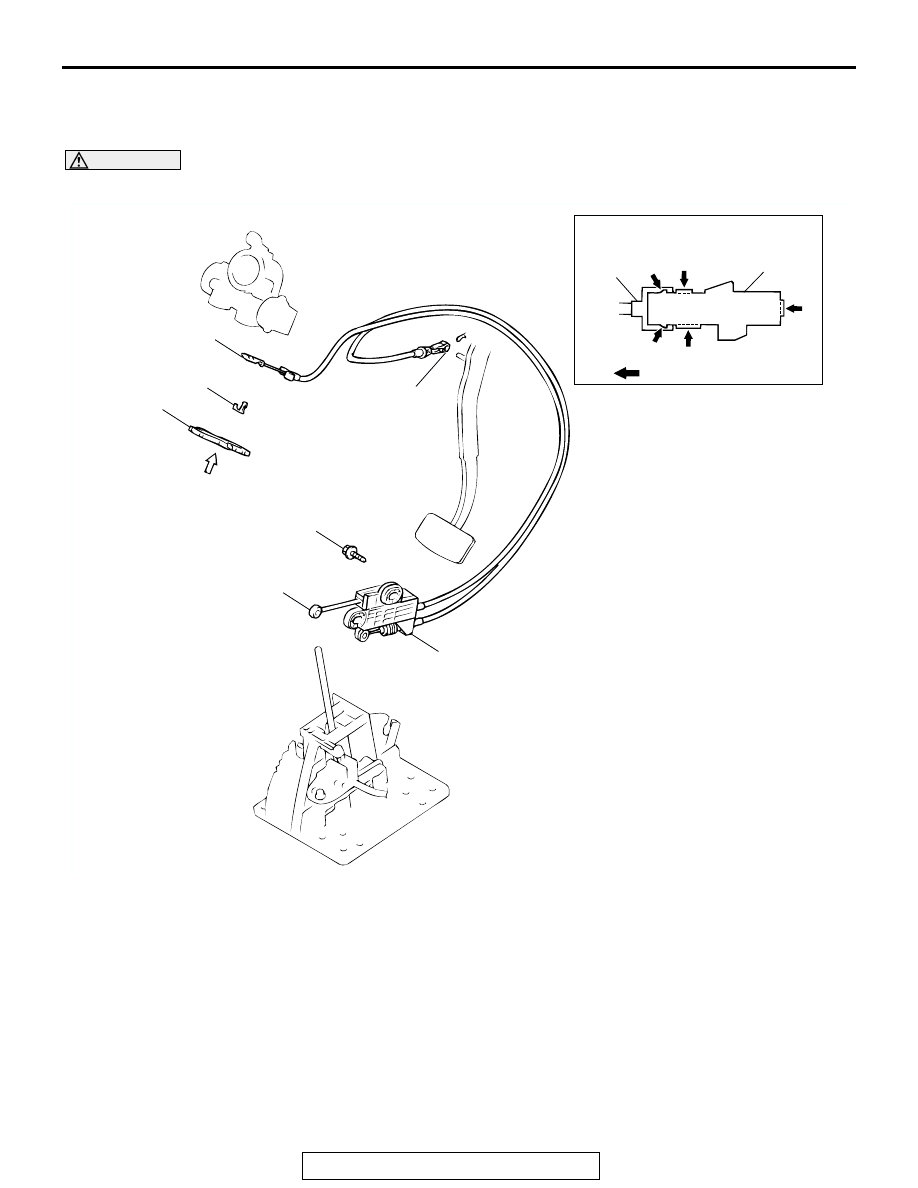

AC000025AD

VIEW A

VIEW A

: CLAW POSITIONS

1

3

4

2

5

6

2

3

5.0 ± 1.0 N·m
44 ± 9 in-lb

SHIFT LOCK CABLE UNIT
REMOVAL STEPS

•

COLUMN COVER (REFER TO
GROUP 52A, INSTRUMENT
PANEL ASSEMBLY

P.52A-7

).

•

FRONT FLOOR CONSOLE
(REFER TO GROUP 52A,
FLOOR CONSOLE ASSEMBLY

P.52A-7

).

>>A<<

1.

SHIFT LOCK CABLE UNIT
CONNECTION

<<A>>

2.

KEY INTERLOCK CABLE
CONNECTION

3.

COVER

4.

LOCK BAR

5.

SHIFT LOCK CABLE
CONNECTION

6.

SHIFT LOCK CABLE UNIT

SHIFT LOCK CABLE UNIT
REMOVAL STEPS (Continued)

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

TSB Revision

AUTOMATIC TRANSMISSION

23A-562

REMOVAL SERVICE POINT

.

<<A>> KEY INTERLOCK CABLE REMOVAL
Turn the ignition switch to the "ACC" position, and then pull the
key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINT

.

>>A<< SHIFT LOCK CABLE UNIT INSTALLATION
1. Temporarily install the selector lever knob, and then move

the selector lever to the "P" position and turn the ignition
switch to the "LOCK" (OFF) position.

2. After installing the rod of the shift lock cable unit to the lock

cam of the selector lever assembly, install the bolts of the
shift lock cable unit.

Tightening torque: 5.0

± 1.0 N⋅m (44 ± 9 in-lb)

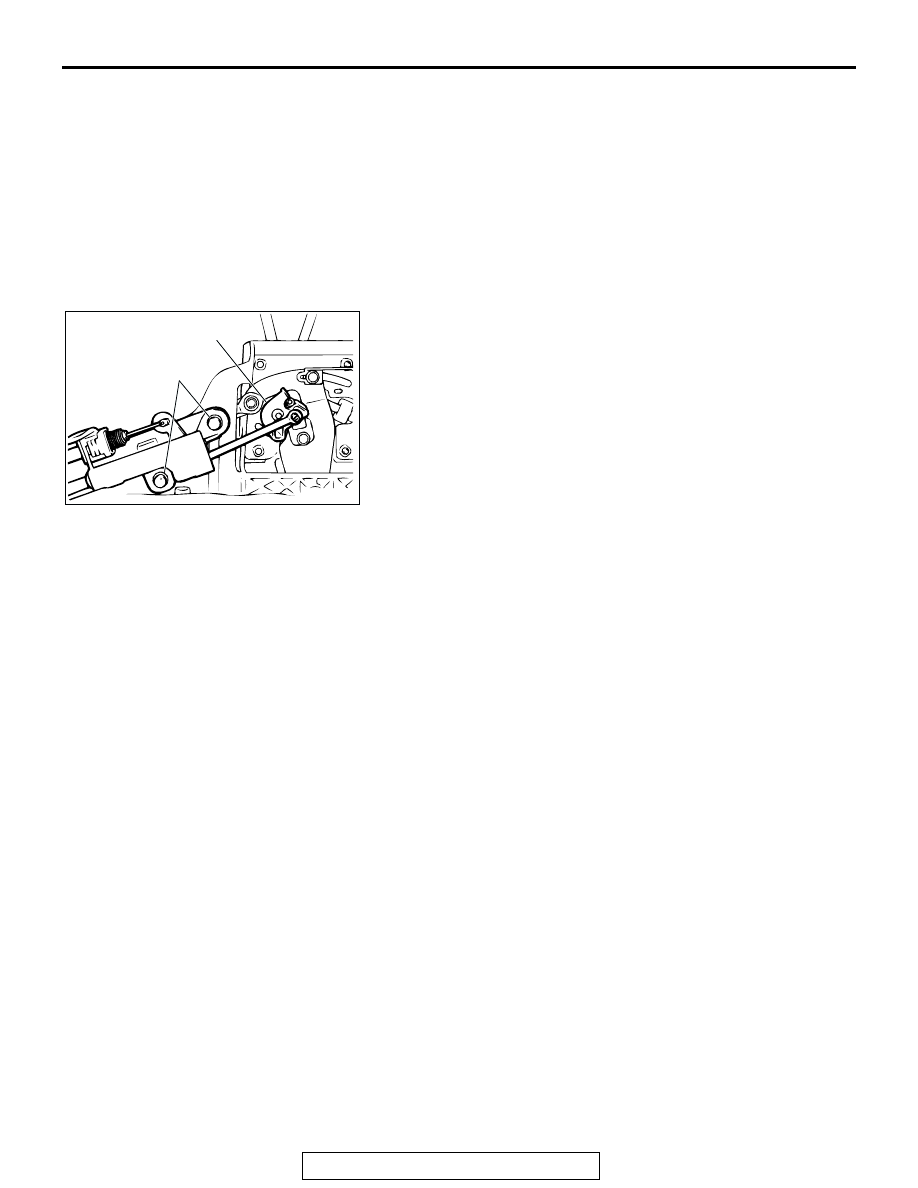

3. Check the operation of the selector lever assembly (Refer to

P.23A-549

).

AC000022AB

BOLT

LOCK CAM
