ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23A-551

KEY INTERLOCK AND SHIFT LOCK MECHANISM
CHECK

M1232003100249

1. Carry out the following inspection.

2. When any of the above checks are not normal, adjust the

shift lock cable unit in following procedure.

(1) Remove the front floor console (Refer to GROUP 52A

−

Floor Console Assembly

P.52A-7

).

(2) Shift selector lever to "P" position.
(3) Turn the ignition key to "LOCK" (OFF) position.

KEY INTERLOCK SIDE

INSPECTION
PROCEDURE

INSPECTION
REQUIREMENTS

INSPECTION ITEM (NORMAL CONDITION)

1

Brake pedal:
Depressed

Ignition key position:
"LOCK" (OFF) or removed

Unable to push in the selector lever push
button and move the lever out of the "P"
position.

2

Ignition key position:
"ACC"

Able to push in the selector lever push
button, move the lever out of the "P"
position, and shift to any position.

3

Brake pedal: Not
depressed

Selector lever: Other than
"P" position

Unable to turn the ignition key to the
"LOCK" (OFF) position.

4

Selector lever: "P" position Able to turn the ignition key to the

"LOCK" (OFF) position.

SHIFT LOCK SIDE

INSPECTION
PROCEDURE

INSPECTION CONTENTS

CHECK DETAILS (NORMAL CONDITION)

1

Brake pedal:
Not depressed

Ignition key
position: "ACC"

When the selector lever push button is depressed, the
selector lever can not be shifted out of the "P" position.

2

Brake pedal:
Depressed

When the selector lever push button is depressed, the
selector lever can be shifted smoothly to other position.

3

Brake pedal:
Not depressed

When the selector lever push button is depressed, the
selector lever can be shifted smoothly from the "R"
position to the "P" position.

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23A-552

(4) Loosen the bolt fixing the shift lock cable unit, push the

lever in direction B and the unit in direction C and tighten
the bolt at the standard torque.

Tightening torque: 5.0

± 1.0 N⋅m (44 ± 9 in-lb)

(5) Lift the lock guide of the key interlocking cable and then

unlock it.

(6) Lower the lock guide of the key interlocking cable and

then lock it.
NOTE: The key interlocking cable is adjusted according
to the lock position (cap push state) at this time. Readjust
the lock position if key interlocking operations malfunction
after locking.

3. After adjustment, re-check the operations. Replace the shift

lock cable unit if operations are defective (Refer to

P.23A-561

).

TRANSMISSION CONTROL CABLE
ADJUSTMENT

M1231119500035

1. Move the selector lever to the "N" position.
2. Loosen the upper control lever adjusting nut.
3. Check that the transmission range switch is at "N" position.
4. Adjust the upper control lever so that there is no slackness

or excessive tightness in the transmission control cable, and
then tighten the adjusting nut to the specified torque.

Tightening torque: 23

± 4 N⋅m (17 ± 3 ft-lb)

5. Check that the transmission operation and functioning in

each position corresponds accurately to the position of the
selector lever.

TRANSFER-ECU CHECK

M1231120900048

1. Remove the indicator panel and the floor console front panel

(Refer to GROUP 52A

− Floor Console

P.52A-7

).

2. Measure the transfer-ECU terminal voltage (Refer to

P.23A-522

).

AC000004AB

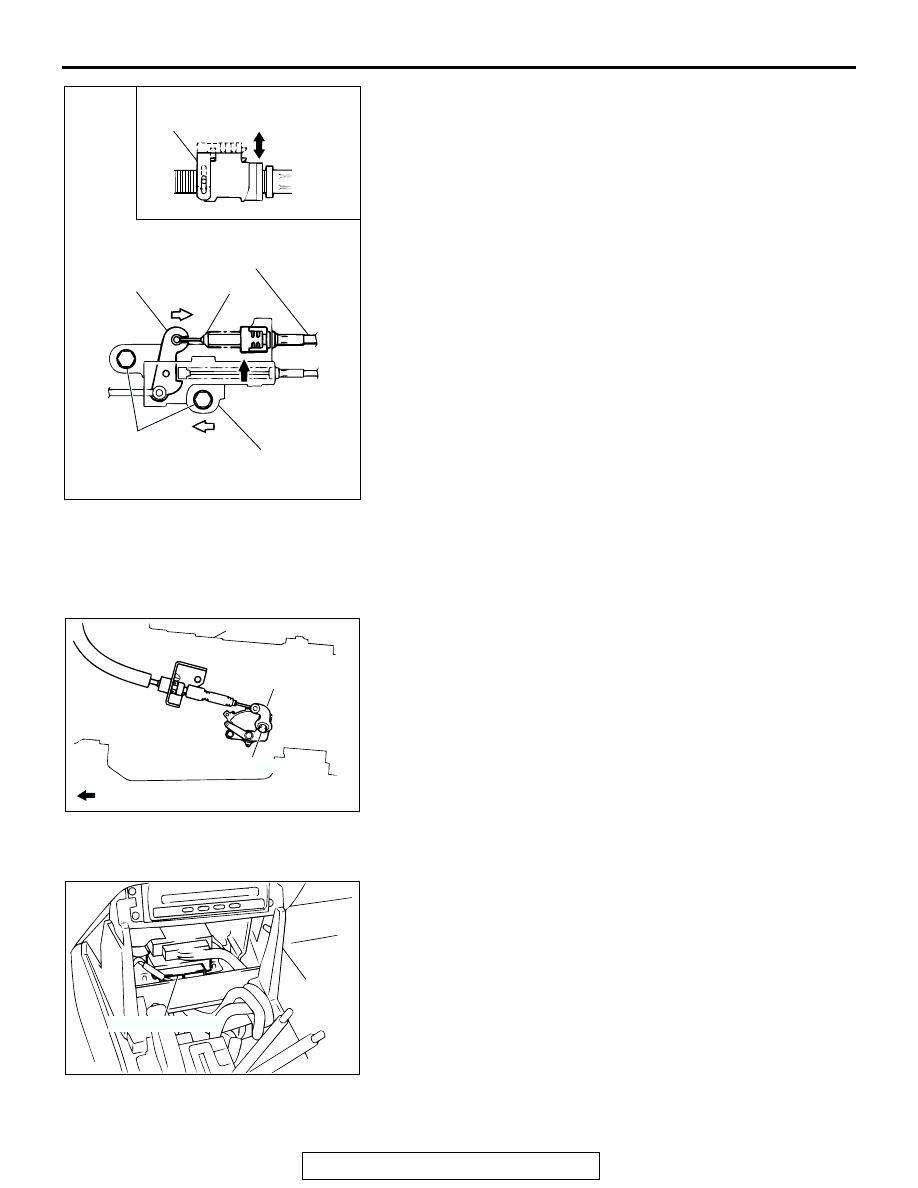

LOCK

UNLOCK

LOCK GUIDE

KEY INTERLOCK CABLE

CAP

LEVER

FIXING BOLT

SHIFT LOCK CABLE UNIT

C

A

B

ACX01326AB

TRANSMISSION

UPPER
CONTROL LEVER

FRONT

ADJUSTING NUT

AC000010AB

FLOOR
CONSOLE

TRANSFER-ECU

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23A-553

POSITION INDICATOR LIGHT CHECK

M1231121000037

1. Remove the indicator panel (Refer to GROUP 52A

− Floor

Console

P.52A-7

).

2. Check that there is continuity between the following

terminals:

3. If the continuity is incorrect, replace the position indicator

light unit assembly.

AUTOMATIC TRANSMISSION CONTROL
COMPONENT CHECK

CRANKSHAFT POSITION SENSOR CHECK

M1231102700134

Refer to GROUP 13A, Diagnosis

− Check Procedure With

Oscilloscope.

P.13A-975

.

ACCELERATOR PEDAL POSITION SENSOR
CHECK

M1231102800023

Refer to GROUP 13A, On-vehicle Service

− Accelerator Pedal

Position Sensor Check.

P.13A-975

.

TRANSMISSION FLUID TEMPERATURE SENSOR
CHECK

M1231104200016

1. Remove the transmission fluid temperature sensor.
2. Measure the resistance between terminals No.1 and No.2 of

the transmission fluid temperature sensor connector.

Standard value:

3. If the transmission fluid temperature sensor resistance is

outside the specified range and the "A/T TEMP" indicator
light is illuminating, replace the transmission fluid
temperature sensor.

TERMINAL NO.

NORMAL CONDITION

1

− 2

Less than 2 ohms

3

− 4

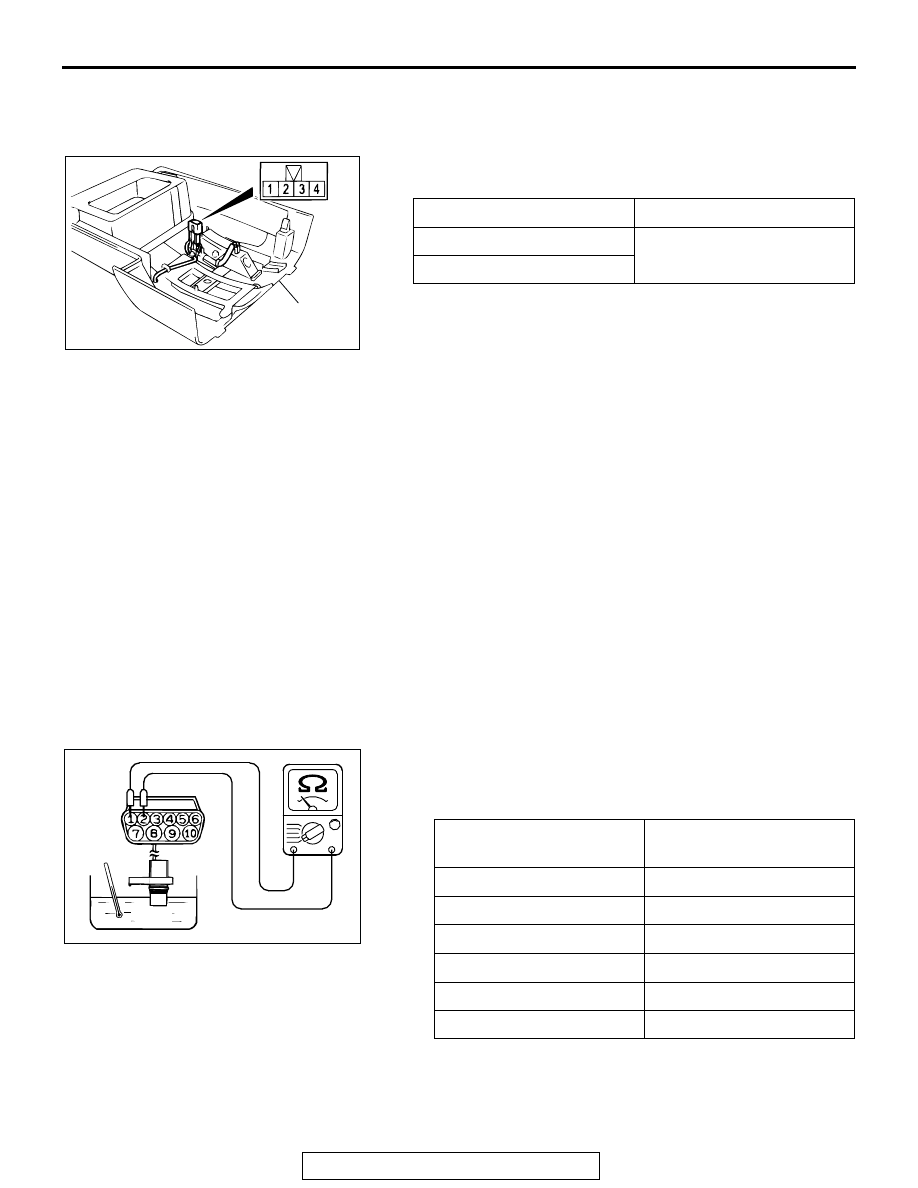

AC000011AB

INDICATOR
PANEL

TRANSMISSION FLUID
TEMPERATURE

RESISTANCE

0

°C (32°F)

16.7

− 20.5 kΩ

20

°C (68°F)

7.3

− 8.9 kΩ

40

°C (104°F)

3.4

− 4.2 kΩ

60

°C (140°F)

1.9

− 2.2 kΩ

80

°C (176°F)

1.0

− 1.2 kΩ

100

°C (212°F)

0.57

− 0.69 kΩ

AC100601AB

ATF

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSMISSION

23A-554

NOTE: The "A/T TEMP" indicator light on the combination
meter illuminating when the temperature reaches approxi-
mately 125

°

C (257

°

F) or greater, and then stops illuminating

when the temperature drops below approximately 115

°

C

(238

°

F).

TRANSMISSION RANGE SWITCH CHECK

M1231112600116

Refer to

P.23A-546

.

STOPLIGHT SWITCH CHECK

M1231103000138

Refer to GROUP 35A, On-vehicle Service

− Stoplight Switch

Check

P.35A-119

.

VEHICLE SPEED SENSOR CHECK

M1231109800121

Refer to GROUP 54A, Combination Meters Assembly and
Vehicle Speed Sensor

P.54A-77

.

DUAL PRESSURE SWITCH CHECK

M1231109900128

Refer to GROUP 55A, On-vehicle Service

− Dual Pressure

Switch Check

P.55A-112

.

A/T CONTROL RELAY CHECK

M1231110300120

1. Remove the A/T control relay.

2. Use jumper wires to connect A/T control relay terminal 2 to

the negative battery terminal and terminal 4 to the positive
battery terminal.

3. Check for continuity between A/T control relay terminals 1

and 3 when the jumper wires are connected to and
disconnected from the battery.

4. If there is any problem with the A/T control relay, replace it.

JUMPER WIRE

CONTINUITY BETWEEN
TERMINALS NO.1 AND NO.3

Connected

Less than 2 ohms

Disconnected

Open circuit

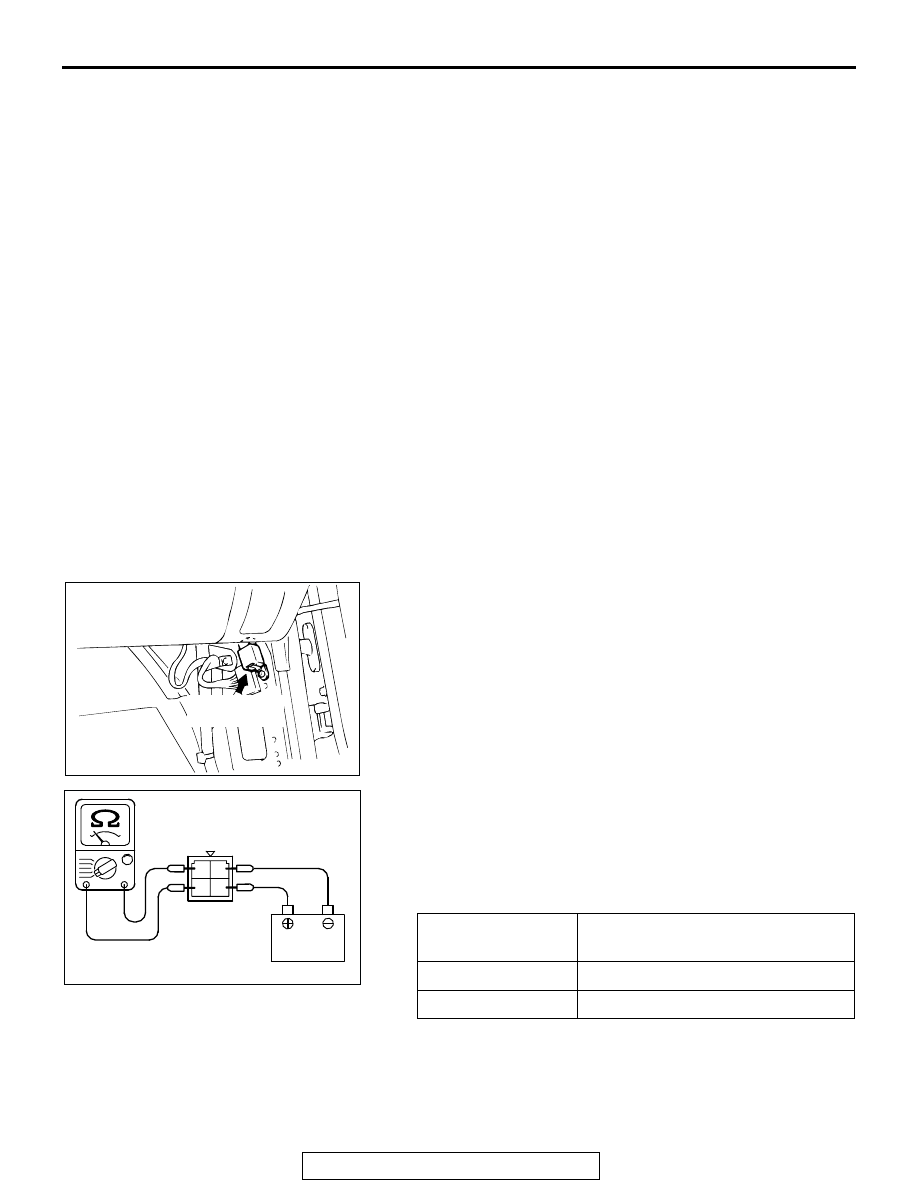

AC002590AD

A/T CONTROL
RELAY

AC100555

1 2
3 4

AC
