Mitsubishi Montero (2004+). Manual - part 983





TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-507

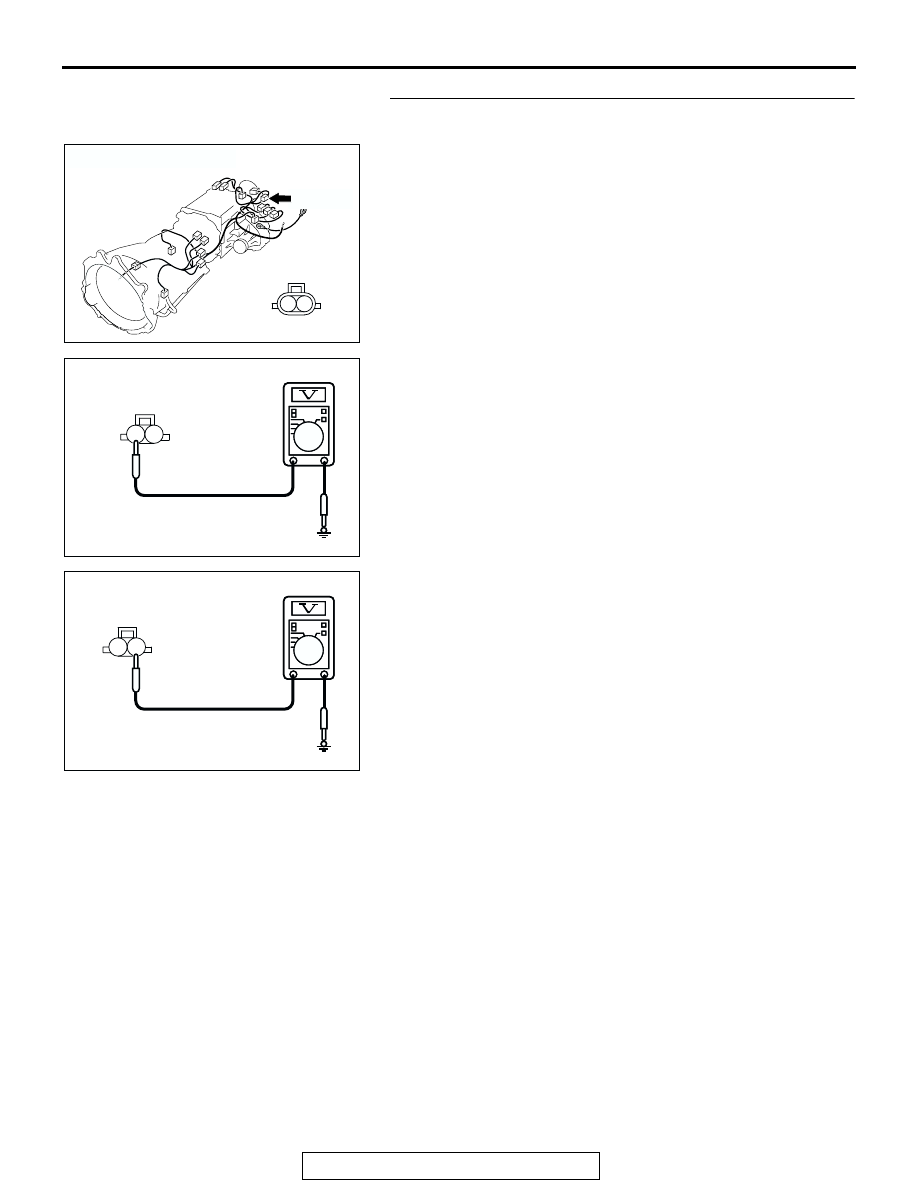

STEP 3. Measure the power supply voltage at shift actuator
connector C-09.
(1) Disconnect connector C-09 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.

(4) Measure the voltage between terminal 2 and ground.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the voltage should measure bat-

tery positive voltage.

(5) Measure the voltage between terminal 1 and ground.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the voltage should measure

battery positive voltage.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Replace the shift actuator. Refer to GROUP 23B,

Transfer

P.23B-75

.

NO :  Go to Step 4.

AC204395

CONNECTOR : C-09

AH

C-09 (GR)

2

1

AC204918

1

2

AC204918 AS

C-09 HARNESS CONNECTOR :
COMPONENT SIDE

AC204918

1

2

AC204918 AR

C-09 HARNESS CONNECTOR :
COMPONENT SIDE

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-508

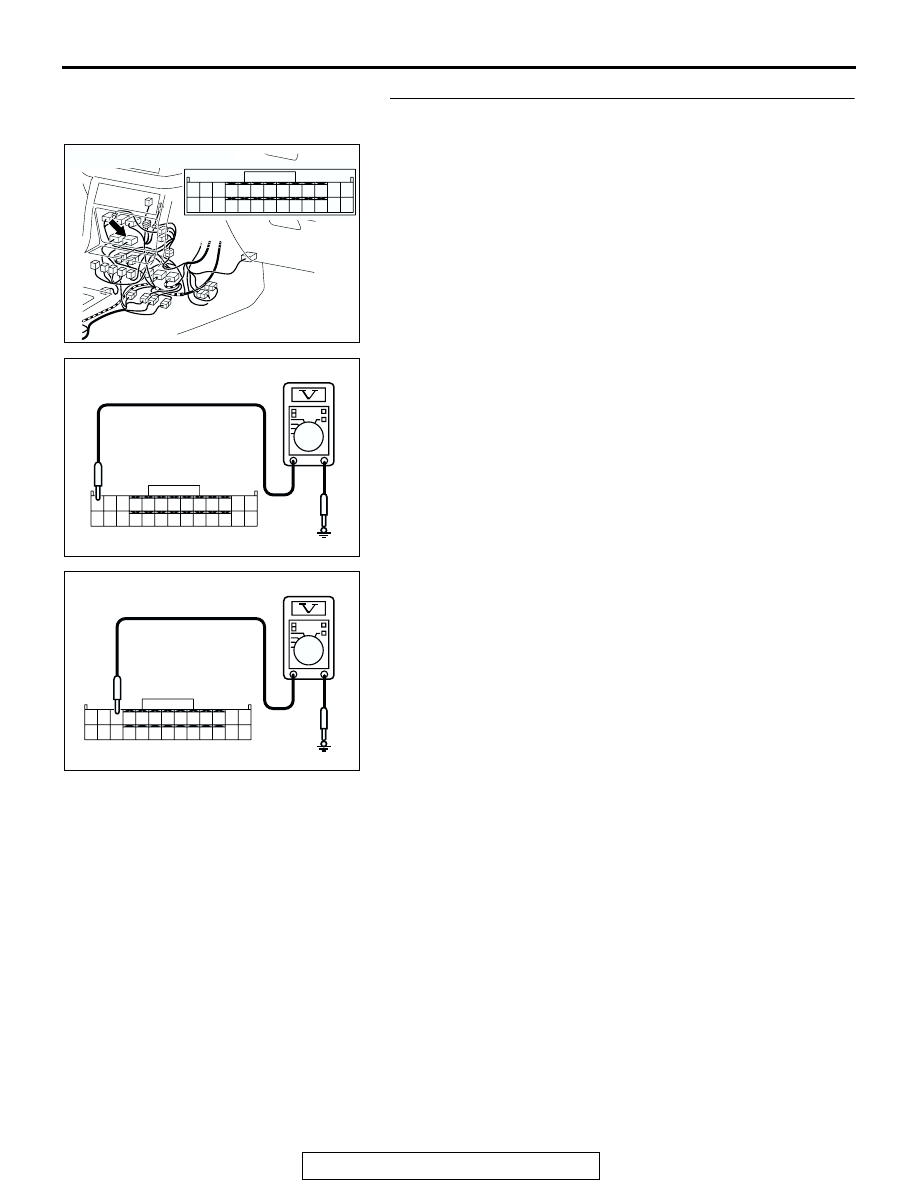

STEP 4. Measure the actuator output voltage at
transfer-ECU connector E-109 by backprobing.
(1) Do not disconnect connector E-109.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.

(4) Measure the voltage between terminal 1 and ground by

backprobing.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the voltage should measure 1/2

battery voltage

→ battery positive voltage → 1.0 volt or

less

→ 1/2 battery voltage.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the voltage should measure

1/2 battery voltage

→ 1.0 volt or less → 1/2 battery volt-

age.

(5) Measure the voltage between terminal 3 and ground by

backprobing.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the voltage should measure 1/2

battery voltage

→ 1.0 volt or less → 1/2 battery voltage.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the voltage should measure

1/2 battery voltage

→ battery positive voltage → 1.0 volt

or less

→ 1/2 battery voltage.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 7.
NO :  Go to Step 5.

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204918

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

BZ

E-109 HARNESS CONNECTOR :
HARNESS SIDE

AC204918

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

CB

E-109 HARNESS CONNECTOR :
HARNESS SIDE

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-509

STEP 5. Check shift actuator connector C-09 and
transfer-ECU connector E-109 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 6. Check harnesses for short circuit to ground
between shift actuator connector C-09 terminals 2, 1 and
transfer-ECU connector E-109 terminals 1, 3.
Q: Are the harnesses wire in good condition?

YES : Go to Step 9.
NO :  Repair or replace the harness wire.

AC204395

CONNECTOR : C-09

AH

C-09 (GR)

2

1

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204395

CONNECTOR : C-09

AH

C-09 (GR)

2

1

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-510

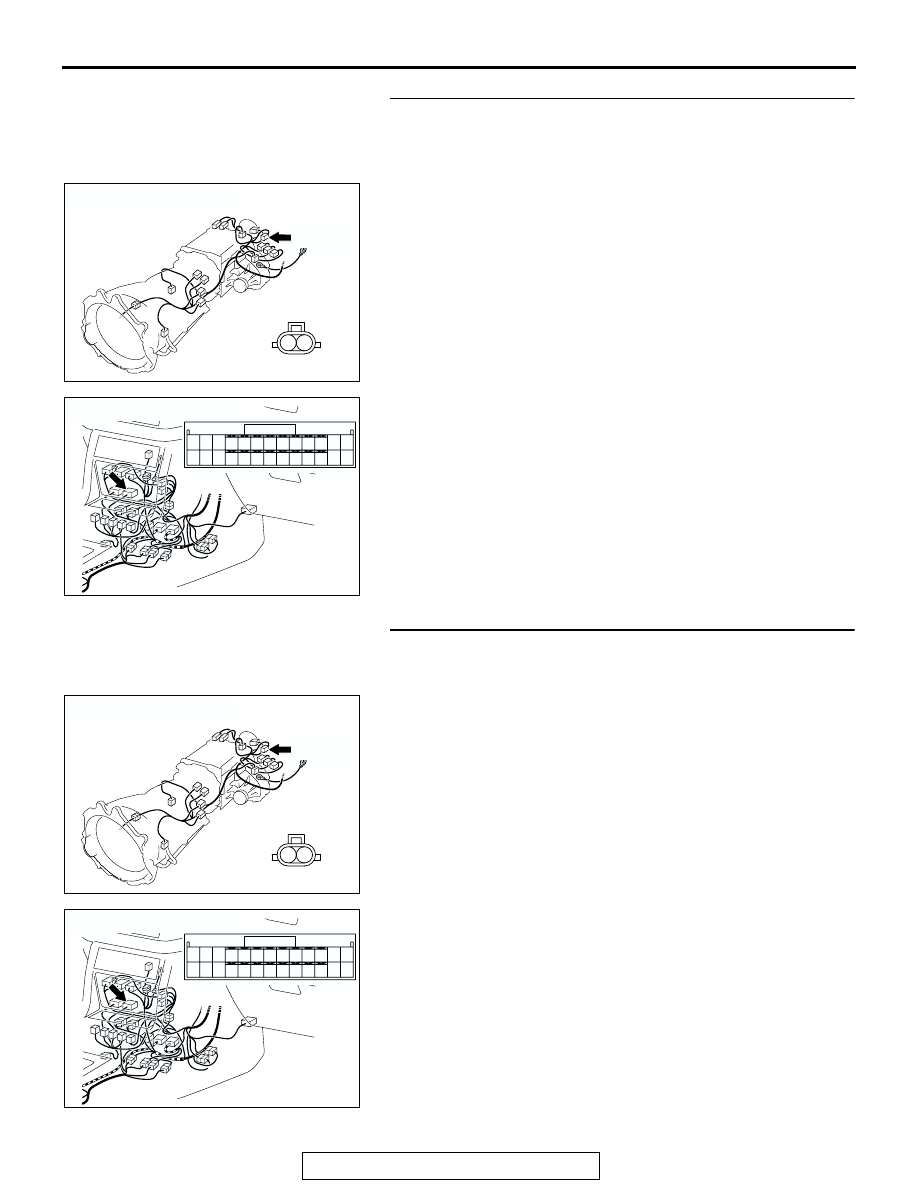

STEP 7. Check shift actuator connector C-09 and
transfer-ECU connector E-109 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 8. Check harnesses for open circuit between shift
actuator connector C-09 terminals 2, 1 and transfer-ECU
connector E-109 terminals 1, 3.
Q: Are the harnesses wire in good condition?

YES : Go to Step 9.
NO :  Repair or replace the harness wire.

AC204395

CONNECTOR : C-09

AH

C-09 (GR)

2

1

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204395

CONNECTOR : C-09

AH

C-09 (GR)

2

1

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18
