TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-459

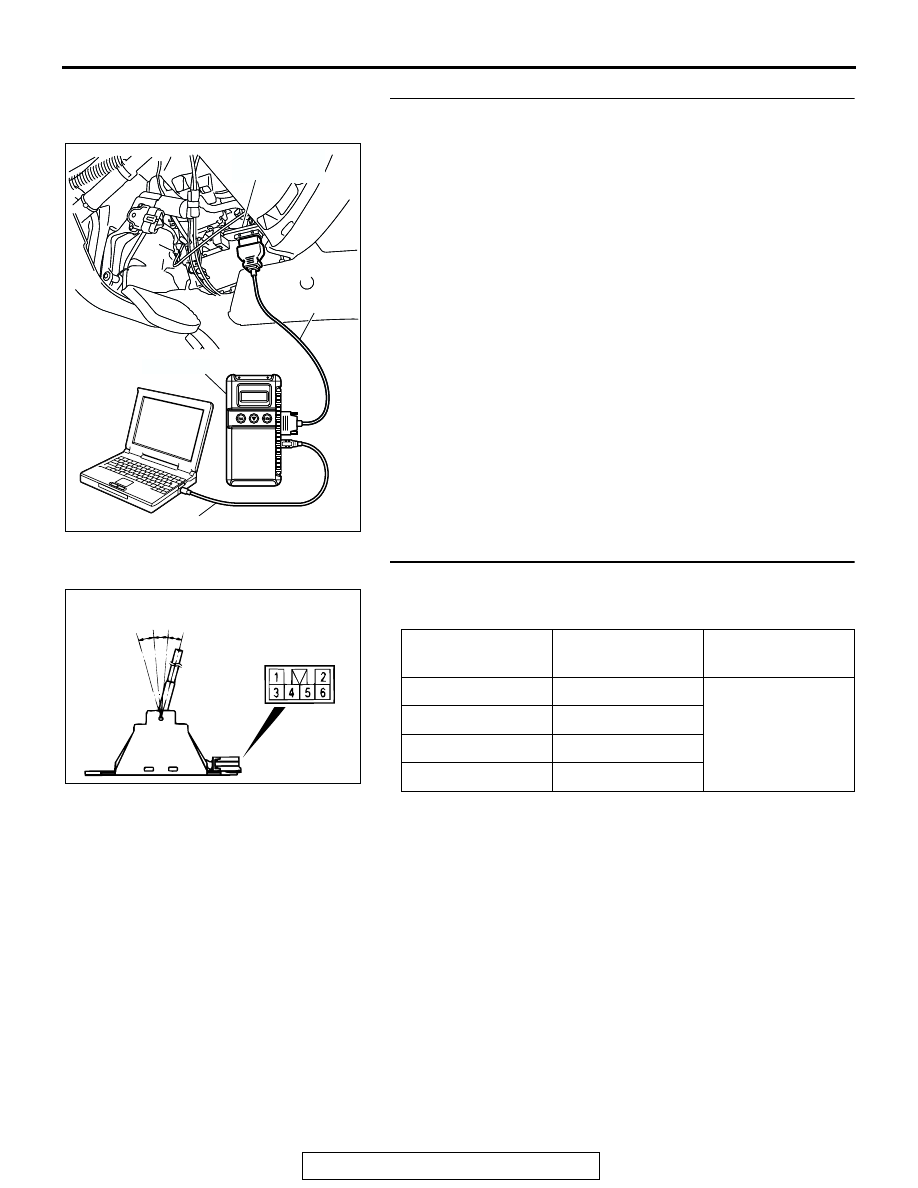

STEP 2. Using scan tool MB991958, check data list item 07:
Transfer Mode Detected.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.
(4) Set scan tool MB991958 to data reading mode.

• Item 07: Transfer Mode Detected.

• Display should be the same as the actual transfer

shift lever position.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are all position operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Go to Step 3.

STEP 3. Check the transfer shift lever switch.
Check for resistance between terminals for each transfer shift
lever position.

Q: Is the switch operating properly?

YES : Go to Step 4.
NO :  Replace the transfer shift lever switch. Refer to

P.23A-556

, Transmission Control.

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR

TRANSFER SHIFT
LEVER POSITION

TERMINAL
NUMBER

SPECIFIED
CONDITION

2H

1

− 3

Less than 2 ohms.

4H

1

− 5

4HLc

1

− 6

4LLc

1

− 2

ACX01331AB

4LLc

4HLc

4H

2H

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-460

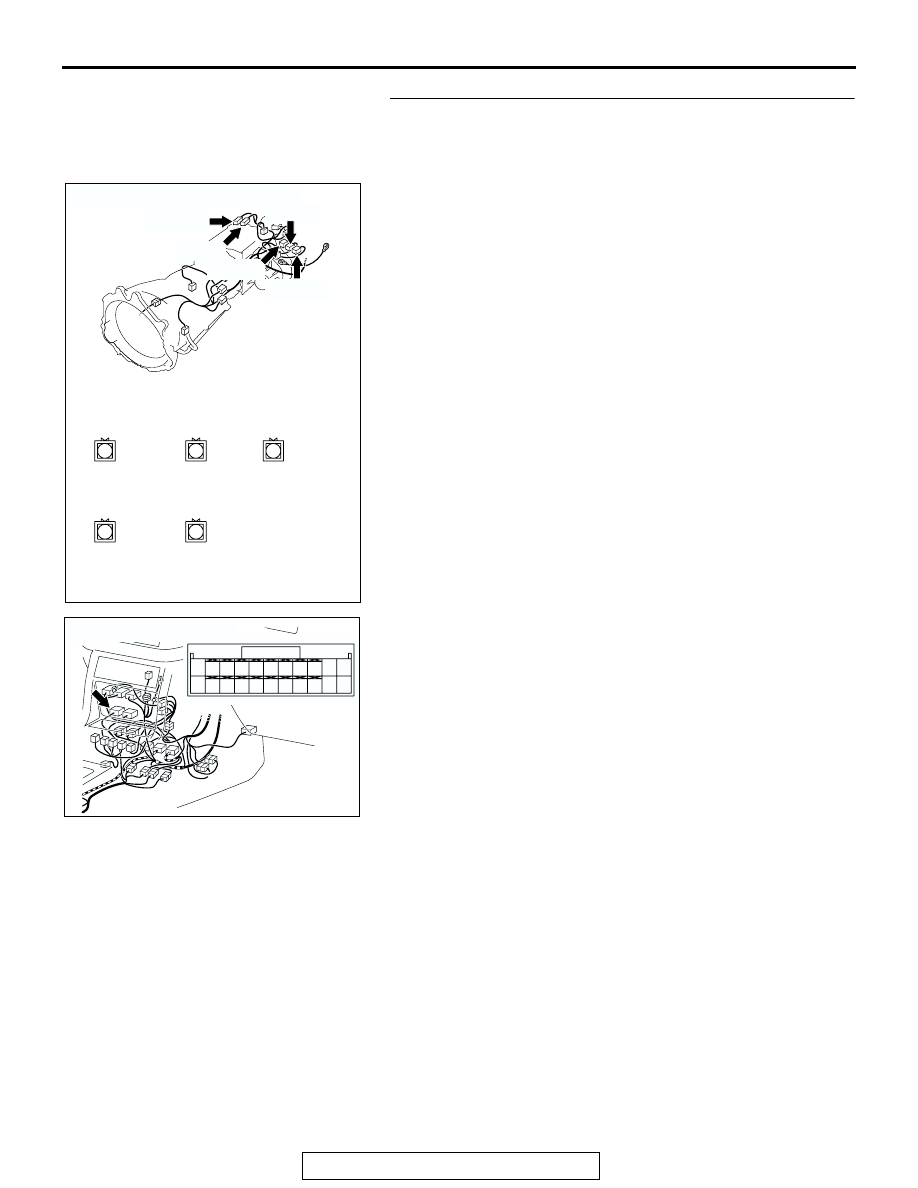

STEP 4. Measure the switch output voltage at each
detection switch connectors C-05, C-06, C-10, C-11, C-12.
(1) Disconnect connectors C-05, C-06, C-10, C-11, C-12 and

measure at the harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 1 and ground.

• The voltage should measure between battery positive

voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 10.
NO :  Go to Step 5.

AC204510

CONNECTORS : C-05, C-06, C-10, C-11, C-12

C-05 (BR)

C-05

C-06 (B)

C-06

C-10 (B)

C-10

C-11 (W)

C-11

C-12 (BR)

C-12

AC

1

1

1

1

1

AC204918 AN

C-05, C-06, C-10, C-11, C-12 HARNESS
CONNECTOR :
COMPONENT SIDE

1

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-461

STEP 5. Measure the switch output voltage at transfer-ECU
connector E-104 by backprobing.
(1) Do not disconnect connector E-104.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminals 43 44, 45, 46, 47

and ground by backprobing.

• The voltage should measure battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 8.
NO :  Go to Step 6.

AC204176

CONNECTOR : E-104

BA

51

40

3839

50

41

52

48

37

46

35

47

36

45

34

43

32

44

33

49

42

31

AC204918 BX

E-104 HARNESS CONNECTOR :
HARNESS SIDE

51

40

3839

50

41

52

48

37

46

35

47

36

45

34

43

32

44

33

49

42

31

TRANSFER DIAGNOSIS <ACTIVE TRAC AWD II>

TSB Revision

AUTOMATIC TRANSMISSION

23A-462

STEP 6. Check each detection switch connectors C-05,
C-06, C-10, C-11, C-12 and transfer-ECU connector E-104
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204510

CONNECTORS : C-05, C-06, C-10, C-11, C-12

C-05 (BR)

C-05

C-06 (B)

C-06

C-10 (B)

C-10

C-11 (W)

C-11

C-12 (BR)

C-12

AC

1

1

1

1

1

AC204176

CONNECTOR : E-104

BA

51

40

3839

50

41

52

48

37

46

35

47

36

45

34

43

32

44

33

49

42

31
