DTC 23 (P0720): Output Shaft Speed Sensor System

AC205190 AC

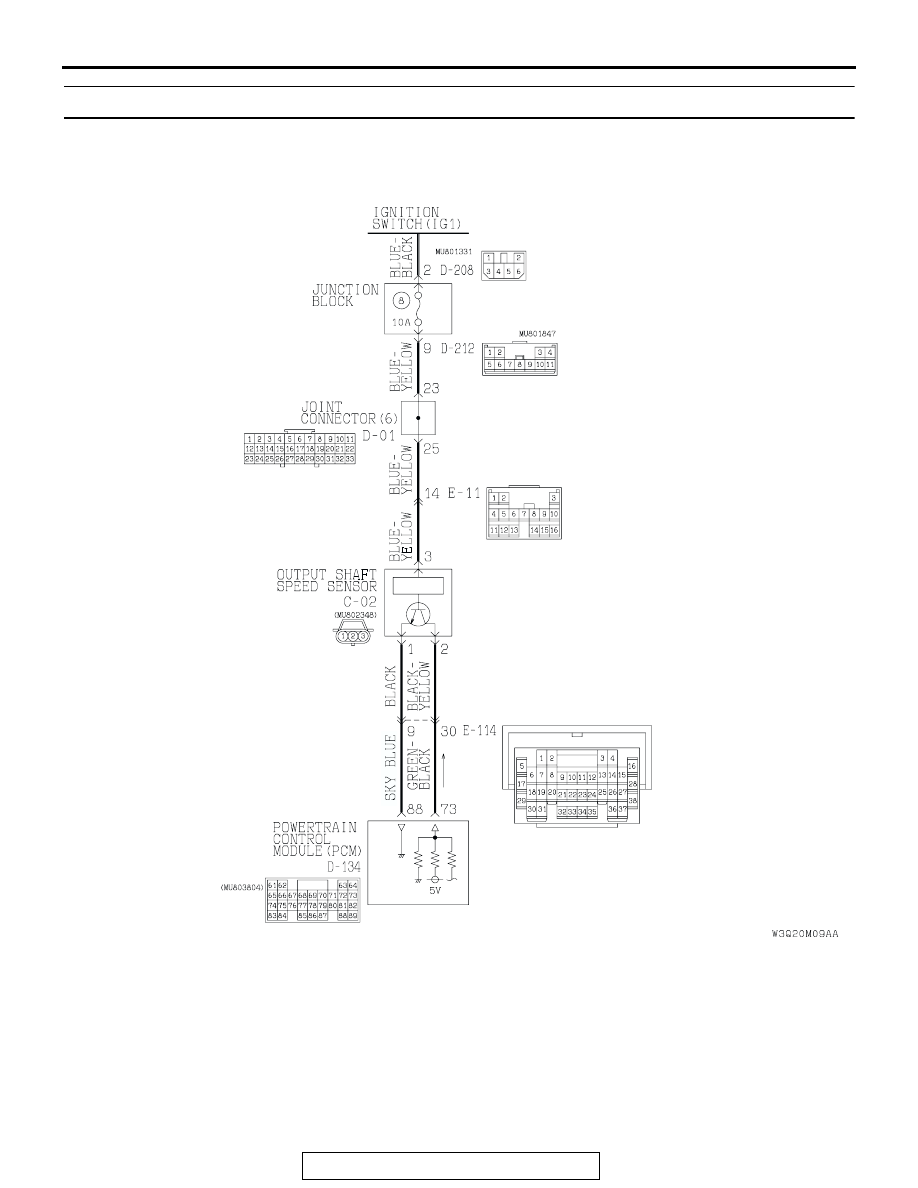

Output Shaft Speed Sensor System Circuit

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-92

AC204746

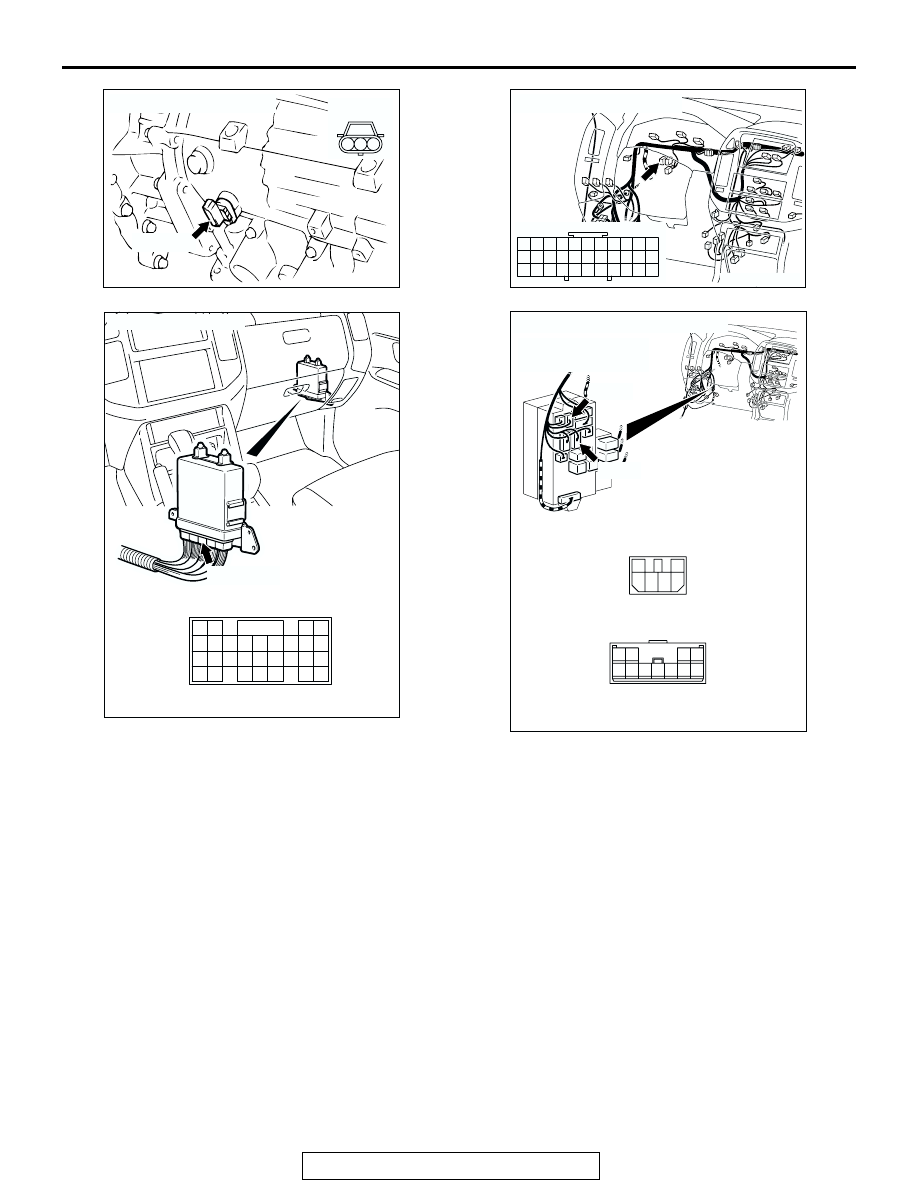

CONNECTOR : C-02

C-02 (GR)

AB

1 2 3

AC204170

CONNECTOR : D-01

CD

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204191

CONNECTORS : D-208, D-212

5 6

2

4

3

1

JUNCTION BLOCK
(FRONT VIEW)

3

10

9

4

11

8

7

1

5

2

6

D-208

D-208

D-212

D-212

AS

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-93

.

CIRCUIT OPERATION

• The output shaft speed sensor generates a 0 ⇔ 5

volt pulse signal when the output shaft rotates.
The pulse signal frequency increases with a rise
in output shaft speed.

• The output shaft speed sensor is connected to

the PCM (terminals 73 and 88) via the output
shaft speed sensor connector (terminals 1 and 2).

• The PCM detects the output shaft speed by the

signal input to terminal 73.

• The output shaft speed sensor generates the

pulse signal as the teeth of the output shaft pass
the magnetic tip of the sensor.

.

DESCRIPTIONS OF MONITOR METHODS
During driving test at more than specified speed, if
vehicle speed calculated from output revolution is
below half of vehicle speed from vehicle speed sen-
sor, PCM judges that output shaft speed sensor cir-
cuit is open.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• DTC 29 (P0500): Vehicle speed sensor malfunc-

tion

Sensor (The sensor below is determined to be

normal)

• Vehicle speed sensor

.

AC204194

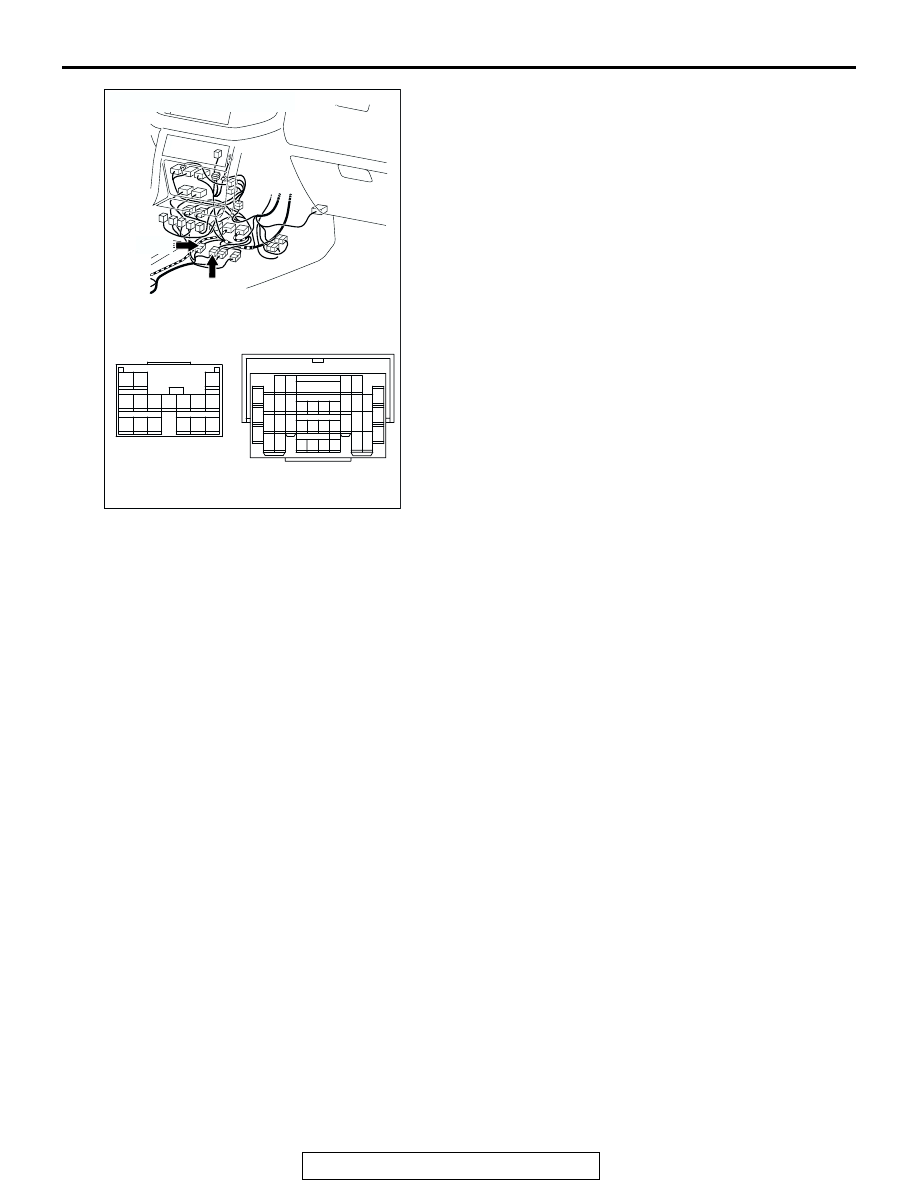

CONNECTORS : E-11, E-114

3

10

16

9

7 8

6

1

4

2

5

11

14

1213

15

BC

E-11

E-114

E-11

E-114

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-94

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Transmission range switch position: D.

• Vehicle speed: 30 km/h (19 mph) or more.

• Transmission fluid temperature sensor voltage:

4.5 volts or less.

Judgement Criteria

• Output shaft speed sensor signal: [0.5 × calcu-

lated output speed derived from vehicle speed] or
less. (4 seconds)

• If DTC 23 (P0720) is set consecutively four times,

the transmission is locked into 3rd gear or 2nd
gear as a fail-safe measure, and the "N" range
light flashes once per second.

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, shift to 3rd gear or higher, and drive
at 40 km/h (25 mph) or more for 4 seconds.

.

No

No

AC205225

N

E

 :

Engine speed

START

Yes

No

Transmission fluid
temperature sensor
voltage < 4.5 V

Transmission range
switch position is in
D, 3, 2 or L range

Shift stage is 1st or 2nd
and N

E

 < 2,600 r/min

Vehicle speed > 30 km/h (19 mph)

Yes

No

Yes

Yes

N

OPG-B

 < 0.5 × corresponding output

speed derived from vehicle speed

Continuous failure for 4 secs.

Good

Malfunction

END

Yes

No

Yes

No

N

OPG-B

: Output speed

            (output shaft speed sensor)

AB

Transmission range
switch position is in
D range
