Mitsubishi Montero (2004+). Manual - part 878





AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-87

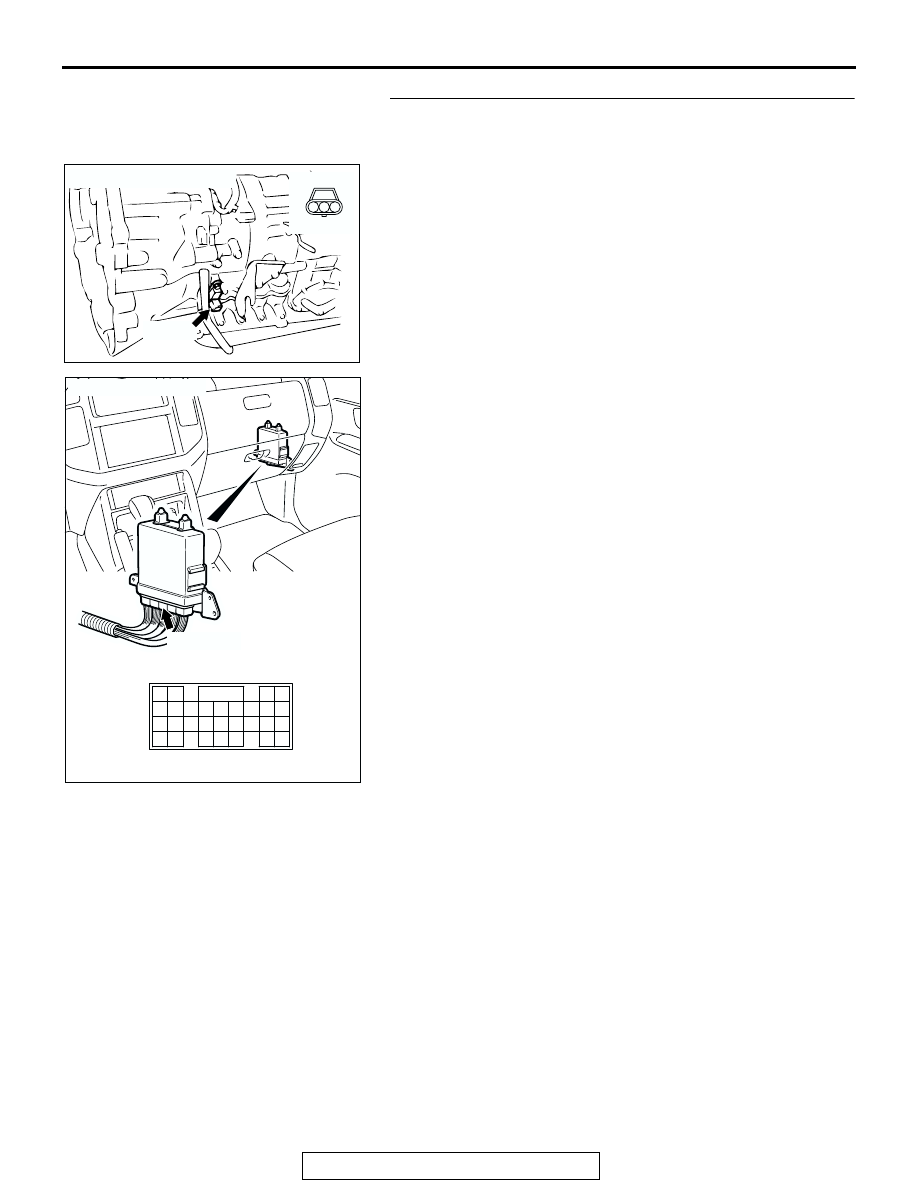

STEP 14. Check the harness for open circuit or damage
between input shaft speed sensor connector C-16 terminal
1 and PCM connector D-134 terminal 88.
Q: Is the harness wire in good condition?

YES : Go to Step 16.
NO :  Repair or replace the harness wire.

AC204747

CONNECTOR : C-16

C-16 (B)

AB

1

3

2

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-88

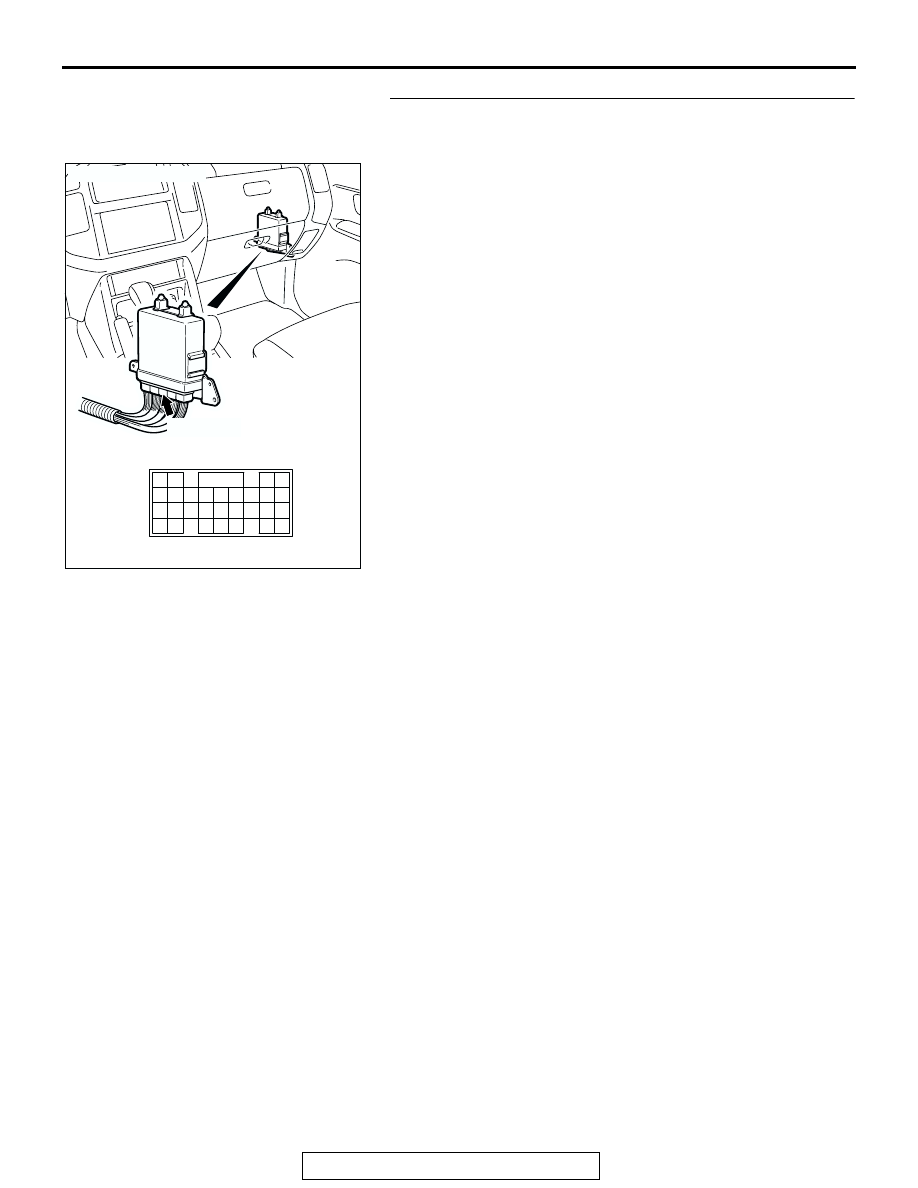

STEP 15. Check PCM connector D-134 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connector and terminals in good condition?

YES : Replace the PCM.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-89

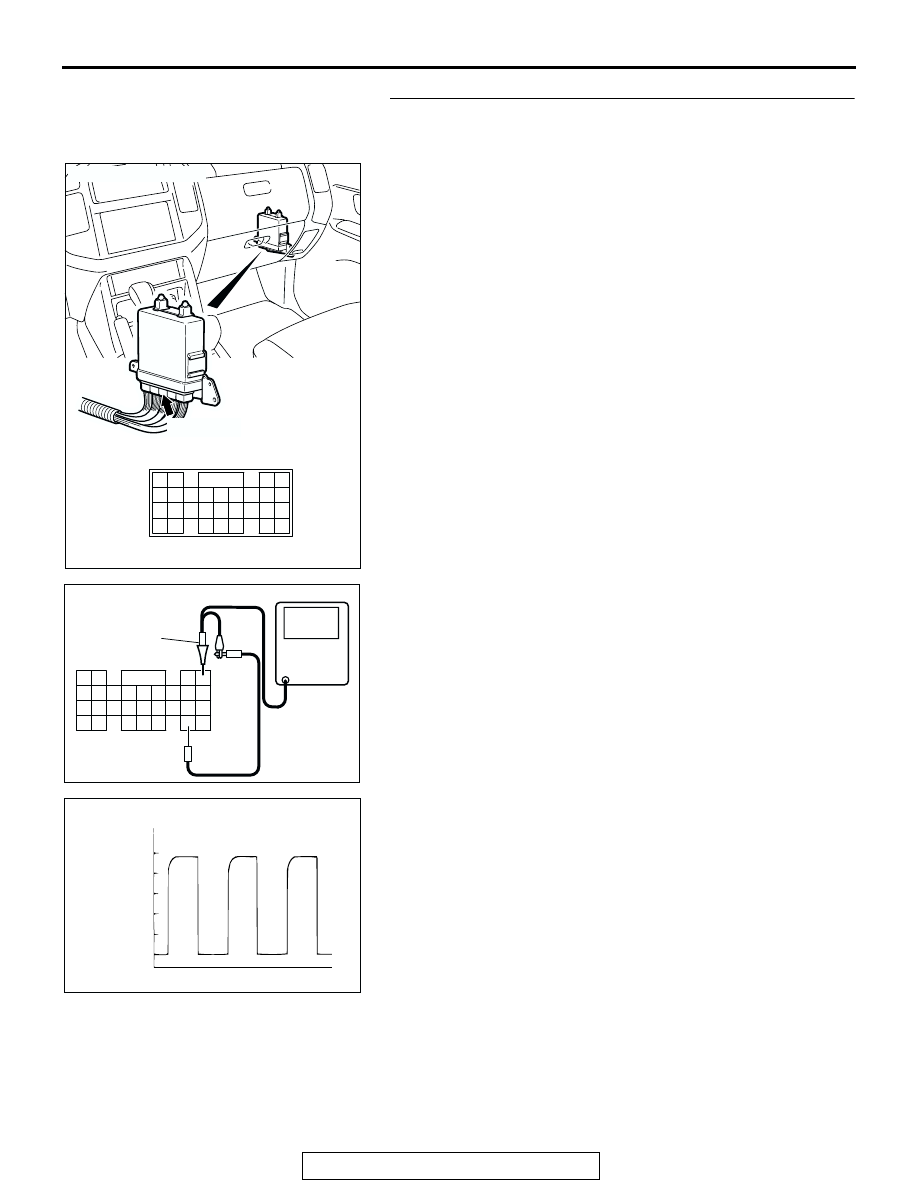

STEP 16. Using an oscilloscope, check the input shaft
speed sensor waveform at PCM connector D-134 by
backprobing.
(1) Do not disconnect connector D-134.

(2) Connect an oscilloscope probe to PCM connector D-134

terminal 64 and terminal 88 by backprobing.

(3) Start the engine and drive the vehicle at constant speed of

50 km/h (31 mph). (Gear range: 4th gear)

(4) Check the input shaft speed sensor waveform.

• The input shaft speed sensor waveform should show a

pattern similar to the illustration. The maximum value
should be 4.8 volts and more and the minimum value
0.8 volt and less. The output waveform should not con-
tain electrical noise.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : Go to Step 19.
NO :  Go to Step 17.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204946 AE

OSCILLO-
SCOPE

PROBE

D-134 HARNESS CONNECTOR :
HARNESS SIDE

76

85

65

72

71

73

82

75

81

74

63 64

66

70

69

68

67

78

87

79

88 89

80

77

86

62

61

83 84

ACX02131

NORMAL WAVEFORM

AD

(V)

5

0

AUTOMATIC TRANSMISSION DIAGNOSIS

TSB Revision

AUTOMATIC TRANSMISSION

23A-90

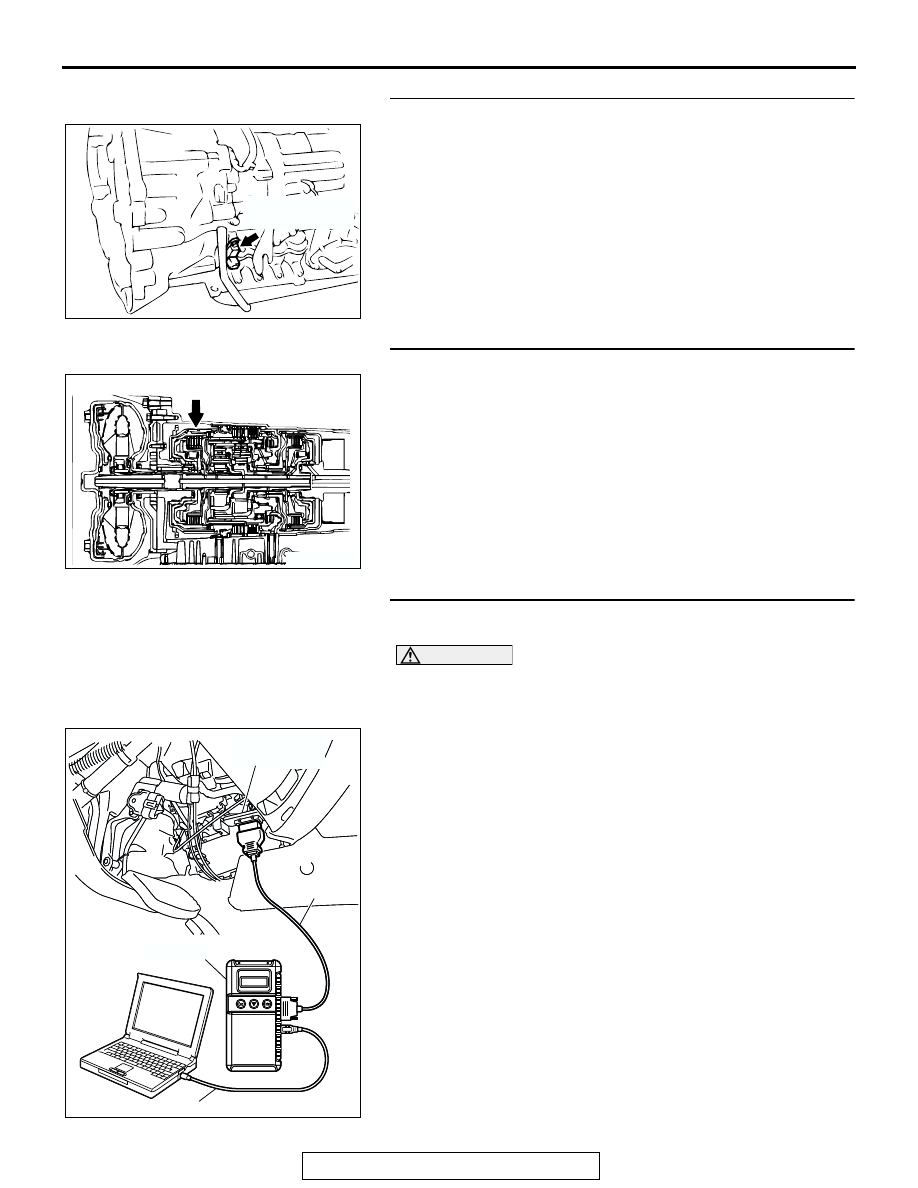

STEP 17. Replace the input shaft speed sensor.
(1) Replace the input shaft speed sensor. Refer to GROUP

23B, Transmission

P.23B-14

.

(2) Test drive the vehicle.
(3) Check for A/T diagnostic trouble code.
Q: Is A/T DTC 22 set?

YES : Go to Step 18.
NO :  The procedure is complete.

STEP 18. Replace the reverse clutch retainer.
(1) Replace the reverse clutch retainer. Refer to GROUP 23B,

Reverse and Overdrive Clutches

P.23B-50

.

(2) Test drive the vehicle.
(3) Check for A/T diagnostic trouble code.
Q: Is A/T DTC 22 set?

YES : An A/T DTC may have set due to external radio

frequency interference (RFI) possibility caused by
cellular phone activity, or aftermarket components
installed on the vehicle.

NO :  The procedure is complete.

STEP 19. Using scan tool MB991958, check data list item
22: Input Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to data reading mode.

• Item 22: Input Shaft Speed Sensor.

• When driving at constant speed of 50 km/h (31

mph), the display should be "1,400

− 1,700 r/min"

(Gear range: 4th gear).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

ACX01225AE

INPUT SHAFT
SPEED SENSOR

ACX02132AB

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR
