OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-41

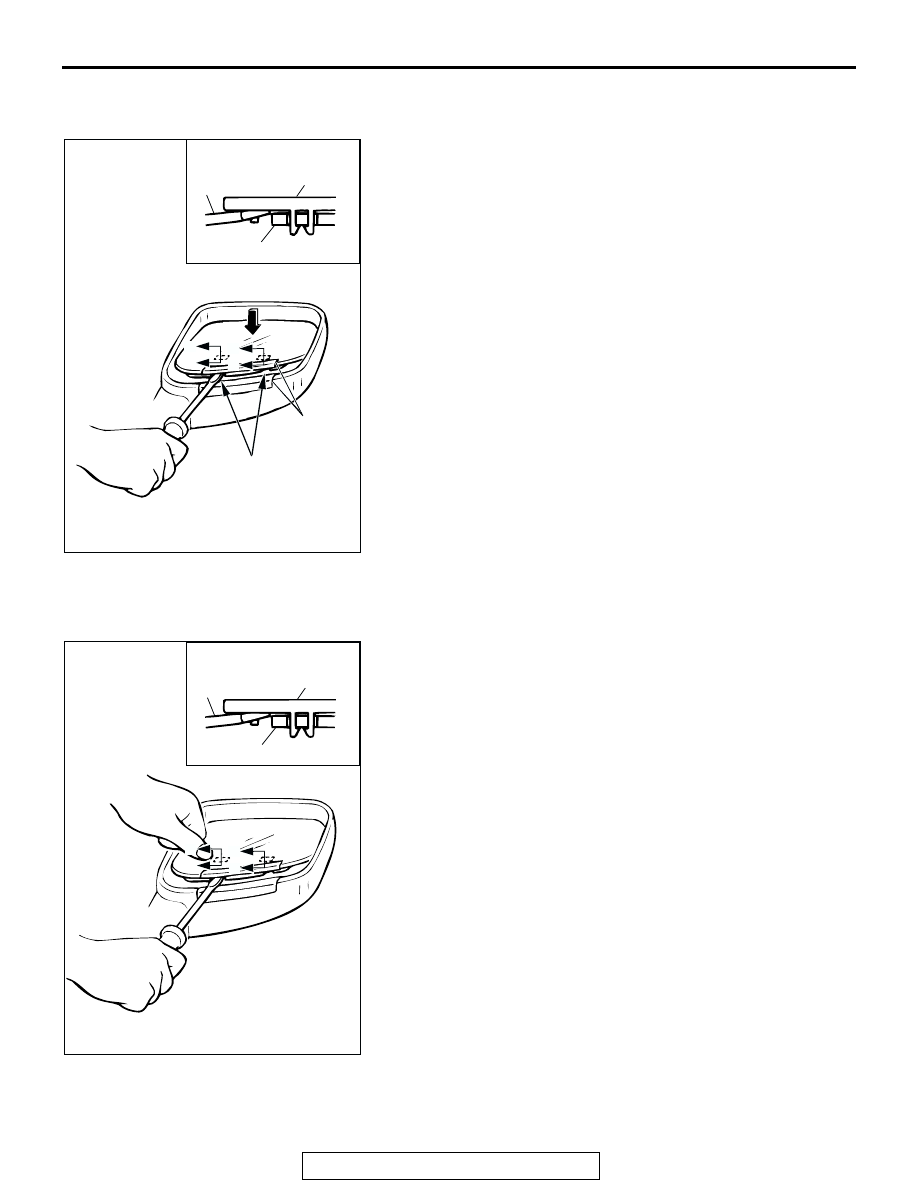

REMOVAL SERVICE POINT

.

<<A>> MIRROR REMOVAL
Push the top of the mirror with your hand to tilt it and attach the
protective tape as shown in the illustration. Then insert a
flat-tipped screwdriver in between the notch at the rear of the
mirror and the pivot plate, and disengage the bottom of the mir-
ror.

INSTALLATION SERVICE POINT

.

>>A<< MIRROR INSTALLATION
While supporting the clip position on the underside of the pivot
plate with a flat-tipped screwdriver, press the clip at the front of
the mirror to engage the bottom of the mirror.

AC000441

00007256

MIRROR

FLAT-TIPPED
SCREWDRIVER

SECTION A – A

PIVOT PLATE

NOTCH

PROTECTIVE
TAPE

A
A

A
A

AB

AC000442

00007258

MIRROR

FLAT-TIPPED
SCREWDRIVER

SECTION A – A

PIVOT PLATE

A
A

A
A

AB

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-42

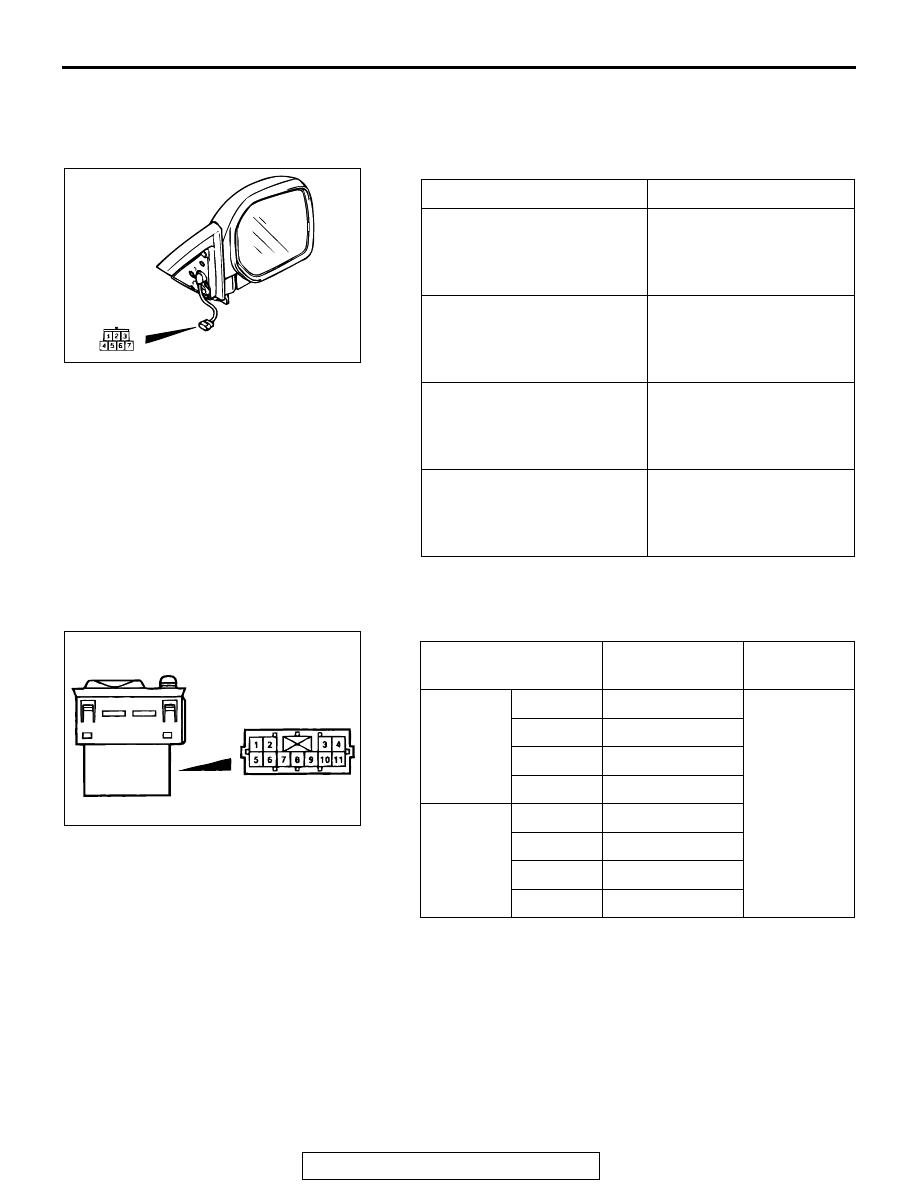

INSPECTION

M1511019100608

REMOTE CONTROLLED MIRROR ASSEMBLY
CHECK

REMOTE CONTROLLED MIRROR SWITCH
CONTINUITY CHECK

BATTERY CONNECTION

SPECIFIED CONDITION

• Connect terminal 6 to the

negative battery terminal

• Connect terminal 4 to the

positive battery terminal

Mirror glass should face
upward

• Connect terminal 4 to the

negative battery terminal

• Connect terminal 6 to the

positive battery terminal

Mirror glass should face
downward

• Connect terminal 5 to the

negative battery terminal

• Connect terminal 6 to the

positive battery terminal

Mirror glass should face to
the right

• Connect terminal 6 to the

negative battery terminal

• Connect terminal 5 to the

positive battery terminal

Mirror glass should face to
the left

AC000443

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Left side

Up

1

− 6, 9 − 11

Less than 2
ohms

Down

1

− 11, 6 − 9

Right

1

− 6, 9 − 10

Left

1

− 10, 6 − 9

Right side Up

1

− 6, 3 − 9

Down

1

− 3, 6 − 9

Right

1

− 6, 2 − 9

Left

1

− 2, 6 − 9

AC000444

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-43

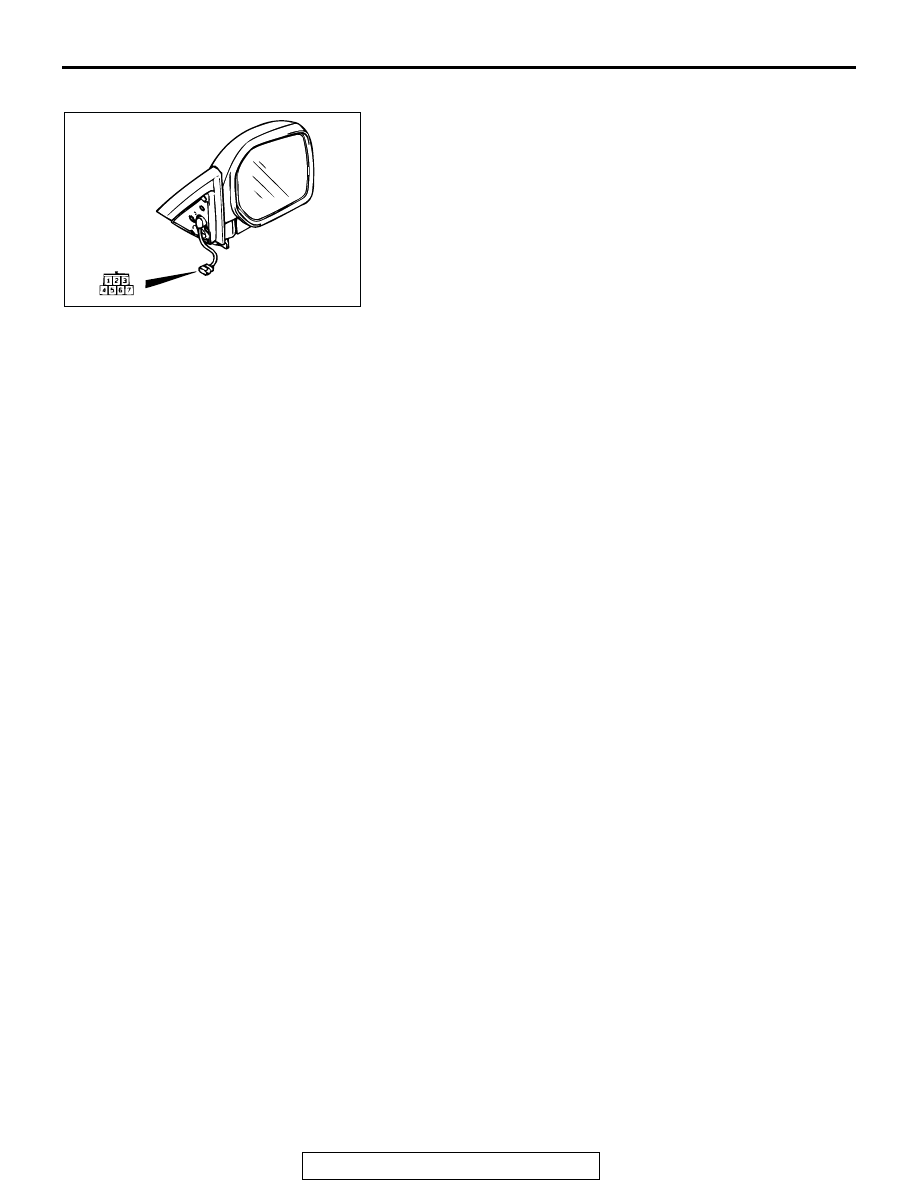

HEATING ELEMENT FUNCTION CHECK

For vehicles with heated door mirrors, check that there is conti-
nuity between terminals (3) and (7).

AC000443

SPECIFICATIONS

TSB Revision

EXTERIOR

51-44

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1511015300310

SERVICE SPECIFICATIONS

M1511000300240

SEALANTS AND ADHESIVES

M1511000500482

ITEM

SPECIFICATION

Rear deflector
Rear deflector bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Rear deflector nut

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Side step <Type A>
Side step assembly nut

11

± 2 N⋅m (98 ± 17 in-lb)

Side step assembly bolt

60

± 5 N⋅m (45 ± 3 ft-lb)

Side step <Type B>
Side step assembly bolt

60

± 5 N⋅m (45 ± 3 ft-lb)

Windshield wiper and washer
Wiper arm and blade assembly nut

24

± 3 N⋅m (18 ± 2 ft-lb)

Wiper link assembly bolt

4.9

± 1.0 N⋅m (44 ± 8 in-lb)

Wiper motor assembly bolt

8.9

± 1.9 N⋅m (79 ± 17 in-lb)

Inlet assembly bolt

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Washer tank assembly bolt

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Rear wiper and washer
Wiper arm and blade assembly nut

8.0

± 1.2 N⋅m (71 ± 10 in-lb)

Wiper motor assembly bolt

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Washer tank assembly bolt

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

Washer motor bolt

4.9

± 0.7 N⋅m (44 ± 6 in-lb)

ITEM

STANDARD VALUE

Windshield wiper blade position
installation mm (in)

Driver's side

20

− 30 (0.8 − 1.2)

Passenger's side

25

− 35 (1.0 − 1.4)

Rear wiper blade position installation mm (in)

25

− 35 (1.0 − 1.4)

ITEM

SPECIFICATION

Front wheel cut molding

Adhesive tape: Double-sided tape 4.0 mm (0.16 in) width and 1.2 mm
(0.05 in) thickness and 30.0 mm (1.18 in) width and 0.8 mm (0.03 in)
thickness and 35.0 mm (1.38 in) width and 1.2 mm (0.05 in) thickness

Front door molding

Adhesive tape: Double-sided tape 4.0 mm (0.16 in) width and 1.2 mm
(0.05 in) thickness

Front door core (front door
molding side, front door side)

Adhesive tape: Double-sided tape 5.0 mm (0.20 in) width and 2.0 mm
(0.08 in) thickness

Rear door molding

Adhesive tape: Double-sided tape 4.0 mm (0.16 in) width and 1.2 mm
(0.05 in) thickness and 24.0 mm (0.95 in) width and 1.2 mm (0.05 in)
thickness
