MARK

TSB Revision

EXTERIOR

51-37

MARK

REMOVAL AND INSTALLATION

M1511011800595

Required Special Tool:

• MB990528: Stripe Tape Spatula

INSTALLATION SERVICE POINT

.

>>A<< MARK INSTALLATION

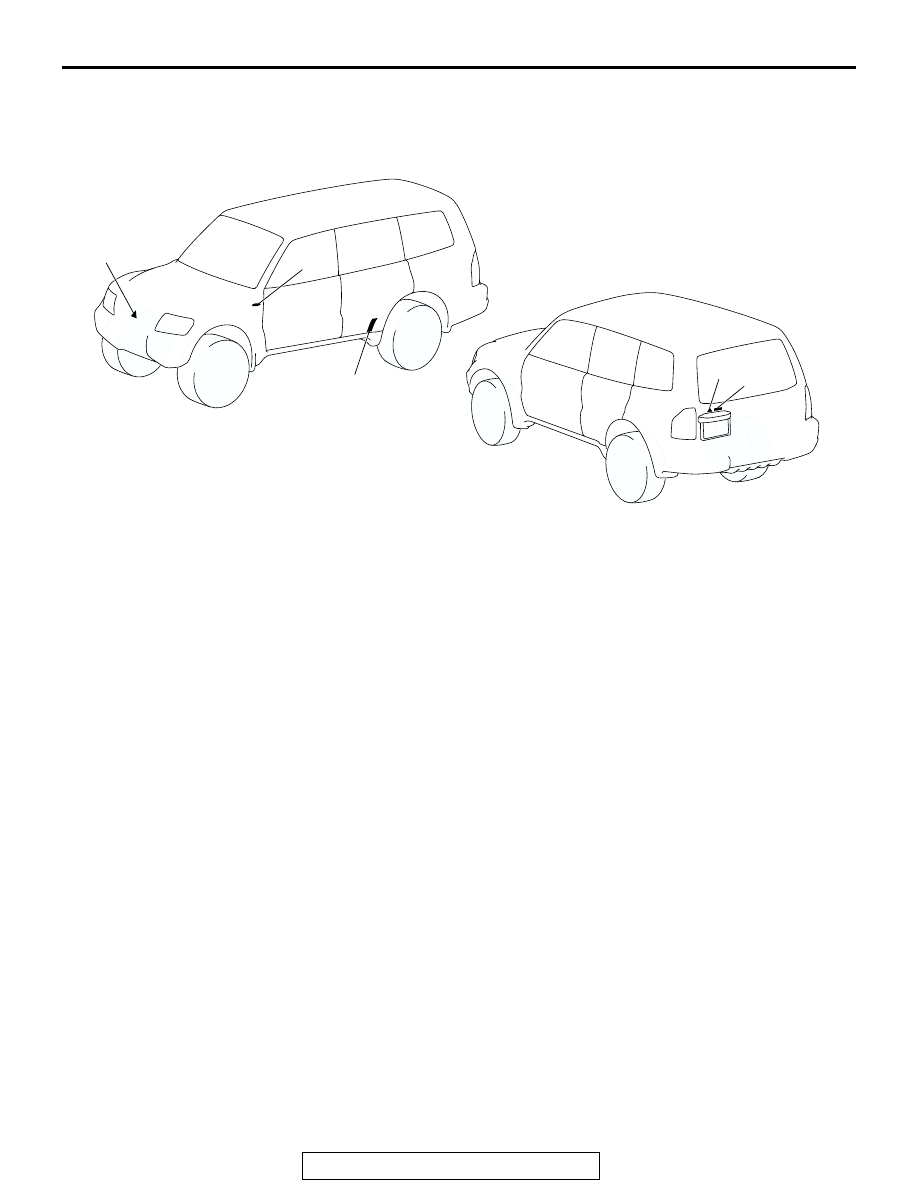

1. Installation position

Attach to the position shown in the illustration.

AC309360

1

2

3

4

5

AB

1. FRONT THREE-DIAMOND MARK
2. MONTERO MARK

>>A<<

3. PROTECTOR FILM

>>A<<

4. REAR THREE-DIAMOND MARK

>>A<<

5. GRADE MARK

MARK

TSB Revision

EXTERIOR

51-38

2. Installation procedure

(1) Use 3M

 AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

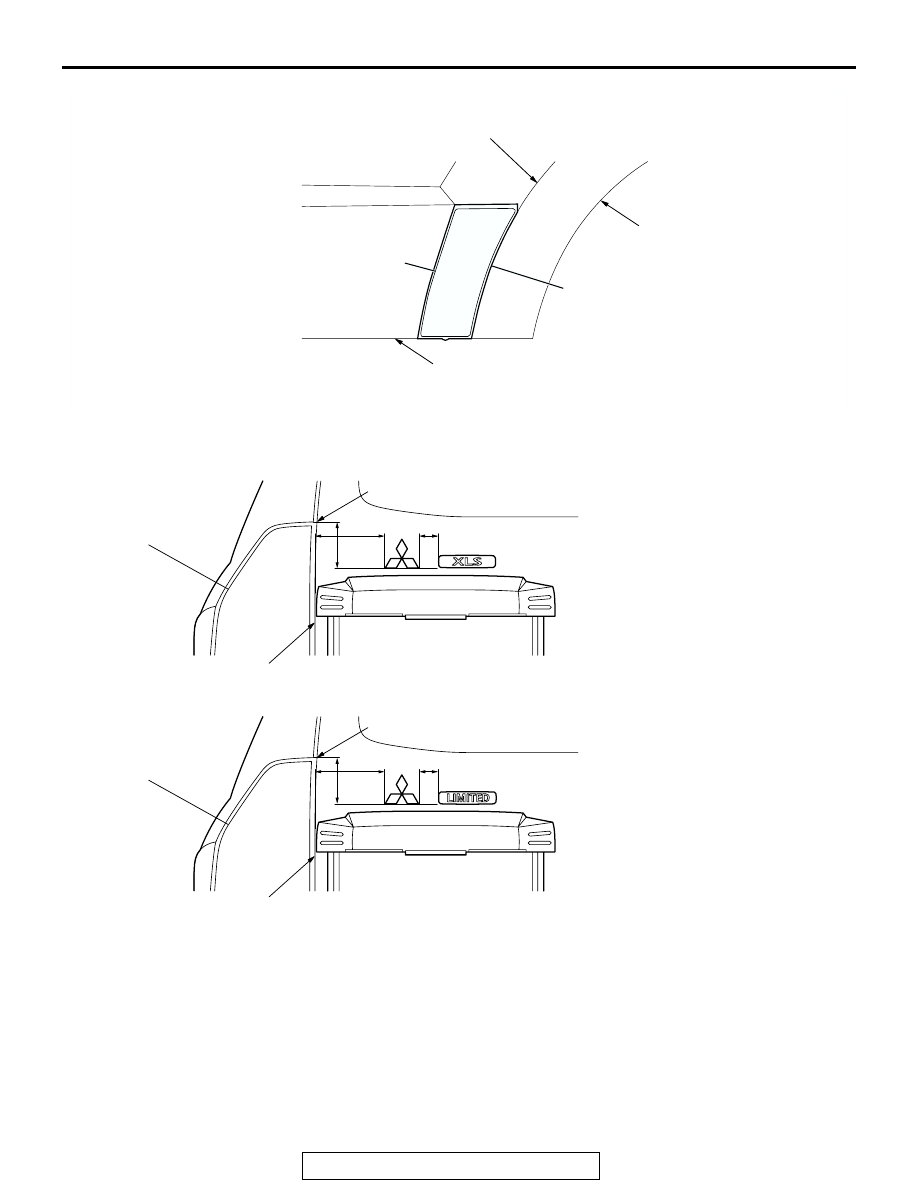

AC309357

REAR DOOR OUTER PANEL

REAR DOOR OUTER BEND LINE

REAR DOOR END LINE

APLICATION TAPE

PROTECTOR FILM

AB

PROTECTOR FILM

AC204140

SIDE OUTER PANEL END LINE

UNITS: mm (in)

SIDE OUTER PANEL END LINE

85 (3.4)

35 (1.4)

125 (4.9)

85 (3.4)

35 (1.4)

125 (4.9)

THREE-DIAMOND MARK, GRADE MARK (XLS, LIMITED)

CONBINATION LIGHT

CONBINATION LIGHT

BACK DOOR END LINE

BACK DOOR END LINE

AB

MARK

TSB Revision

EXTERIOR

51-39

CAUTION

When attaching the marks, the ambient temperature
should be 20

° − 38°C (60° − 100°F) and the air should be

completely free of dust. If the ambient temperature is lower
than 20

°C (60°F), the marks and the places on the vehicle

body where the marks are to be attached should be heated
to 20

° − 38°C (60° − 100°F).

(2) Peel off the backing paper from the reverse side of the

marks, carefully attach the marks to the vehicle body in
the exact position shown.

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-40

OUTSIDE MIRROR

REMOVAL AND INSTALLATION

M1511024400014

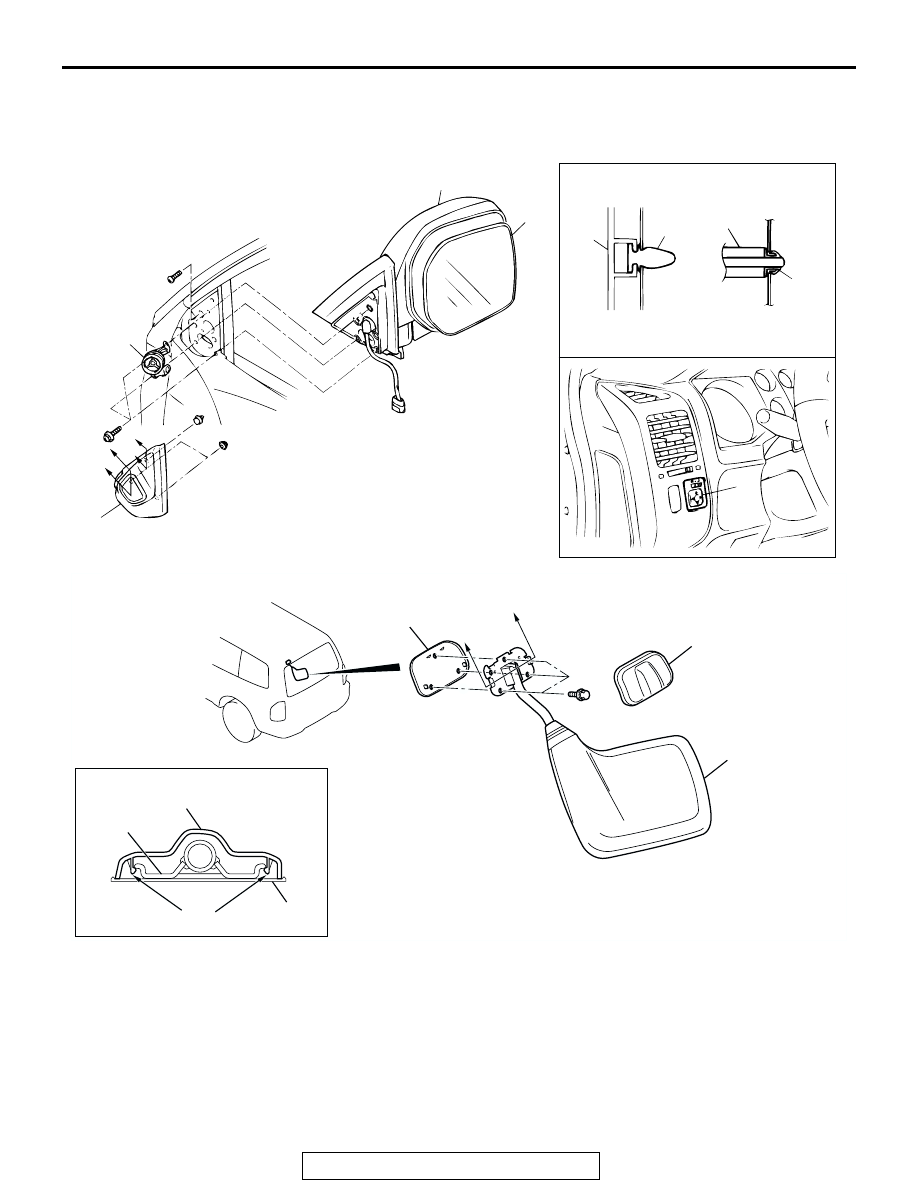

AC309201

1

2

3

4

1

1

5

6

A
A

B

B

CLIP

CLIP

SECTION A – A

SECTION B – B

AB

<DOOR MIRROR>

AC309189

TAB

7

11

8

9

7

8

AB

SECTION C – C

<REAR UNDER MIRROR>

C

C

DOOR MIRROR REMOVAL STEPS
1. DELTA COVER, INNER
2. TWEETER COVER
3. DOOR MIRROR ASSEMBLY

<<A>> >>A<<

4. MIRROR
REMOTE CONTROLLED MIRROR
SWITCH REMOVAL STEPS
5. AIR OUTLET ASSEMBLY (REFER

TO GROUP 52A, INSTRUMENT
PANEL

P.52A-3

).

6. REMOTE CONTROLLED MIRROR

SWITCH

REAR UNDER MIRROR REMOVAL
STEPS
7. REAR UNDER MIRROR COVER
8. REAR UNDER MIRROR
9. REAR UNDER MIRROR GASKET

REMOTE CONTROLLED MIRROR
SWITCH REMOVAL STEPS
