REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

M1511008800108

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-120

.

AC309462

7

5

8.0 ± 1.2 N·m
71 ± 10 in-lb

1

4.9 ± 0.7 N·m
44 ± 6 in-lb

3

2

6

4.9 ± 0.7 N·m
44 ± 6 in-lb

4

4.9 ± 0.7 N·m
44 ± 6 in-lb

AB

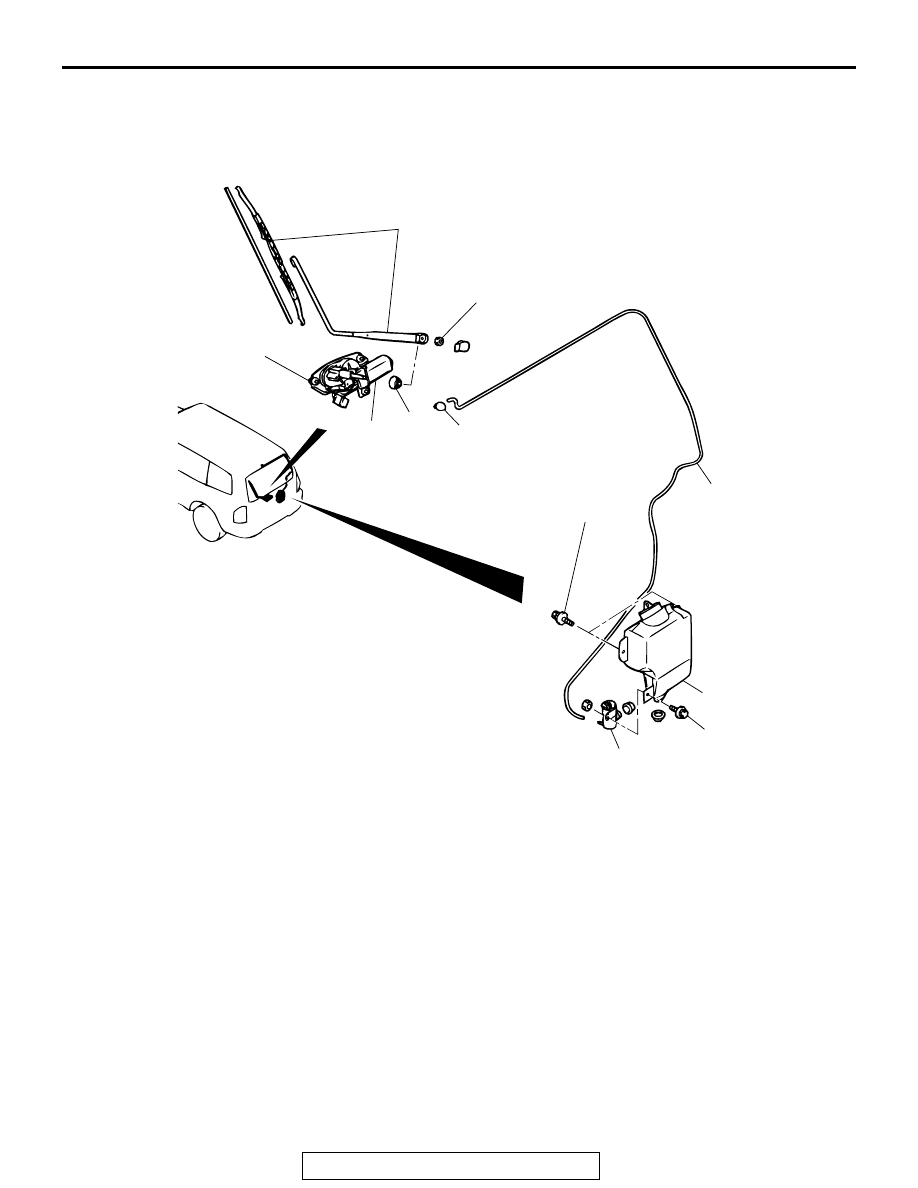

REAR WIPER MOTOR ASSEMBLY
REMOVAL STEPS
• TOOLBOX BRACKET, UPPER

(REFER TO GROUP 42, DOOR
TRIM AND WATERPROOF FILM

P.42-54

).

>>B<<

1. REAR WIPER ARM AND BLADE

ASSEMBLY

>>A<<

2. GROMMET
3. REAR WIPER MOTOR ASSEMBLY
REAR WASHER TANK ASSEMBLY
AND REAR WASHER MOTOR
REMOVAL STEPS
• WATERPROOF FILM (REFER TO

GROUP 42A, DOOR TRIM AND
WATERPROOF FILM

P.42-54

).

4. REAR WASHER TANK ASSEMBLY
5. REAR WASHER MOTOR
REAR WASHER HOSE REMOVAL
STEPS
6. WASHER NOZZLE
• WATERPROOF FILM (REFER TO

GROUP 42A, DOOR TRIM AND
WATERPROOF FILM

P.42-54

).

7. REAR WASHER HOSE

REAR WASHER TANK ASSEMBLY
AND REAR WASHER MOTOR
REMOVAL STEPS (Continued)

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-34

INSTALLATION SERVICE POINTS

.

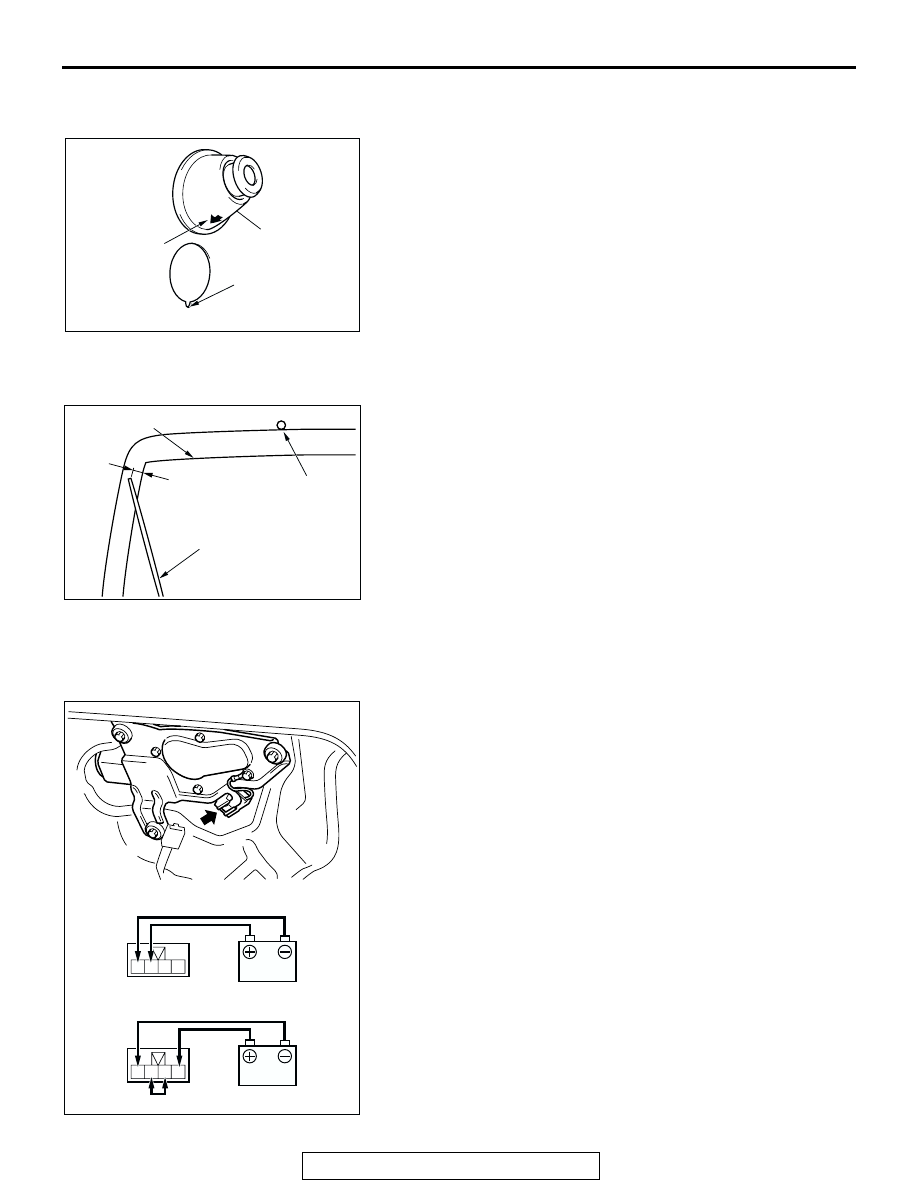

>>A<< GROMMET INSTALLATION
Install so that the matching mark on the grommet is aligned
with the notch in the mounting hole.

.

>>B<< REAR WIPER ARM AND BLADE ASSEMBLY
INSTALLATION
Install so that the end of the wiper blade stops at the specified
position (standard value).

Standard value (A): 25

± 35 mm (1.0 ± 1.4 inches)

INSPECTION

M1511019100255

REAR WIPER MOTOR CHECK

The rear wiper motor assembly should be installed to the vehi-
cle body and the harness connector should be disconnected
when checking the wiper motor.

.

Wiper Motor Operation
Connect the battery to the wiper motor as shown in the illustra-
tion, and then check the operation of the wiper motor.

.

Wiper Motor at Stop Position Operation
1. Operate the wiper motor by the same method as described

in the check procedure above. Then, while the motor is
operating, disconnect the battery to make the wiper motor
stop.

2. Reconnect the battery as shown in the illustration, and then

check whether the wiper motor automatically stops in the
correct stop position after it has been running.

X1159CA

ACX00452

NOTCH

MATCHING
MARK

GROMMET

AB

X1137CA

ACX00451AB

REAR WASHER NOZZLE

A

END OF CERAMIC LINE

REAR WIPER BLADE

1 2 3 4

1 2 3 4

ACX00453

OPERATION CHECK

AB

STOP POSITION CHECK

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-35

REAR WASHER MOTOR CHECK

1. The rear washer tank assembly should be installed and the

rear washer tank should be filled with water when checking
the washer motor.

2. Check that water is sprayed out strongly when system

voltage is applied to terminal (2) and terminal (1) is
grounded.

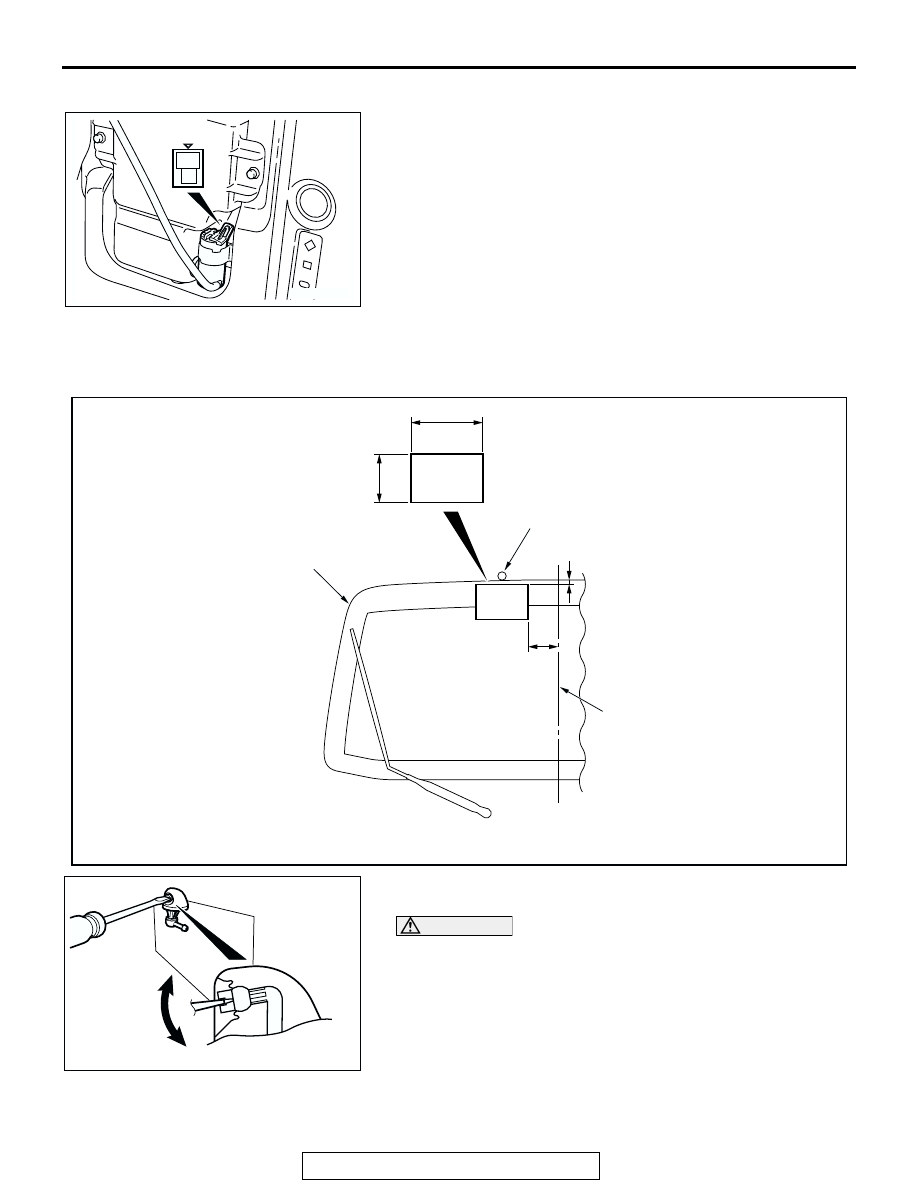

REAR WASHER NOZZLE SPRAY DIRECTION
CHECK

Move the nozzle to adjust so that the water is sprayed out
within the range shown in the illustration.

CAUTION

Be careful not to damage the spray hole of the nozzle
when inserting the flat-tipped screwdriver into the spray
hole of the nozzle.

• To adjust the vertical direction of the rear washer nozzle

spray position, insert a flat-tipped screwdriver into the spray
hole of the rear washer nozzle and move it in the direction
of the arrow.

1

2

ACX00455

X1138CA

ACX00457

UNITS: mm ( in )

140 ( 5.5 )

95 ( 3.8 )

10 ( 0.4 )

85 ( 3.4 )

AB

REAR WASHER NOZZLE

CENTER OF VEHICLE

EDGE OF BACK DOOR WINDOW GLASS

X1207CA

ACX00456 AB

REAR WASHER
NOZZLE

FLAT-TIPPED
SCREWDRIVER

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-36

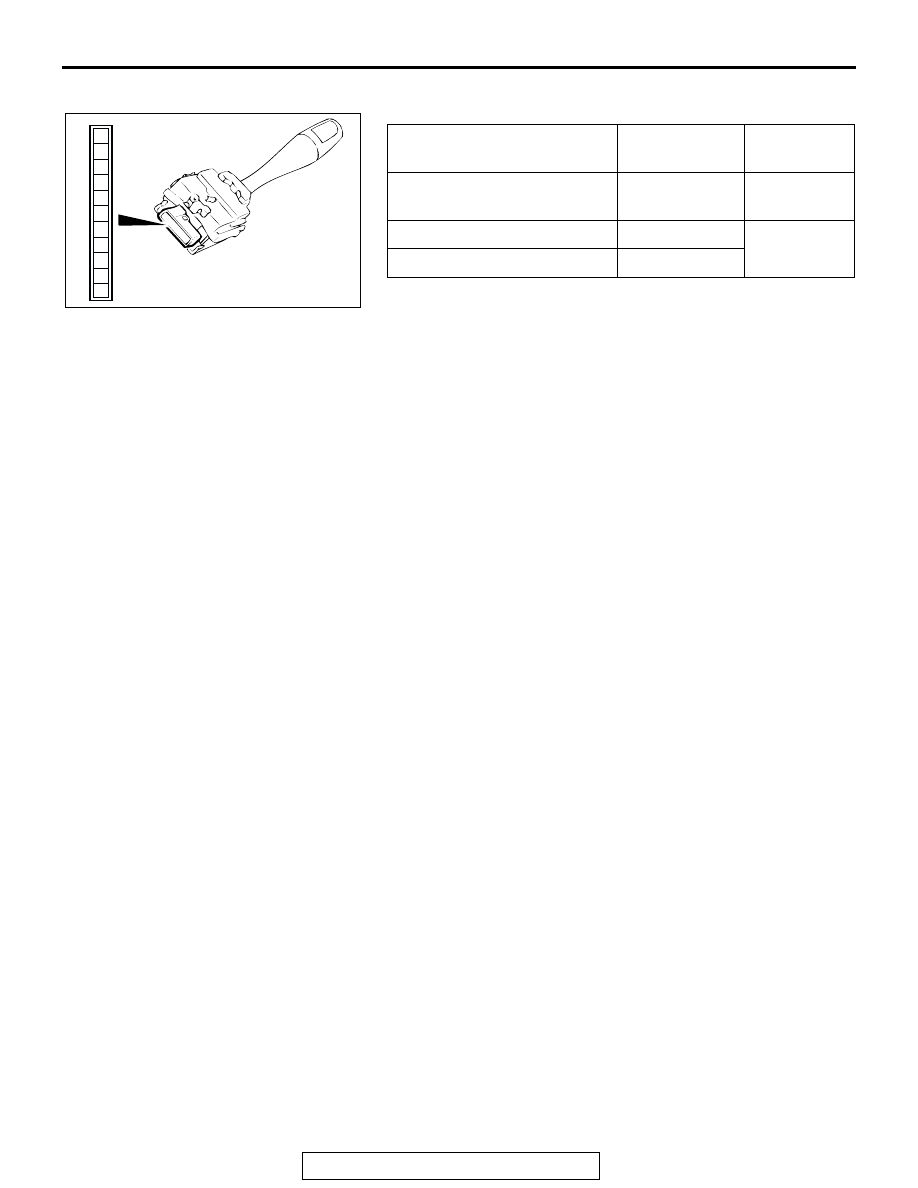

REAR WIPER AND WASHER SWITCH CHECK

 SWITCH POSITION

TERMINAL
CONNECTION

SPECIFIED
CONDITION

OFF

4

− 6, 5 − 6

Open circuit

Rear washer switch ON

5

− 6

Less than 2
ohms

Rear wiper switch ON

4

− 6

1

6

8

11

10

9

7

5

4

3

2

AC000417AB
