REAR BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-9

ASSEMBLY SERVICE POINT

.

>>A<< REAR MUDGUARD REINFORCEMENT, REAR
BUMPER SIDE RETAINER

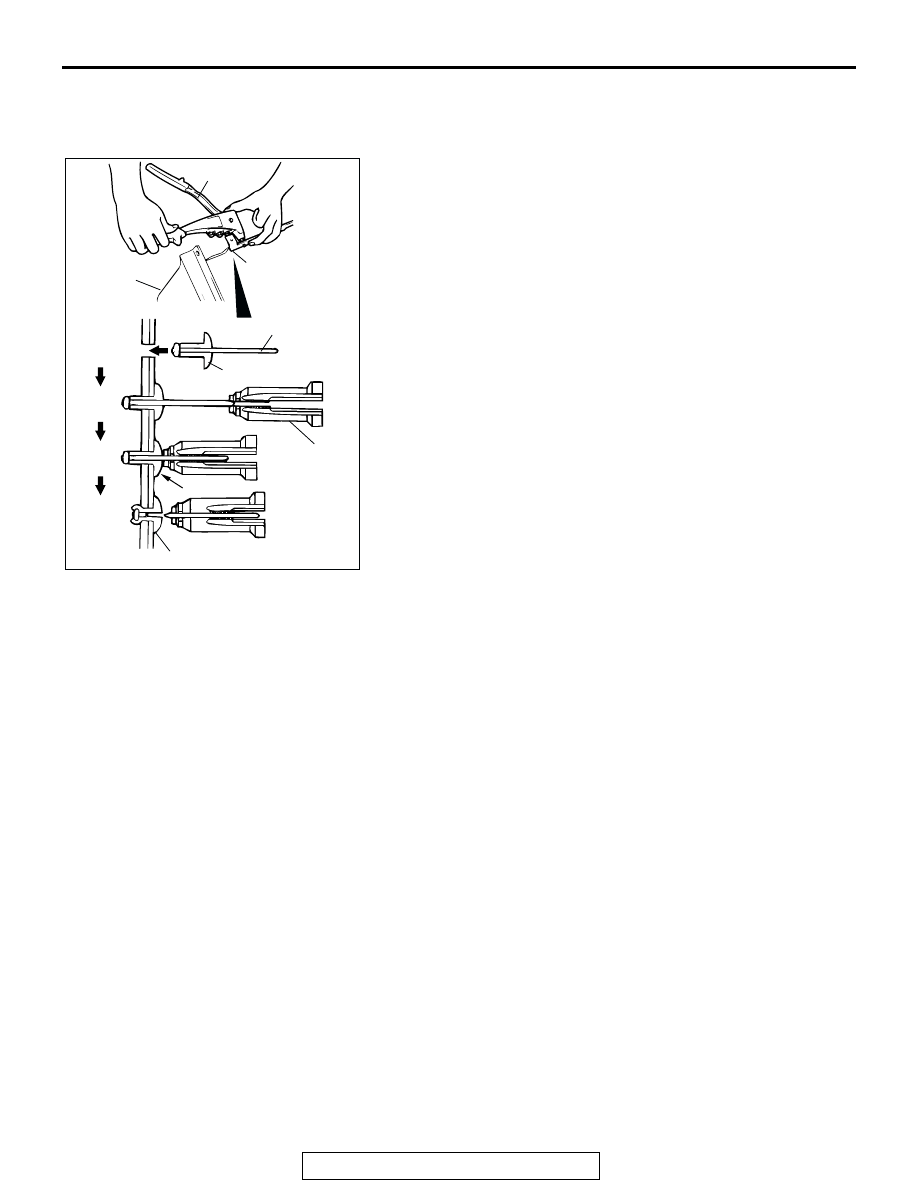

Use the rivet tool shown in the illustration to attach the rivet by
the following procedure.
1. Insert the rivet into the base material (rear mudguard

reinforcement, rear bumper side retainer).

2. Place the recommended tool over section A of the rivet.
3. While pushing the flange surface of the rivet with the

recommended tool, press the handle of the tool.

4. The thin part of section A of the rivet will break and the rivet

will then be attached.

AC204659

1

2

3

4

AB

REAR BUMPER
FACE

RIVET

RIVET

SECTION A

FLANGE

REAR BUMPER
CORNER
BRACKET

RIVET TOOL

RIVET TOOL

ROOF RAIL

TSB Revision

EXTERIOR

51-10

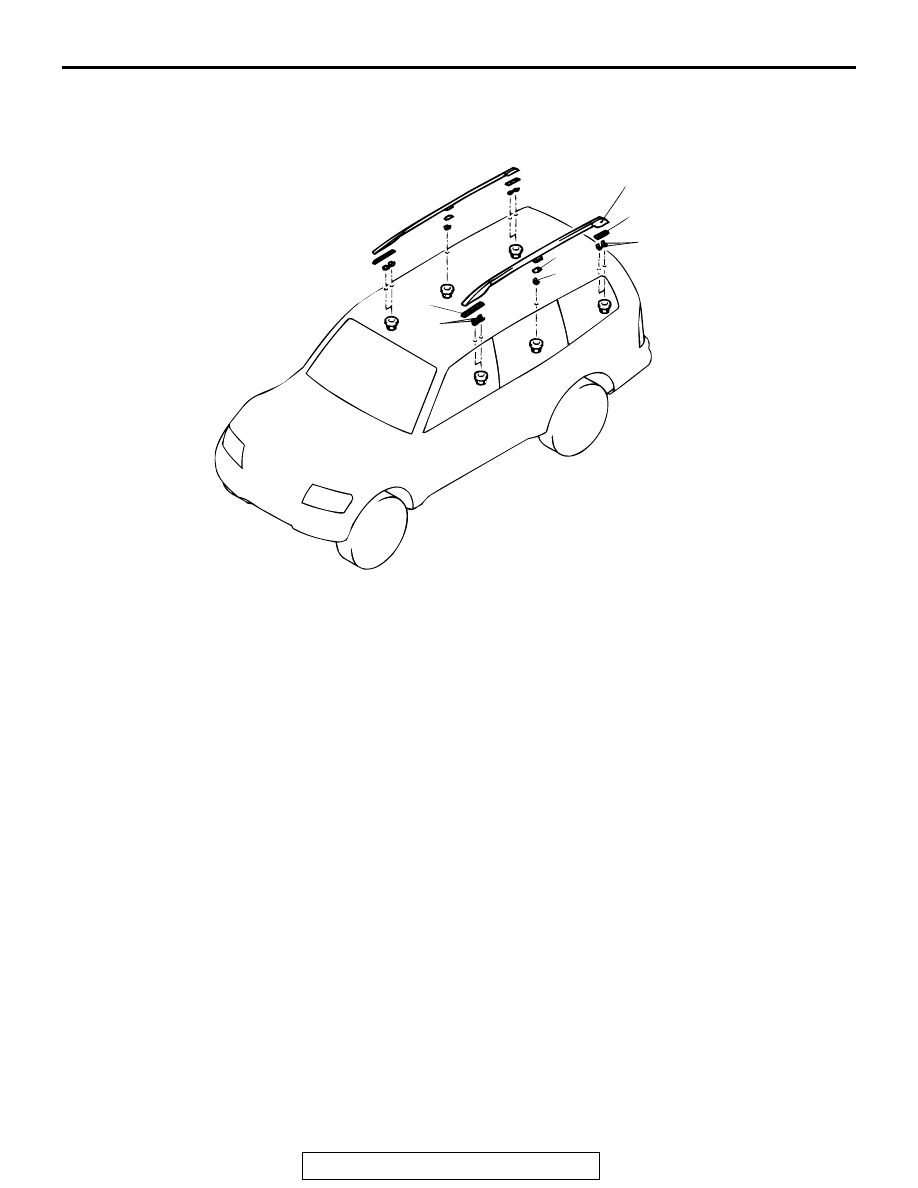

ROOF RAIL

REMOVAL AND INSTALLATION

M1511016600198

ACX00429

1

2

3

4

5

5

5

AB

REMOVAL STEPS
• HEADLINING (REFER TO GROUP

52A, HEADLINING

P.52A-10

).

• SET BRACKET (REFER TO GROUP

42, SUNROOF

P.42-66

).

1. ROOF RAIL ASSEMBLY

2. ROOF RAIL FRONT SEAL
3. ROOF RAIL CENTER SEAL
4. ROOF RAIL REAR SEAL
5. ROOF RAIL SEAL

REMOVAL STEPS (Continued)

MOLDINGS

TSB Revision

EXTERIOR

51-11

MOLDINGS

SPECIAL TOOL

M1511000601244

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990449 Window
molding remover

General service tool

Removal of roof drip
molding

MB990449

MOLDINGS

TSB Revision

EXTERIOR

51-12

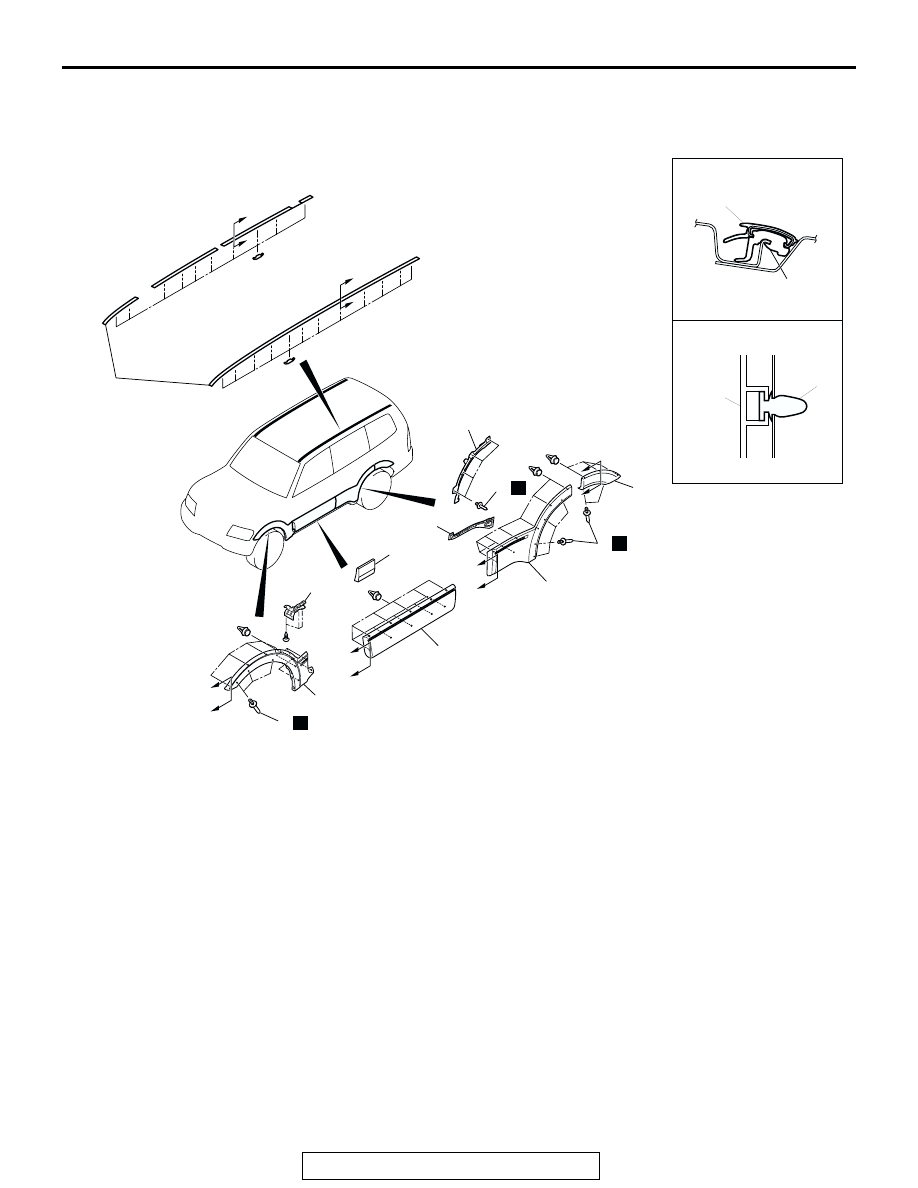

MOLDINGS

REMOVAL AND INSTALLATION

M1511004700176

Required Special Tools:

• MB990449: Window Molding Remover
• MB990784: Ornament Remover

.

AC309453

N

N

N

1

6

7

3

9

11

10

8

2

4

3

5

<VEHICLE WITH ROOF RAIL>

<VEHICLE WITHOUT ROOF RAIL>

11

1, 4,
6, 7

SECTION A – A

SECTION B – B

CLIP

CLIP

B

B

B

B

B

B

B

B

A

A

A

A

AB

<<A>>

>>A<< 1. FRONT DOOR MOLDING

2. FRONT DOOR CORE
FRONT WHEEL CUT MOLDING
REMOVAL STEPS

<<B>> >>B<<

3. RIVET A

<<A>> >>A<<

4. FRONT WHEEL CUT MOLDING
5. WHEEL CUT MOLDING BRACKET
REAR WHEEL CUT MOLDING
REMOVAL STEPS

<<B>> >>B<<

3. RIVET A

<<A>> >>A<<

6. REAR WHEEL CUT MOLDING

REAR DOOR MOLDING REMOVAL
STEPS

<<B>> >>B<<

3. RIVET A

<<A>> >>A<<

7. REAR DOOR MOLDING

<<B>> >>C<<

8. RIVET B
9. REAR DOOR MOLDING BRACKET
10. REAR DOOR MOLDING ASSEMBLY
ROOF DRIP MOLDING REMOVAL
STEPS
• ROOF RAIL ASSEMBLY

<<C>>

11. ROOF DRIP MOLDING
