Mitsubishi Montero (2004+). Manual - part 846





FRONT BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-5

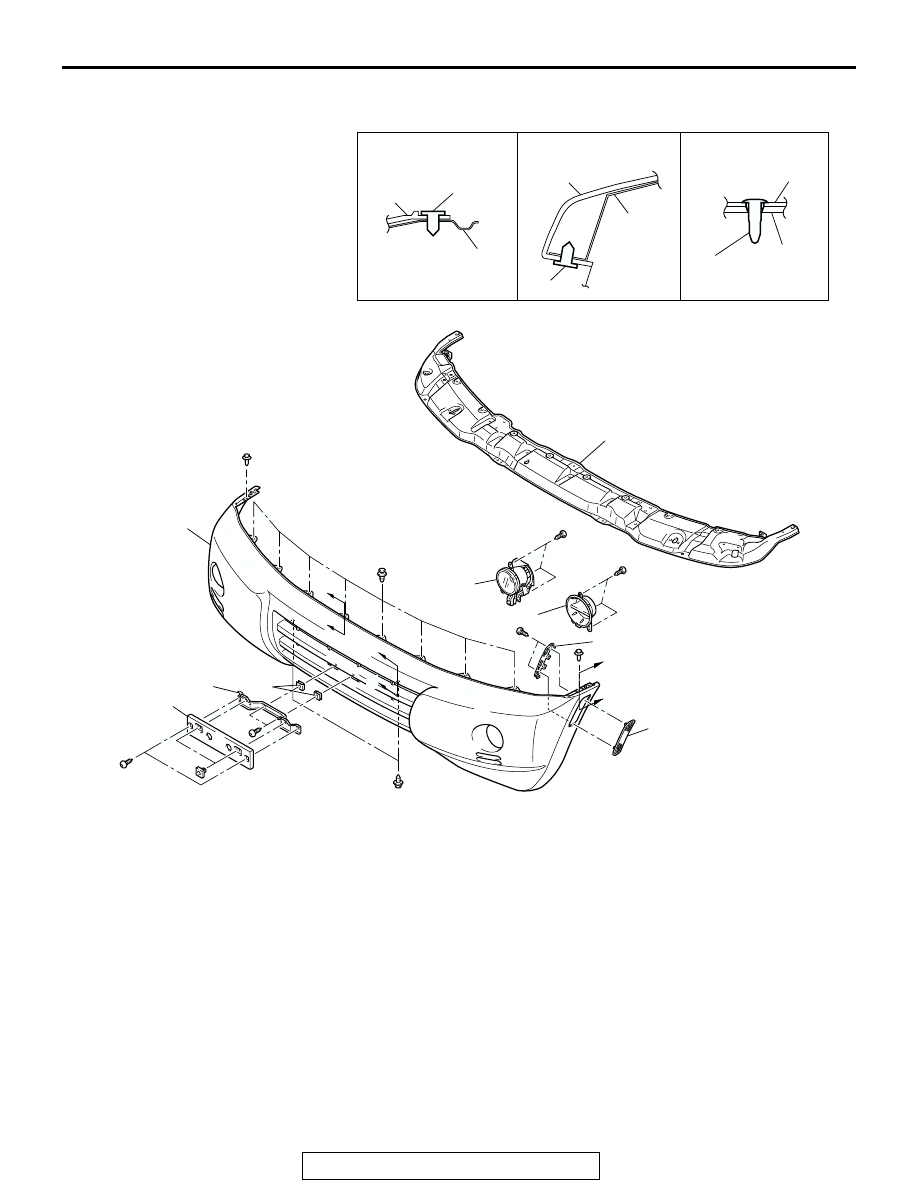

DISASSEMBLY AND ASSEMBLY

M1511001600589

Required Special Tool:

• MB990784: Ornament Remover

AC203564

SECTION A – A

SECTION B – B

SECTION C – C

AB

CLIP

CLIP

1

2

8

7

6

9

4

5

3

9

9

1

1

CLIP

9

1

B

A

A

C

C

B

DISASSEMBLY STEPS

<<A>>

1. FRONT BUMPER

REINFORCEMENT ASSEMBLY

2. FOG LIGHT
3. AIR BLOWER GARNISH

<VEHICLES WITHOUT FOG LIGHT>

4. REFLEX REFLECTOR
5. REFLEX REFLECTOR BRACKET
6. LICENSE PLATE GARNISH

7. LICENSE PLATE GARNISH

BRACKET

8. LICENSE PLATE BRACKET
9. FRONT BUMPER FACE

DISASSEMBLY STEPS (Continued)

FRONT BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-6

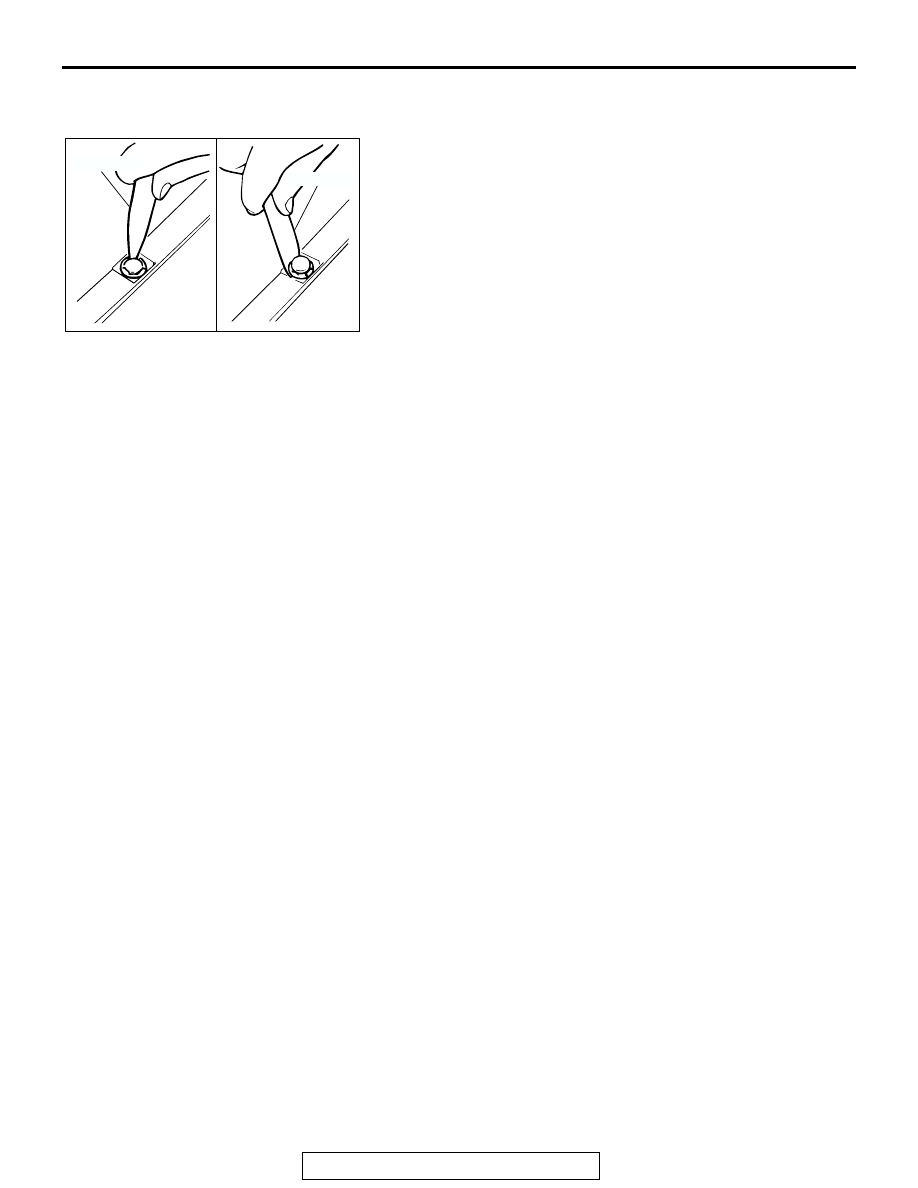

DISASSEMBLY SERVICE POINT

.

<<A>> FRONT BUMPER REINFORCEMENT REMOVAL
1. Use special tool MB990784 to pull up the center pin in the

clip.

2. Remove the clip.

AC309469AB

MB990784

MB990784

REAR BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-7

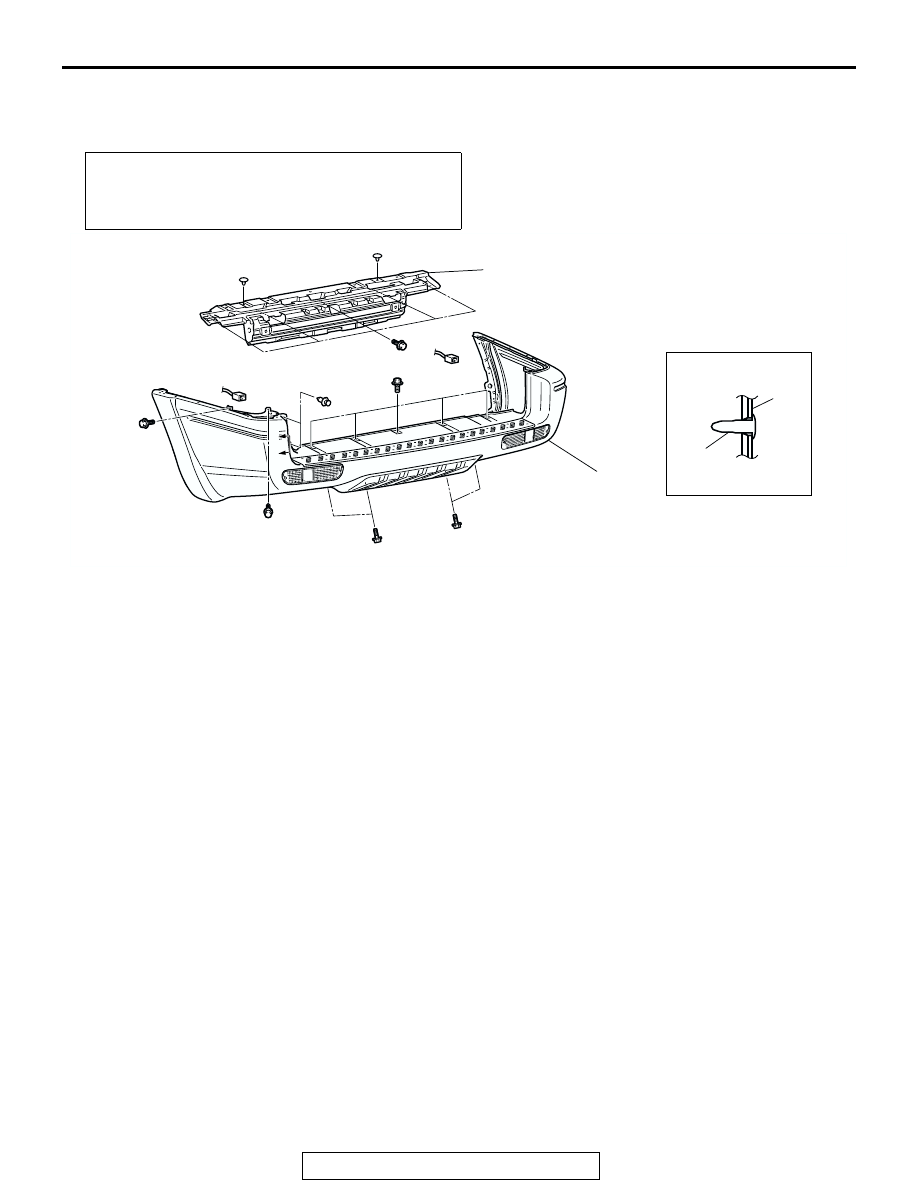

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001900494

Required Special Tool:

• MB990784: Ornament Remover

Pre-removal and Post-installation Operation
• Mud Guard Removal and Installation (Refer to

P.51-19

).

• Rear Combination Light Removal and Installation (Refer

to GROUP 54A, Rear Combination Light

P.54A-88

).

AC203641

1

2

CLIP

SECTION A – A

A
A

AB

1

REAR BUMPER ASSEMBLY REMOVAL
STEPS
1. REAR BUMPER ASSEMBLY
2. REAR BUMPER REINFORCEMENT

REAR BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-8

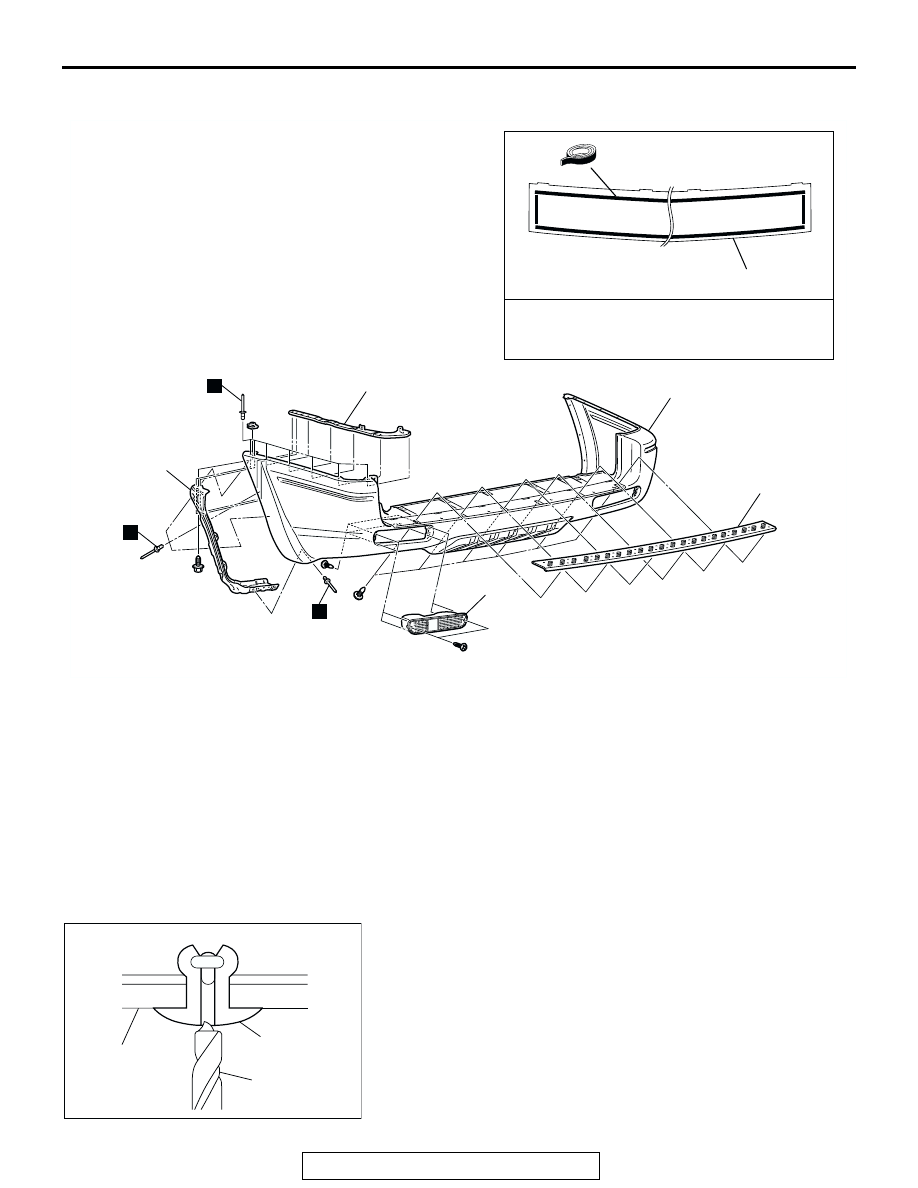

DISASSEMBLY AND ASSEMBLY

M1511002100402

Required Special Tool:

• MB990784: Ornament Remover

DISASSEMBLY SERVICE POINT

.

<<A>> REAR MUDGUARD REINFORCEMENT, REAR
BUMPER SIDE RETAINER REMOVAL
Use a drill [4.5 mm (0.18 inch)] to make a hole in the rivet to
break it, and then remove the rivet.

AC203642

N

N

N

AB

1

2

3

4

5

4

ADHESIVE TAPE:
DOUBLE-SIDED TAPE [ 8 mm ( 0.2 in )
WIDTH AND 1.2 mm ( 0.05 in ) THICKNESS]

REAR BUMPER ASSEMBLY
DISASSEMBLY STEPS

<<A>> >>A<<

1. REAR MUDGUARD

REINFORCEMENT

<<A>> >>A<<

2. REAR BUMPER SIDE RETAINER
3. REAR LIGHT

4. REAR BUMPER STEP COVER
5

REAR BUMPER FACE

REAR BUMPER ASSEMBLY
DISASSEMBLY STEPS (Continued)

AC309448

REAR BUMPER
ASSEMBLY

RIVET

DRILL

AB
