SIMPLIFIED WIRING SYSTEM (SWS)
54B-369

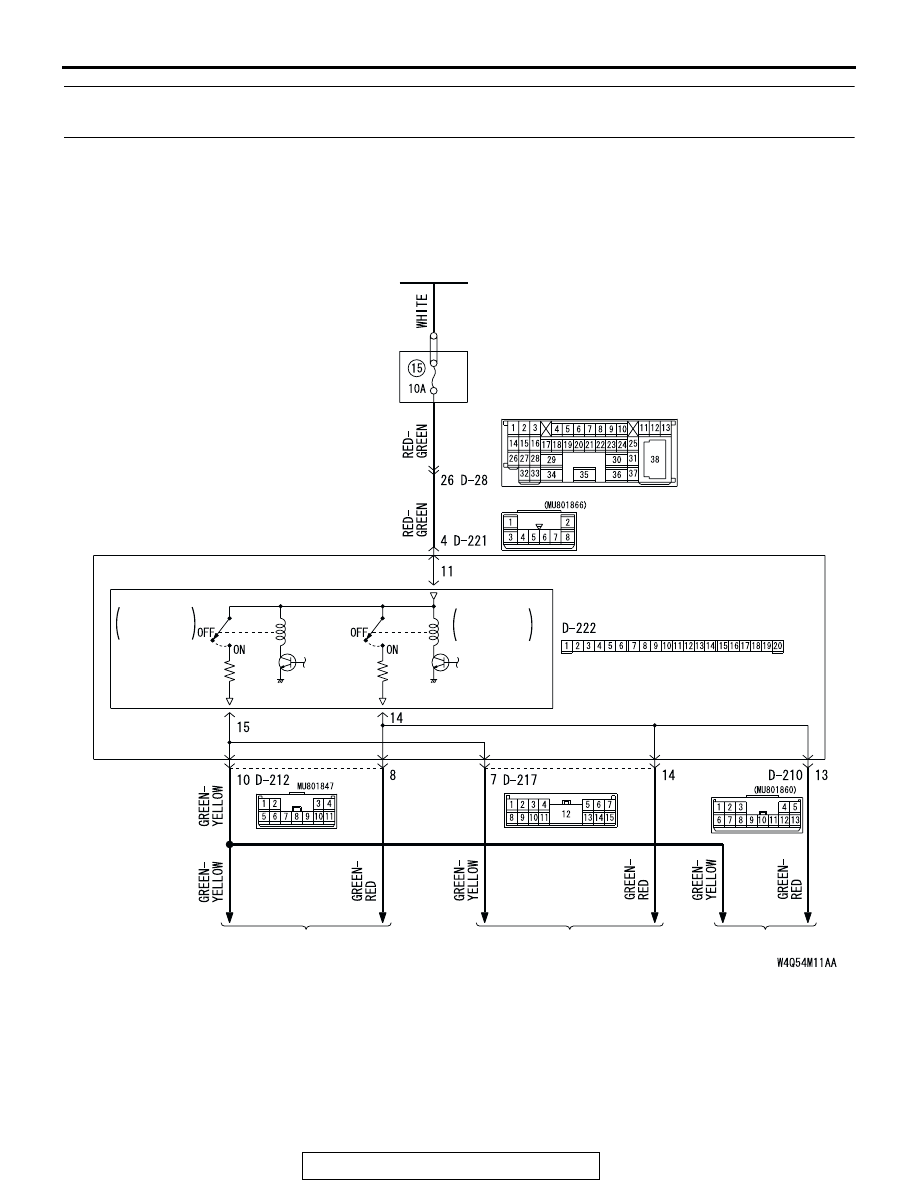

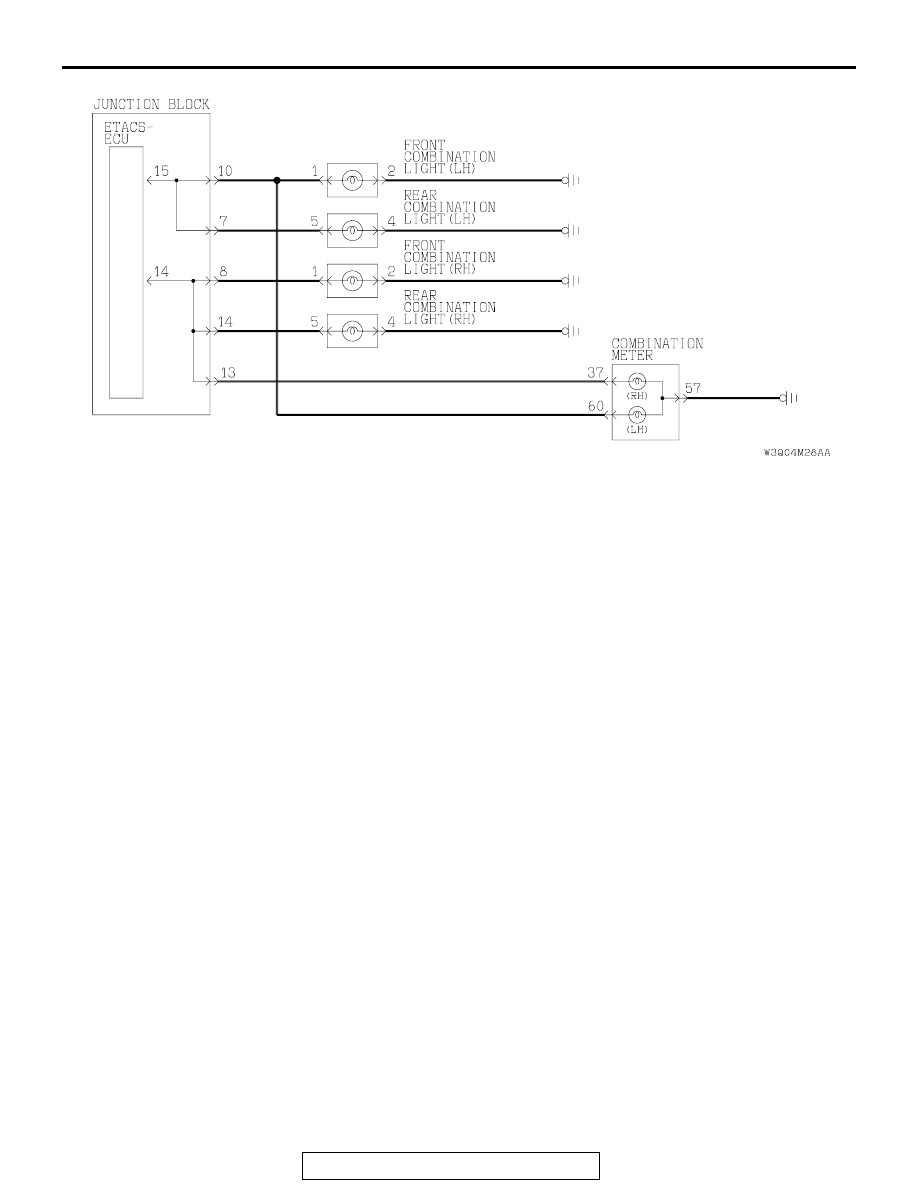

FLASHER TIMER
GENERAL DESCRIPTION CONCERNING FLASHER TIMER
M1549023600067
The ECU related to the alarm function types and var-
ious control functions are as follows.
Flasher timer function
.
Turn signal light
The turn signal light output (flashing signal) is turned ON when
the turn signal light ignition switch is ON and the turn signal
light switch is ON (LH or RH.) If the front turn signal light or rear
turn signal light bulb has burned out, the flashing speed
increases to indicate that the bulb has burned out.
.
Hazard warning light
The hazard warning lights output (flashing) is turned ON when
the hazard warning light switch is turned OFF to ON. When the
switch is turned ON again, the output is turned OFF.
NOTE: The hazard warming light switch is a push-return type
toggle switch.
FUNCTION
CONTROL ECU
Turn signal light
ETACS-ECU, column switch
Hazard warning light
ETACS-ECU

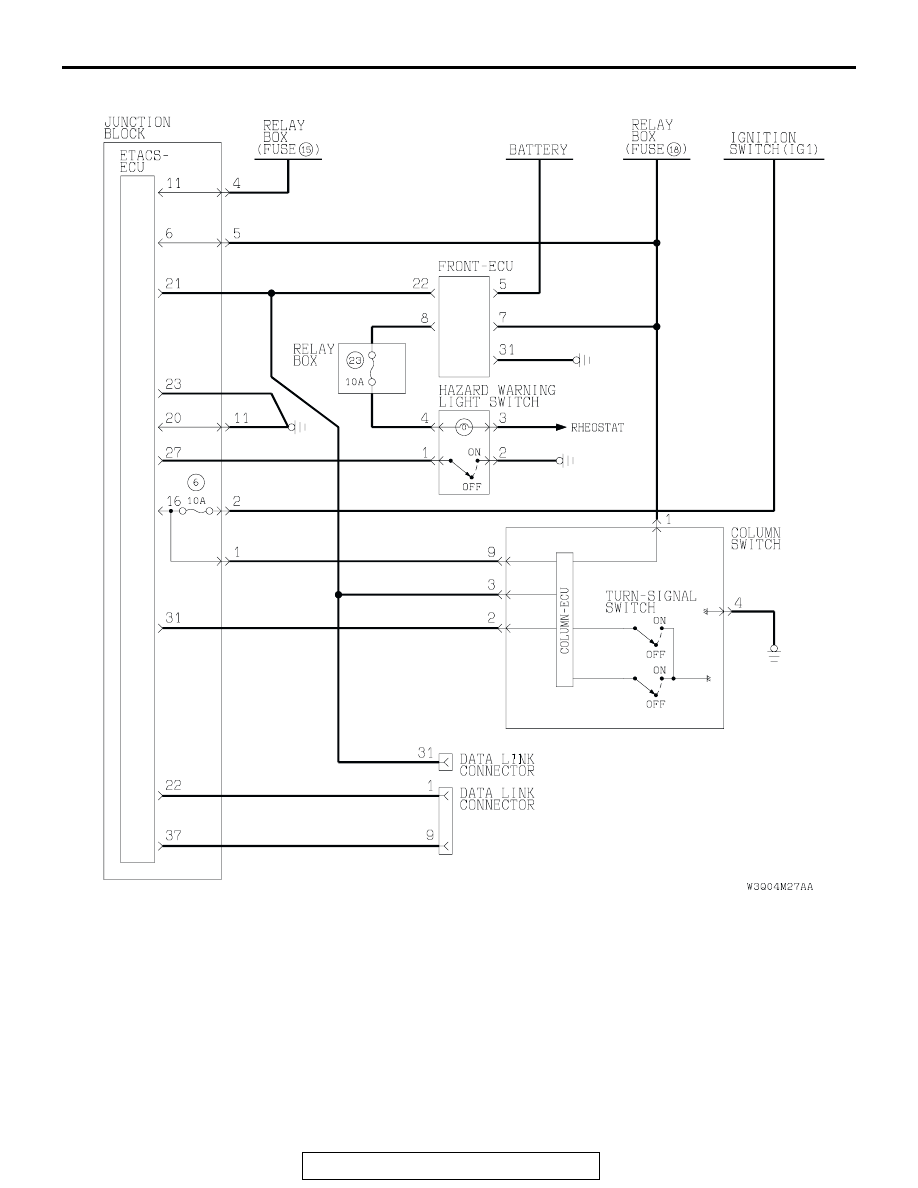

AC005444AB
Ignition switch
Turn signal
light switch LH
Turn signal
light switch RH
Turn signal
light output LH
Turn signal
light output RH
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
AC005445AB
Hazard light
switch
Turn signal
light output LH
Turn signal
light output RH
ON
OFF
ON
OFF
ON
OFF
