WINDOW GLASS

TSB Revision

BODY

42-19

INSTALLATION SERVICE POINT

.

>>A<< WINDOW DAM/GLASS STOPPER/DUAL LOCK FAS-
TENER/BACK DOOR WINDOW GLASS INSTALLATION
1. Use 3M

 AAD Part number 8906 or equivalent to degrease

the inside and outside edges of the back door window glass
and the surface of the body flange.

2. Mount the window dam.
3. Attach the dual lock fastener at the specified position on the

body flange.

4. Attach the dual lock fastener and the glass stopper on the

back door window glass at the corresponding location to the
mounting portion of the dual lock fastener and the glass
stopper on the body flange.

5. Apply primer and adhesive (Refer to

P.42-18

).

6. Install the glass in the same way as for the windshield (Refer

to

P.42-13

).

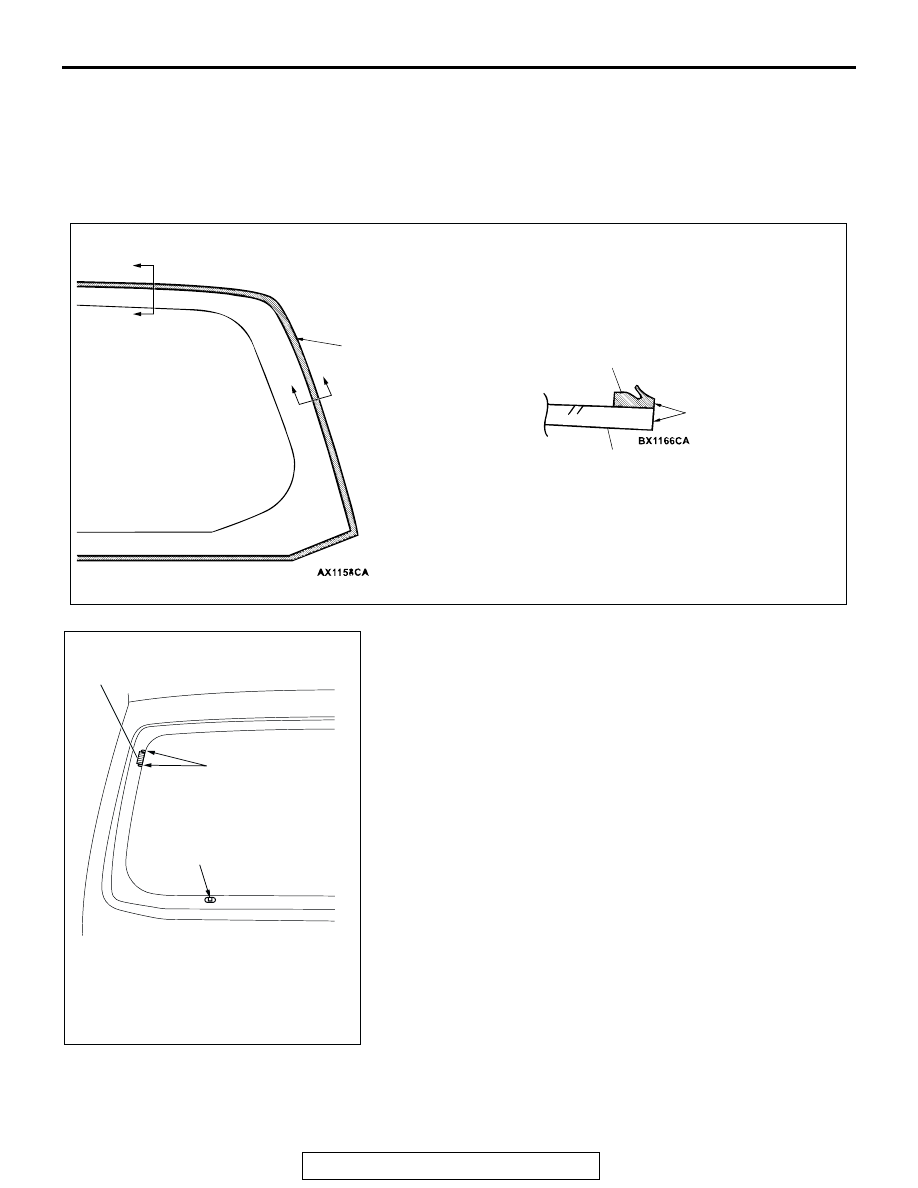

ACX00492

A

A

A

A

ALIGN THE BACK DOOR
WINDOW GLASS END WITH
THE WINDOW DAM END

WINDOW DAM

ALIGN WITH EDGE
OF GLASS

BACK DOOR WINDOW GLASS

AC

SECTION A – A

WINDOW DAM INSTALLATION POSITION

ACX00494

DUAL LOCK FASTENER

RAISED SECTION
OF BODY FLANGE

GLASS STOPPER
INSTALLATION HOLES

AB

DOOR

TSB Revision

BODY

42-20

DOOR

GENERAL DESCRIPTION

M1423000100280

OPERATION

.

CENTRAL DOOR LOCKING SYSTEM
The central door locking system operates the door
lock actuator to lock or unlock the doors using the
operation of the door lock switch built into the front
power window (main or sub) switch or key cylinder
built into the front door outside handles. The system
has the following operations and features:

• All doors can be locked using the door lock

switch built into the front power window (main or
sub) switch.

• All doors can be locked or unlocked using the

front door (LH or RH) key cylinder key operation.

• You cannot lock an open door if the key is in the

ignition switch. The key reminder function auto-
matically unlocks all doors when the door is
locked.

.

POWER WINDOWS
When the power window (main or sub) switch is
operated, the door windows will open or close. This
system has the following operations and features:

• When the power window main switch lock/unlock

switch is locked, the door windows can only be
opened or closed by the power window main
switch on the driver's door.

• When all doors are closed and the ignition is

turned off, the power windows can be operated
for 30 seconds from the time the ignition is turned
off.

• The power window main switch contains a

one-touch down switch that will automatically fully
open driver's side door window only.

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

M1427000700035

The central door locking system is controlled by the
smart wiring system (SWS). For troubleshooting,
refer to GROUP 54B, Diagnosis

P.54B-22

.

POWER WINDOW DIAGNOSIS

M1429000700116

The power window is controlled by the simplified wir-
ing system (SWS). For troubleshooting, refer to
GROUP 54B, Diagnosis

P.54B-22

.

DOOR DIAGNOSIS

DOOR DIAGNOSIS

M1423000700055

The central door locking system is controlled by the
Simplified by the Simplified Wiring System (SWS).
Refer to GROUP 54B, Diagnosis for troubleshooting

P.54B-22

.

INTRODUCTION TO GLASS AND DOOR DIAGNOSIS

M1423007300058

Glass and door faults include water leaks and
improper opening and closing. Causes for these
faults can include faults in the glass, weatherstrip,
drain hole, waterproof film or door installation.

GLASS AND DOOR DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1423006700042

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
glass and door fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

DOOR

TSB Revision

BODY

42-21

SYMPTOM CHART

M1423007000262

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Water Leak through Door Window Glass

DIAGNOSIS

STEP 1. Check the door window glass
installation.

Q: Is the door window glass installed correctly?

YES :

Go to Step 2.

NO :

Adjust the door window glass (Refer to

P.42-26

). Then go to Step 3.

STEP 2. Check the clearance at the top of the
door window glass.

Q: Is the clearance at the top of the door window

glass correct?

YES :

Go to Step 3.

NO :

Adjust the door window glass clearance
(Refer to

P.42-26

). Then go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

The procedure is complete.

INSPECTION PROCEDURE 2: Door Window Malfunction

DIAGNOSIS

STEP 1. Check the door window installation
condition.

Q: Is the door window installation condition good?

YES :

Go to Step 2.

NO :

Adjust the door window (Refer to

P.42-26

).

Then go to Step 4.

STEP 2. Check the door sash.

Q: Is the door sash in good condition?

YES :

Go to Step 3.

NO :

Repair or replace the door sash, then go to
Step 4.

STEP 3. Inspect the window regulator assembly.

Q: Is the window regulator assembly in good

condition?

YES :

Go to Step 4.

NO :

Repair or replace the window regulator
assembly, then go to Step 4.

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Water leak through door window glass

1

P.42-21

Door window glass malfunction

2

P.42-21

Water leak through door edge

3

P.42-22

Water leak from door center

4

P.42-22

Door hard to open

5

P.42-22

Door does not open or close completely

6

P.42-23

Uneven gap between body

7

P.42-23

Wind noise around door

8

P.42-23

DOOR

TSB Revision

BODY

42-22

STEP 4. Retest the system.

Q: Does the door window operate correctly?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Water Leak through Door Edge

DIAGNOSIS

STEP 1. Check the weatherstrip.

Q: Is the weatherstrip in good condition?

YES :

Go to Step 2.

NO :

Replace the weatherstrip, then go to Step 3.

STEP 2. Check door fit (alignment).

Q: Is the door fit (alignment) correct?

YES :

Go to Step 3.

NO :

Adjust the door fit (alignment) (Refer to

P.42-26

). Then go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

The procedure is complete.

INSPECTION PROCEDURE 4: Water Leak from Door Center

DIAGNOSIS

STEP 1. Check the drain hole.

Q: Is the drain hole clogged?

YES :

Replace the drain hole, then go to Step 3.

NO :

Go to Step 2.

STEP 2. Check the waterproof film.

Q: Is the waterproof film in good condition?

YES :

Go to Step 3.

NO :

Repair or replace the waterproof film, then
go to Step 3.

STEP 3. Retest the system.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

The procedure is complete.

INSPECTION PROCEDURE 5: Door Hard to Open

DIAGNOSIS

STEP 1. Adjust the latch and striker engagement.

Q: Is the latch and striker engagement adjusted?

YES :

Go to Step 2.

NO :

Adjust the latch and striker engagement
(Refer to

P.42-26

). Then go to Step 4.

STEP 2. Check for possible lock rod damage.

Q: Is the possible lock rod damaged?

YES :

Repair or replace the possible lock rod, then

go to Step 4.

NO :

Go to Step 3.
