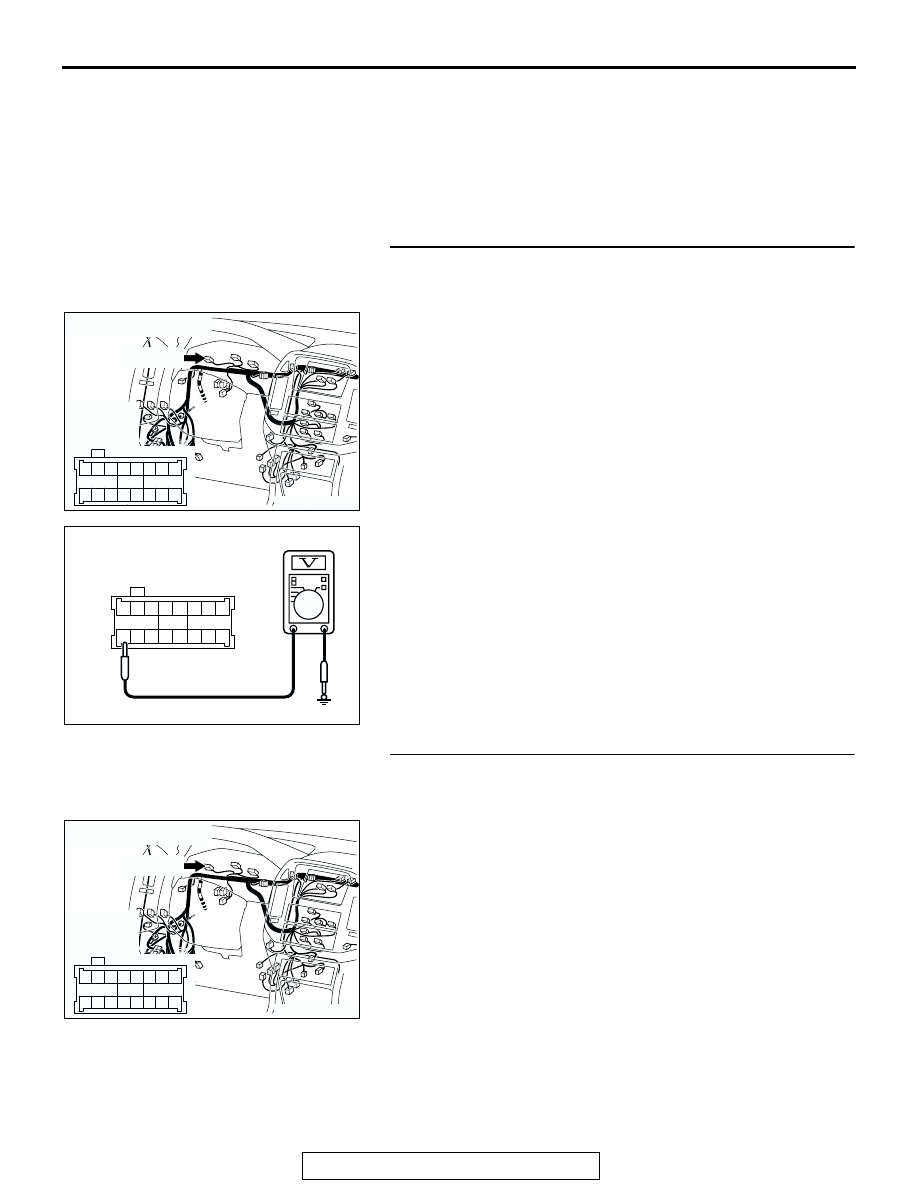

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-65

TROUBLESHOOTING HINTS

• Malfunction of the combination meter (printed-cir-

cuit board or speedometer and tachometer)

• Damaged wiring harness or connectors

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

STEP 1. Measure at combination meter connector D-03 in
order to check the battery circuit of power supply system
to the combination meter.

(1) Disconnect combination meter connector D-03, and

measure at the wiring harness side.

(2) Measure the voltage between terminal 67 and ground.

• The voltage should equal approximately 12 volts (bat-

tery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 4.
NO :  Go to Step 2.

STEP 2. Check combination meter connector D-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is combination meter connector D-03 in good

condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check to see that all meters operate.

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204738DQ

HARNESS SIDE: D-03

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-66

STEP 3. Check the wiring harness between combination
meter connector D-03 (terminal 67) and the battery.

NOTE: Also check intermediate connector D-28, junction block
connector D-217 and D-221. If intermediate connector D-28,
junction block connector D-217 and D-221 is damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector D-03 (terminal 67) and the battery in good
condition?
YES : There is no action to be taken.
NO :  Repair the wiring harness. Check to see that all

meters operate.

AC204188

CONNECTORS: D-03, D-28

BW

HARNESS SIDE

D-28

D-28

D-03(GR)

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204191

CONNECTORS : D-217, D-221

D-217

D-217

HARNESS SIDE

HARNESS SIDE

D-221

D-221

AR

3

1

4

6 5

7

8

2

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-67

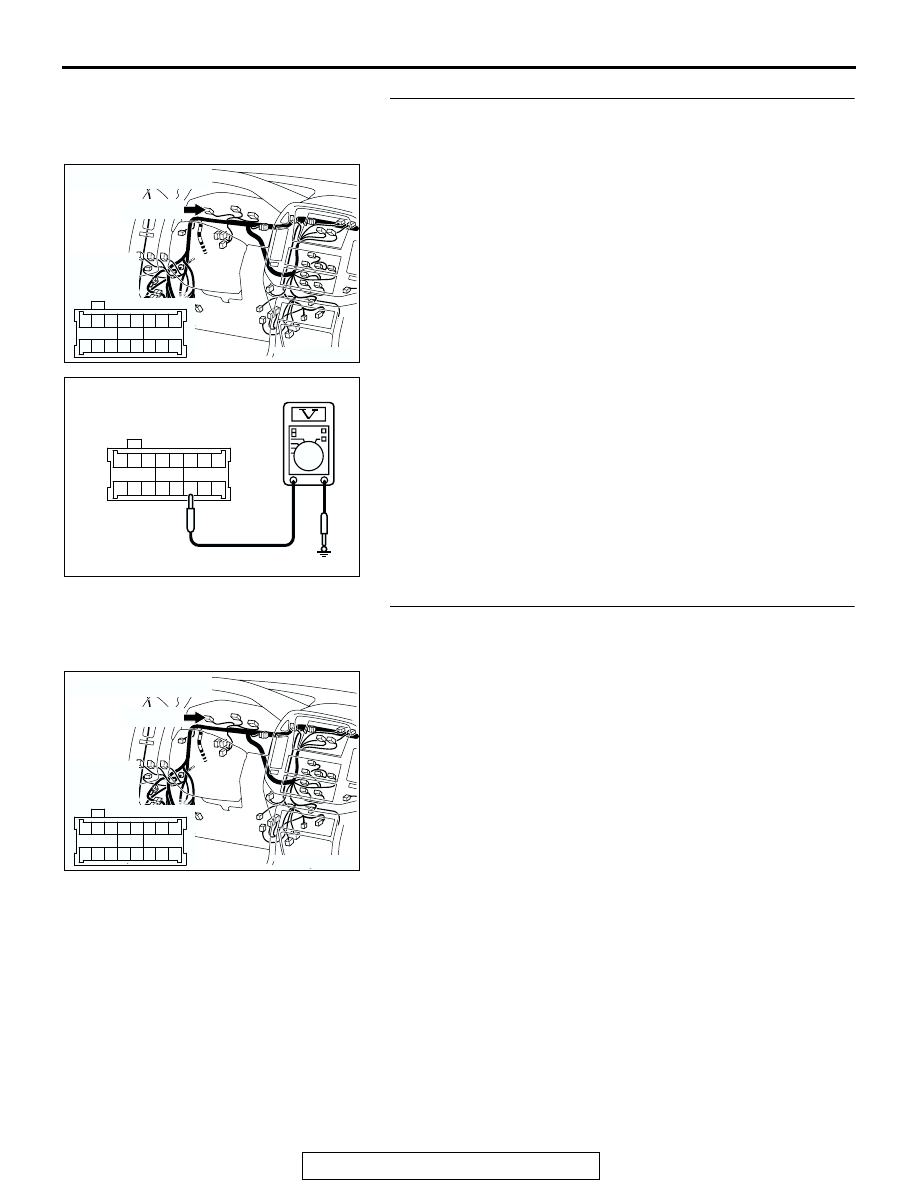

STEP 4. Measure at combination meter connector D-03 in
order to check the ignition switch (IG1) circuit of power
supply system to the combination meter.
(1) Disconnect combination meter connector D-03, and

measure at the wiring harness side.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 62 and ground.

• The voltage should equal approximately 12 volts (bat-

tery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check combination meter connector D-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is combination meter connector D-03 in good

condition?
YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check to see that all meters operate.

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204738 DP

HARNESS SIDE: D-03

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-68

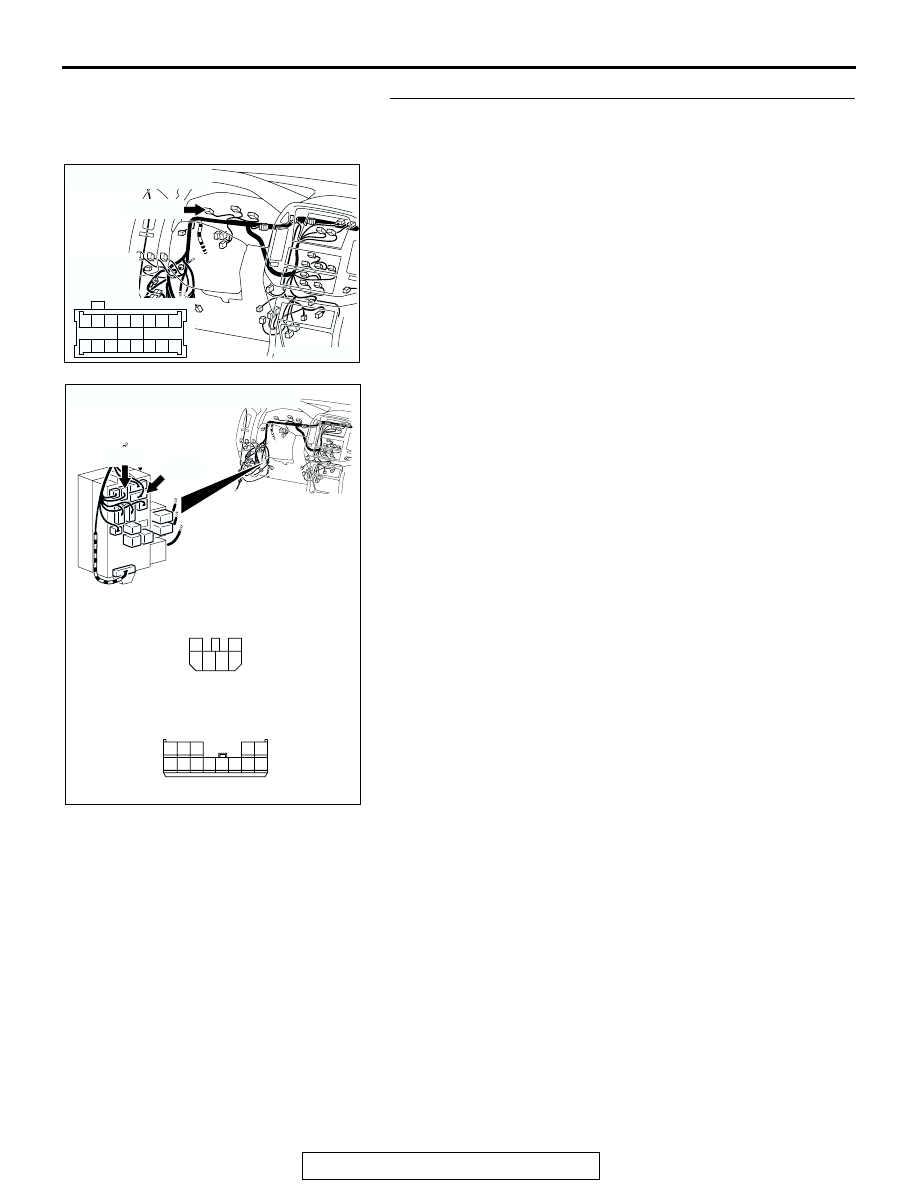

STEP 6. Check the wiring harness between combination
meter connector D-03 (terminal 62) and ignition switch
(IG1).

NOTE: Also check junction block connectors D-208 and D-210.
If junction block connector D-208 or D-210 is damaged, repair
or replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector D-03 (terminal 62) and ignition switch (IG1) in
good condition?
YES : There is no action to be taken.
NO :  Repair the wiring harness. Check to see that all

meters operate.

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204191

CONNECTORS: D-208, D-210

D-208

AC

HARNESS SIDE

HARNESS SIDE

D-210

D-208

D-210

1

2

3

5

6

4

1

2

7 6

3

9

4

11

12

10

13

5

8
