COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-57

STEP 9. Check fuel level sensor connector G-03 and
combination meter connector D-03 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Are fuel level sensor connector G-03 and combination

meter connector D-03 in good condition?
YES : Go to Step 10.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The fuel gauge should now operate

normally.

AC204170

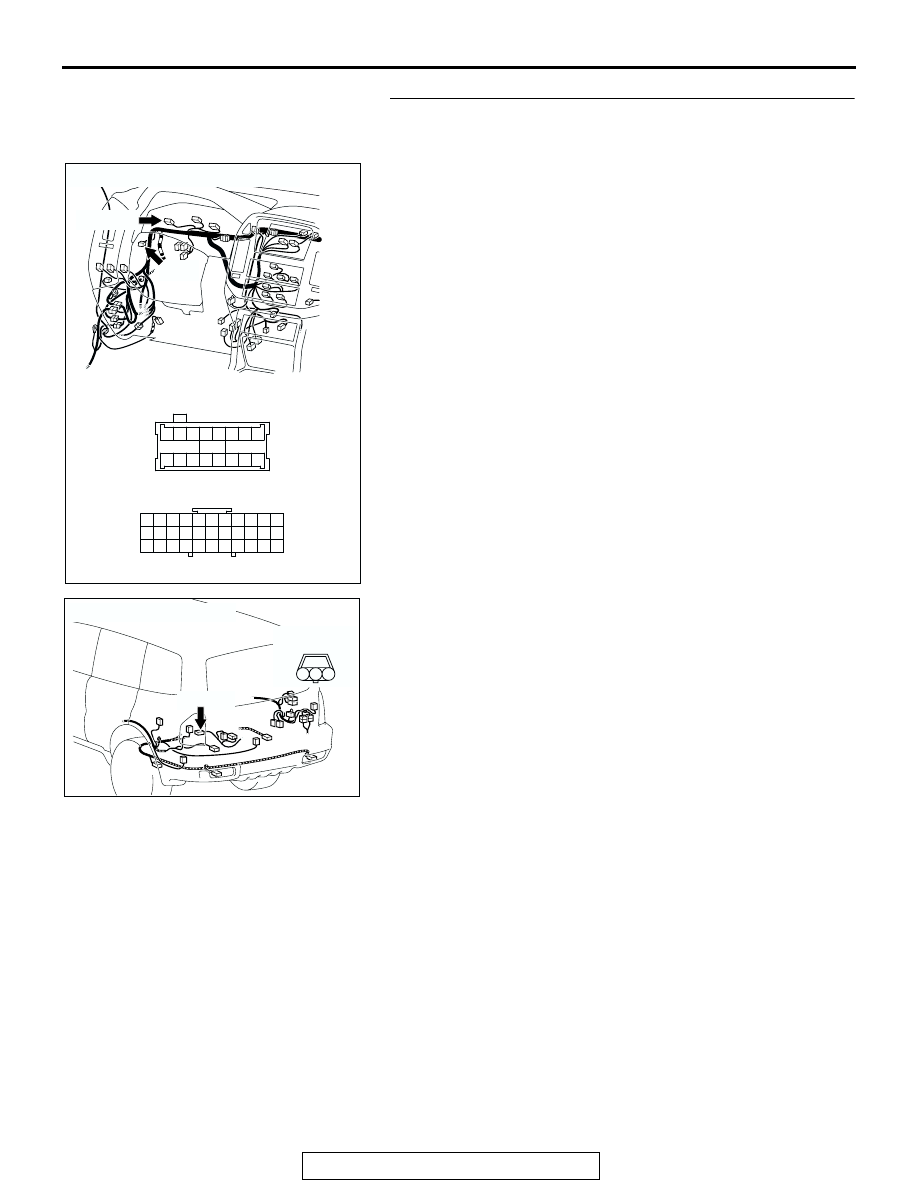

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204179

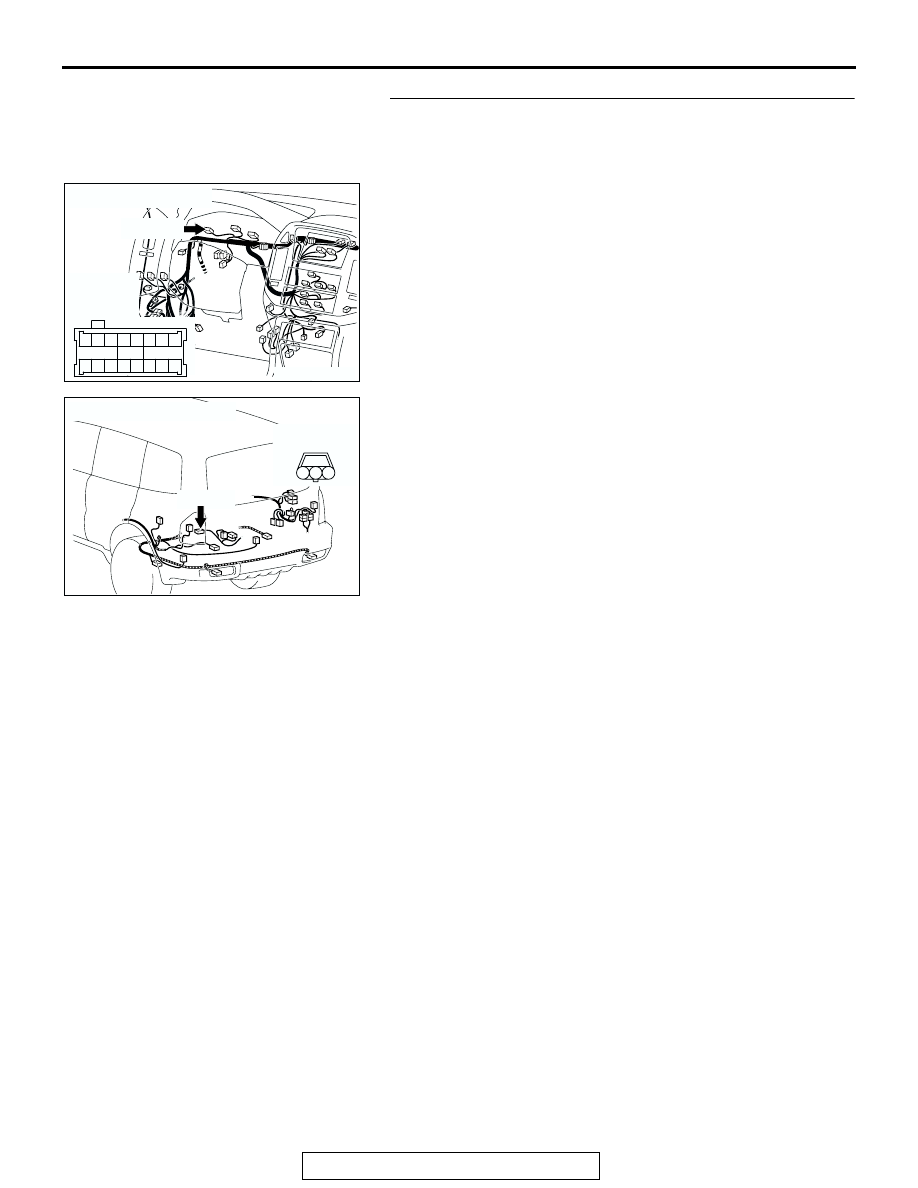

CONNECTOR : G-03

AU

G-03(B)

G-03(B)

HARNESS
SIDE

2

3

1

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-58

STEP 10. Check the wiring harness between fuel level
sensor connector G-03 (terminal 1) and combination meter
connector D-03 (terminal 63).

AC204188

CONNECTORS: D-03, D-29

BI

HARNESS SIDE

D-29

D-29

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

D-03(GR)

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204179

CONNECTOR : G-03

AU

G-03(B)

G-03(B)

HARNESS
SIDE

2

3

1

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-59

NOTE: Also check intermediate connectors F-07, D-111 and
joint connector (5) D-29. If intermediate connector F-07, D-111
or joint connector (5) D-29 is damaged, repair or replace the
connector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between fuel level sensor

connector G-03 (terminal 1) and combination meter
connector D-03 (terminal 63) in good condition?
YES : Repair or replace the combination meter. The fuel

gauge should now operate normally.

NO :  Repair the wiring harness. The fuel gauge should now

operate normally.

INSPECTION PROCEDURE 4: Engine Coolant Temperature Gauge does not Work.

AC204171

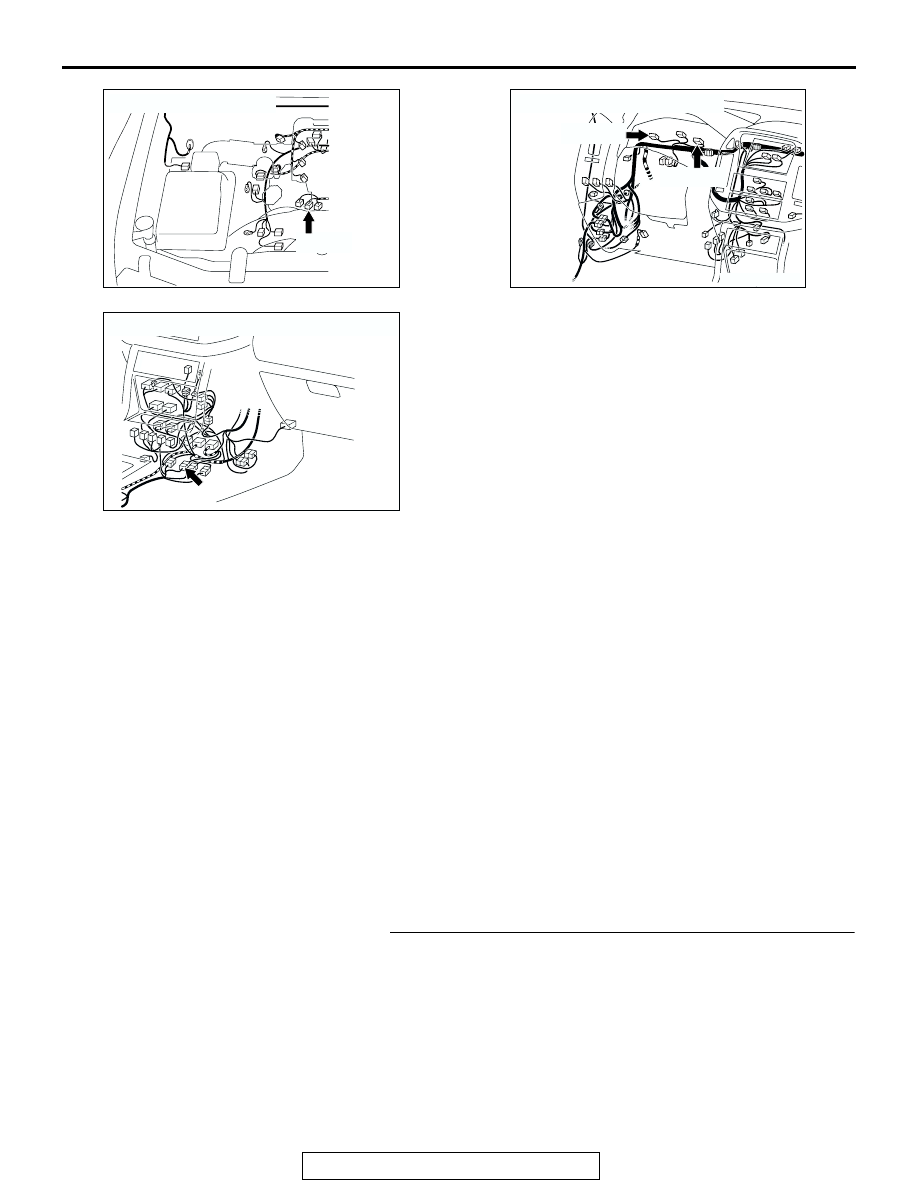

CONNECTOR : D-111

AQ

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204178

CONNECTOR : F-07

AN

F-07(B)

F-07(B)

7

6

5

1 2 3 4

8

ENGINE
COOLANT
TEMPERATURE
GAUGE UNIT

COMBINATION
METER

CPU

TEMP
GAUGE

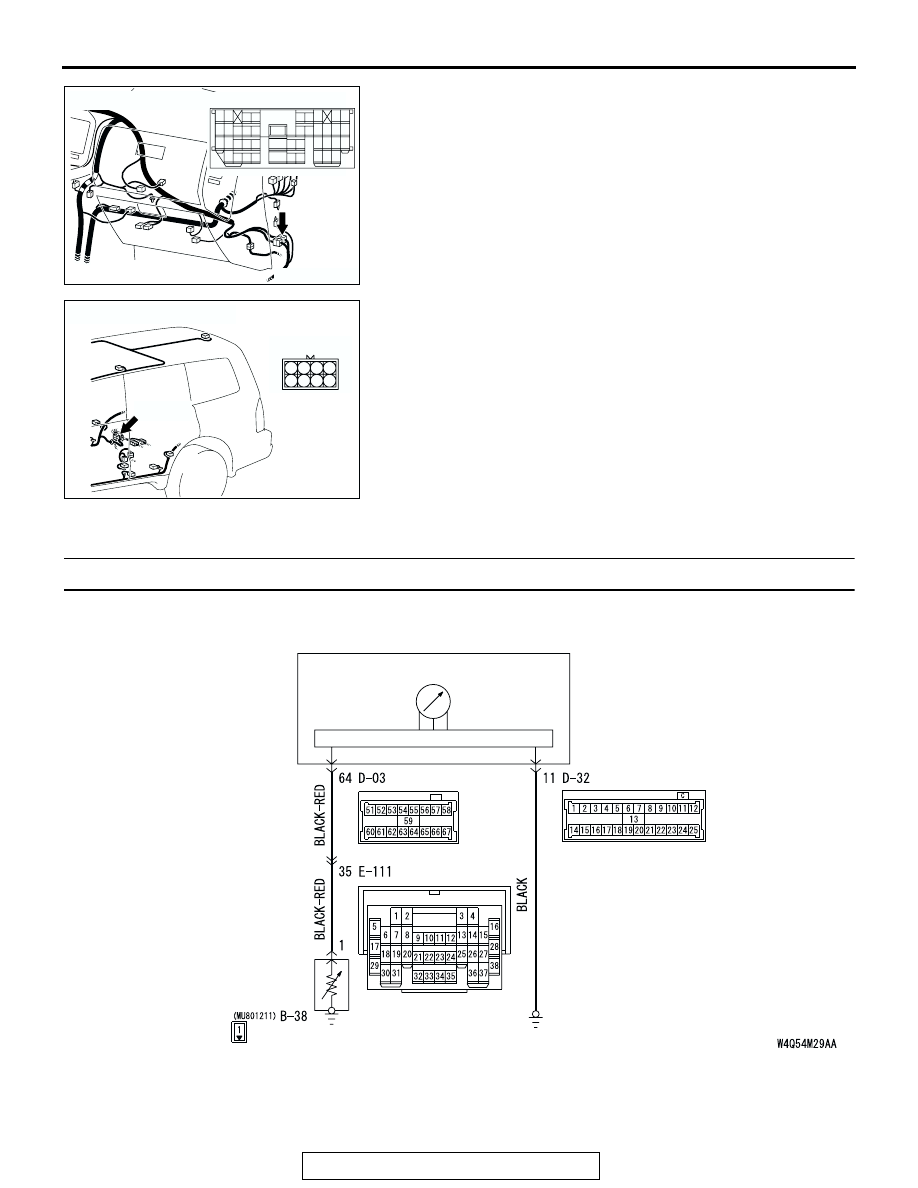

Engine Coolant Temperature Gauge Circuit

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-60

.

CIRCUIT OPERATION

• The ignition switch (IG1) circuit is the power sup-

ply for the engine coolant temperature gauge.

• Resistance value, which the engine coolant tem-

perature gauge unit sends to the combination
meter, is dependent on temperature of the engine
coolant. This change in resistance causes the cir-
cuit current to fluctuate, thus moving the needle
on the gauge.

.

TECHNICAL DESCRIPTION (COMMENT)
If there is an open in the ignition switch (IG1) circuit,
the gauge needle will not move at all. If there is an
open in the ground circuit, the gauge needle will
move down to the extreme cold position.

.

TROUBLESHOOTING HINTS

• Malfunction of the engine coolant temperature

gauge unit

• Malfunction of the combination meter (printed-cir-

cuit board or engine coolant temperature gauge
assembly)

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tool:
MB991223: Harness Set

STEP 1. Check the engine coolant temperature gauge by
observing the other meters.

Check to see that the speedometer, tachometer and fuel gauge
operate normally.
Q:  Do all other meters operate?

 YES < other meters all operate > : Go to Step 2.
 NO < one of the meters do not operate > : Refer to

INSPECTION PROCEDURE 5

P.54A-64

.

AC204168

CONNECTOR : B-38

AE

B-38(B)

AC204170

CONNECTORS : D-03, D-32

DF

D-03(GR)

D-32(GR)

AC204176

CONNECTOR: E-111

AK
