COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-45

STEP 3. Check combination meter connector D-03 and
vehicle speed sensor connector C-08 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Are combination meter connector D-03 and vehicle

speed sensor connector C-08 in good condition?
YES :
Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The speedometer should work normally.

STEP 4. Check the wiring harness between combination
meter connector D-03 (terminal 65) and vehicle speed
sensor connector C-08 (terminal 3).

AC204395

CONNECTOR : C-08

C-08(B)

C-08(B)

HARNESS SIDE

AI

3 2 1

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204395

CONNECTOR : C-08

C-08(B)

C-08(B)

HARNESS SIDE

AI

3 2 1

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-46

NOTE: Also check intermediate connector E-111, E-114 and
joint connector (4) D-116. If intermediate connector E-111,
E-114 or joint connector (4) D-116 are damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector D-03 (terminal 65) and vehicle speed sensor
connector C-08 (terminal 3) in good condition?
YES :
Go to Step 5.
NO :  Repair the wiring harness. The speedometer should

work normally.

STEP 5. Check the speedometer by operating the
auto-cruise control system.
Q:  Does auto-cruise control work normally?

YES : Replace the combination meter. The speedometer

should work normally.

NO :  Replace the PCM. The speedometer should work

normally.

AC204171

CONNECTOR : D-116

AD

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204194

CONNECTORS : E-111, E-114

E-111

AB

E-114

E-111

E-114

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-47

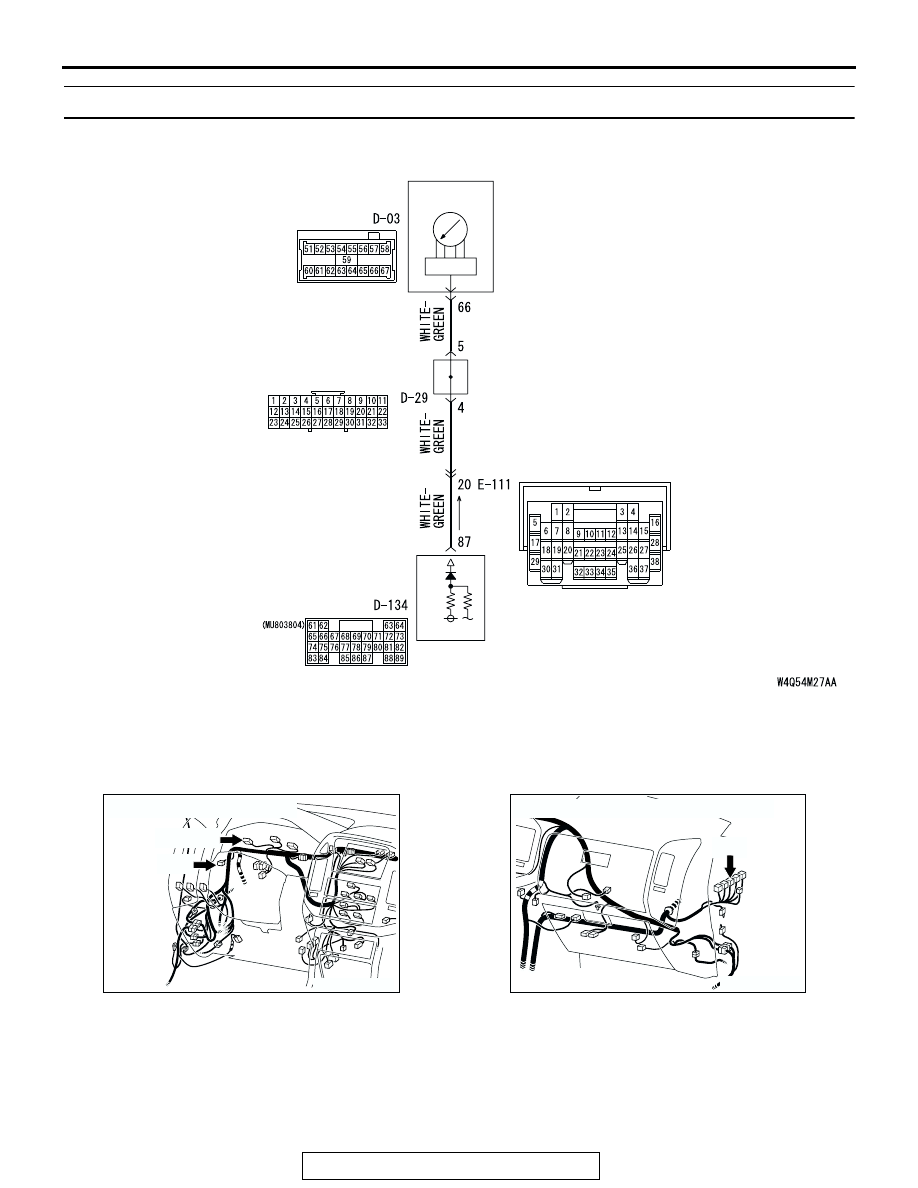

INSPECTION PROCEDURE 2: Tachometer does not Work.

COMBINATION
METER

TACHO
METER

POWERTRAIN
CONTROL
MODULE

JOINT
CONNECTOR (5)

CPU

Tachometer Circuit

AC204170

CONNECTORS : D-03, D-29

DE

D-03(GR)

D-29

AC204171

CONNECTOR : D-134

AW

D-134(GR)

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-48

.

CIRCUIT OPERATION

• The tachometer power is supplied from the igni-

tion switch (IG) circuit.

• The tachometer detects the ignition signal control

via the PCM.

.

TECHNICAL DESCRIPTION (COMMENT)
The ignition signal may not be sent from the engine,
or there may be a malfunction in the power supply or
ground circuit.

.

TROUBLESHOOTING HINTS

• Malfunction of the combination meter (printed cir-

cuit board or speedometer and tachometer)

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• Malfunction of the PCM

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1. Check the tachometer by observing the other
meters.

Check to see that the speedometer, fuel gauge and water ther-
mometer operate normally.
Q:  Do all other meters operate?

 YES <other meters all operate> : Go to Step 2.
 NO <one of the meters do not operate > : Refer to

INSPECTION PROCEDURE 5

P.54A-64

.

AC204176

CONNECTOR: E-111

AK
