Mitsubishi Montero (2004+). Manual - part 505





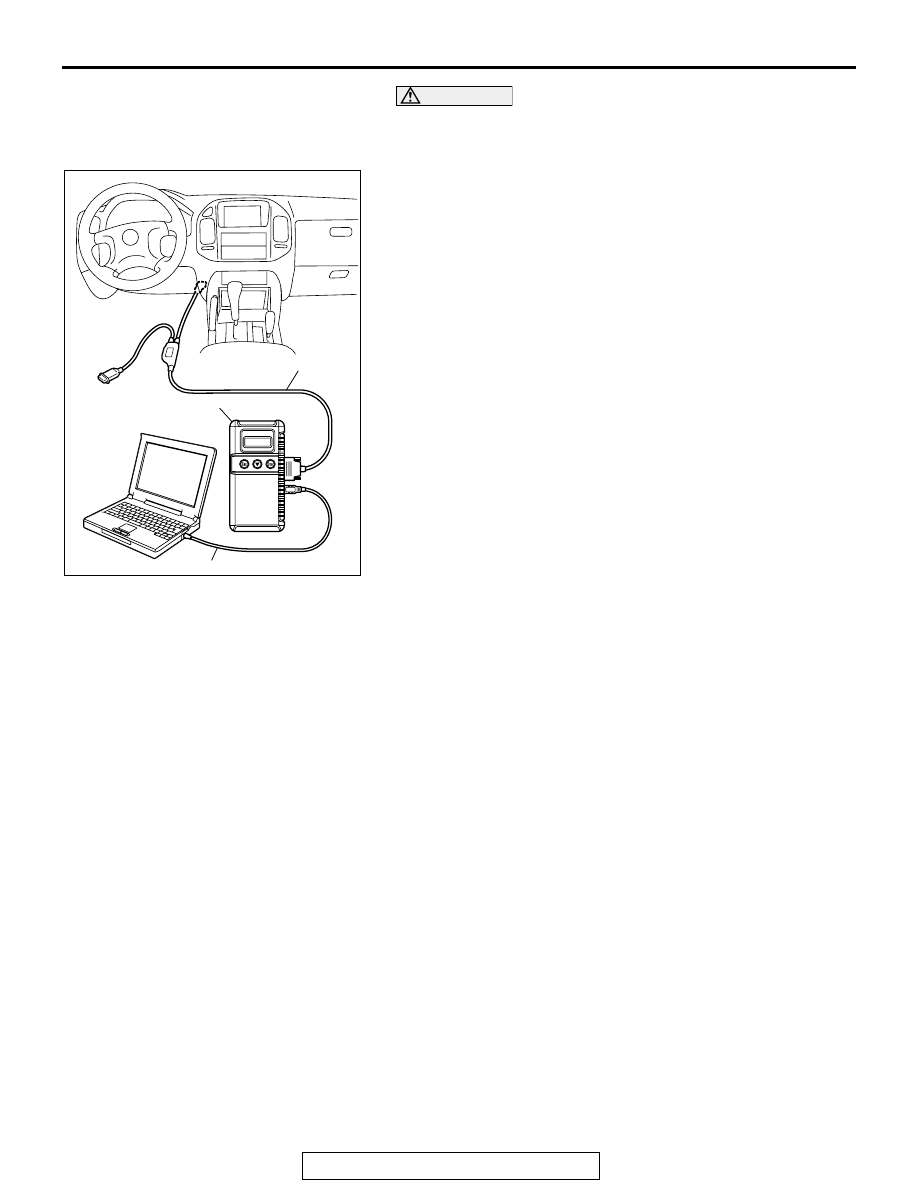

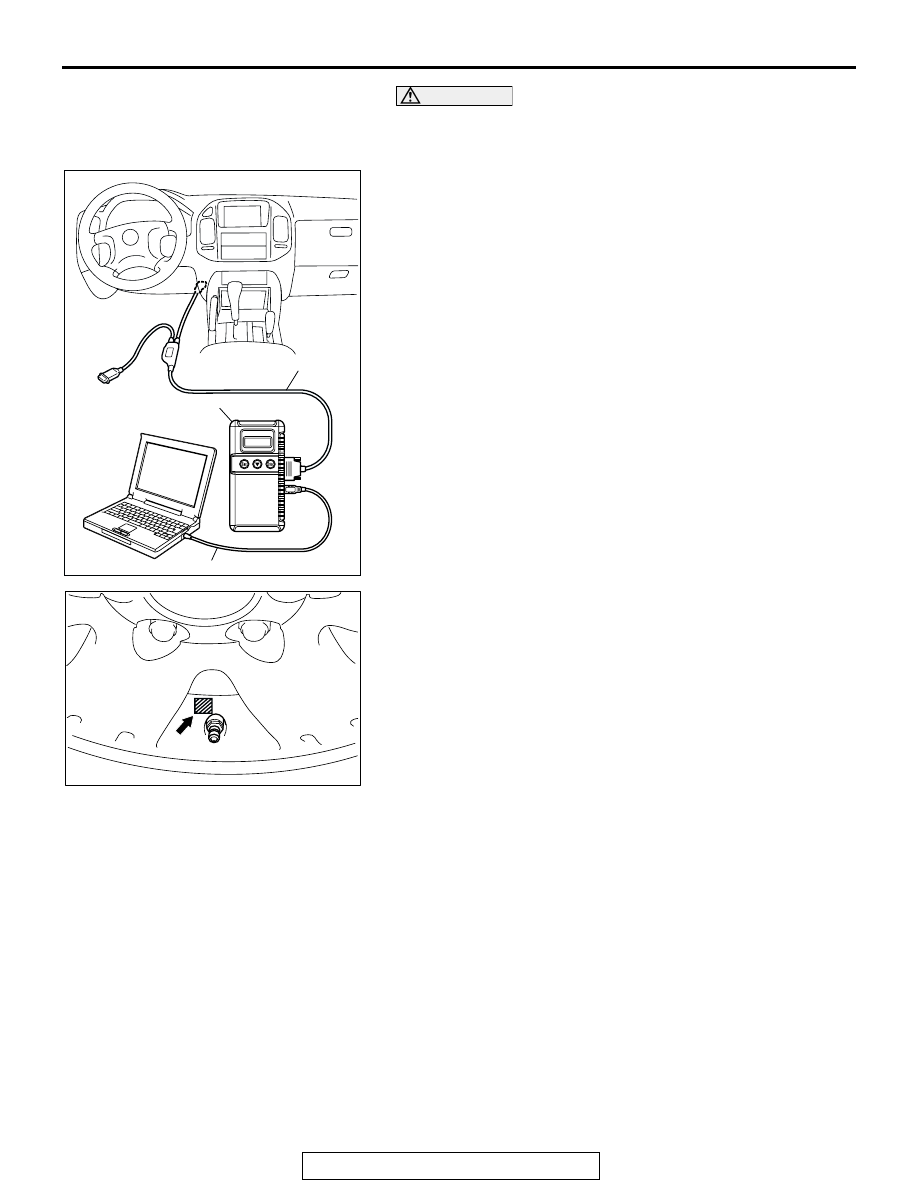

ON-VEHICLE SERVICE

TSB Revision

WHEEL AND TIRE

31-91

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "TPMS" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Special Function."
8. Select "Tire Pressure Sensor ID Check."
9. Check the tire pressure sensor IDs on the PC display.
10.After tire pressure sensor ID check, turn the ignition switch

to the "LOCK" (OFF) position.

11.Remove scan tool MB991958.

.

FROM THE MUT-III DIAGNOSIS SCREEN
You can check the tire pressure sensor ID on the diagnosis
screen as described below.
1. Operate scan tool MB991958 as follows:

• Press "Special" button on the diagnosis screen.

• Select "Tire Pressure Sensor ID Check" from the "Special

Function" menu.

2. Check the tire pressure sensor IDs on the PC display.
3. After tire pressure sensor ID check, turn the ignition switch

to the "LOCK" (OFF) position.

4. Remove scan tool MB991958.

TIRE PRESSURE SENSOR CHECK

M1311004000021

Required Special Tools:

• MIT46716: TPMS Magnet

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

Check the condition of the tire pressure sensor as described
below.

AC306409AF

MB991911

MB991824

MB991827

ON-VEHICLE SERVICE

TSB Revision

WHEEL AND TIRE

31-92

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "TPMS" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Special Function."
8. Select "Tire Pressure Sensor Check."
9. Send the signal from an intended transmitter as follows:

(1) Clean the TPMS transmitter location on the wheel rim.

(2) Position MIT46716 or a strong magnet as shown, and

hold it there for 5 seconds or more.
NOTE:

.

By doing this work, the reed switch (incorporated in
the TPMS transmitter) will activate the TPMS trans-
mitter to send the pressure sensor data.

If the TPMS transmitter is not activated, slide the
magnet until it is activated. If the TPMS transmitter is
still not activated, move the vehicle (turn the tire) by
approximately half a turn of the tire. Then attempt to
activate the TPMS transmitter.

10.Check the data on the PC display.

NOTE: If the spare tire pressure sensor cannot be checked,
bring the spare tire near one of the road tires. Then check
the tire pressure sensor. There is no TPMS antenna for the
spare tire, so this work helps the road tire TPMS antenna
receive signal from the spare tire securely.

AC306409AF

MB991911

MB991824

MB991827

AC307589

AC

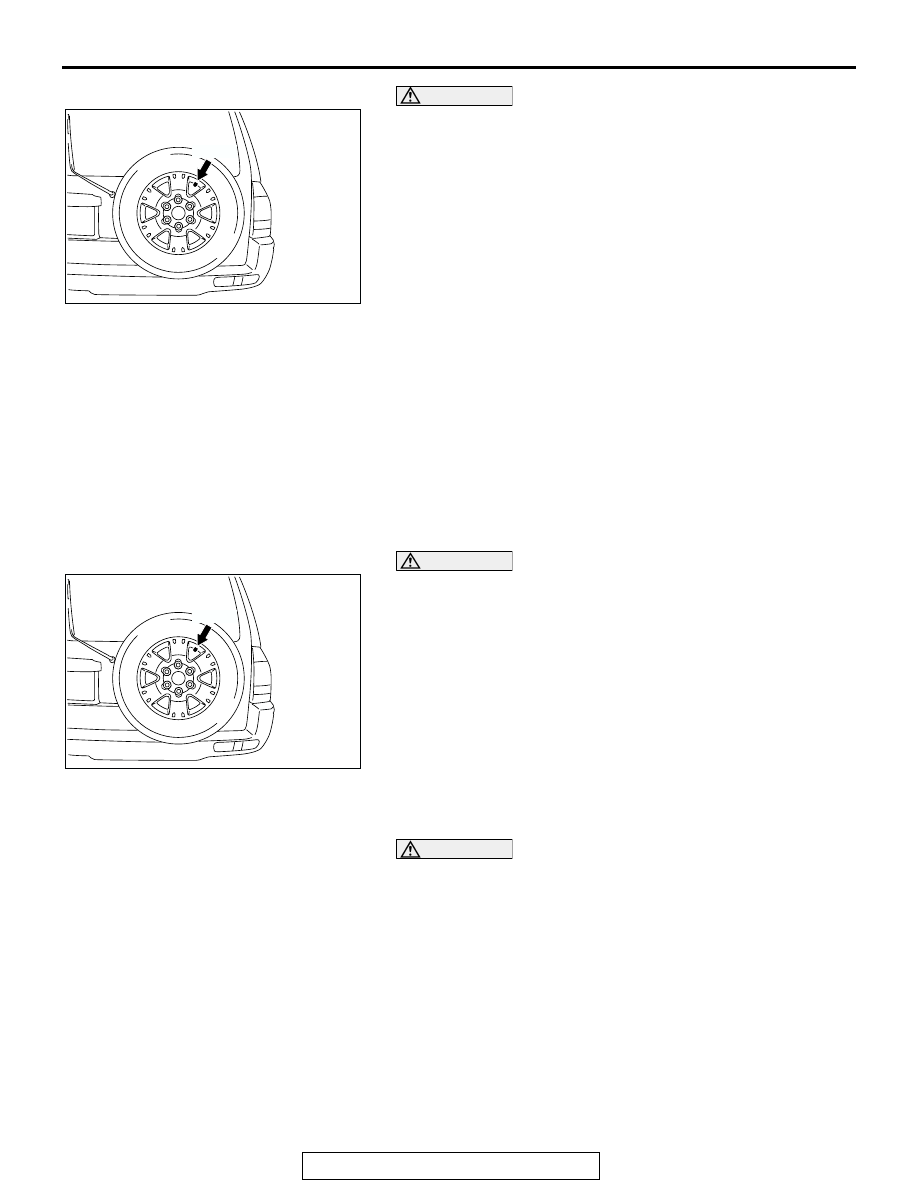

WHEEL AND TIRE

TSB Revision

WHEEL AND TIRE

31-93

CAUTION

If the spare tire is removed, always reinstall it as shown. If
the spare tire valve (TPMS transmitter) is not positioned as
shown, the roll switch, which is incorporated in the TPMS
transmitter, may operate. In that case, the system may
determine the spare tire as a road tire incorrectly.
11.After tire pressure sensor check, turn the ignition switch to

the "LOCK" (OFF) position.

12.Remove scan tool MB991958.

WHEEL AND TIRE

INSTALLATION SERVICE POINT

M1311001300313

ROAD WHEELS

Tighten the wheel nuts to the specified torque.

Tightening torque: 108

± 10 Nm (80 ± 7 ft-lb)

SPARE WHEEL

CAUTION

Install the spare tire as shown. If the spare tire valve (TPMS
transmitter) is not positioned as shown, the roll switch,
which is incorporated in the TPMS transmitter, may oper-
ate. In that case, the system may determine the spare tire
as a road tire incorrectly.
Install the spare wheel to the back door, positioning the valve
as shown. And then tighten the mounting bolts and/or the lock
cylinder to the specified torque.

Tightening torque: 46

± 8 Nm (34 ± 5 ft-lb)

WHEEL AND TIRE REPLACEMENT

M1311005800020

CAUTION

Do not use non-genuine wheels. The use of non-genuine
wheels may cause the improper installation of the TPMS
transmitters, possibly resulting in air leakage and damage
to the TPMS transmitter.

• When the tire is removed from the wheel, a special proce-

dure must be observed to avoid the TPMS transmitter dam-
age. Refer to TPMS transmitter Removal and Installation
(

P.31-97

).

• When a tire is replaced, always replace the rubber grommet

of the TPMS transmitter. Refer to TPMS transmitter
Removal and Installation (

P.31-97

).

AC307590 AB

VALVE

AC307590 AB

VALVE

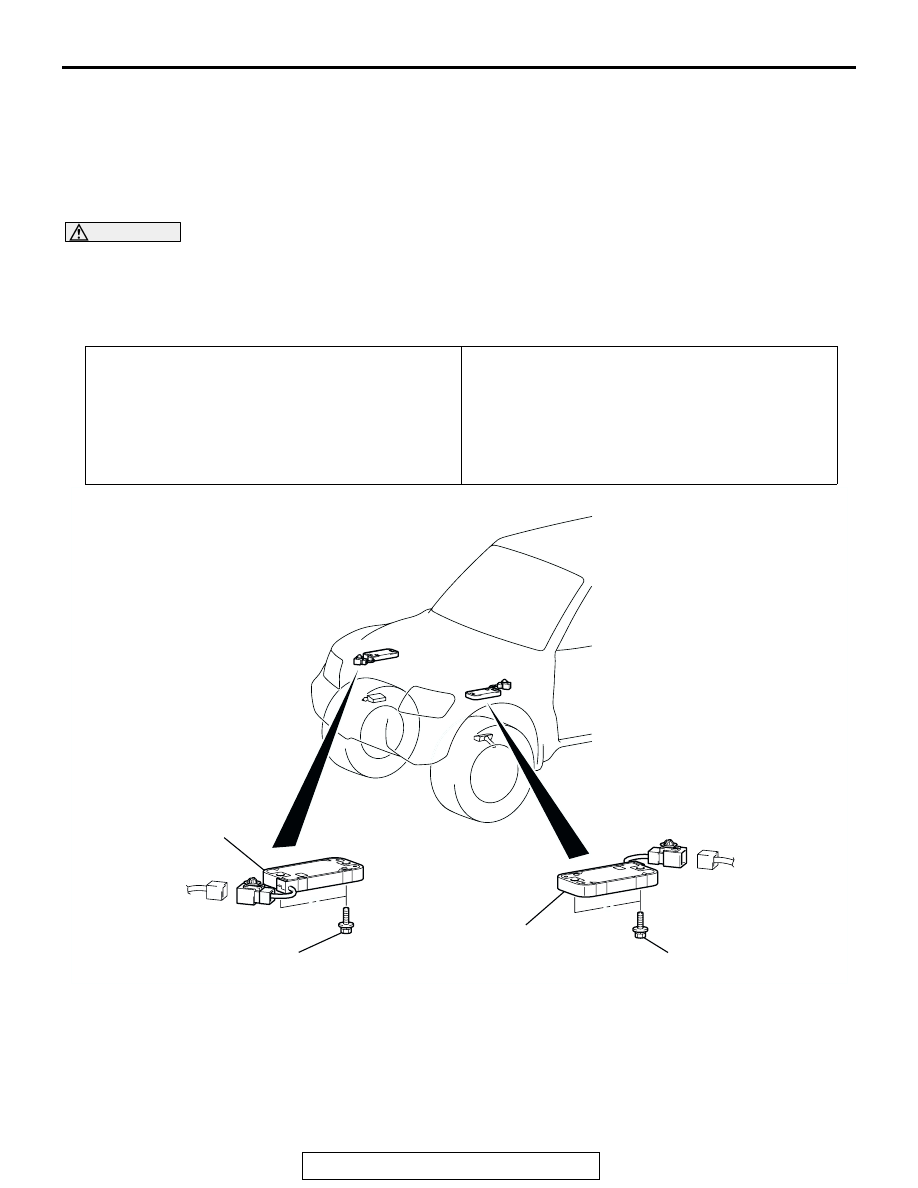

TIRE PRESSURE MONITORING SYSTEM (TPMS)

TSB Revision

WHEEL AND TIRE

31-94

TIRE PRESSURE MONITORING SYSTEM (TPMS)

TPMS ANTENNA

REMOVAL AND INSTALLATION

M1311003600020

<TPMS ANTENNA (FRONT)>

CAUTION

• Do not drop the TPMS antenna.
• TPMS antenna should not be exposed to temperatures above 105°C (221°F).
• If any TPMS antenna is replaced, execute "Tire Pressure Sensor ID Registration" on scan tool

MB991958 "Special Function" to check the receiver function.

Pre-removal Operation
• Splash Shield Removal (Refer to GROUP 42, Fender

P.42-7

)

Post-installation Operation
• Splash Shield Installation (Refer to GROUP 42, Fender

P.42-7

)

• Receiver Function Check by Executing "Tire Pressure

Sensor ID Registration" <If a new TPMS antenna is

installed> (Refer to

P.31-89

).

• TPMS Failure Check (check that the TPMS warning light

does not illuminate or flash).

AC307577 AB

TPMS ANTENNA
(FRONT-LH)

TPMS ANTENNA
(FRONT-RH)

8.8 ± 2.0 N·m
78 ± 17 in-lb

8.8 ± 2.0 N·m
78 ± 17 in-lb
