Mitsubishi Montero (2004+). Manual - part 504





SPECIAL TOOLS

TSB Revision

WHEEL AND TIRE

31-87

SPECIAL TOOLS

M1311000600032

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle communication

interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness A

(Vehicles with CAN
communication system)

D: MUT-III main harness B

(Vehicles without CAN
communication system)

E: MUT-III main harness C (for

Daimler Chrysler models
only)

F: MUT-III measurement

adapter

G: MUT-III trigger harness

MB991824-KIT
NOTE: G:
MB991826 MUT-III
trigger harness is not
necessary when
pushing V.C.I
ENTER key

For communication with
TPMS receiver

• Diagnostic trouble

code reading

• Service data reading

• Actuator testing

• Executing TPMS

special function

CAUTION

MUT-III main harness B
(MB991911) should be
used. MUT-III main
harness A and C should
not be used for this
vehicle.

- MIT46716

#8821 (Miller tool)
PT30B (Snap-on
tool)
or general
moderately strong
magnet

TPMS transmitter data
transmission

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

AC308883

ON-VEHICLE SERVICE

TSB Revision

WHEEL AND TIRE

31-88

ON-VEHICLE SERVICE

TIRE INFLATION PRESSURE CHECK

M1311000900334

NOTE:

.

For information on tire inflation pressure, refer to the label
attached to the center pillar on the driver's side.

The TPMS is not a substitute for regular checks of the tire
inflation pressure. Be sure to check the tire inflation pres-
sure as usual.

TIRE WEAR CHECK

M1311001000356

Measure the tread depth of the tires.

Minimum limit: 1.6 mm (0.06 inch)

If the remaining tread depth is less than the minimum limit,
replace the tire.
NOTE: When the tread depth of the tires is reduced to 1.6 mm
(0.06 inch) or less, wear indicators will appear.

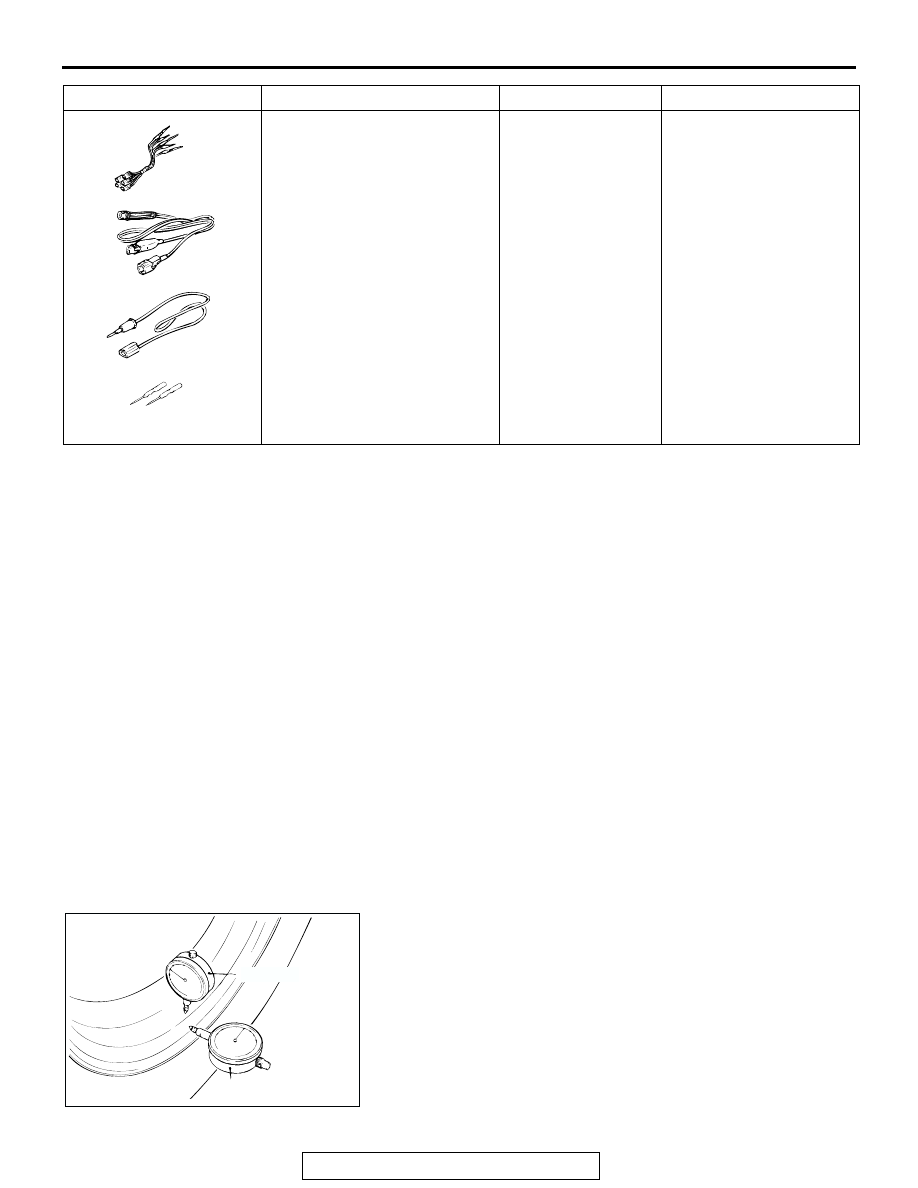

WHEEL RUNOUT CHECK

M1311001100375

Jack up the vehicle so that the wheels are clear of the floor.
While slowly turning the wheel, measure wheel runout with a
dial indicator.

Maximum limit:

Radial runout: 1.0mm (0.04inch)
Lateral runout: 1.0mm (0.04inch)

If wheel runout exceeds the limit, replace the wheel.

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222
Harness set
A: Test harness
B: LED harness
C: LED harness adapter
D: Probe

General service
tools

Checking the continuity
and measuring the
voltage at the TPMS
receiver harness
connector

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991223

A

D

C

B

AG

ACX00651AB

LATERAL

RADIAL

ON-VEHICLE SERVICE

TSB Revision

WHEEL AND TIRE

31-89

TPMS SPECIAL FUNCTION

TIRE PRESSURE SENSOR ID REGISTRATION

M1311003900021

• When the TPMS transmitter and TPMS receiver are

replaced, execute "Tire Pressure Sensor ID Registration."
The TPMS won't function until the "Tire Pressure Sensor ID
Registration" has been complete.

• Also when the TPMS antenna(s) and feeder cable(s) are

replaced, execute "Tire Pressure Sensor ID Registration."
This is necessary to check whether data has been sent cor-
rectly from the TPMS transmitter.

Required Special Tools:

• MIT46716: TPMS Magnet

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

Register the tire pressure sensor IDs as described in the proce-
dure below.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

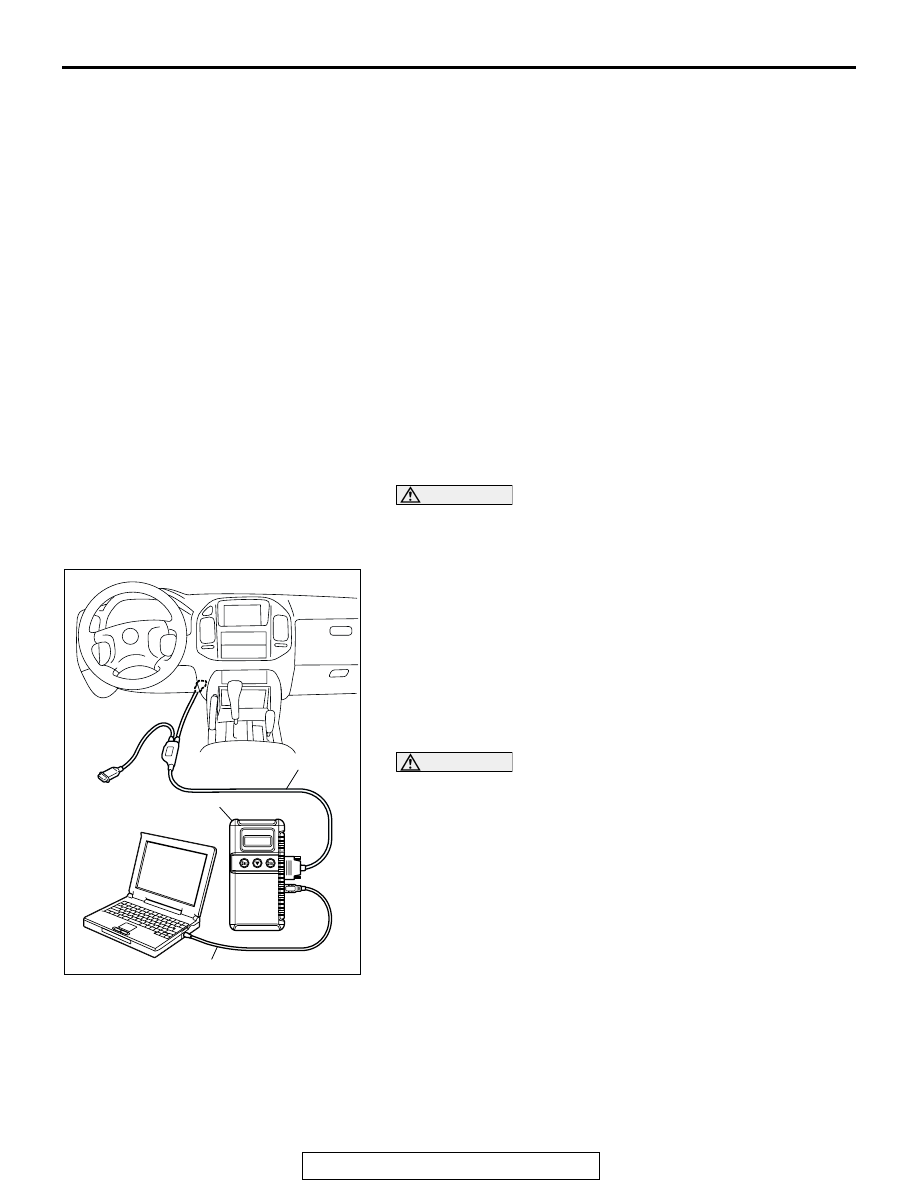

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "TPMS" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Special Function."
8. Select "Tire Pressure Sensor ID Registration."

CAUTION

Register all tire pressure sensor IDs within five minutes.
9. Select "5tires PRES SNSR ID Registration (NORMAL

SPARE TIRE)" and start the tire pressure sensor ID
registration.

10.Emit signal from a TPMS transmitter as follows:

NOTE: You can start out the following operations from any
TPMS transmitter. The tire pressure sensor ID registration
has no order.

(1) Clean the TPMS transmitter location on the wheel rim.

AC306409AF

MB991911

MB991824

MB991827

ON-VEHICLE SERVICE

TSB Revision

WHEEL AND TIRE

31-90

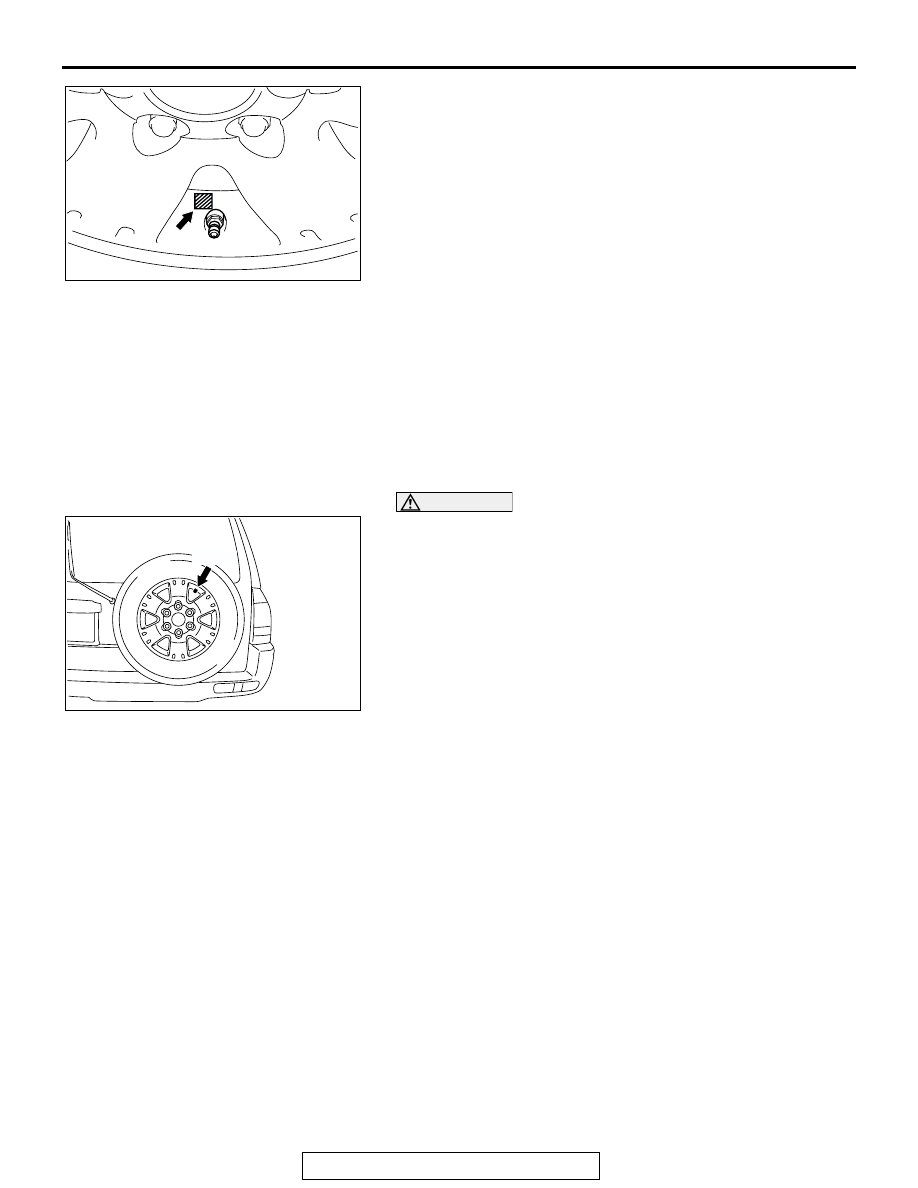

(2) Position MIT46716 or a strong magnet as shown, and

hold it there for 5 seconds or more.
NOTE:

.

By doing this work, the reed switch (incorporated in
the TPMS transmitter) will activate the TPMS trans-
mitter to send the tire pressure sensor ID.

If the TPMS transmitter is not activated, slide the
magnet until it is activated. If the TPMS transmitter is
still not activated, move the vehicle (turn the tire) by
approximately half a turn of the tire. Then attempt to
activate the TPMS transmitter.

11.Check completion of the above through scan tool

MB991958.

12.Repeat the above steps 8 and 9 for all tires (including the

spare tire).
NOTE: If the spare tire pressure sensor ID cannot be regis-
tered, bring the spare tire near one of the road tires. Then
register the tire pressure sensor ID. There is no TPMS
antenna for the spare tire, so this work helps the road tire
TPMS antenna receive signal from the spare tire securely.

CAUTION

If the spare tire is removed, always reinstall it as shown. If
the spare tire valve (TPMS transmitter) is not positioned as
shown, the roll switch, which is incorporated in the TPMS
transmitter, may operate. In that case, the system may
determine the spare tire as a road tire incorrectly.
13.Check the completion of the tire pressure sensor ID

registration (display on the screen).

14.After tire pressure sensor ID registration, turn the ignition

switch to the "LOCK" (OFF) position.

15.Remove scan tool MB991958.

TIRE PRESSURE SENSOR ID CHECK

M1311004100028

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

Check the tire pressure sensor IDs, which is registered in the
TPMS receiver, as described below.

.

AC307589

AC

AC307590 AB

VALVE
