TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-59

INSPECTION PROCEDURE 3: The TPMS Warning Light does not Illuminate as a Bulb Check for Three
Seconds when the Ignition Switch is Turned to the "ON" Position.

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

1

JOINT
CONNECTOR
(7)

JUNCTION
BLOCK

RELAY
BOX

COMBINATION
METER

POWER
SUPPLY

TPMS
RECEIVER

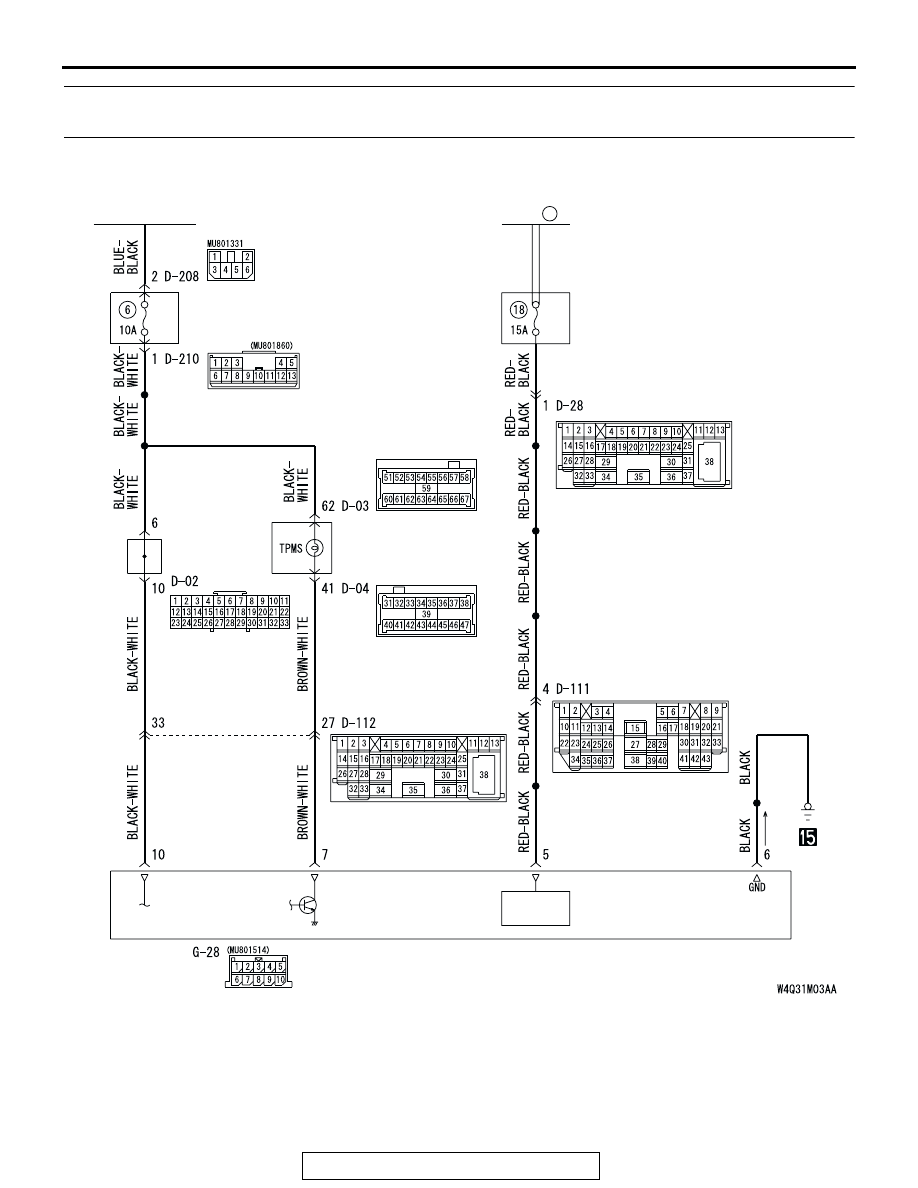

TPMS Receiver Power Supply and Ground, Ignition Signal Input and TPMS Warning Light Circuit

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-60

.

CIRCUIT OPERATION
For three seconds after the ignition switch is turned
to the "ON" position, the TPMS receiver illuminates
the TPMS warning light to check any breaks in the
TPMS warning light circuit.

.

TECHNICAL DESCRIPTION (COMMENT)
If the TPMS warning light does not illuminate for
three seconds when the ignition switch is turned to
the "ON" position, diagnose the TPMS warning light
signal circuit, power supply to the TPMS receiver,
ignition signal, and/or ground circuit.

.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CASE:)

• TPMS warning light signal harness wire open cir-

cuit

• Ignition signal harness wire of the TPMS receiver

or battery power supply harness wire open circuit

• Ground harness wire of the TPMS receiver open

circuit

• Malfunction of the combination meter

• Malfunction of the TPMS receiver

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

.

AC204170

CONNECTORS: D-02, D-04, D-28

D-02

D-04 (GR)

EJ

D-28

AC204171

CONNECTORS: D-111, D-112

D-112

BG

D-111

AC204173

CONNECTORS: D-208, D-210

D-208

D-210

AR

AC307592

G-28

CONNECTOR: G-28

AD

THIRD SEAT
BELT (RH)

TPMS RECEIVER

AC308099 AD

RELAY BOX (FUSE No.18)
IN ENGINE COMPARTMENT

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-61

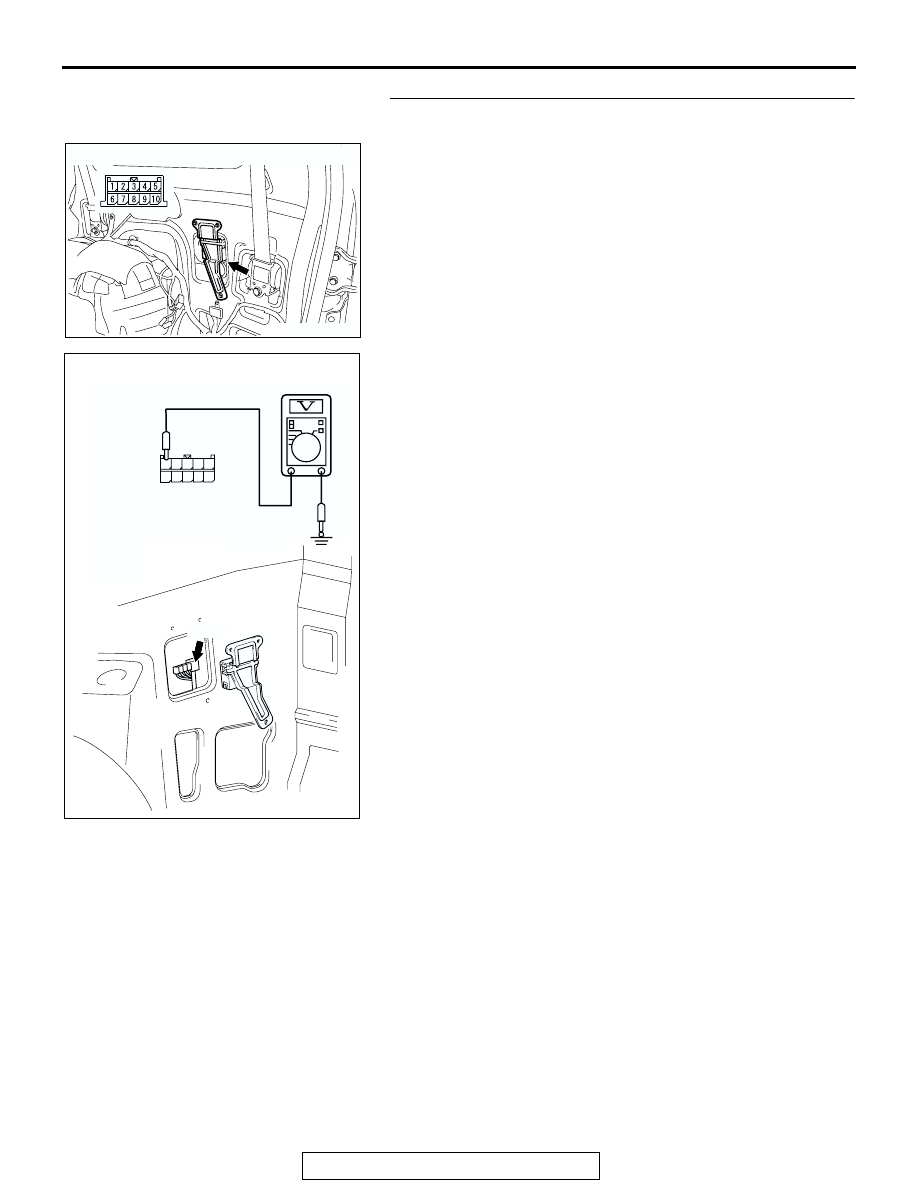

STEP 1. Measure the voltage at G-28 TPMS receiver
connector.

(1) Disconnect TPMS receiver connector G-28, and check at

the harness connector (component side).

(2) Measure the voltage between terminal 5 and ground. It

should measure battery positive voltage (approximately 12

volts).

(3) Turn the ignition switch to the "ON" position.

AC307592 AE

CONNECTOR : G-28

AC308264

AC307575

G-28

CONNECTOR: G-28

AG

G-28

10

5

6

7

9 8

3

4

2 1

HARNESS CONNECTOR:
COMPONENT SIDE

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-62

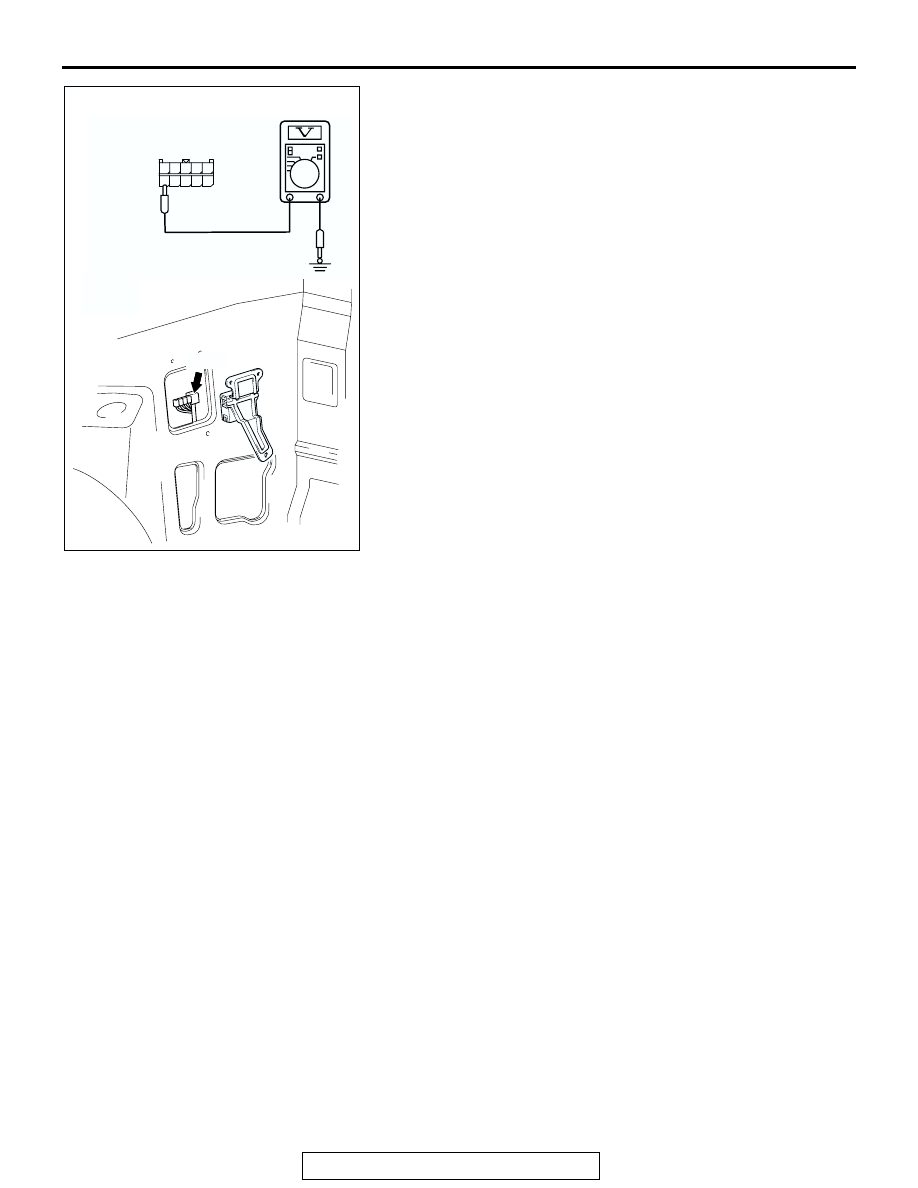

(4) Measure the voltage between terminal 10 and ground. It

should measure battery positive voltage (approximately 12

volts).

Q: Is battery positive voltage (approximately 12 volts)

present?
YES <all the measured voltages are equivalent to
battery positive voltage> : Go to Step 6.
NO <voltage between terminal 5 and ground is not
battery positive voltage> : Go to Step 2.
NO <voltage between terminal 10 and ground is not
battery positive voltage> : Go to Step 4.

AC308264

AC307575

G-28

CONNECTOR: G-28

AH

G-28

10

5

6

7

9 8

3

4

2 1

HARNESS CONNECTOR:
COMPONENT SIDE
