Mitsubishi Montero (2004+). Manual - part 498





TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-63

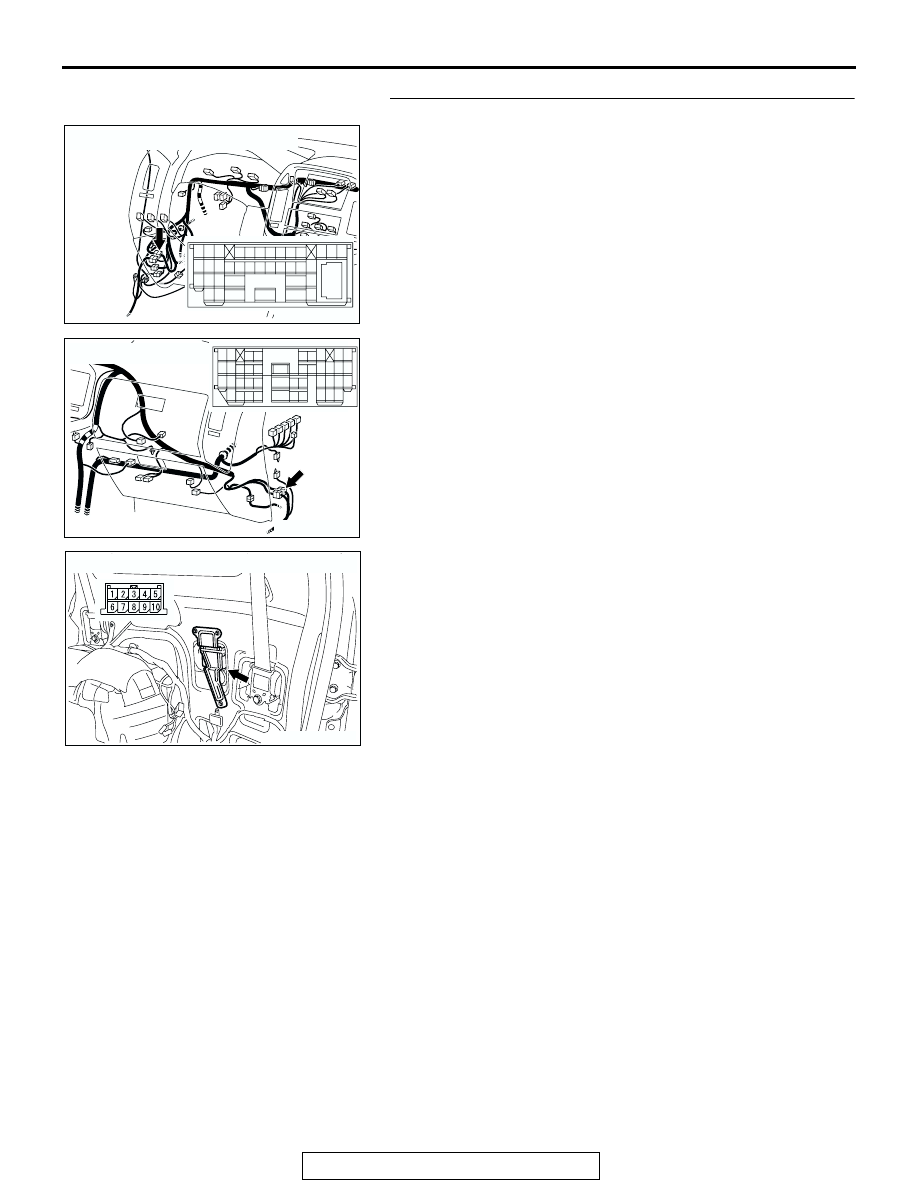

STEP 2. Check the following connectors.

• Intermediate connector D-28

• Intermediate connector D-111

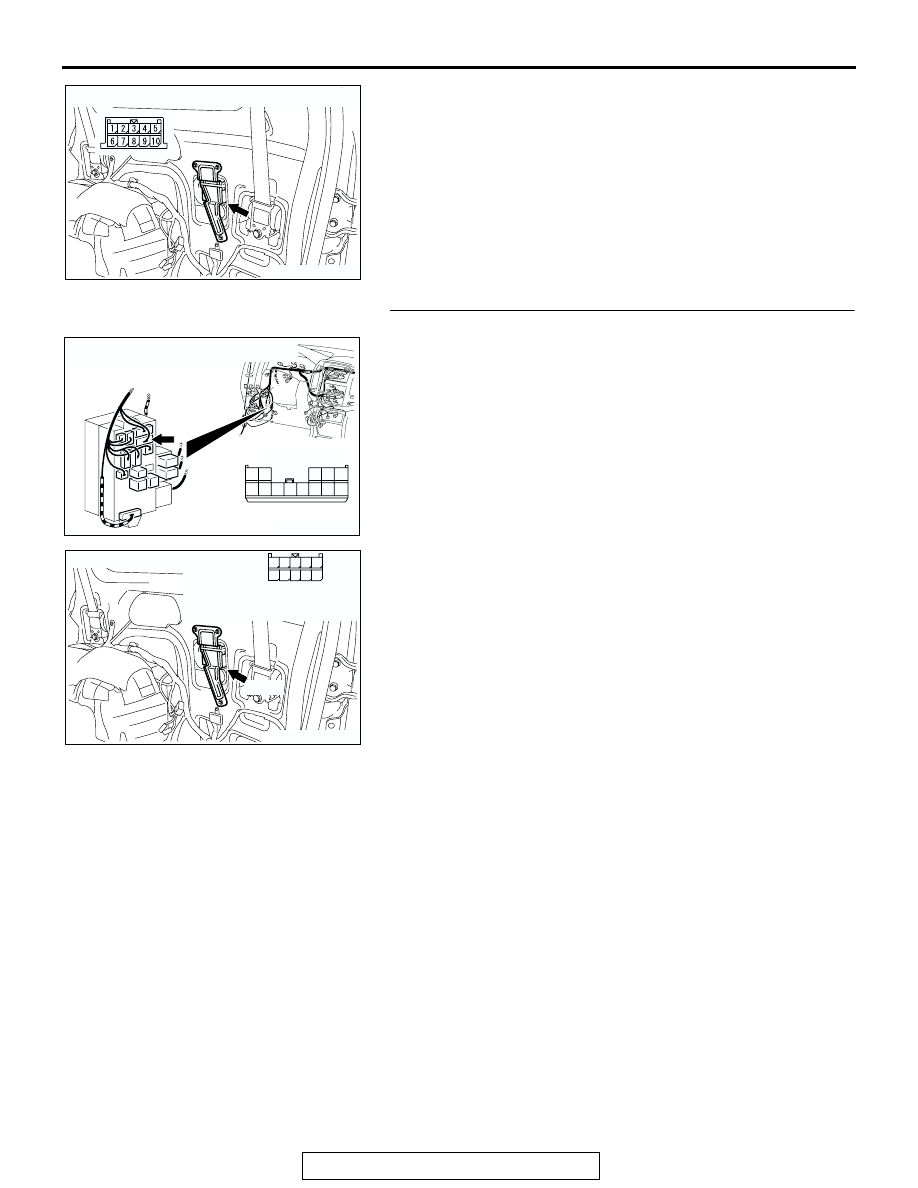

• TPMS receiver connector G-28

Check the connectors for loose, corroded or damaged termi-
nals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 3.
NO :  Repair it. And then go to Step 12.

AC204170

CONNECTOR : D-28

AI

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204171

CONNECTOR : D-111

AC

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC307592 AE

CONNECTOR : G-28

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-64

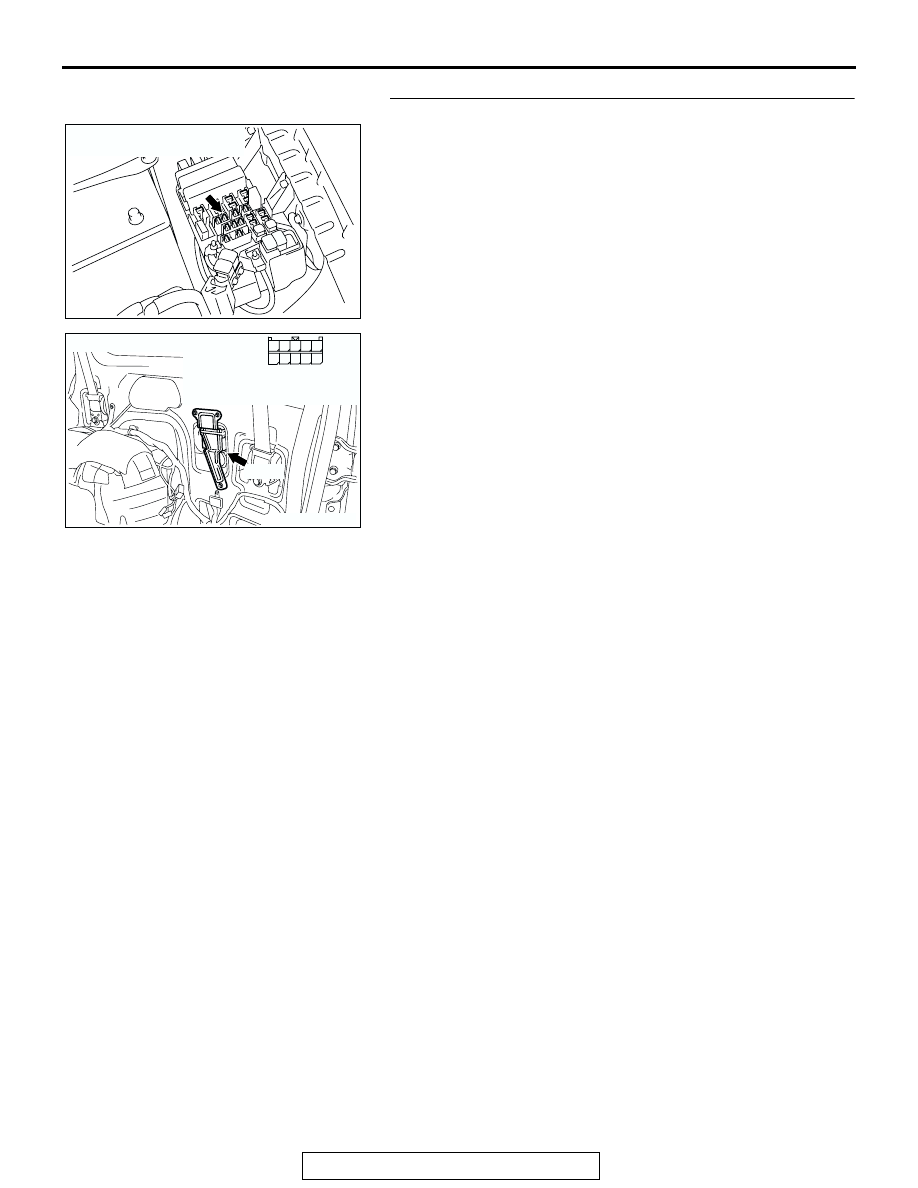

STEP 3. Check the following harness wire.

• The wire between relay box in engine compartment (fuse

number 18) and TPMS receiver connector G-28 (terminal 5)

Q: Is the harness wire damaged?

YES : Repair or replace it. And then go to Step 12.
NO :  Repeat the troubleshooting from Step 1.

AC308099 AD

RELAY BOX (FUSE No.18)
IN ENGINE COMPARTMENT

AC307592

G-28

AF

G-28

10

5

6

7

9 8

3

4

2 1

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: G-28

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-65

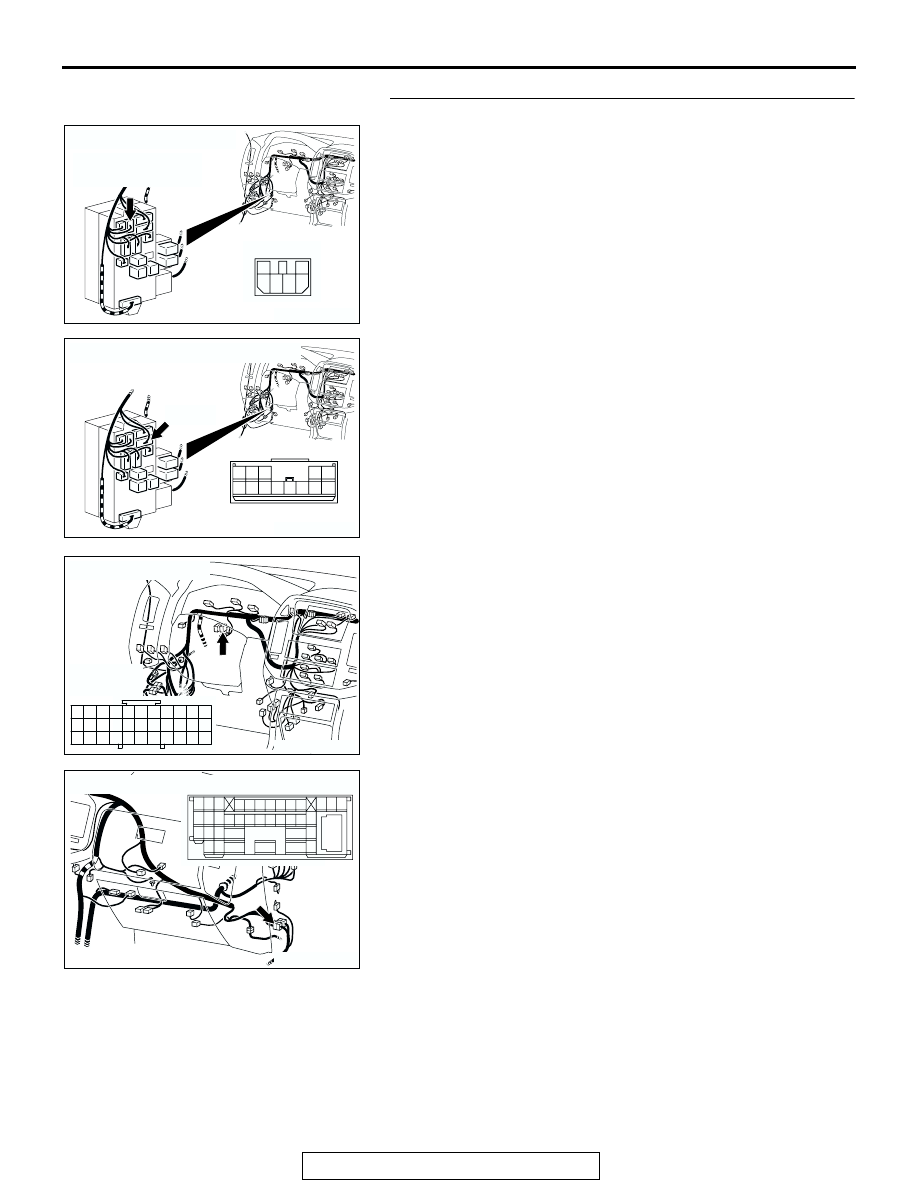

STEP 4. Check the following connectors.

• Junction block connectors D-208 and D-210

• Joint connector D-02

• Intermediate connector D-112

AC204173

CONNECTOR : D-208

BA

5 6

2

4

3

1

JUNCTION BLOCK
(FRONT VIEW)

AC204173

CONNECTOR : D-210

D-210

BO

5

4

12 13

3

2

9

7 8

10

6

1

11

AC204170

CONNECTOR : D-02

CJ

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

HARNESS
SIDE

AC204171 AL

CONNECTOR : D-112

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

TIRE PRESSURE MONITORING SYSTEM (TPMS) DIAGNOSIS

TSB Revision

WHEEL AND TIRE

31-66

• TPMS receiver connector G-28

Check the connectors for loose, corroded or damaged termi-
nals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 5.
NO :  Repair it. And then go to Step 12.

STEP 5. Check the following harness wire.

• The wire between junction block connector D-210 (terminal

1) and TPMS receiver connector G-28 (terminal 10)

Q: Is the harness wire damaged?

YES : Repair or replace it. And then go to Step 12.
NO :  Repeat the troubleshooting from Step 1.

AC307592 AE

CONNECTOR : G-28

AC204173

CONNECTOR : D-210

AE

HARNESS SIDE

1

2

7 6

3

9

4

11

12

10

13

5

8

D-210

AC307592

G-28

AF

G-28

10

5

6

7

9 8

3

4

2 1

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: G-28
