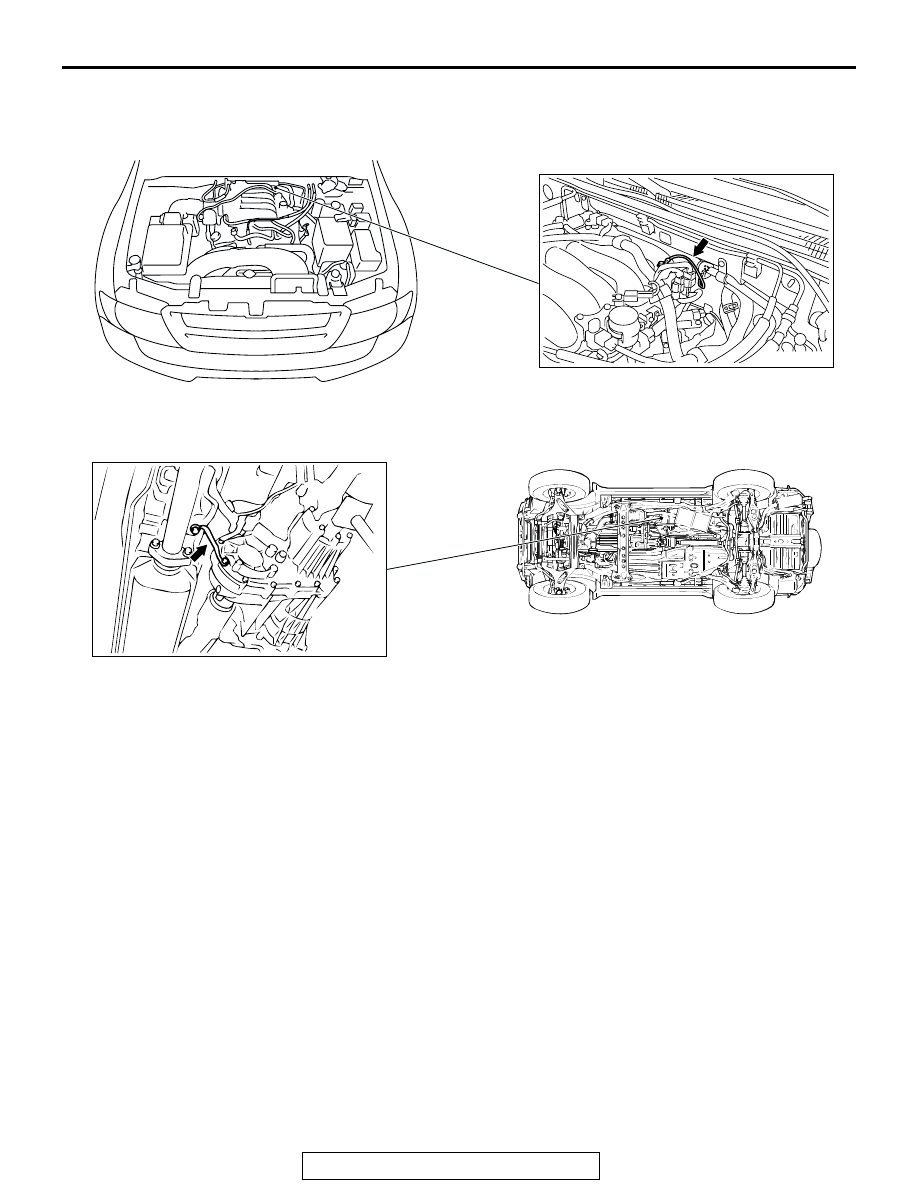

GROUNDING CABLE

TSB Revision

COMPONENT LOCATIONS

70-7

GROUNDING CABLE

M1701001000256

AC203897AB

ACX01822 AB

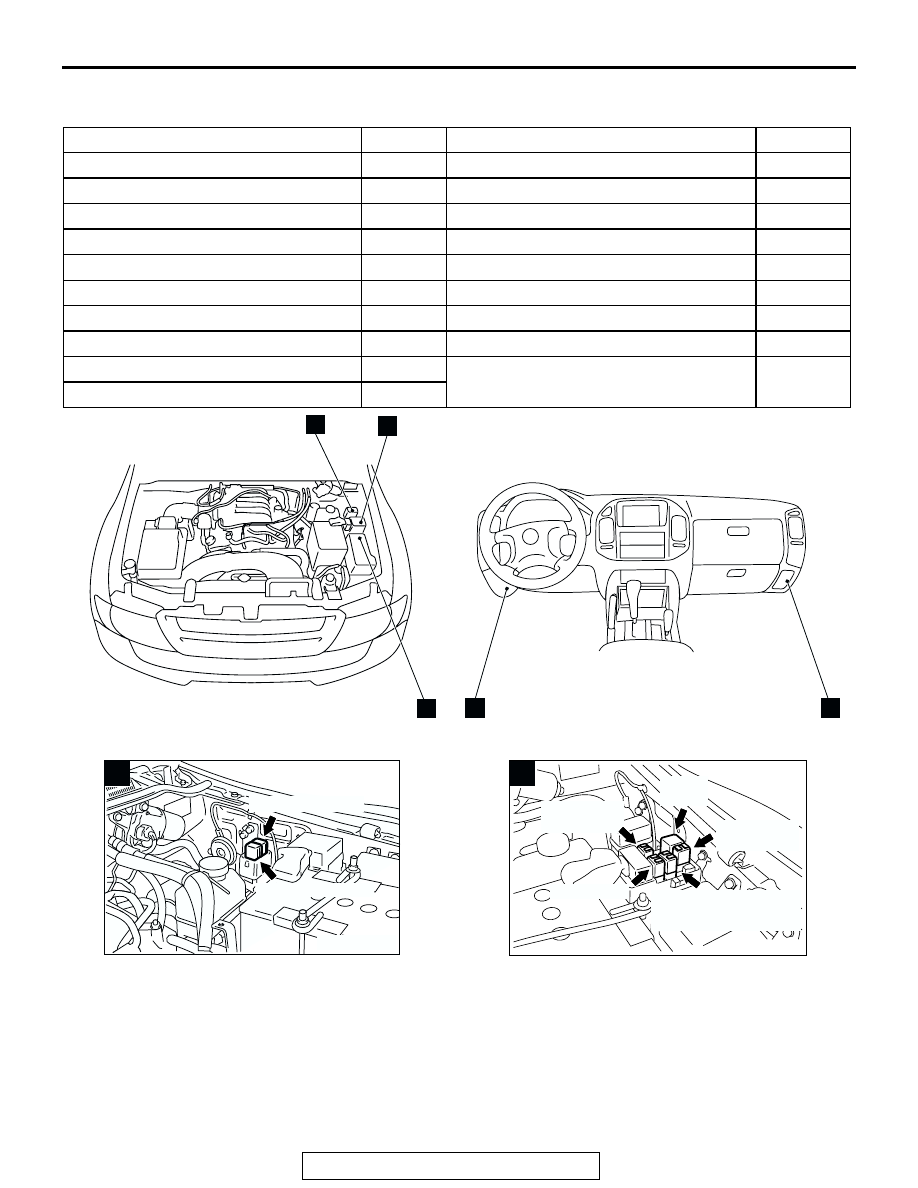

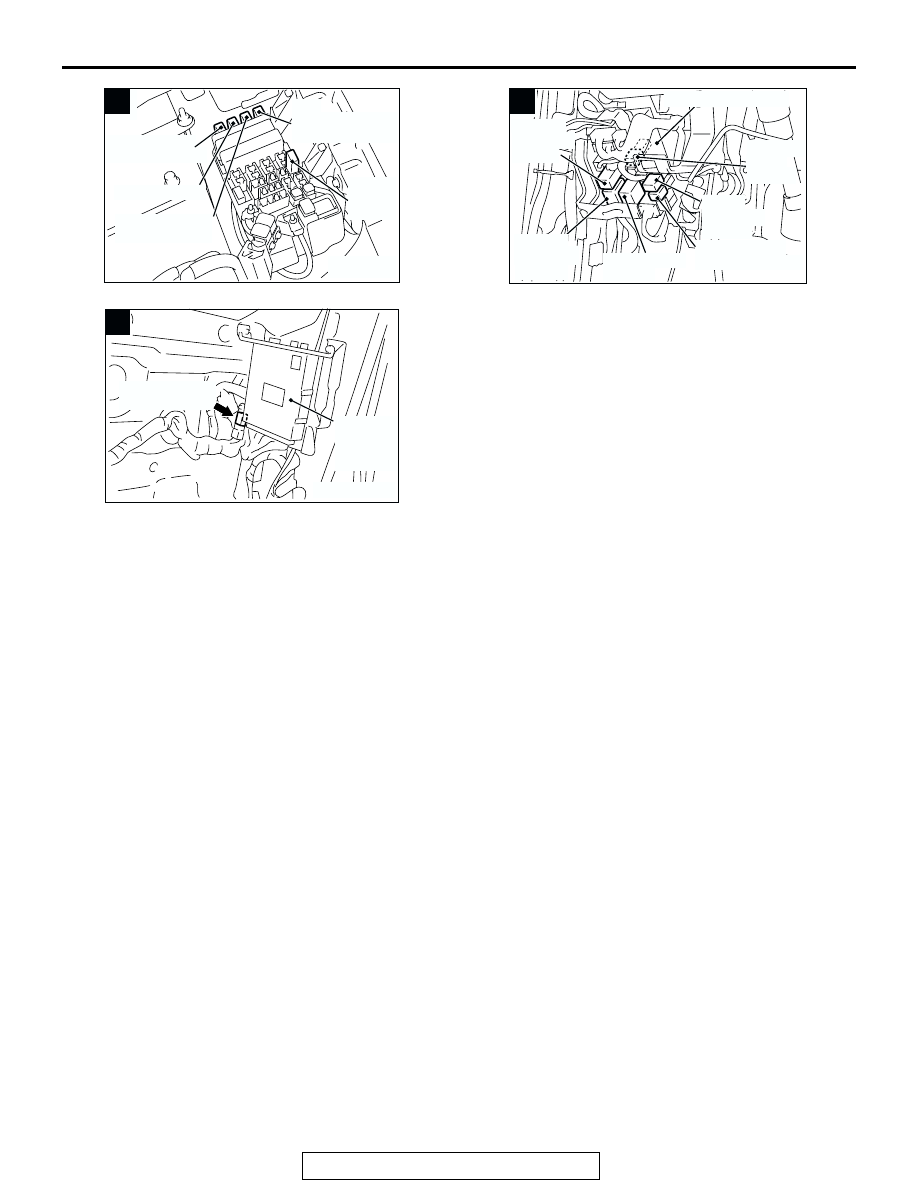

RELAY

TSB Revision

COMPONENT LOCATIONS

70-8

RELAY

M1701000400358

NAME

SYMBOL NAME

SYMBOL

Accessory socket relay

D

Horn relay

C

A/C compressor clutch relay

C

MFI relay

B

A/T control relay

E

Motor relay A

A

Condenser fan control relay

C

Motor relay B

A

Defogger relay

D

Power window relay

D

Fog light relay

C

Rear blower relay

D

Front blower relay

D

Theft-alarm horn relay

C

Fuel pump relay (1)

B

Throttle actuator control motor relay

B

Fuel pump relay (2)

B

Valve relay

B

Heated seat relay

D

AC203894

A

B

D

E

C

AE

AC204329AB

MOTOR RELAY B

MOTOR RELAY A

A

AC203908

AB

VALVE
RELAY

MFI RELAY

FUEL PUMP
RELAY (1)

B

FUEL PUMP
RELAY (2)

THROTTLE ACTUATOR
CONTROL MOTOR
RELAY

RELAY

TSB Revision

COMPONENT LOCATIONS

70-9

ACX01471AF

FOG
LIGHT
RELAY

THEFT-ALARM
HORN RELAY

HORN RELAY

C

CONDENSER
FAN CONTROL
RELAY

A/C
COMPRESSOR
CLUTCH RELAY

AC308100AB

D

JUNCTION BLOCK

ACCESSORY
SOCKET RELAY

REAR
BLOWER
RELAY

DEFOGGER
RELAY

FRONT
BLOWER
RELAY

POWER
WINDOW
RELAY

HEATED
SEAT
RELAY

ACX01473 AG

A/T CONTROL
RELAY

E

POWER
TRAIN
CONTROL
MODULE

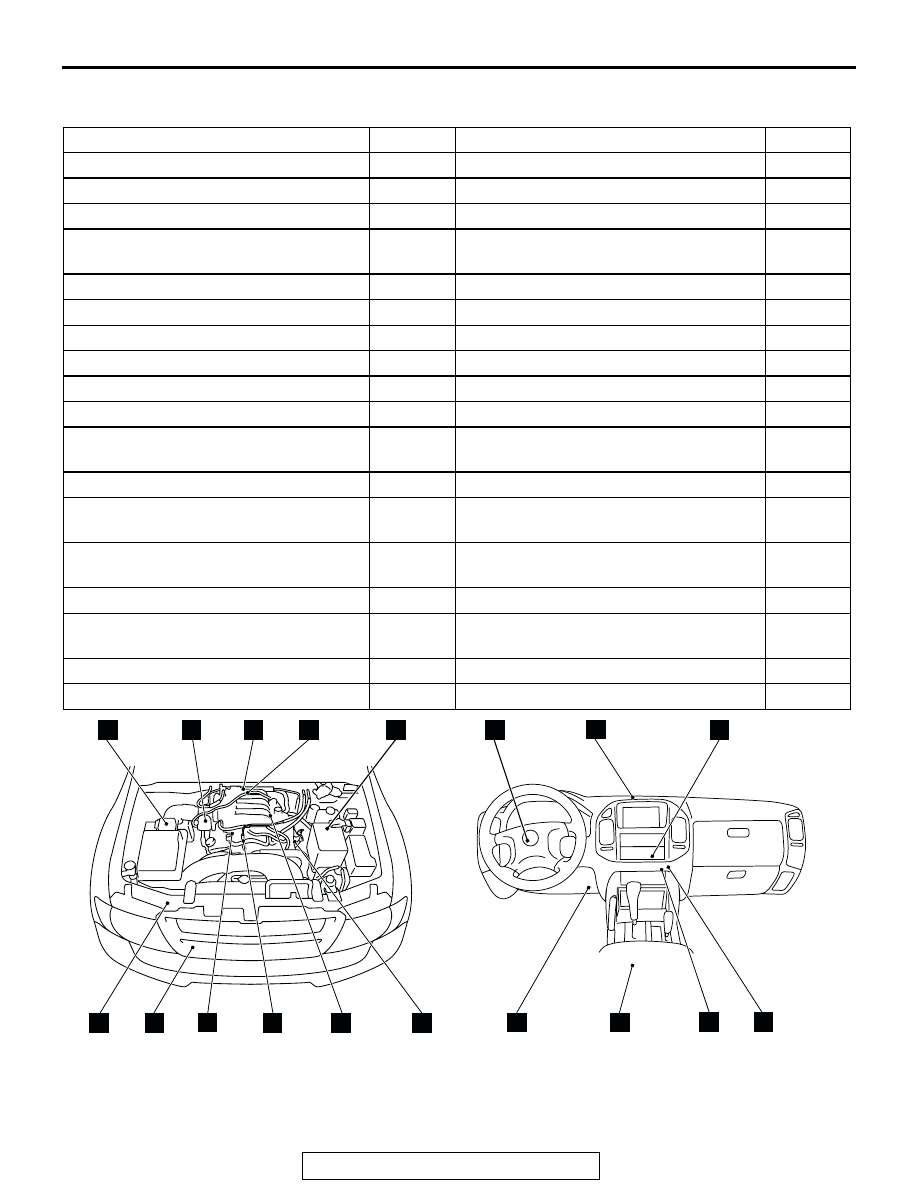

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-10

SENSOR

M1701000600396

NOTE:
*: equipped at both right and left sides.

NAME

SYMBOL NAME

SYMBOL

Accelerator pedal position sensor

O

Left bank heated oxygen sensor (rear)

T

A/C sensor <Automatic A/C>

Q

Lock sensor

K

A/C sensor <Manual A/C>

R

Manifold absolute pressure sensor

C

A/C sensor <Rear cooler, rear heater
and rear A/C>

e

Output shaft speed sensor

Y

Ambient air temperature sensor

G

Photo sensor <Automatic A/C>

M

Camshaft position sensor

D

Pressure sensor <M-ASTC>

E

Crankshaft position sensor

I

Rear propeller shaft speed sensor

Z

Engine coolant temperature sensor

H

Right bank heated oxygen sensor (front) V

Front impact sensor

F

Right bank heated oxygen sensor (rear)

W

Front propeller shaft speed sensor

d

Side impact sensor

g

Fuel level sensor (Incorporating fuel tank
temperature sensor)

h

Steering wheel sensor <M-ASTC>

L

Fuel tank differential pressure sensor

h

Throttle position sensor

B

G and yaw rate sensor

P

TPMS transmitter (Incorporating
pressure sensor)

f

Heater water temperature sensor
<Automatic A/C>

Q

Transmission fluid temperature sensor

b

Input shaft speed sensor

c

Vehicle speed sensor

a

Inside air temperature sensor
<Automatic A/C>

N

Volume airflow sensor

A

Knock sensor

J

Wheel speed sensor (front)

U

Left bank heated oxygen sensor (front)

S

Wheel speed sensor (rear)

X

AC203894

A

B

D

F

G

H

I

J

C

*

AH

E

K

L

M

N

O

R

Q

P
