Mitsubishi Montero (2004+). Manual - part 479

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-11

NOTE:
*: equipped at both right and left sides.

ACX01737AC

*

*

S

U

V

X

T

W

Y

Z

a

b

d

c

ACX01213AG

*

e

g

h

f

*

f

*

f

AC100778AC

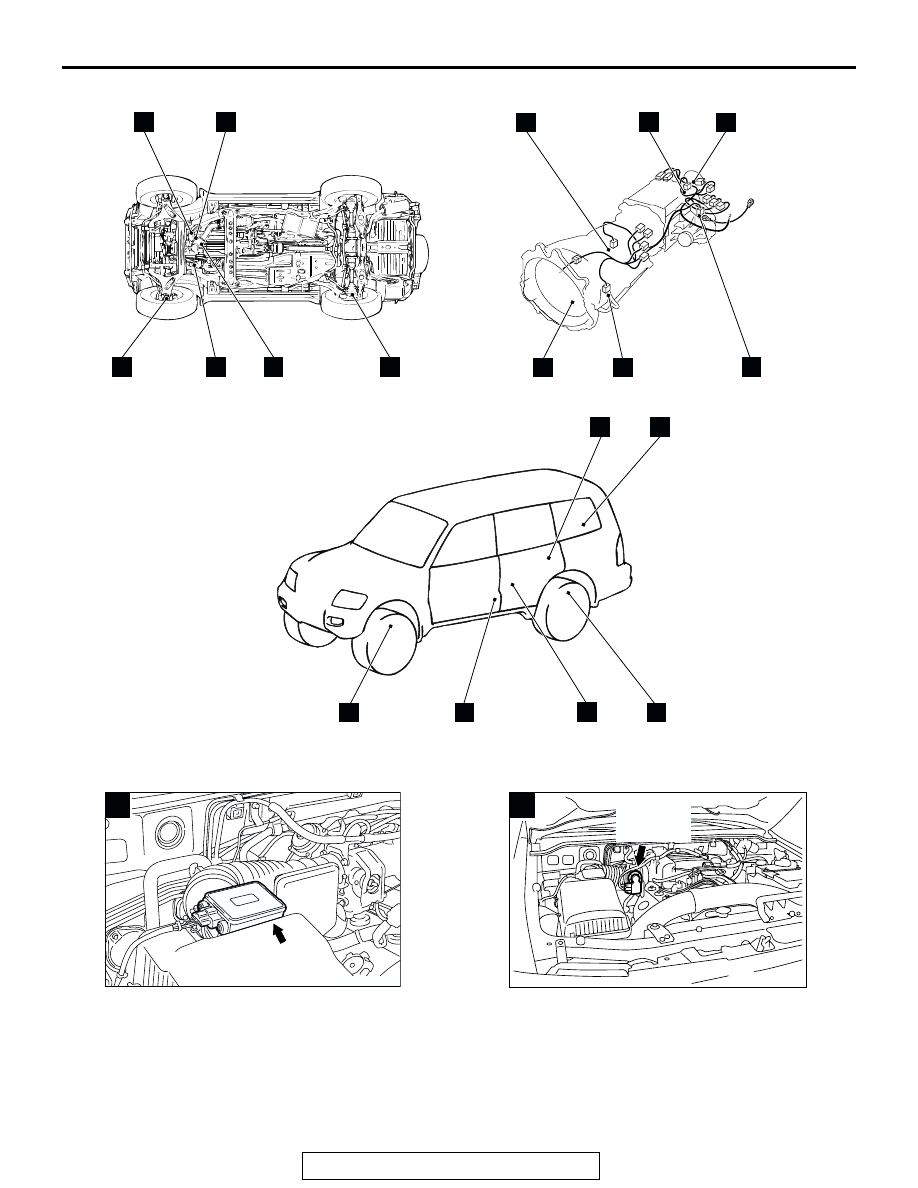

VOLUME
AIRFLOW
SENSOR

A

AC203909

AB

B

THROTTLE
POSITION
SENSOR

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-12

AC203910

AC

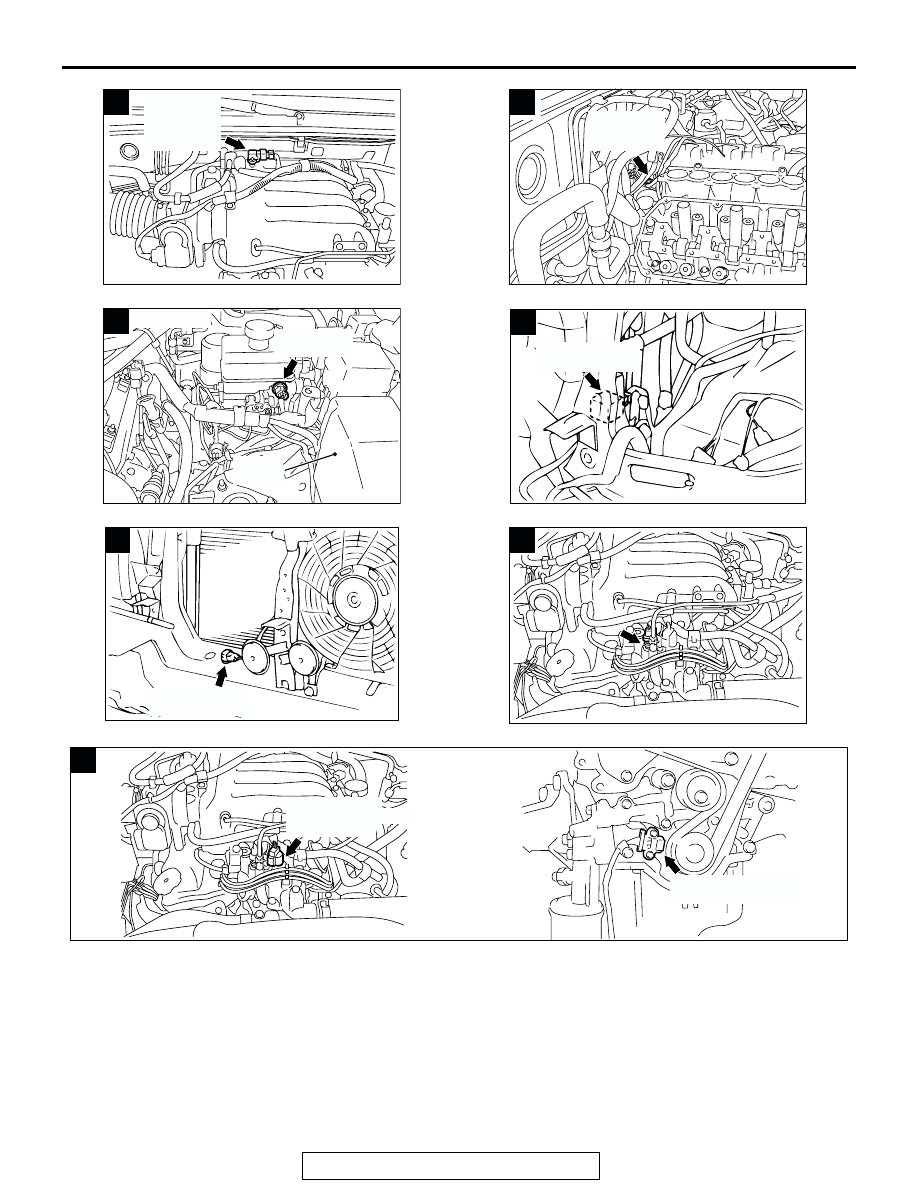

MANIFOLD
ABSOLUTE
PRESSURE
SENSOR

C

AC203916AC

CAMSHAFT
POSITION
SENSOR

D

AC203912AC

PRESSURE
SENSOR

RELAY
BOX

E

<M-ASTC>

ACX01216 AC

FRONT IMPACT
SENSOR

F

ACX01217AC

AMBIENT AIR
TEMPERATURE SENSOR

G

AC203911

AH

ENGINE COOLANT
TEMPERATURE
SENSOR

ENGINE COOLANT
TEMPERATURE
SENSOR

H

AC203918AC

I

CRANKSHAFT
POSITION SENSOR

CRANKSHAFT
POSITION SENSOR
CONNECTOR

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-13

AC203917AB

KNOCK SENSOR
CONNECTOR

KNOCK
SENSOR

J

AC203959AC

LOCK SENSOR

A/C

COMPRESSOR

LOCK SENSOR

CONNECTOR

K

AC203913AC

STEERING
WHEEL
SENSOR

L

<M-ASTC>

ACX01825AF

SENSOR

DEFROSTER
NOZLE

M

<AUTOMATIC A/C>

ACX01219 AC

INSIDE AIR
TEMPERATURE
SENSOR

N

<AUTOMATIC A/C>

AC203914

AE

ACCELERATOR PEDAL
POSITION SENSOR

STEERING
SHAFT

O

AC204288

AB

AC

P

G AND YAW
RATE SENSOR

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-14

AC203927AC

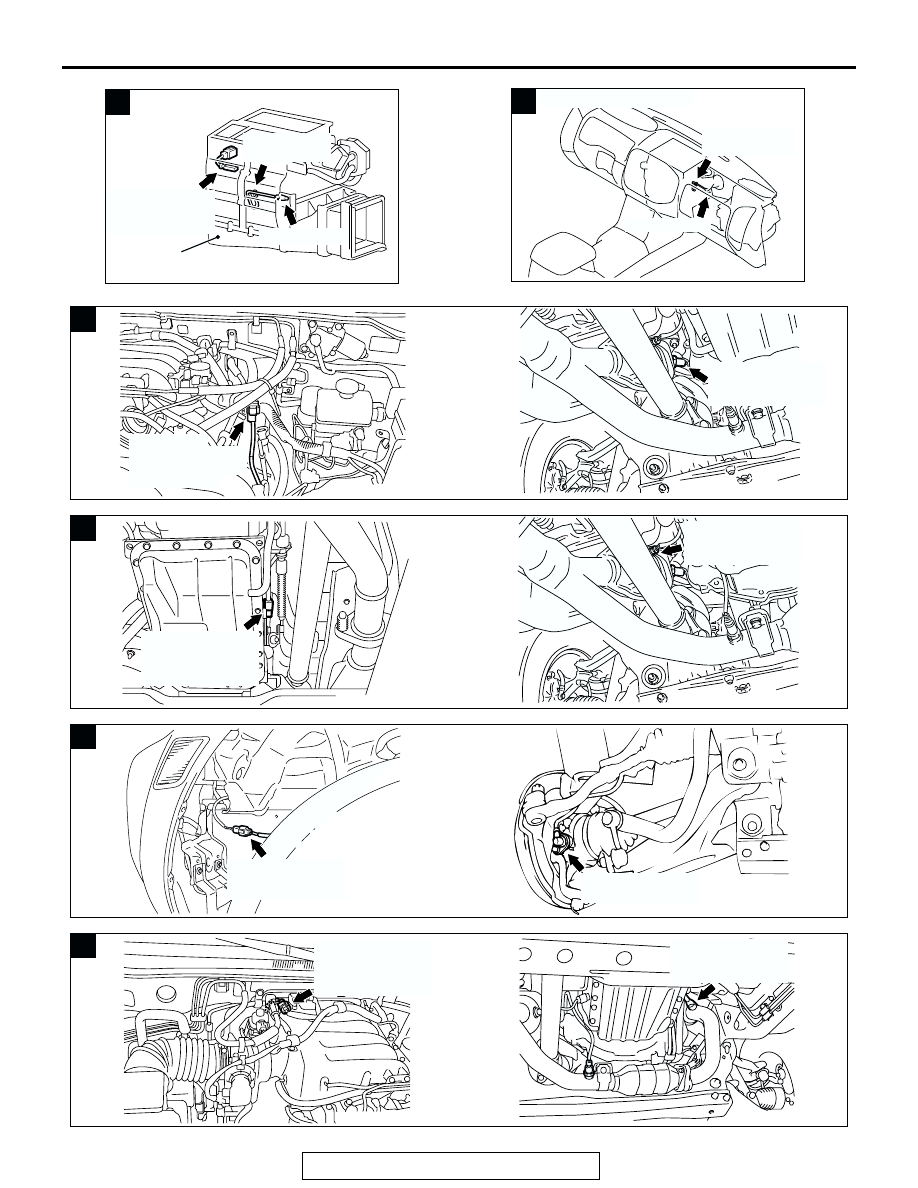

HEATER WATER
TEMPERATURE
SENSOR

A/C SENSOR

<AUTOMATIC A/C>

A/C SENSOR
CONNECTOR

HEATER
UNIT

Q

AC203928

<MANUAL A/C>

AC

A/C SENSOR
CONNECTOR

A/C SENSOR

R

AC203919AC

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

S

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)
CONNECTOR

AC203920AC

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)
CONNECTOR

T

AC203921AC

WHEEL SPEED
SENSOR (FRONT)

WHEEL SPEED
SENSOR (FRONT)
CONNECTOR

U

AC203922AC

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)

RIGHT BANK
HEATED OXYGEN
SENSOR (FRONT)
CONNECTOR

V
