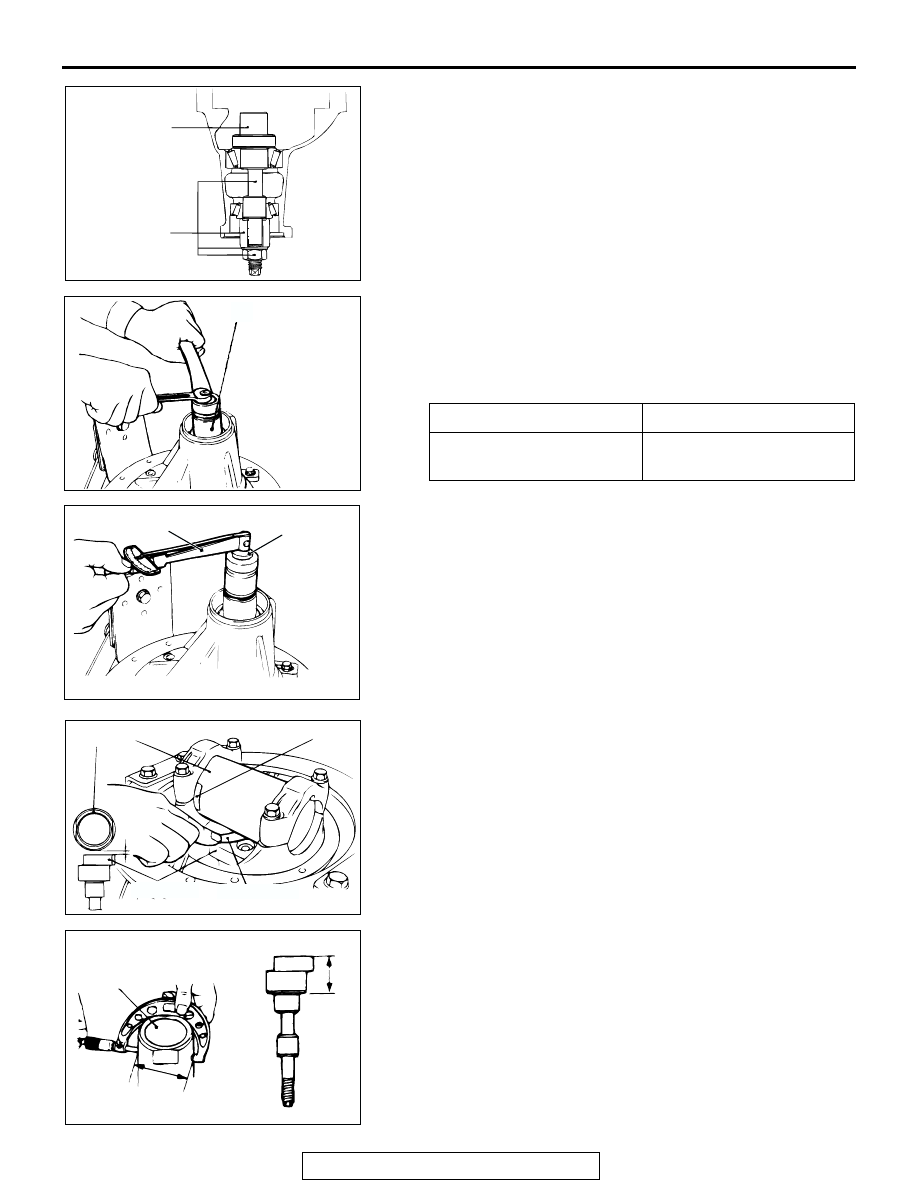

Mitsubishi Montero (2004+). Manual - part 474

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-35

1. Apply multipurpose grease to the washer of special tool

MB990819.

2. Install special tool MB990819, MB991770 and drive pinion

front and rear bearing inner races to the gear carrier as
shown in the illustration.

3. Tighten the nut of special tool MB990819 a little at a time,

while measuring the turning torque of the drive pinion. Then
confirm that the turning torque (without the oil seal) is at the
standard value.

Standard value:

4. Clean the side bearing hub.

5. Place special tool MB991534 between the side bearing hub

of the gear carrier, and position the notch as shown in the
illustration. Then tighten side bearing mounting bolt.

6. Use a thickness gauge to measure the clearance (A)

between special tools MB991169 and MB991534.

7. Remove special tools MB991169 and Mb991534.

8. Use a micrometer to measure the shown dimensions (B, C)

of special tools MB991169 and MB991534.

BEARING DIVISION

TURNING TORQUE

New

1.94

− 2.25 N⋅m 17.2 − 19.9

in-lb

AC000178

MB990819

AB

REPLACE THE
HEAD WITH
MB991770

ACX01055 AB

MB990819

AC102911

MB990326

AC

MB990685

ACX01109AB

MB991534

NOTCH

MB991169

THICKNESS
GAUGE

A

ACX01058AB

MB991534

B

C

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-36

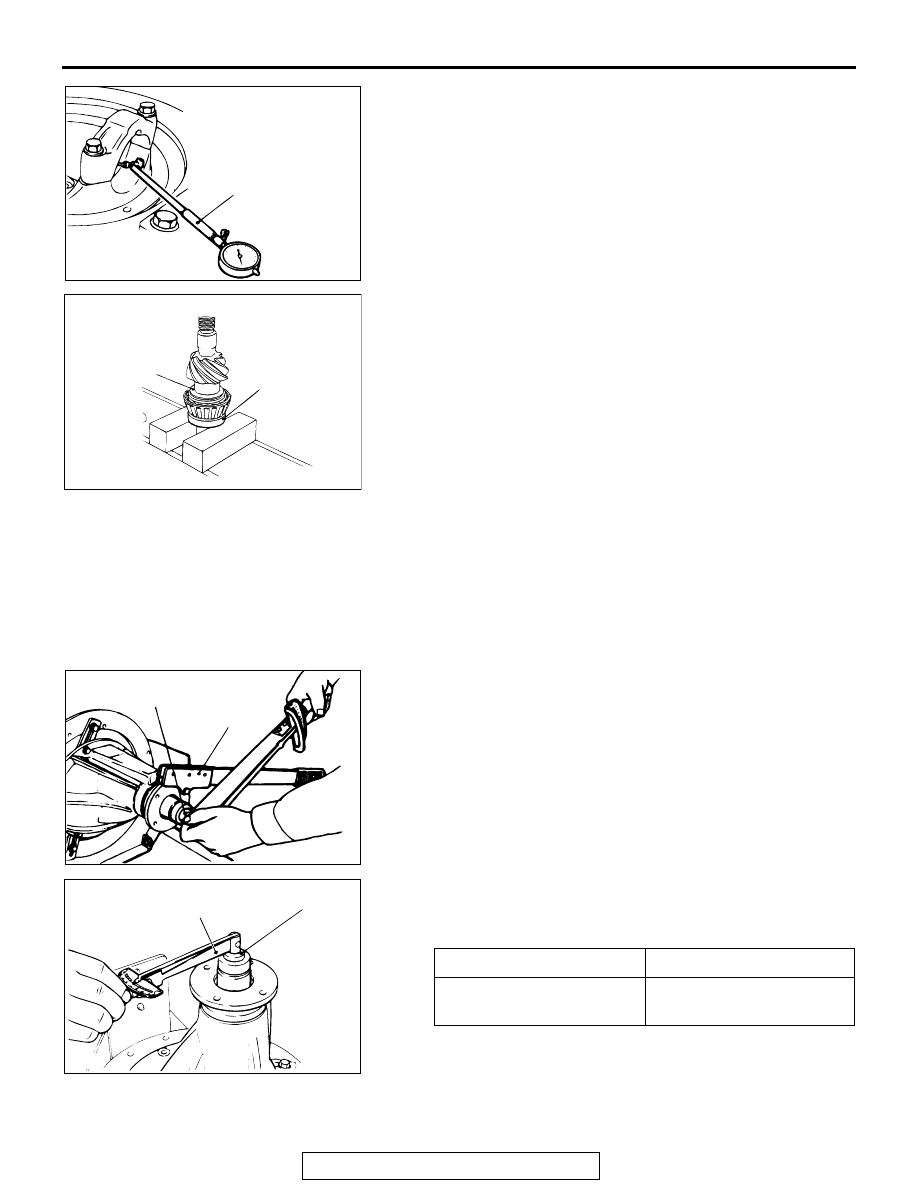

9. Install the bearing cap, and then use a cylinder gauge to

measure the inside diameter (D) of the bearing cap.

10.Calculate thickness (F) of the required drive pinion rear

shim twice by the following formula. Select a shim which
most closely matches this thickness.
F = A + B + C

− 1/2D − 86.00 mm (3.385 inches)

11.Fit the selected drive pinion rear shim(s) to the drive pinion,

and press-fit the drive pinion rear bearing inner race by
using special tool MB990802.

.

>>E<< DRIVE PINION TURNING TORQUE
ADJUSTMENT/OIL SEAL INSTALLATION
1. Insert the drive pinion into the gear carrier, and then install

the following parts in sequence from the carrier rear side:
Drive pinion spacer, drive pinion front shim and drive pinion
front bearing inner race, companion flange.
NOTE: Do not install the oil seal.

2. Tighten the companion flange to the specified torque by

using special tool MB990850.

Tightening torque: 216

± 29 N⋅m (159 ± 22 ft-lb)

3. Measure the drive pinion turning torque (without the oil

seal).

Standard value:

ACX01110 AB

CYLINDER GAUGE

ACX02428

MB990802

DRIVE PINION
REAR SHIM

AB

BEARING DIVISION

TURNING TORQUE

New

1.94

− 2.25 N⋅m 17.2 − 19.9

in-lb

ACX01065AB

MB990850

216

± 29 N

•

m

159

± 22 ft-lb

ACX01062AB

MB990326

MB990685

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-37

4. If the drive pinion turning torque is not within the standard

value, adjust the turning torque by replacing the drive pinion
front shim(s) or the drive pinion spacer.
NOTE: When selecting the drive pinion front shims, if the
number of shims is large, reduce the number of shims to a
minimum by selecting the drive pinion spacers.

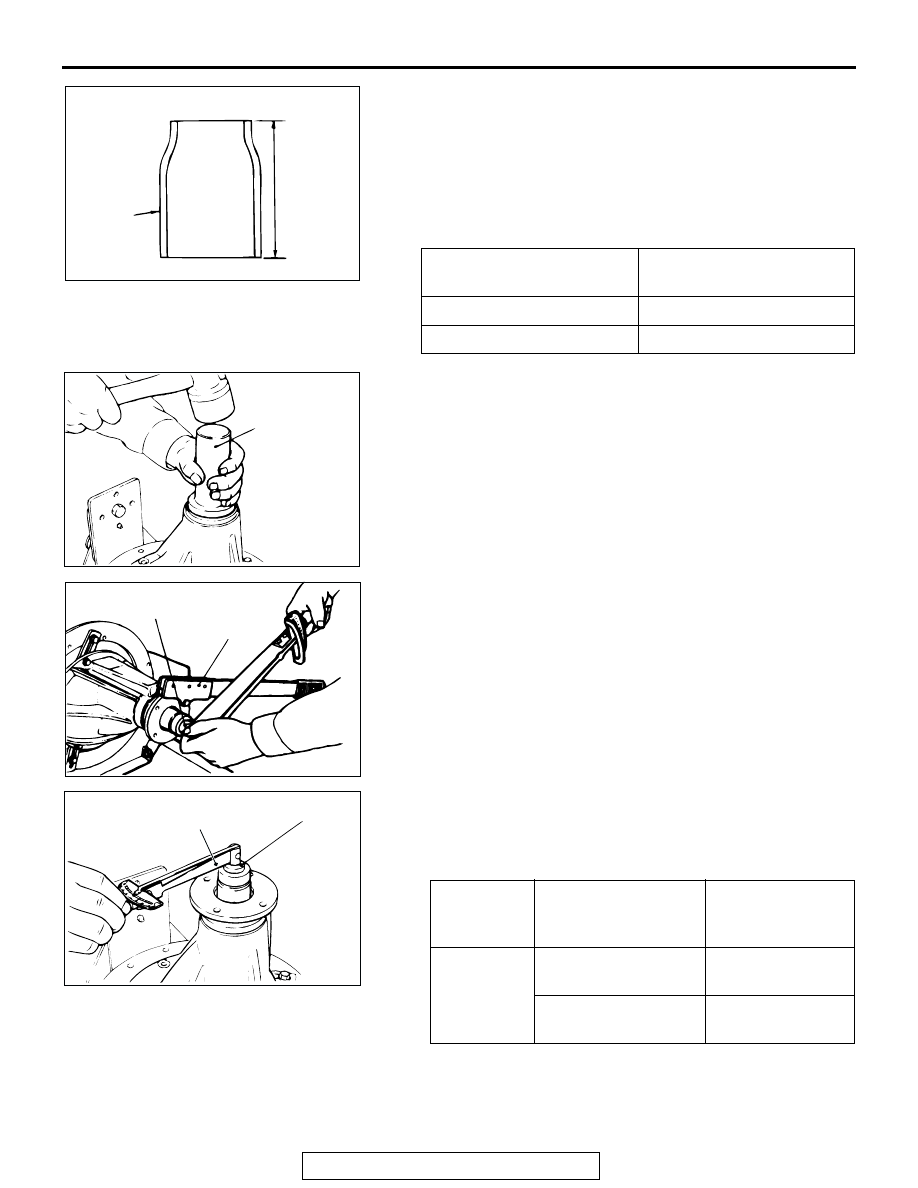

Also, select the drive pinion spacer from the following two
types.

5. Remove the companion flange and drive pinion again. Then

insert the drive pinion front bearing inner race into the gear
carrier. Use special tool MB990727 to press-fit the oil seal.

6. Install the drive pinion assembly and companion flange with

the mating marks properly aligned. Tighten the companion
flange self-locking nut to the specified torque using special
tool MB990850.

Tightening torque: 216

± 29 N⋅m (159 ± 22 ft-lb)

7. Measure the drive pinion turning torque (with oil seal) to

verify that the drive pinion turning torque complies with the
standard value.

Standard value:

8. If the turning torque is not within the standard value, check

the tightening torque of the companion flange self-locking
nut, and the installation of the oil seal.

.

HEIGHT OF DRIVE PINION
SPACER mm (in)

IDENTIFICATION COLOR

52.50 (2.067)

Yellow

52.84 (2.080)

Red

BEARING
DIVISION

COMPANION
FLANGE
LUBRICATION

TURNING
TORQUE

New

None (with anti-rust
agent)

2.03

− 2.34 N⋅m

18.0

− 20.7 in-lb

Gear oil applied

2.10

− 2.40 N⋅m

18.6

− 21.2 in-lb

ACX01063 AB

IDENTIFICATION

COLOR

ACX01064 AC

MB990727

ACX01065AB

MB990850

216

± 29 N

•

m

159

± 22 ft-lb

ACX01062AB

MB990326

MB990685

DIFFERENTIAL CARRIER ASSEMBLY

TSB Revision

REAR AXLE

27-38

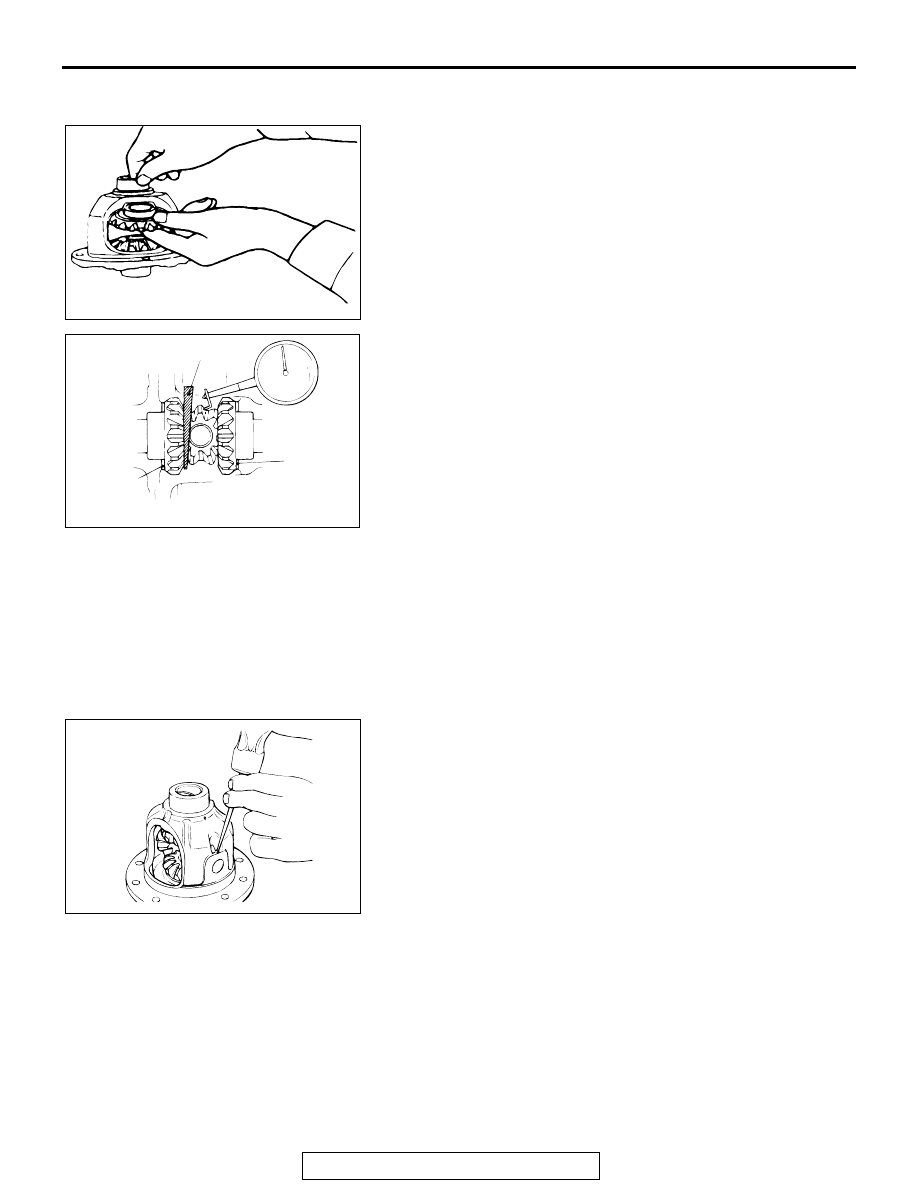

>>F<< DIFFERENTIAL GEAR BACKLASH ADJUSTMENT
Adjust the differential gear backlash by the following procedure:
1. Assemble the side gears, side gear thrust spacers, pinion

gears, and pinion washers into the differential case.

2. Temporarily install the pinion shaft.

NOTE: Do not assemble the thrust block and lock pin yet.

3. Insert a wedge between the side gear and the pinion shaft to

lock the side gear.

4. While locking the side gear with the wedge, measure the

differential gear backlash with a dial indicator on the pinion
gear.

Standard value: 0

− 0.076 mm (0 − 0.0030 inch)

Limit: 0.2 mm (0.01 inch)

5. Measure by the same procedure for the other pinion gear.
6. If the backlash exceeds the limit value, replace side bearing

adjustment spacers.

7. If adjustment is not possible, replace the side gears and

pinion gears as a set.

8. Check that the backlash is within the limit value and that the

differential gear turns smoothly.

.

>>G<< LOCK PIN INSTALLATION
1. Align the pinion shaft lock pin hole with the differential case

lock pin hole, and drive in the lock pin.

2. Stake the lock pin with a punch on both sides.

.

ACX01066

AC102885

WEDGE

SIDE GEAR
SPACER

SIDE GEAR
SPACER

AC

ACX02429
