MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-983

Standard Wave Pattern

Wave Pattern Observation Points
Point: Condition of wave pattern build-up section and maximum

voltage (Refer to abnormal wave pattern examples 1 and 2.

.

Observation condition

Function

Special pattern

Pattern height

Low

Pattern selector

Display

Engine r/min

Approximately 1,200 r/min

CONDITION OF WAVE
PATTERN BUILD-UP
SECTION AND MAXIMUM
VOLTAGE

PROBABLE CAUSE

Rises from approximate 2
volts to approximate 4.5 volts
at the top-right

Normal

2-volt rectangular wave

Open-circuit in ignition primary
circuit

Rectangular wave at power
voltage

Ignition power transistor
malfunction

(V)

6

4

2

0

6

4

2

0

AK201316

75˚BTDC

5˚BTDC

ON

TIME

T

AB

θ

T1

OFF

CRANKSHAFT
POSITION
SENSOR OUTPUT
WAVE PATTERN

IGNITION POWER
TRANSISTOR
CONTROL SIGNAL
WAVE PATTERN

Standard wave pattern

T:  REVOLUTION TIME CORRESPONDING

TO A CRANK ANGLE OF 180˚
COMPRESSION TOP DEAD CENTER

θ:  SPARK

ADVANCE
ANGLE

IGNITION PERIOD

DWELL
SECTION

T1: TIME COMPUTED BY THE PCM

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-984

Examples of Abnormal Wave Patterns
Example 1 (Wave pattern during engine cranking)

• Cause of problem

Open-circuit in ignition primary circuit

• Wave pattern characteristics

Top-right part of the build-up section cannot be seen, and
voltage value is approximately 2 volts too low.

Example 2 (Wave pattern during engine cranking)

• Cause of problem

Malfunction in ignition power transister

• Wave pattern characteristics

Power voltage results when the ignition power transistor is
ON.

AKX01612

NORMAL WAVE
PATTERN

2V

AB

AKX01613

BATTERY
POSITION
VOLTAGE

NORMAL WAVE
PATTERN

AB

SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-985

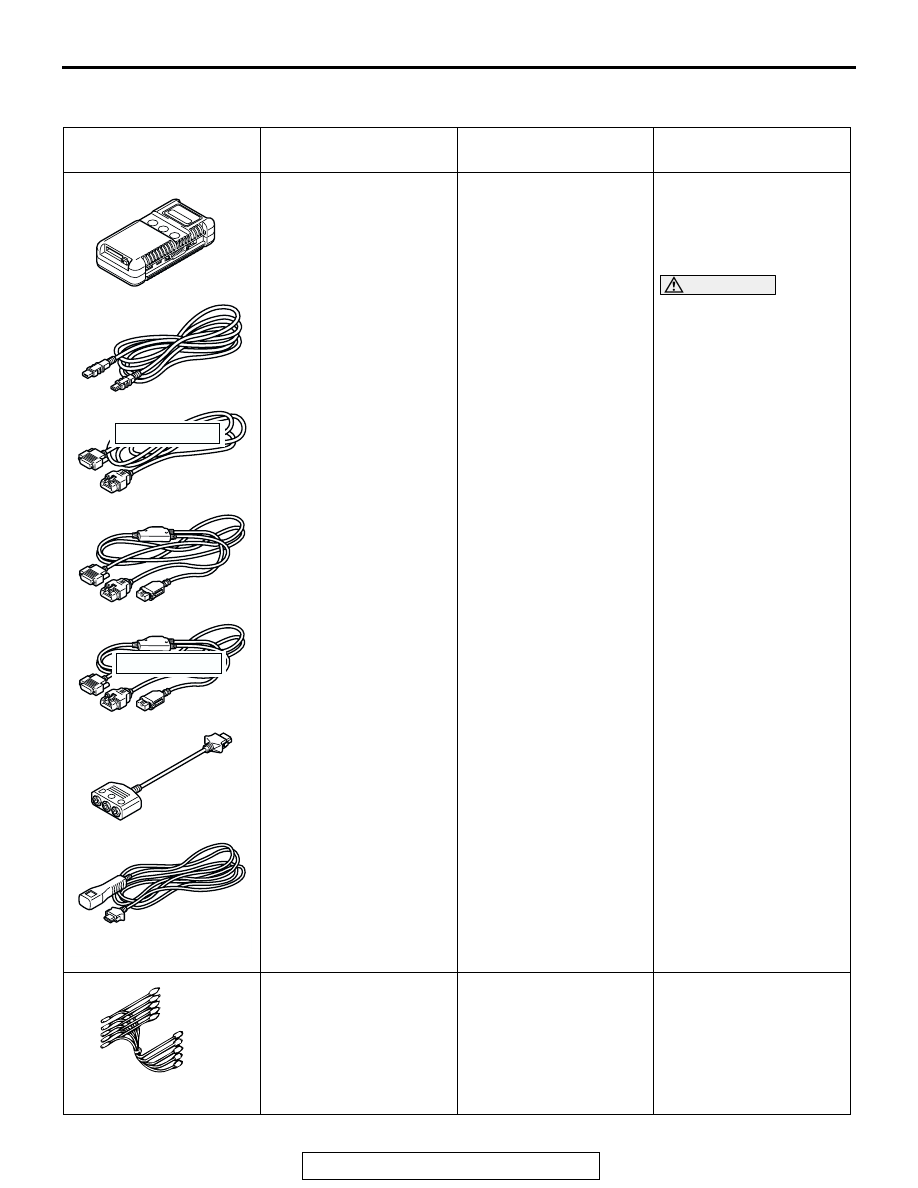

SPECIAL TOOLS

M1131000600591

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826
MUT-III sub assembly
A: Vehicle
Communication Interface
(V.C.I.)
B: MUT-III USB Cable
C: MUT-III Main Harness
A (Vehicles with CAN
communication system)
D: MUT-III Main Harness
B (Vehicles without CAN
communication system)
E: MUT-III Main Harness
C (for Daimler Chrysler
models only)
F: MUT-III Adapter
Harness
G: MUT-III Trigger
Harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

• Reading diagnostic

trouble code

• MFl system inspection

• Measurement of fuel

pressure

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A
to send simulated
vehicle speed. If you
connect MUT-III main
harness B instead, the
CAN communication
does not function
correctly.

MB991658
Test harness set

Tool not available

• Inspection using an

oscilloscope

• Adjustment of

accelerator pedal
position sensor

• Inspection of throttle

position sensor

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

MB991658

SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-986

MB991709
Test harness set

MB991709-01

Inspection using an
oscilloscope

MD998474
Test harness (8 pin,
square)

MD998474-01

Inspection using an
oscilloscope

MD998464
Test harness (4 pin,
square)

MD998464-01

Inspection of heated
oxygen sensor

MB991316
Test harness (4 pin,
square)

Tool not available

Inspection of heated
oxygen sensor

MD998478
Test harness (3 pin,
triangle)

MD998478-01

Inspection using an
oscilloscope

MB991637
Fuel pressure gauge set

Tool not available

Measurement of fuel
pressure

MD998709
Adaptor hose

MIT210196

Measurement of fuel
pressure

MD998742
Hose adaptor

MD998742-01

Measurement of fuel
pressure

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991637
