MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-7

P0513

Immobilizer malfunction

P0551

Power steering pressure sensor circuit range/performance

P0554

Power steering pressure sensor circuit intermittent

P0606*

Powertrain control module main processor malfunction

P0638*

Throttle actuator control motor circuit range/performance

P0642*

Throttle position sensor power supply

P0657*

Throttle actuator control motor relay circuit malfunction

P0660

Intake manifold tuning circuit malfunction

P0705

Transmission range switch circuit malfunction (RPNDL input)

P0712

Transmission fluid temperature sensor circuit low input

P0713

Transmission fluid temperature sensor circuit high input

P0715

Input/Turbine speed sensor circuit

P0720

Output speed sensor circuit

P0731

Gear 1 incorrect ratio

P0732

Gear 2 incorrect ratio

P0733

Gear 3 incorrect ratio

P0734

Gear 4 incorrect ratio

P0735

Gear 5 incorrect ratio

P0736

Gear R incorrect ratio

P0741

Torque converter clutch circuit performance or stuck off

P0742

Torque converter clutch circuit stuck on

P0743

Torque converter clutch circuit electrical

P0753

Shift solenoid "A" electrical

P0758

Shift solenoid "B" electrical

P0763

Shift solenoid "C" electrical

P0768

Shift solenoid "D" electrical

P0773

Shift solenoid "E" electrical

P1601*

Communication malfunction (between PCM and throttle actuator control module)

P1603*

Battery backup circuit malfunction

P1751

A/T control relay malfunction

P2100*

Throttle actuator control motor circuit (open)

P2101*

Throttle actuator control motor magneto malfunction

P2102*

Throttle actuator control motor circuit (shorted low)

P2103*

Throttle actuator control motor circuit (shorted high)

P2108*

Throttle actuator control processor malfunction

P2121*

Accelerator pedal position sensor (main) circuit range/performance problem

P2122*

Accelerator pedal position sensor (main) circuit low input

P2123*

Accelerator pedal position sensor (main) circuit high input

P2126*

Accelerator pedal position sensor (sub) circuit range/performance problem

P2127*

Accelerator pedal position sensor (sub) circuit low input

DTC NO.

ITEMS

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-8

NOTE: If the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates
because of a malfunction of the powertrain control module (PCM), communication between scan tool
MB991958 (MUT-III Sub Assembly) and the PCM is impossible. In this case, the diagnostic trouble code can-
not be read.
NOTE: After the PCM has detected a malfunction, the Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) illuminates when the engine is next turned on and the same malfunction is
re-detected. However, for items marked with a "*" in the DTC NO. column, the Malfunction Indicator Lamp
(SERVICE ENGINE SOON or Check Engine Lamp) illuminates only on the first detection of the malfunction.
NOTE: After the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates,
it will be switched off under the following conditions.

.

•

When the PCM monitored the power train malfunction three times* and met set condition requirements, it
detected no malfunction. *: In this case, "one time" indicates from engine start to stop.

•

For misfiring or a fuel trim malfunction, when driving conditions (engine speed, engine coolant tempera-
ture, etc.) are similar to those when the malfunction was first recorded.

NOTE: Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the
sensor mounted at the position second closest to the engine.
NOTE: Bank 1 indicates the right bank side cylinder, and bank 2 indicates the left bank side cylinder.

HOW TO CONNECT THE SCAN TOOL (MUT-III)

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

P2128*

Accelerator pedal position sensor (sub) circuit high input

P2135*

Throttle position sensor (main and sub) range/performance problem

P2138*

Accelerator pedal position sensor (main and sub) range/performance problem

P2227*

Barometric pressure circuit range/performance problem

P2228*

Barometric pressure circuit low input

P2229*

Barometric pressure circuit high input

DTC NO.

ITEMS

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-9

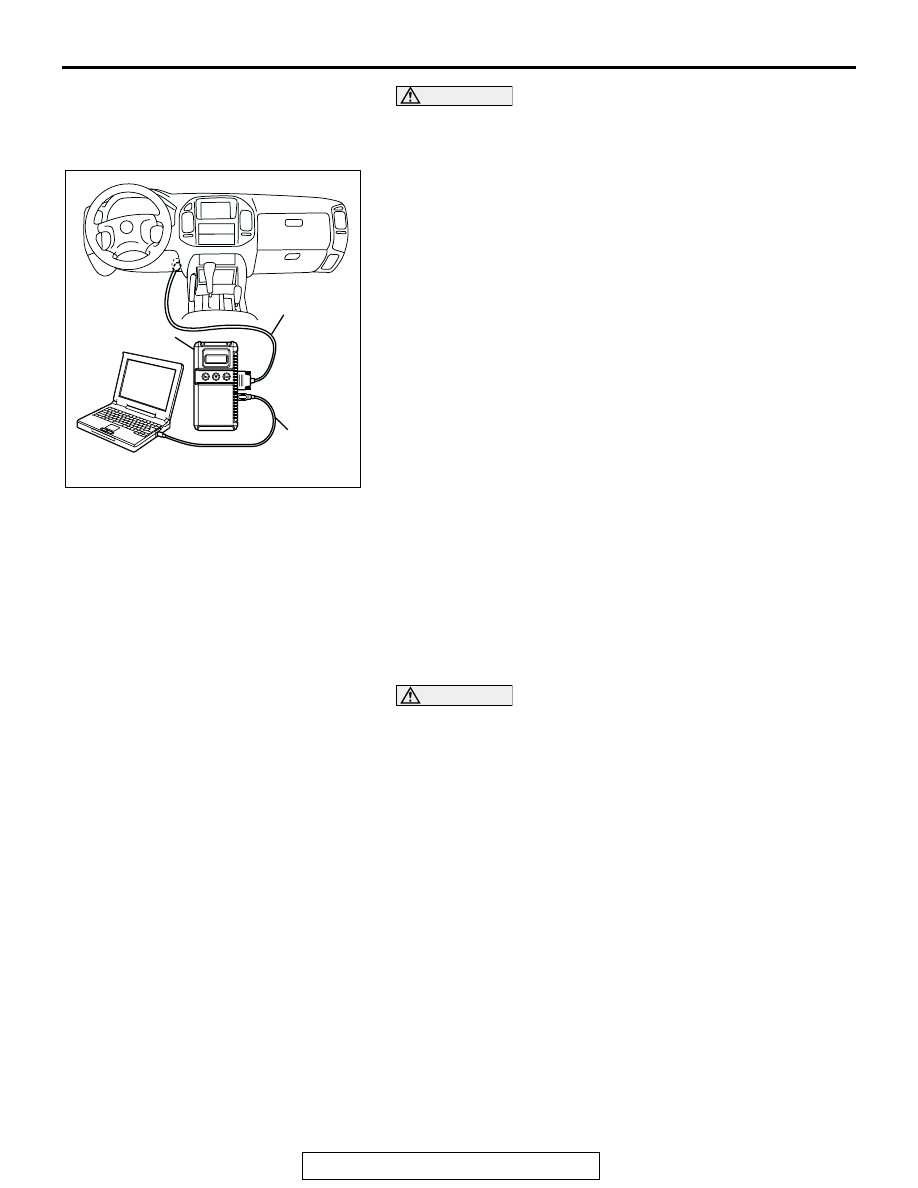

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991911 to special tool MB991824.
5. Connect special tool MB991911 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When the special tool MB991824 is energized, spe-
cial tool MB991824 indicator light will be illuminated in a
green color.

7. Start the MUT-III system on the personal computer.

NOTE: Disconnecting the scan tool MB991958 is the
reverse of the connecting sequence, making sure that the
ignition switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES.

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.

AK302970

AB

MB991911

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-10

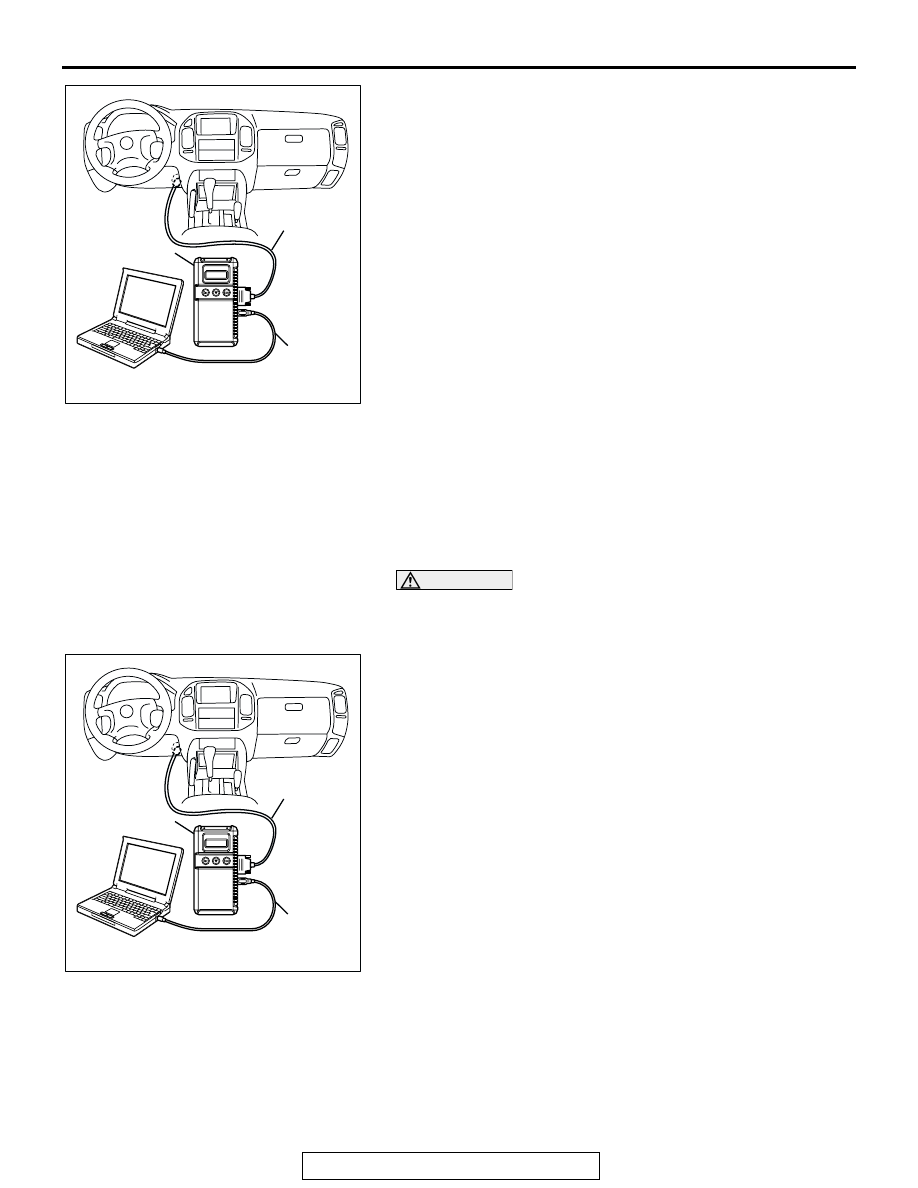

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "MFI" from the "POWER TRAIN" tab.
6. Select "MITSUBISHI."
7. Select "Diagnostic Trouble Code"
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assemb]y)

• MB991824: V.C.I.

• MB991827: Usb Cable

• MB991911: Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "MFI" from the "POWER TRAIN" tab.
6. Select "MITSUBISHI."
7. Select "Data List."
8. Choose an appropriate item and select the "OK" button.

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

AK302970

AB

MB991911

MB991824

MB991827

AK302970

AB

MB991911

MB991824

MB991827
