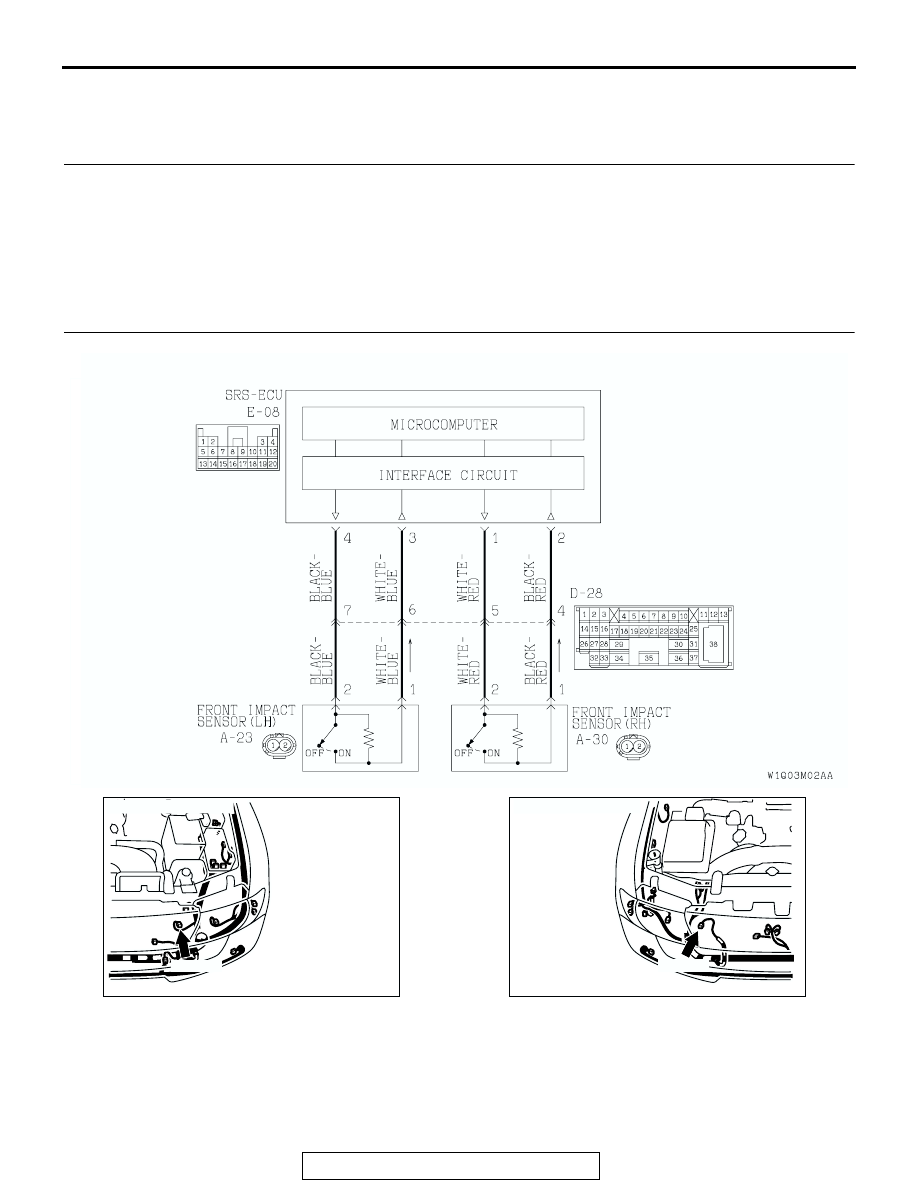

SRS AIR BAG DIAGNOSIS TSB Revision SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-23 DIAGNOSTIC TROUBLE CODE CHART M1524003300584 Inspect according to the inspection chart that is appropriate for the DTC. DIAGNOSTIC INSPECTION ITEM REFERENCE PAGE 1A* 3 Front impact sensor (LH) circuit short 1B* 3 Front impact sensor (LH) circuit open 1C* 3 Front impact sensor (LH) short-circuited to power supply 1D* 3 Front impact sensor (LH) short-circuited to ground 2A* 3 Front impact sensor (RH) circuit short 2B* 3 Front impact sensor (RH) circuit open 2C* 3 Front impact sensor (RH) short-circuited to power supply 2D* 3 Front impact sensor (RH) short-circuited to ground 11* 4 Front impact sensor system circuit short 12* 4 Front impact sensor system either circuit open or no power 13* 4 Front impact sensor system detects either both are open or 14 Analog G-sensor system in the SRS-ECU
15 Safing G-sensor short circuit 16 Safing G-sensor open circuit
17 Safing G-sensor for side-airbag faults
21* 2 Driver's air bag module (squib) system fault 1 (Short circuit 22* 2 Driver's air bag module (squib) system fault 2 (Open in the 24* 2 Passenger’s (front) air bag module (squib) system fault 1
25* 2 Passenger’s (front) air bag module (squib) system fault 2
26* 2 Driver's pre-tensioner (squib) system fault 1 (Short circuit
27* 2 Driver's pre-tensioner (squib) system fault 2 (Open in the
28* 2 Passenger’s (front) pre-tensioner (squib) system fault 1
29* 2 Passenger’s (front) pre-tensioner (squib) system fault 2
31 SRS-ECU capacitor circuit voltage too high
32 SRS-ECU capacitor circuit voltage too low
34* 1 Connector lock system detects connector unlocked 35 SRS-ECU air bag condition monitor detects deployed air
|
