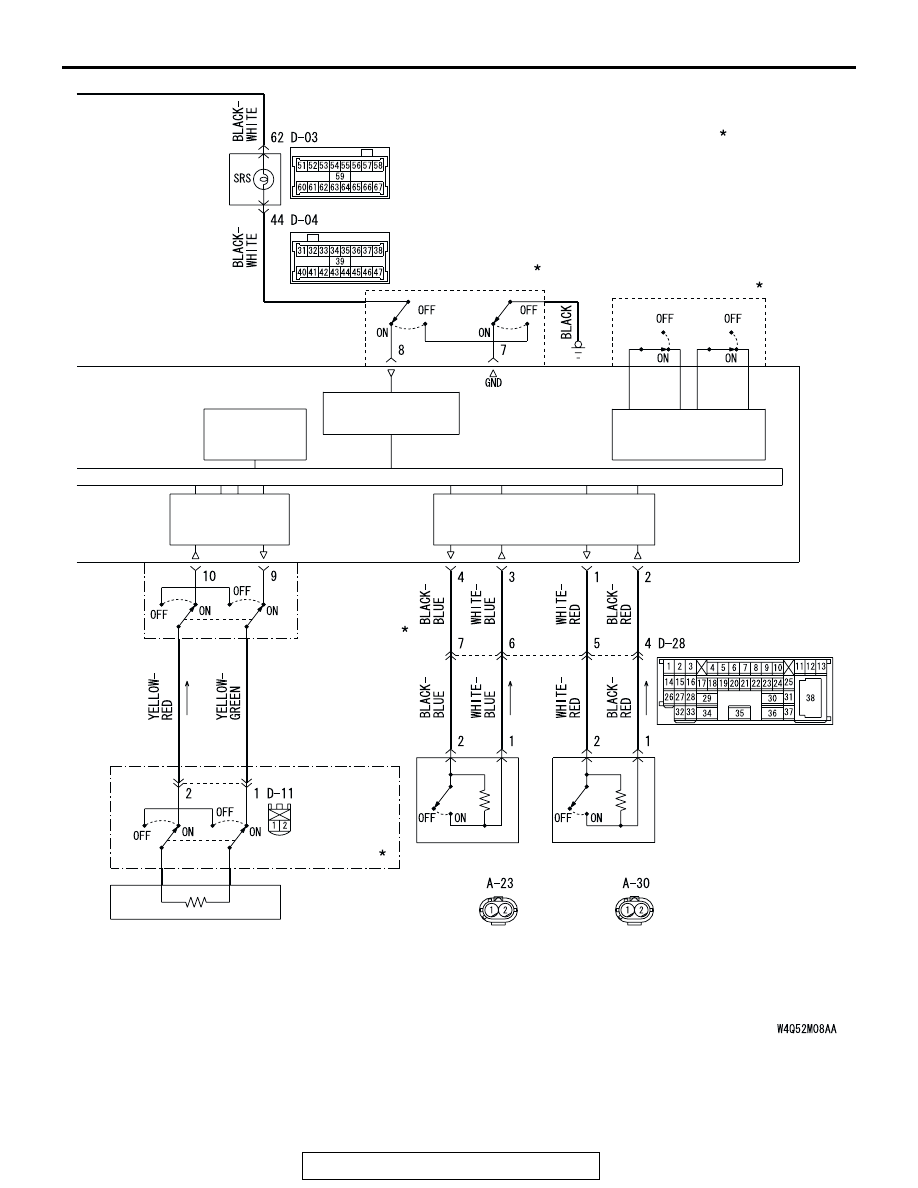

GENERAL DESCRIPTION

TSB Revision

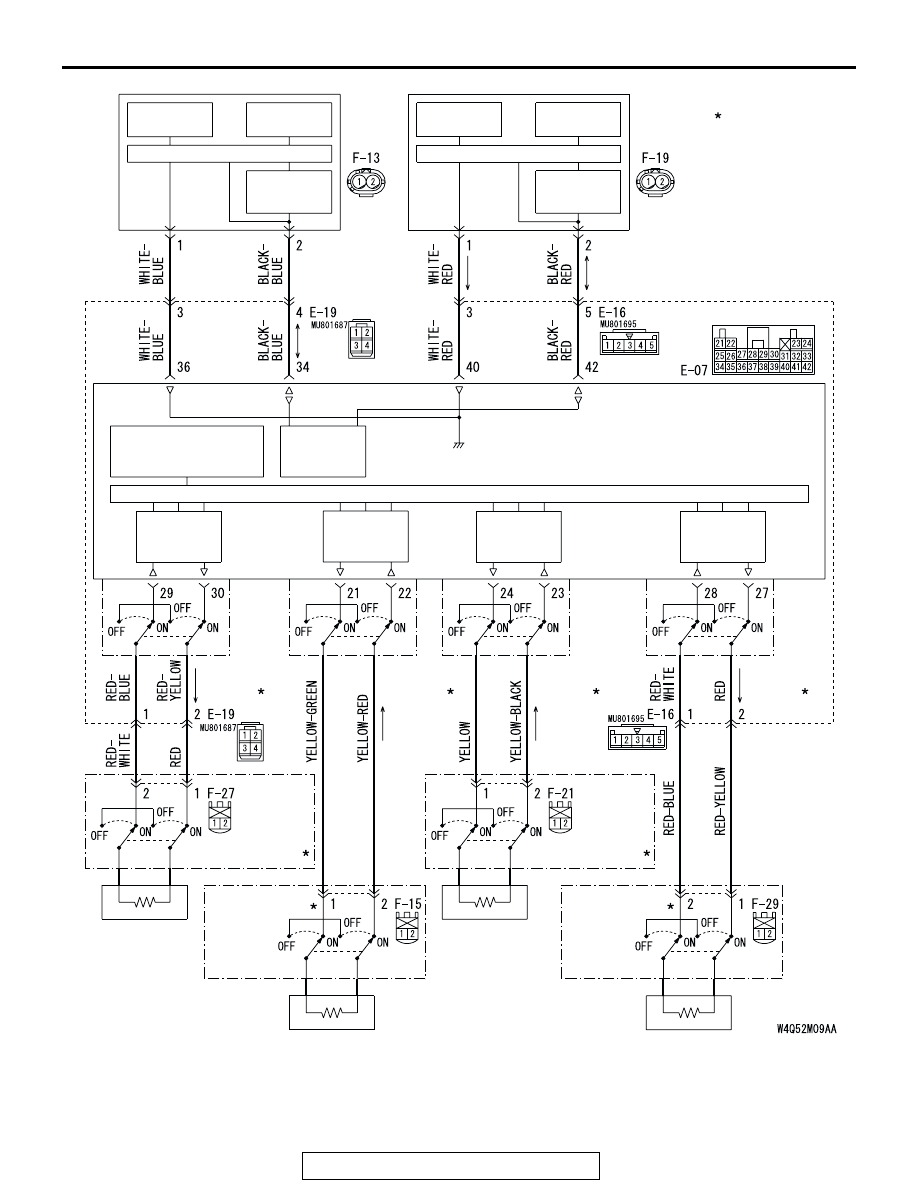

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

AIR BAG
DRIVE CIRCUIT

WARNING LIGHT
DRIVE CIRCUIT

CONNECTOR LOCK
DETECTION CIRCUIT

FRONT AIR
BAG ANALOG
G SENSOR

INTERFACE CIRCUIT

FRONT IMPACT
SENSOR (LH)

FRONT IMPACT
SENSOR (RH)

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

AIR BAG MODULE
(SQUIB)
(PASSENGER'S SIDE)

COMBINATION
METER

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-16

AIR BAG
DRIVE
CIRCUIT

AIR BAG
DRIVE
CIRCUIT

AIR BAG
DRIVE
CIRCUIT

AIR BAG
DRIVE
CIRCUIT

INTERFACE
CIRCUIT

SIDE AIR BAG
SAFING G SENSOR
(ANALOG G SENSOR)

MICROCOMPUTER

SRS-ECU

CONSTANT
VOLTAGE
CIRCUIT

EEPROM

CPU

ANALOG G
SENSOR

ANALOG G
SENSOR

CONSTANT
VOLTAGE
CIRCUIT

EEPROM

CPU

SIDE
IMPACT
SENSOR
(LH)

SIDE
IMPACT
SENSOR
(RH)

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK
SWITCH

CONNECTOR
LOCK SWITCH

SEAT BELT
PRETENSIONER
(LH)

SEAT BELT
PRETENSIONER
(RH)

SIDE AIR BAG
MODULE (SQUIB)
(LH)

SIDE AIR BAG
MODULE (SQUIB)
(RH)

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

GENERAL DESCRIPTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-17

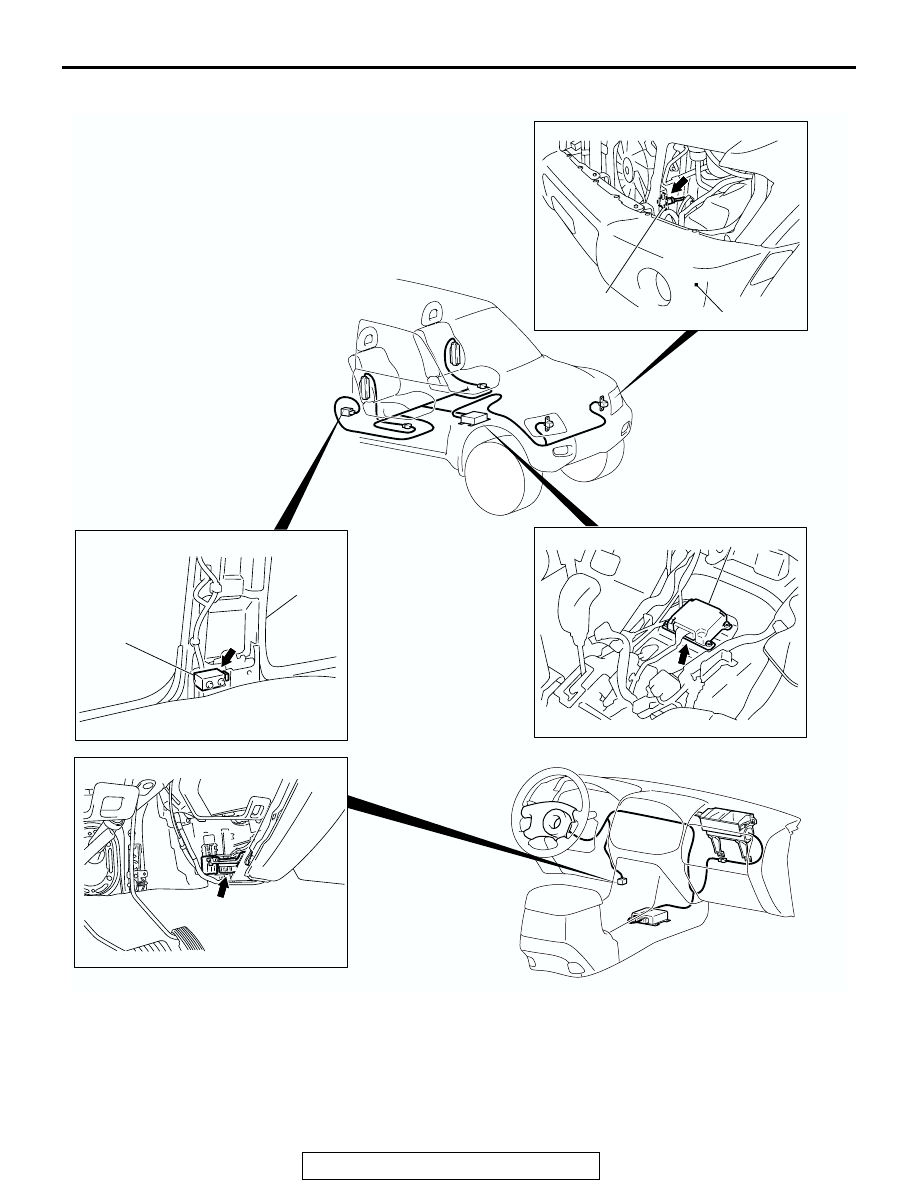

COMPONENT LOCATION

NOTE: The illustration above shows the front impact sensor (LH) and the side impact sensor (RH). The posi-
tion of the front impact sensor (RH) and the side impact sensor (LH) is symmetrical to this.

AC204302

SIDE IMPACT SENSOR

SRS-ECU

DATA LINK CONNECTOR

CENTER
PILLAR

SIDE IMPACT
SENSOR

SRS-ECU

AB

DATA LINK
CONNECTOR

FRONT IMPACT SENSOR

FRONT
IMPACT
SENSOR

FRONT BUMPER

SERVICE PRECAUTIONS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-18

SERVICE PRECAUTIONS

M1524000300530

DANGER

•

In order to avoid injury to yourself or others from
accidental deployment of the air bag during servic-
ing, read and carefully follow all the precautions
and procedures described in this manual.

•

After disconnecting the battery cable, wait 60 sec-
onds or more before proceeding with the following
work. The SRS system is designed to retain
enough voltage to deploy the air bag for a short
time even after the battery has been disconnected,
so serious injury may result from unintended air
bag deployment if work is done on the SRS system
immediately after the battery cables are discon-
nected.

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Do not use any electrical test equipment on or near
the SRS components, except those specified on

P.52B-205

.

•

Never Attempt to Repair the Following Compo-
nents: SRS-ECU, Clock Spring, Air Bag Module,
Front Impact sensor, Side Impact Sensor, Seat Belt
with Pre-tensioner. If any of these components are
diagnosed as faulty, they should only be replaced,
in accordance with the INDIVIDUAL COMPONENT
SERVICE procedures in this manual, starting on

P.52B-210

.

•

Do not attempt to repair the wiring harness con-
nectors of the SRS. If any of the connectors are
diagnosed as faulty, replace the wiring harness. If
the wires are diagnosed as faulty, replace or repair
the wiring harness according to the following
table.

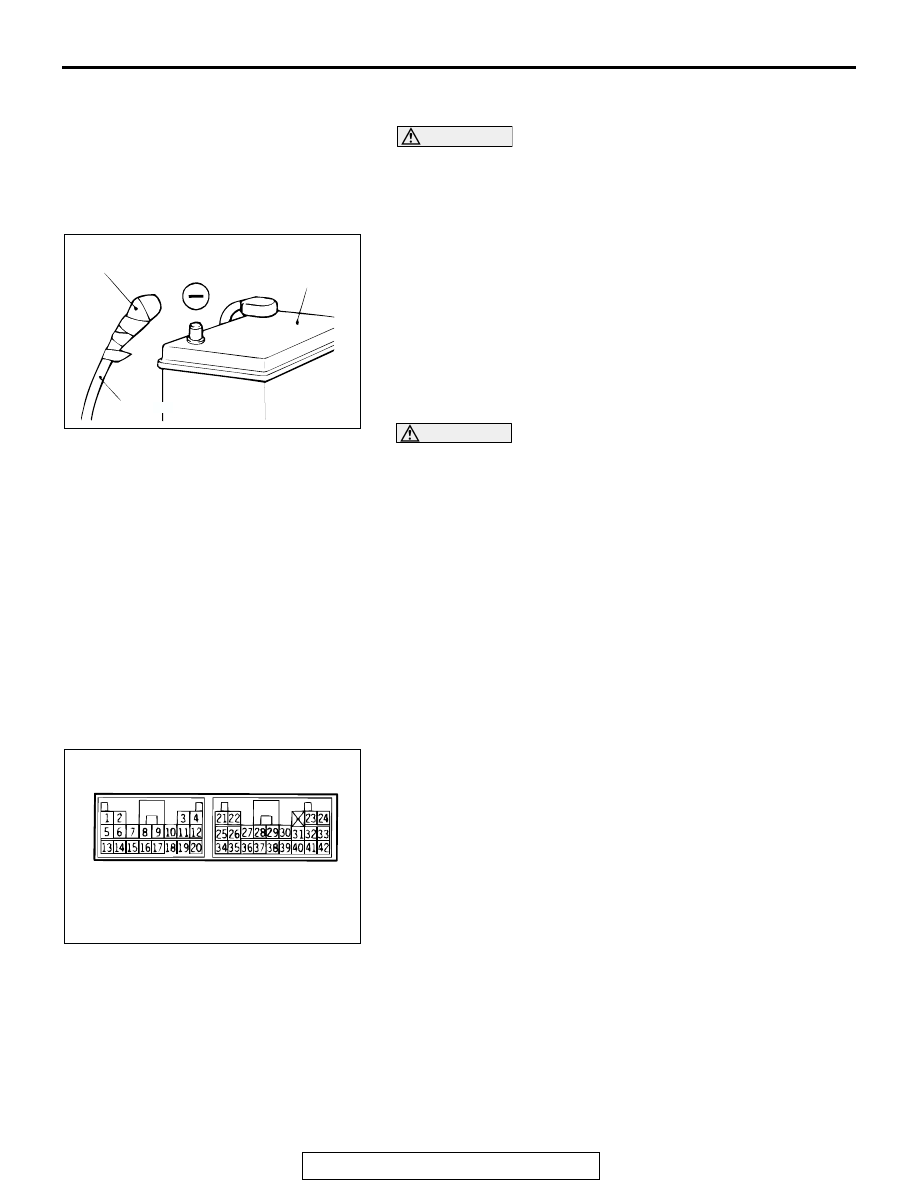

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC

ACX00582AB
