Mitsubishi Montero (2004+). Manual - part 1032





ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-127

b. Repeat the above procedure (a) until no bubbles

appear while pumping the brake pedal.

NOTE: OK to fill the reservoir to the "MAX" line during this
process. Brake fluid level around the "MIN" line may cause
bubbles to appear from the jet flow of brake fluid while
pumping the brake pedal.

4. Fill the rear brake system with brake fluid as follows (RH

first, LH second):

CAUTION

• If a large quantity of brake fluid is drained during the

bleeding procedure, the accumulator pressure will
decrease abnormally. Do not bleed more than 0.1 dm

3



(0.11quart) from each wheel at a time.

• Confirm that the pump motor stops after each air-bleed-

ing step.

NOTE: A high-pressure hydraulic noise (hissing) is normal
during this procedure.

(1) Attach a clear hose to the RH caliper bleeder valve. This

helps to monitor air/fluid flow.

(2) Be sure the fluid level is between the "MIN" and "MAX"

lines.

(3) Turn the ignition switch to the "LOCK" (OFF) position.

Pump the brake pedal 3

− 4 times and hold it depressed.

(4) Open the RH caliper bleeder valve 1/4 turn.
(5) With the bleeder valve still open, pump the brake pedal

repeatedly to fill the line with fluid until no obvious air
bubbles are seen. When no more obvious air bubbles are
seen, and while the brake pedal is still being pumped,
close the bleeder valve.

(6) Repeat steps (1)

− (5) for the LH caliper.

(7) Release the brake pedal when both sides are filled.

5. Supply brake fluid into the power supply system as follows:

CAUTION

Keep the brake fluid reservoir level just above the "MIN"
line at this time. Monitor the fluid level during this proce-
dure to ensure it does not reach below the "MIN" line.

(1) To release the pressure in the HBB power supply system,

turn the ignition switch to the "LOCK" (OFF) position and
depress the brake pedal repeatedly until its depressing
force suddenly feels heavy (no pedal travel).

(2) Turn the ignition switch to the "ON" position and at the

same time quickly depress the brake pedal approximately
20 times. Then confirm that the pump motor has stopped.
This can take up to 2 minutes.

(3) Turn the ignition switch to the "LOCK" (OFF) position and

depress the brake pedal repeatedly until its depressing
force suddenly feels heavy (no pedal travel).

(4) Turn the ignition switch to the "ON" position to operate

the pump motor. Confirm that the pump motor stops
within 25 seconds. If the pump motor does not stop,
repeat steps (1) through (3) above.

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-128

6. Supply fluid into the ABS system as follows:

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

(1) Ensure that the ignition switch is at the "LOCK" (OFF)

position.

(2) Start up the personal computer.

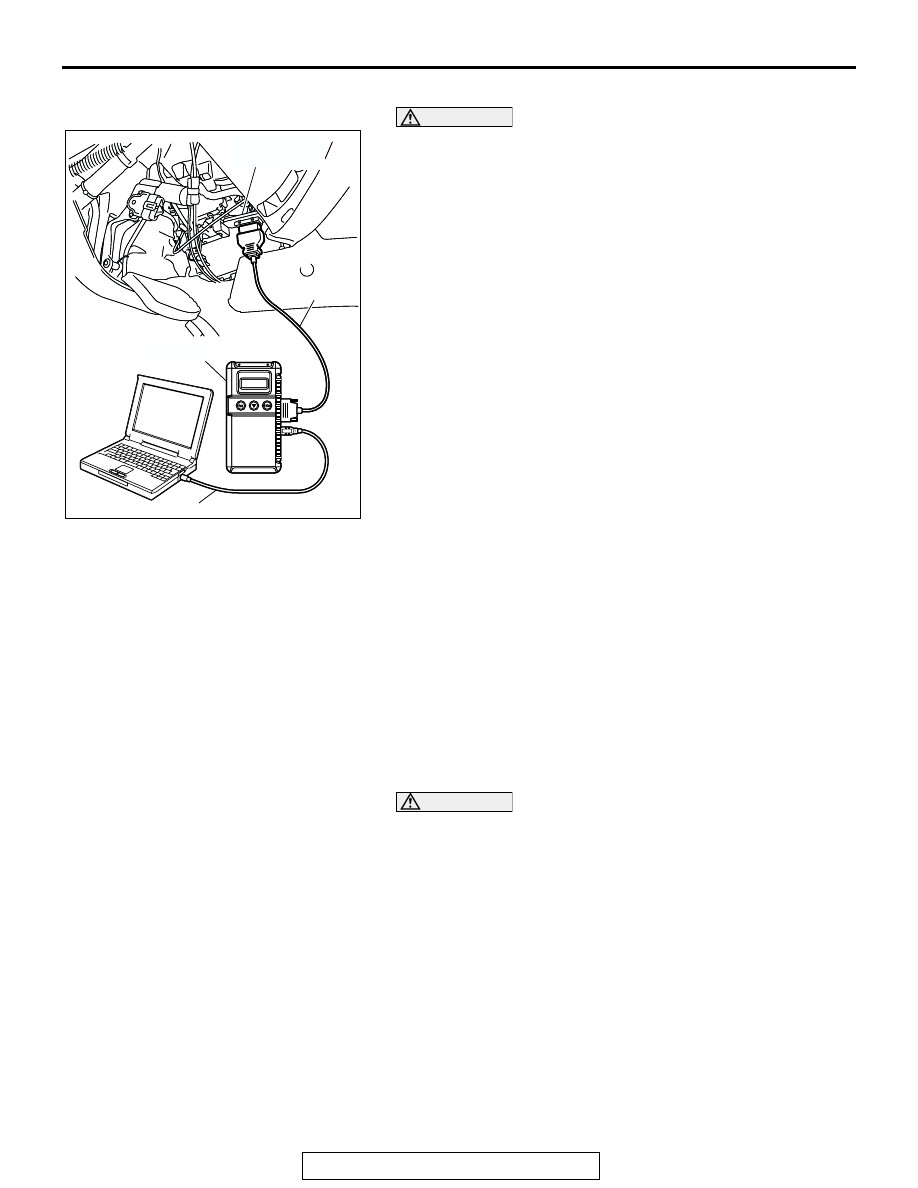

(3) Connect special tool MB991827 to special tool

MB991824 and the personal computer.

(4) Connect special tool MB991911 to special tool

MB991824.

(5) Connect special tool MB991911 to the data link

connector.

(6) Turn the power switch of special tool MB991824 to the

"ON" position.
NOTE: When special tool MB991824 is energized, spe-
cial tool MB991824 indicator light will be illuminated in a
green color.

(7) Start the MUT-III system on the personal computer.
(8) Turn the ignition switch to the "ON" position. Select from

scan tool menu screen as follows:
[SYSTEM SELECT

→ ABS → ACTUATOR TEST → AIR

BLEED]

(9) Depress and hold the brake pedal.
(10)Activate the actuator test [AIR BLEED (1)]. When the

scan tool flashes confirmation that the AIR BLEED (1)
operation is completed, proceed with AIR BLEED (2).

(11)Depress and hold the brake pedal.
(12)Select and activate [AIR BLEED (2)] on the scan tool

screen. When the scan tool flashes confirmation that the
AIR BLEED (2) operation is completed, go to step 7.

7. Bleed the rear brake system as follows (RH first, LH

second):

CAUTION

• Keep the brake fluid reservoir level just above the

"MIN" line at this time. Monitor the fluid level during
this procedure to ensure it does not reach below the
"MIN" line.

• If a large quantity of brake fluid is drained during the

bleeding procedure, the accumulator pressure will
decrease abnormally. Do not bleed more than 0.1 dm

3



(0.11quart) from each wheel at a time.

• Confirm that the pump motor stops after each air-bleed-

ing step.

(1) Attach the clear hose to the RH caliper to monitor air/fluid

flow.

(2) Turn the ignition switch to the "ON" position.
(3) Open bleeder valve 1/4 turn.
(4) With the bleeder valve open, pump the brake pedal 3

times and hold.

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-129

(5) Close the bleeder valve.
(6) Pump the brake pedal 3 times and hold.
(7) Open the bleeder valve 1/8 turn briefly to allow any

remaining air to escape, then close the bleeder valve.

(8) Repeat steps (6) and (7) as many times as necessary to

eliminate all air in the line.

(9) Repeat steps (1)

− (8) at the LH caliper.

8. Bleed the front brake system as follows (RH first, LH

second):

CAUTION

• Keep the brake fluid reservoir level just above the

"MIN" line at this time. Monitor the fluid level during
this procedure to ensure it does not reach below the
"MIN" line.

• If a large quantity of brake fluid is drained during the

bleeding procedure, the accumulator pressure will
decrease abnormally. Do not bleed more than 0.1 dm

3



(0.11quart) from each wheel at a time.

• Confirm that the pump motor stops after each air-bleed-

ing step.

(1) Attach the clear hose to the RH caliper to monitor air/fluid

flow.

(2) Turn the ignition switch to the "ON" position.
(3) Open bleeder valve 1/4 turn.
(4) With the bleeder valve open, pump the brake pedal 3

times and hold.

(5) Close the bleeder valve.
(6) Pump the brake pedal 3 times and hold.
(7) Open the bleeder valve 1/8 turn briefly to allow any

remaining air to escape, then close the bleeder valve.

(8) Repeat steps (6) and (7) as many times as necessary to

eliminate all air in the line.

(9) Repeat steps (1)

− (8) at the LH caliper.

9. Adjust the brake fluid level as follows:

(1) Turn the ignition switch to the "LOCK" (OFF) position.
(2) Depress the brake pedal repeatedly (up to 40 times or

more) until its depressing force suddenly feels very heavy
(no pedal travel).

(3) Release the brake pedal.
(4) Adjust the brake fluid level between the "MIN" and "MAX"

lines on the reservoir.

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE SYSTEM

35A-130

Normal Brake System Air Bleeding

If the brake fluid level in the HBB reservoir is
between the "MIN" and "MAX" lines after any brake
servicing at the wheels (such as calipers, rotors,
etc.), perform the following steps:
1. Bleed the rear brake system as follows (RH first,

LH second):

CAUTION

• Keep the brake fluid reservoir level just above

the "MIN" line at this time. Monitor the fluid
level during this procedure to ensure it does
not reach below the "MIN" line.

• If a large quantity of brake fluid is drained

during the bleeding procedure, the accumula-
tor pressure will decrease abnormally. Do not
bleed more than 0.1 dm

3

 (0.11quart) from

each wheel at a time.

• Confirm that the pump motor stops after each

air-bleeding step.

(1) Attach the clear hose to the RH caliper to

monitor air/fluid flow.

(2) Turn the ignition switch to the "ON" position.
(3) Open bleeder valve 1/4 turn.
(4) With the bleeder valve open, pump the brake

pedal 3 times and hold.

(5) Close the bleeder valve.
(6) Pump the brake pedal 3 times and hold.
(7) Open the bleeder valve 1/8 turn briefly to allow

any remaining air to escape, then close the
bleeder valve.

(8) Repeat steps (6) and (7) as many times as

necessary to eliminate all air in the line.

(9) Repeat steps (1)

− (8) at the LH caliper.

2. Bleed the front brake system as follows (RH first,

LH second):

CAUTION

• Keep the brake fluid reservoir level just above

the "MIN" line at this time. Monitor the fluid
level during this procedure to ensure it does
not reach below the "MIN" line.

• If a large quantity of brake fluid is drained

during the bleeding procedure, the accumula-
tor pressure will decrease abnormally. Do not
bleed more than 0.1 dm

3

 (0.11quart) from

each wheel at a time.

• Confirm that the pump motor stops after each

air-bleeding step.

(1) Attach the clear hose to the RH caliper to

monitor air/fluid flow.

(2) Turn the ignition switch to the "ON" position.
(3) Open bleeder valve 1/4 turn.
(4) With the bleeder valve open, pump the brake

pedal 3 times and hold.

(5) Close the bleeder valve.
(6) Pump the brake pedal 3 times and hold.
(7) Open the bleeder valve 1/8 turn briefly to allow

any remaining air to escape, then close the
bleeder valve.

(8) Repeat steps (6) and (7) as many times as

necessary to eliminate all air in the line.

(9) Repeat steps (1)

− (8) at the LH caliper.

3. Adjust the brake fluid level as follows:

(1) Turn the ignition switch to the "LOCK" (OFF)

position.

(2) Depress the brake pedal repeatedly (up to 40

times or more) until its depressing force
suddenly feels very heavy (no pedal travel).

(3) Release the brake pedal.
(4) Adjust the brake fluid level between the "MIN"

and "MAX" lines on the reservoir.

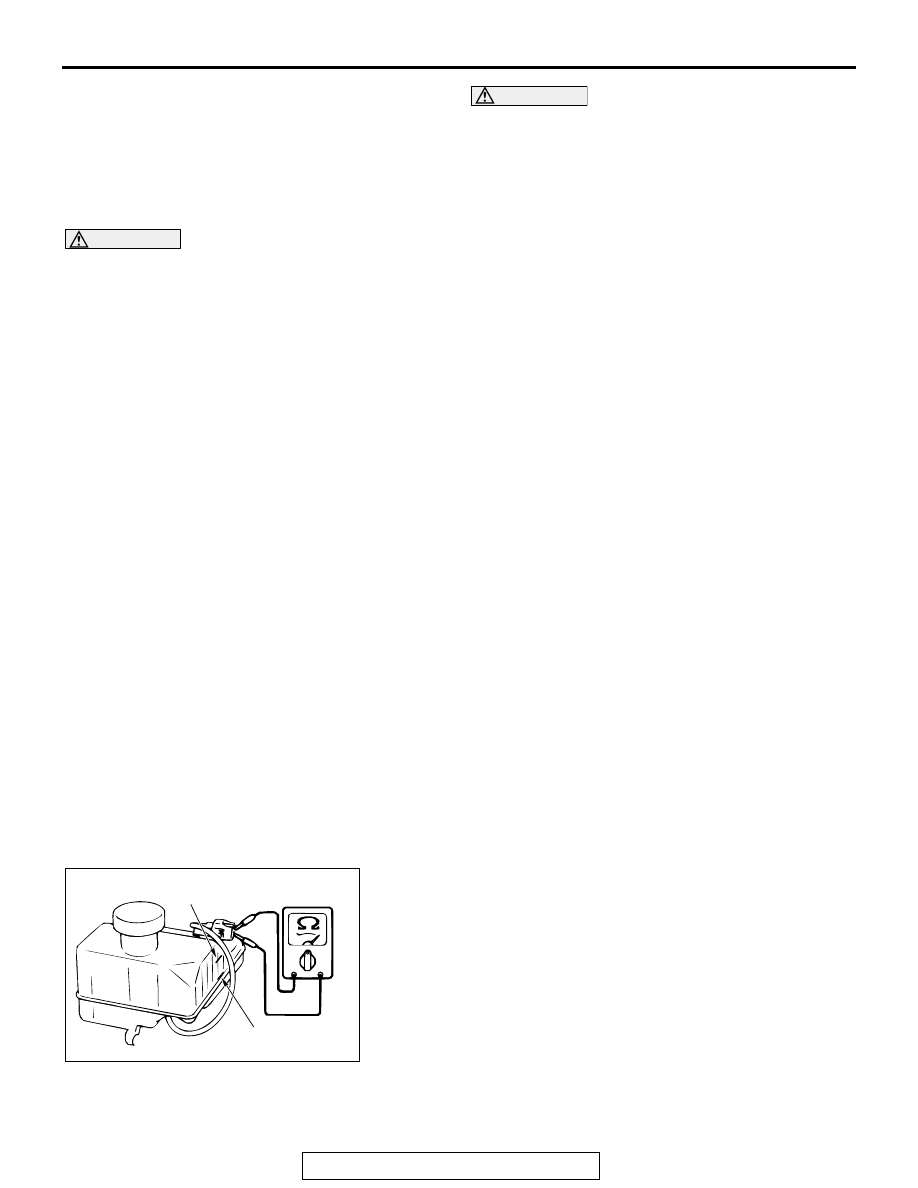

BRAKE FLUID LEVEL SWITCH CHECK

M1351009100254

The brake fluid level switch is in good condition if there is no
continuity when the float surface is above the "MIN" line and if
there is continuity when the float surface is below the "MIN"
line.

ACX00664 AC

MAX

MIN
