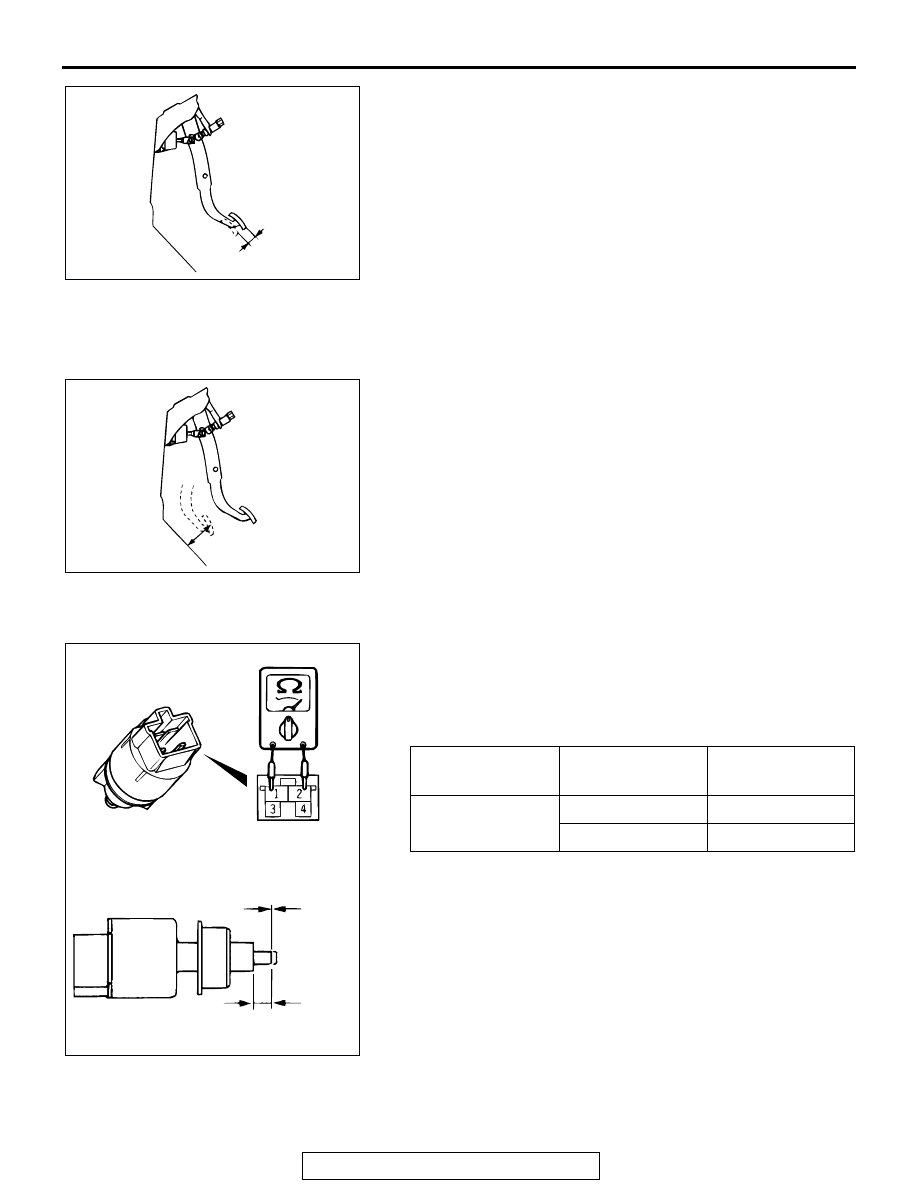

ON-VEHICLE SERVICE TSB Revision BASIC BRAKE SYSTEM 35A-119 2. Operate the pedal by hand, and check that the pedal stroke (free play) meets the standard value at the point where Standard value: 3 mm (0.1 inch) or less 3. If the brake pedal play is not within the standard value, check the following, and adjust or replace if necessary: • Excessive play between the brake pedal and the clevis pin, or between the clevis pin and the brake booster operating • Brake pedal height • Installation position of the stoplight switch, etc. Clearance between Brake Pedal and Floorboard 1. Turn up the carpet etc. under the brake pedal. approximately 500 N (112 pounds) of force, and measure Standard value: 90 mm (3.5 inches) or more 3. If the clearance is outside the standard value, check for air trapped in the brake line and thickness of the disc brake 4. Return the carpet etc. to its original position. STOPLIGHT SWITCH CHECK M1351008900213 1. Connect an ohmmeter between the stoplight switch connector terminals. 2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be ACX00659 ACX00660 TESTER PLUNGER SPECIFIED 1 − 2 IN Open circuit OUT Less than 2 ohms ACX00671AB NO CONTINUITY CONTINUITY 4 mm (0.16 in) |
