RECOMMENDED LUBRICANTS AND LUBRICANT CAPACITIES TABLE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-33

LUBRICANTS AND GREASES

Semi-solid lubricants bear the NLGI designation and
are further classified as grades 0, 1, 2, 3, etc.
Whenever "Chassis Lubricant" is specified, Multipur-
pose Grease, NLGI grade Number 2, should be
used.

FUEL USAGE STATEMENT

CAUTION

Using leaded gasoline in your car will damage
the catalytic converters and heated oxygen sen-
sors, and affect the warranty coverage validity.
This vehicle must use unleaded gasoline only.
Premium fuel is recommended.
This vehicle has a fuel filler tube which is especially
designed to accept only the smaller-diameter
unleaded gasoline dispensing nozzle.
Your car is designed to operate on premium grade
unleaded gasoline having a minimum octane rating
of 91 [(MON + RON)/2], or 95 RON.  If premium
grade unleaded gasoline is not available, unleaded
gasoline having an octane rating of 87 [(MON +
RON)/2], or 91 RON may be used. However, the per-
formance level may be reduced.
MON: Motor Octane Number
RON: Research Octane Number

.

GASOLINES CONTAINING ALCOHOL
Some gasolines sold at service stations contain alco-
hol although they may not be so identified.

Using fuels containing alcohol is not recommended
unless the nature of the blend can be determined as
being satisfactory.
Gasohol: A mixture of 10% ethanol (grain alcohol)
and 90% unleaded gasoline may be used in your
vehicle. If driveability problems are experienced as a
result of using gasohol, it is recommended that the
vehicle be operated on gasoline.
Methanol: Do not use gasolines containing meth-
anol (wood alcohol).
 Using this type of alcohol can
result in vehicle performance deterioration and dam-
age critical parts in the fuel system components. Fuel
system damage and performance problems resulting
from the use of gasolines containing methanol may
not be covered by the new vehicle warranty.

.

GASOLINES CONTAINING METHY TERTIARY
BUTYL ETHER (MTBE)
Unleaded gasoline containing 15% or less MTBE
may be used in your vehicle. (Fuel containing MTBE
over 15% in volume may cause reduced engine per-
formance and produce vapor lock or hard starting.

MATERIALS ADDED TO FUEL

Indiscriminate use of fuel system cleaning agents
should be avoided. Many of these materials intended
for gum and varnish removal may contain highly
active solvents or similar ingredients that can be
harmful to gasket and diaphragm materials used in
fuel system component parts.

RECOMMENDED LUBRICANTS AND LUBRICANT

CAPACITIES TABLE

M1001001300429

RECOMMENDED LUBRICANTS

PART

SPECIFICATION

REMARK

Engine oil

Engine oil displaying ILSAC
certification mark or conforming to
the API classification SL, SL/CF

For further details, refer to
"LUBRICANTS SELECTION"
section.

Automatic transmission

MITSUBISHI genuine ATF SP-III

-

Transfer

API classification GL-4

SAE grade number: SAE 75W-90
or 75W/85W

Front axle, Rear axle

API classification GL-5 or higher

For further details, refer to
"Lubricants Selection" section.

RECOMMENDED LUBRICANTS AND LUBRICANT CAPACITIES TABLE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-34

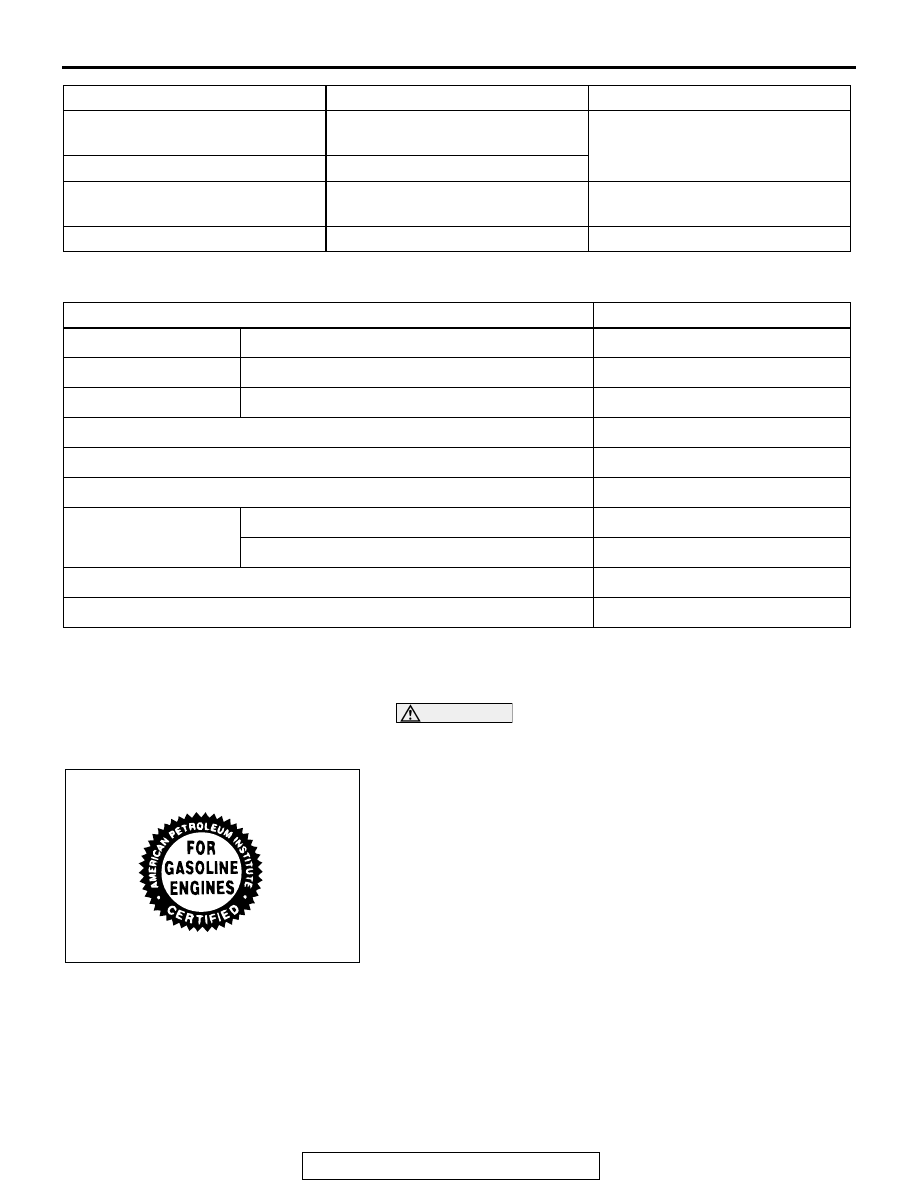

LUBRICANT CAPACITY TABLE

LUBRICANT SELECTION

.

ENGINE OIL

CAUTION

Never use nondetergent or straight mineral oil.
Oil Identification Symbol
Use only engine oils displaying the ILSAC certification mark
("Starburst" symbol) on the container.

Power steering

GENUINE MITSUBISHI POWER
STEERING FLUID

-

Brakes

Conforming to DOT 3 or DOT 4

Engine coolant

MITSUBISHI genuine coolant or
an equivalent

-

Door hinges, back door hinges

Engine oil

-

PART

SPECIFICATION

REMARK

DESCRIPTION

SPECIFICATION

Engine oil dm

3

 (qt)

Oil pan (excluding oil filter)

4.3 (4.5)

Engine oil dm

3

 (qt)

Oil filter

0.3 (0.32)

Engine oil dm

3

 (qt)

Oil cooler

0.3 (0.32)

Engine coolant dm

3

 (qt)

9.0 (9.5)

Automatic transmission dm

3

 (qt)

9.3 (9.8)

Transfer dm

3

 (qt)

2.8 (3.0)

Differential

Front axle dm

3

 (qt)

1.2 (1.3)

Rear axle dm

3

 (qt)

1.6 (1.7)

Power steering dm

3

 (qt)

1.0 (1.1)

Fuel tank dm

3

 (gal)

90 (23.8)

ACX00394AI

ILSAC CERTIFICATION MARK
("STARBURST" SYMBOL)

RECOMMENDED LUBRICANTS AND LUBRICANT CAPACITIES TABLE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-35

If these oils are not available, an API classification SL, SL/CF
can be used.

.

Oil Viscosity

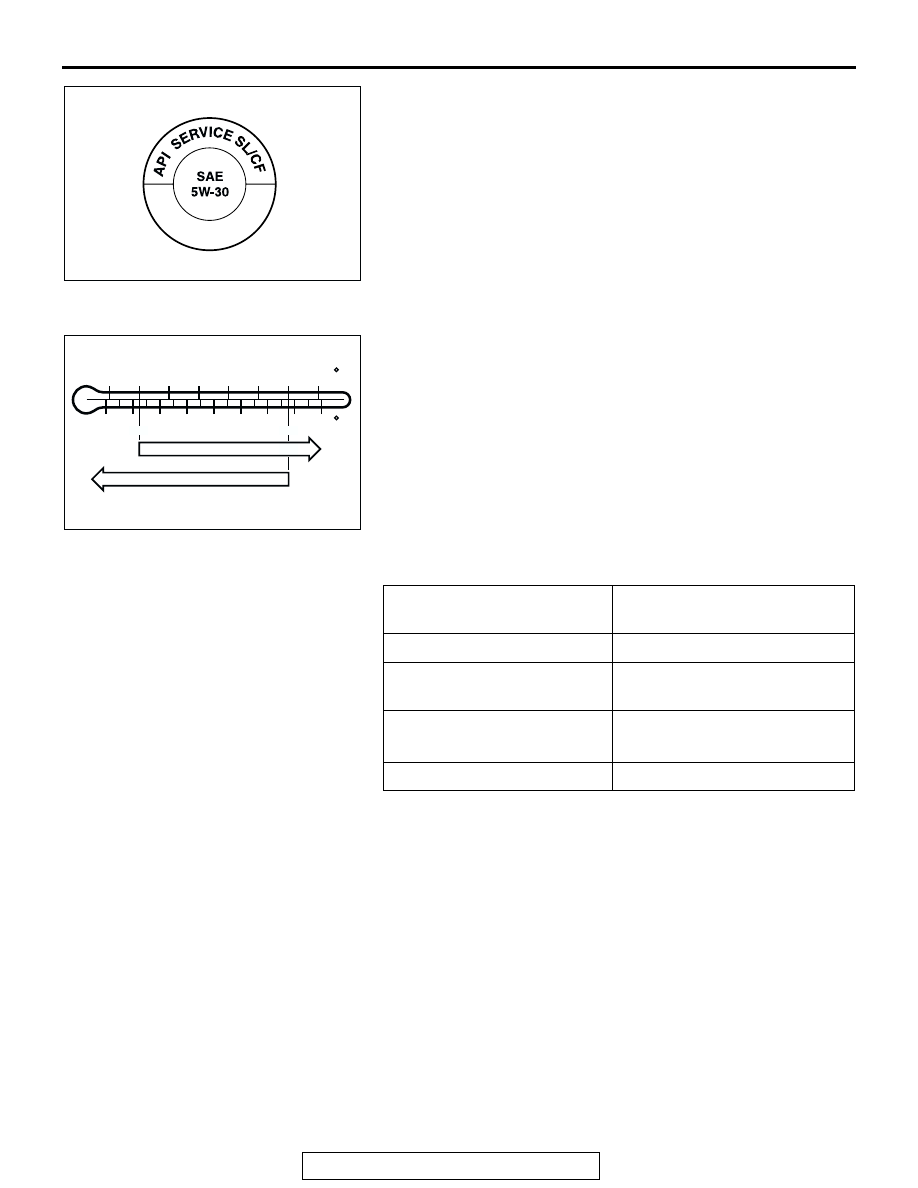

The SAE grade number indicates the viscosity of the oil. A
proper SAE grade number should be selected according to
ambient temperature.

.

FRONT AXLE/REAR AXLE

SELECTION OF COOLANT

.

COOLANT
Relationship between Coolant Concentration and Specific Gravity

AC309404AB

API SERVICE SYMBOL

-20

0

0

20

20

40

40

60

80

100

120

30

10

50

-10

-20

-30

38

-18

F

C

SAE   10W-30

SAE   5W-20, 5W-30

AC309403AB

LUBRICANT

API CLASSIFICATION GL-5
OR HIGHER

Expected temperature range

Viscosity range

Greater than

−23°C (−10°F)

SAE 90, SAE 85W-90 or SAE
80W-90

−20°C to −34°C (−10°F to
−30°F)

SAE 80W or SAE 80W-90

Less than

−34°C (−30°F)

SAE 75W

SCHEDULED MAINTENANCE TABLE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-36

CAUTION

• If the concentration of the coolant is less than 30%, the anti-corrosion property will be adversely

affected. In addition, if the concentration is greater than 60%, both the anti-freeze and engine cool-
ing properties will decrease, affecting the engine adversely. For these reasons, be sure to main-
tain the concentration level within the specified range.

• Do not use a mixture of different brands of anti-freeze.

Example

• The safe operating temperature is −15°C (5° F) when the specific gravity is 1.058  at the coolant tempera-

ture of 20

° C (68° F)

SCHEDULED MAINTENANCE TABLE

M1001001400448

.

SCHEDULED MAINTENANCE SERVICE FOR EMISSION CONTROL AND PROPER VEHICLE
PERFORMANCE
Inspection and service should be performed any time if a malfunction is observed or suspected.

COOLANT TEMPERATURE

°C (°F)

AND SPECIFIC GRAVITY

FREEZING
TEMPERATURE

SAFE OPERATING
TEMPERATURE

COOLANT
CONCENTRATION
(SPECIFIC
VOLUME)

10 (50) 20 (68) 30 (86) 40

(104)

50
(122)

°C (°F)

°C (°F)

%

1.054

1.050

1.046

1.042

1.036

−16 (3.2)

−11 (12.2)

30

1.063

1.058

1.054

1.049

1.044

−20 (−4)

−15 (5)

35

1.071

1.067

1.062

1.057

1.052

−25 (−13)

−20 (−4)

40

1.079

1.074

1.069

1.064

1.058

−30 (−22)

−25 (−13)

45

1.087

1.082

1.076

1.070

1.064

−36 (−32.8)

−31 (−23.8)

50

1.095

1.090

1.084

1.077

1.070

−42 (−44)

−37 (−35)

55

1.103

1.098

1.092

1.084

1.076

−50 (−58)

−45 (−49)

60

NO. EMISSION

CONTROL
SYSTEM
MAINTENANCE

SERVICE
INTERVALS

KILOMETERS
IN
THOUSANDS

24

48

72

96

120 144 168 192

MILEAGE IN
THOUSANDS

15

30

45

60

75

90

105 120

MONTHS

12

24

36

48

60

72

84

96

1

Fuel system (tank,
pipe line and
connection, and fuel
tank filler tube cap)

Check for leaks

X

X

2

Fuel hoses

Check condition

X

*3

X

X

X

3

Air cleaner filter

Replace

X

X

X

X
