DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-355

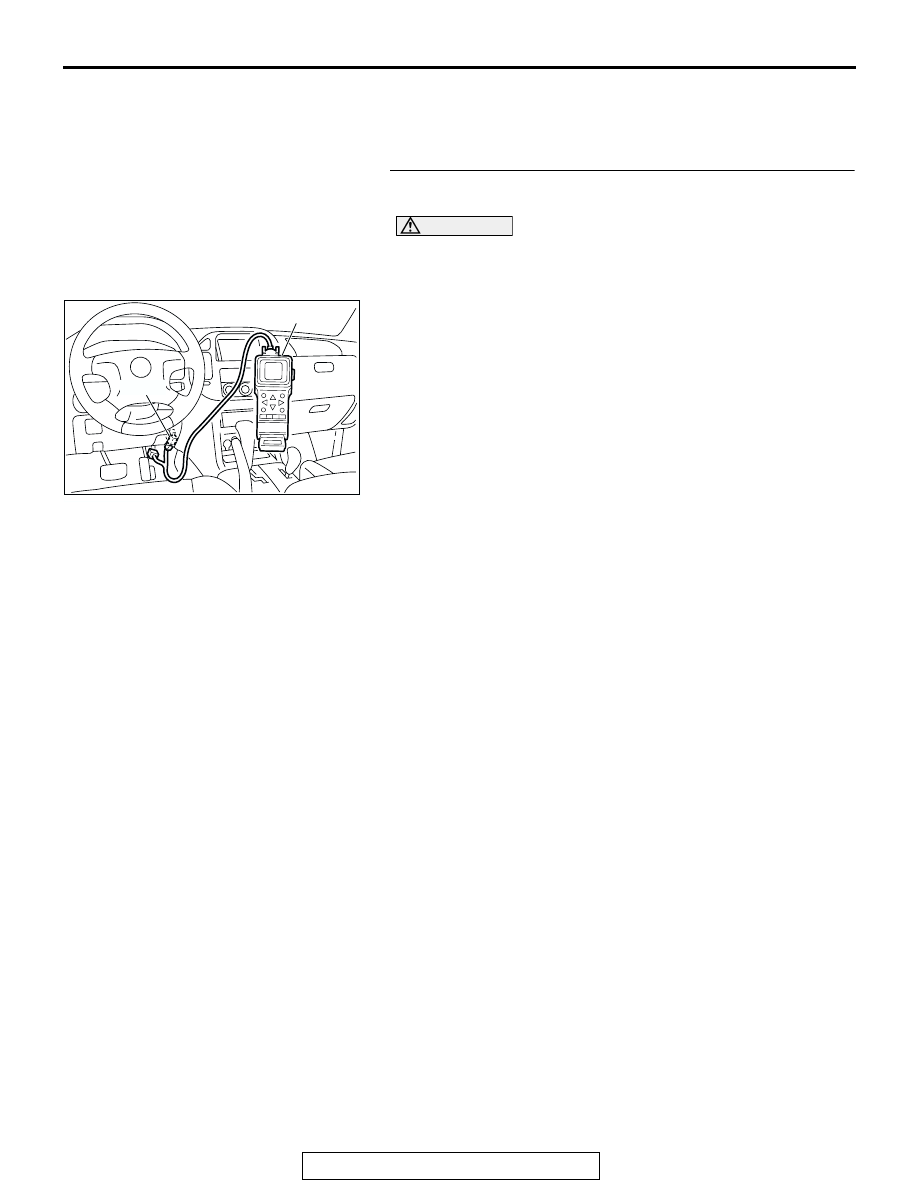

STEP 8. Using scan tool MB991502, check data list item 12:
Shift Actuator Voltage.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.
(4) Set scan tool MB991502 to data reading mode for item 12,

Shift Actuator Voltage.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the display should be 1/2 battery

voltage

→ battery positive voltage → 1.0 volt or less →

1/2 battery voltage.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the display should be 1/2 bat-

tery voltage

→ 1.0 volt or less → 1/2 battery voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Replace the transfer-ECU.

DTC 42: Shift Actuator System (Short Circuit)
DTC 43: Shift Actuator System (Open Circuit)

.

Shift Actuator System Circuit
Refer to

P.23Ac-349

.

.

CIRCUIT OPERATION
Refer to

P.23Ac-349

.

.

DTC SET CONDITIONS
When the shift actuator current is more than the tar-
get value +1 ampere during drive, the DTC 42 is set
as the short circuit of the shift actuator system. When
the main relay voltage is 6 volts or less or the actual
value of the shift actuator current is less than 0.1
ampere, the DTC 43 is set as the open circuit of the
shift actuator system.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the shift actuator

• Damaged harness, connector

• Malfunction of the transfer-ECU

ACX01539AD

MB991502

16-PIN

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-356

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

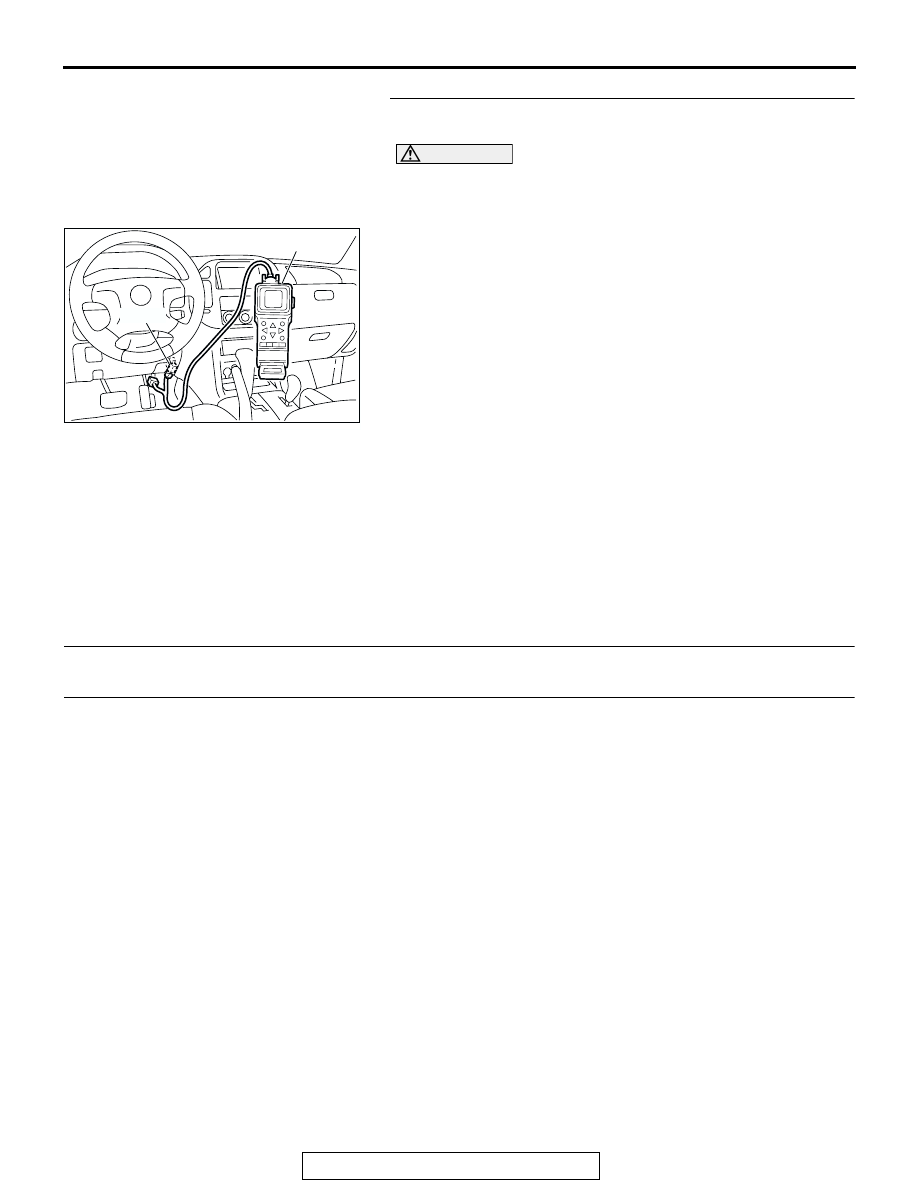

STEP 1. Using scan tool MB991502, check data list item 10:
Shift Actuator Amperage.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.
(4) Set scan tool MB991502 to data reading mode for item 10,

Shift Actuator Amperage.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the display should be 0 ampere

→ 0.2 − 1.5 ampere → 0 ampere.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Go to Step 2.

ACX01539AD

MB991502

16-PIN

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-357

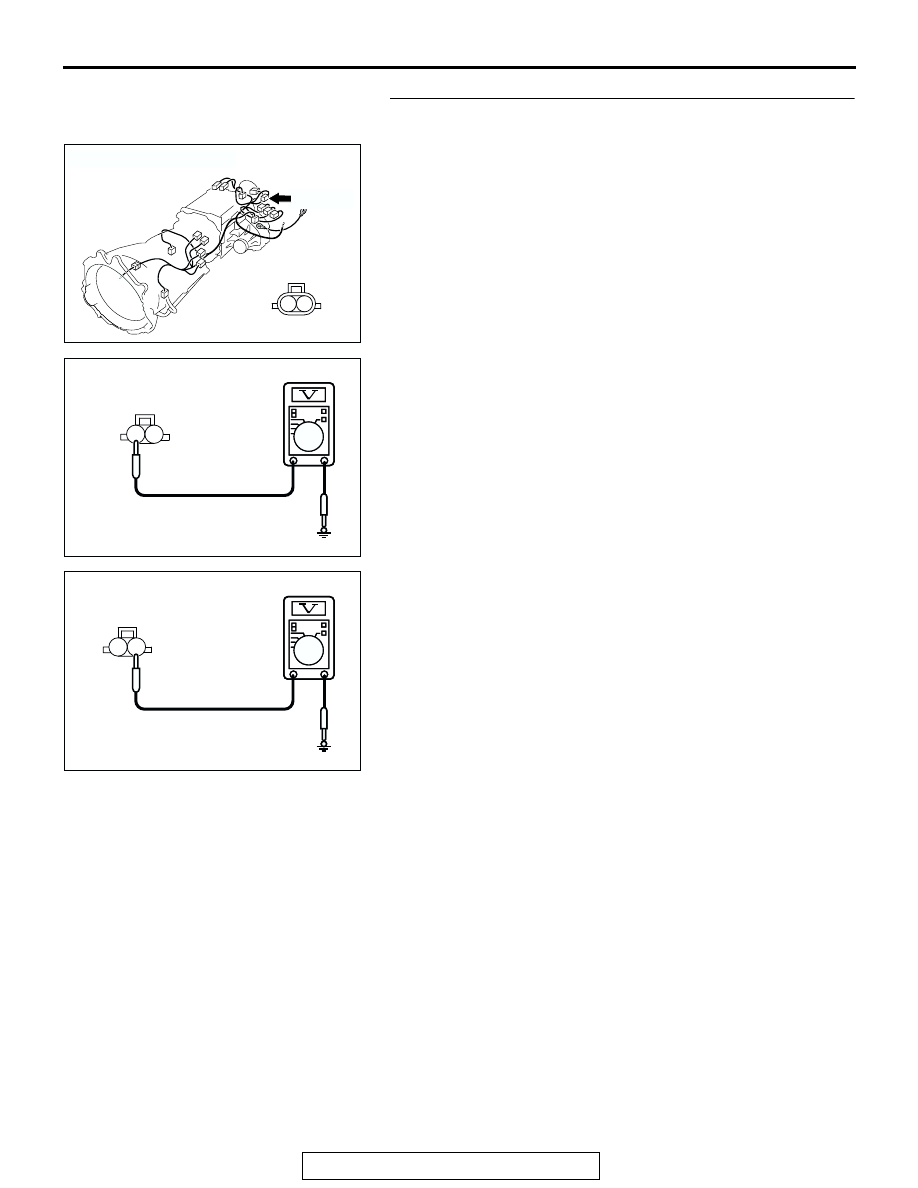

STEP 2. Measure the power supply voltage at shift actuator
connector C-09.
(1) Disconnect connector C-09 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.

(4) Measure the voltage between terminal 2 and ground.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the voltage should measure bat-

tery positive voltage.

(5) Measure the voltage between terminal 1 and ground.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the voltage should measure

battery positive voltage.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Replace the shift actuator. Refer to GROUP 23B,

Transfer

P.23B-103

.

NO :  Go to Step 3.

AC204395

CONNECTOR : C-09

AH

C-09 (GR)

2

1

AC204918

1

2

AC204918 AS

C-09 HARNESS CONNECTOR :
COMPONENT SIDE

AC204918

1

2

AC204918 AR

C-09 HARNESS CONNECTOR :
COMPONENT SIDE

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-358

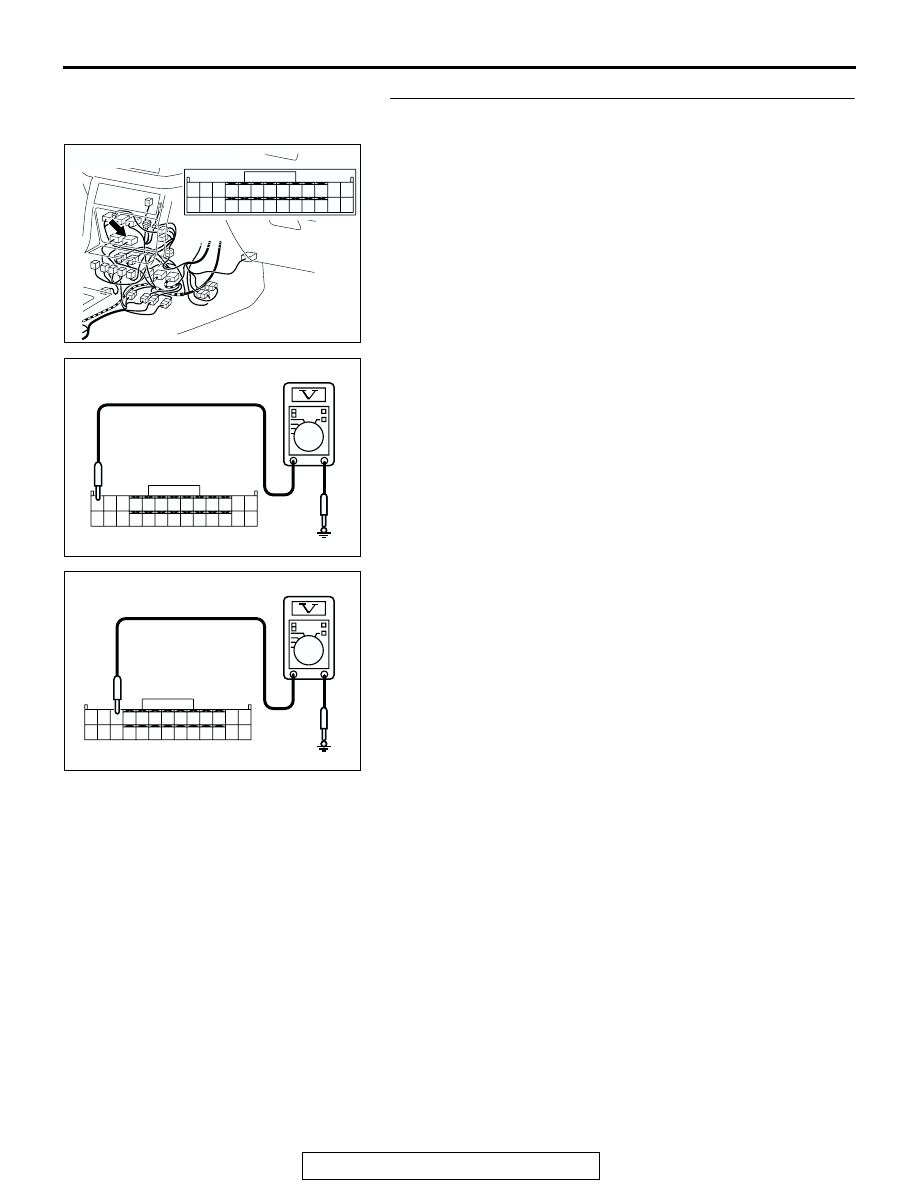

STEP 3. Measure the actuator output voltage at transfer-
ECU connector E-109 by backprobing.
(1) Do not disconnect connector E-109.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.

(4) Measure the voltage between terminal 1 and ground by

backprobing.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the voltage should measure 1/2

battery voltage

→ battery positive voltage → 1.0 volt or

less

→ 1/2 battery voltage.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the voltage should measure 1/

2 battery voltage

→ 1.0 volt or less → 1/2 battery volt-

age.

(5) Measure the voltage between terminal 3 and ground by

backprobing.

• When the operating transfer shift lever 2H → 4H, 4H →

4HLc or 4HLc

→ 4LLc, the voltage should measure 1/2

battery voltage

→ 1.0 volt or less → 1/2 battery voltage.

• When the operating transfer shift lever 4LLc → 4HLc,

4HLc

→ 4H or 4H → 2H, the voltage should measure 1/

2 battery voltage

→ battery positive voltage → 1.0 volt

or less

→ 1/2 battery voltage.

(6) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 6.
NO :  Go to Step 4.

AC204176

CONNECTOR : E-109

BB

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

AC204918

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

BZ

E-109 HARNESS CONNECTOR :
HARNESS SIDE

AC204918

11 12

25

24

13

26

9

22

7

6

20

19

8

21

10

23

5

4

17

2

1

15

14

3

16

18

CB

E-109 HARNESS CONNECTOR :
HARNESS SIDE
