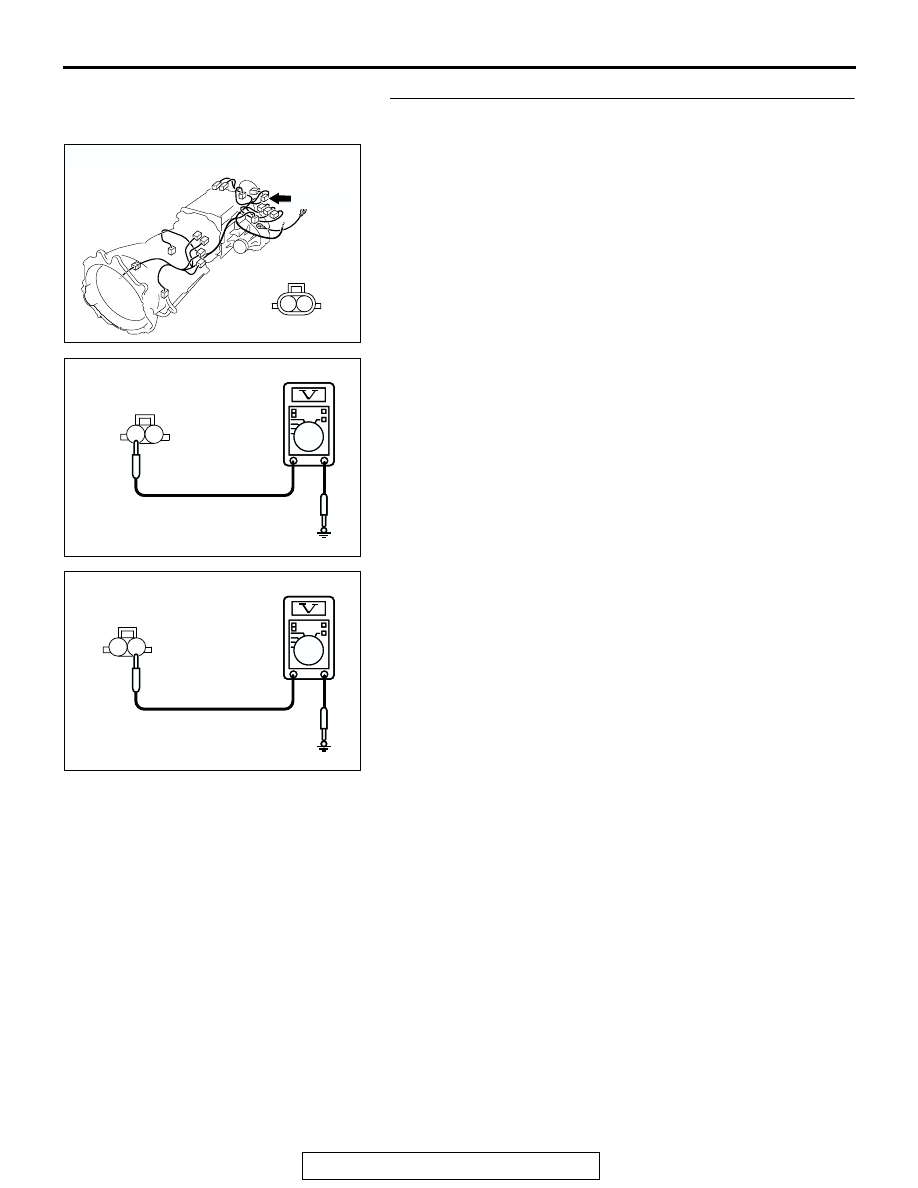

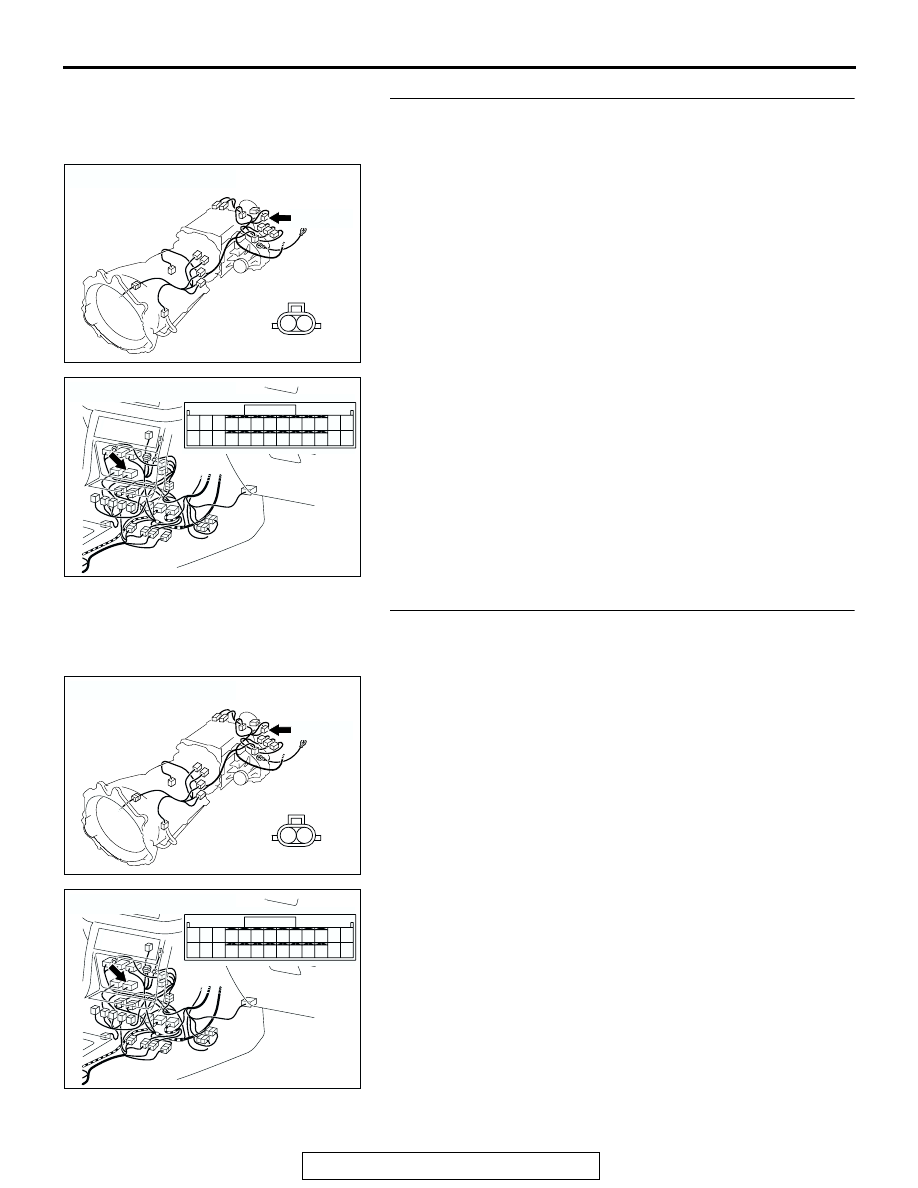

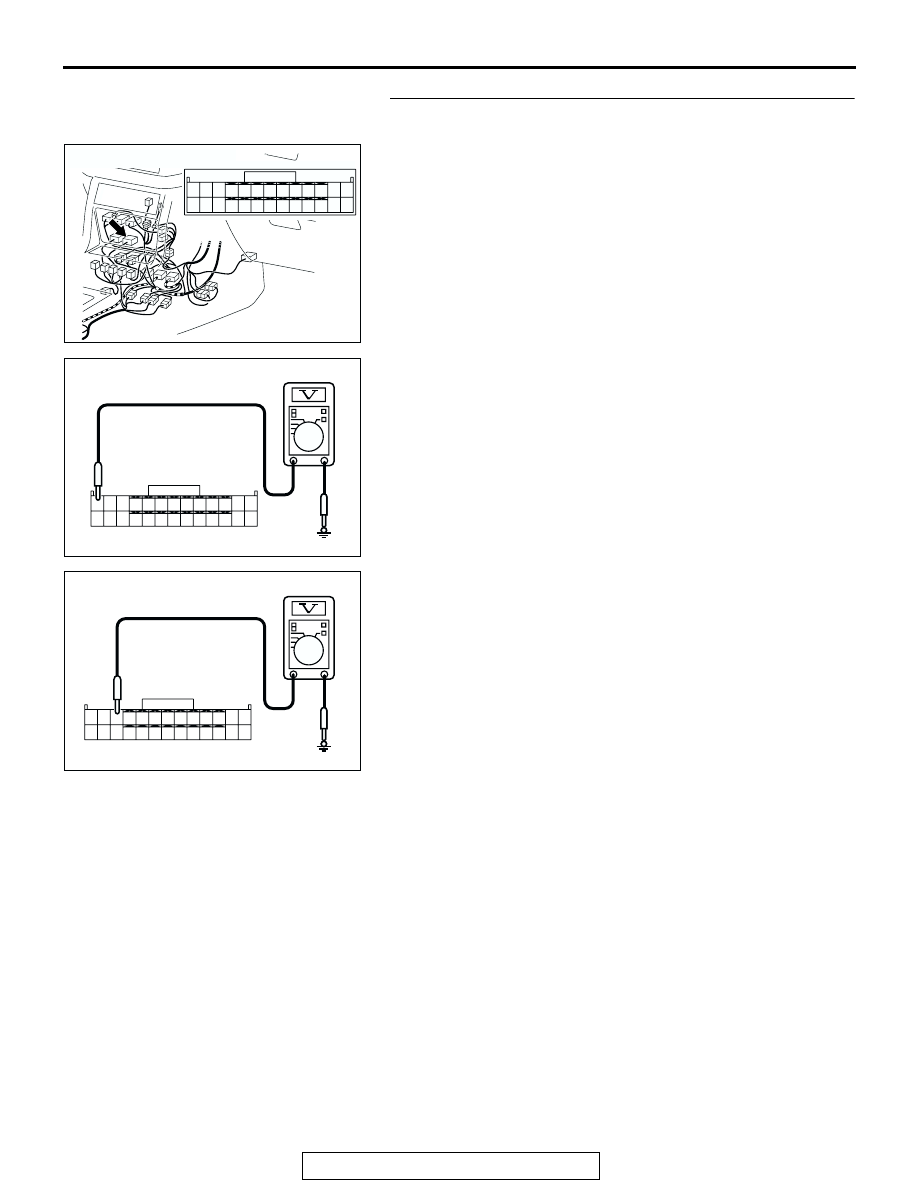

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER> TSB Revision DIAGNOSTIC TROUBLE CODE PROCEDURES 23Ac-351 STEP 2. Measure the power supply voltage at shift actuator side. (2) Turn the ignition switch to the "ON" position. (4) Measure the voltage between terminal 2 and ground. • When the operating transfer shift lever 2H → 4H, 4H → 4HLc or 4HLc → 4LLc, the voltage should measure bat- tery positive voltage. (5) Measure the voltage between terminal 1 and ground. • When the operating transfer shift lever 4LLc → 4HLc, 4HLc → 4H or 4H → 2H, the voltage should measure battery positive voltage. (6) Turn the ignition switch to the "LOCK" (OFF) position. YES : Replace the shift actuator. Refer to GROUP 23B, Transfer . NO : Go to Step 3. AC204395 CONNECTOR : C-09 AH C-09 (GR) 2 1 AC204918 1 2 AC204918 AS C-09 HARNESS CONNECTOR : AC204918 1 2 AC204918 AR C-09 HARNESS CONNECTOR : |
