DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-315

STEP 10. Using scan tool MB991502, check data list item
06: Transfer Shift Lever Position.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991502 to data reading mode for item 06,

Transfer Shift Lever Position.

• Display should be the same as the actual transfer shift

lever position.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is switch operating properly?

YES : If can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Replace the transfer-ECU.

DTC 32, 33: Transfer Detection Switch System

ACX01539AD

MB991502

16-PIN

ACX02036AB

Transfer Detection switch System Circuit

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-316

.

CIRCUIT OPERATION

• A battery positive voltage is applied to the each

detection switch (terminal 1) from the transfer-
ECU (terminal 43, 44, 45, 46 or 47).

• The each detection switch is grounded through

the transfer case to the vehicle body.

.

DTC SET CONDITIONS
In the case that the transfer shifting has not been
completed during driving, the DTC 32 is set as the
open circuit or the short circuit of each transfer
detection switch system, malfunction of the shift
actuator or the malfunction of the transfer shift mech-
anism. In the case that the input signal from each
transfer detection switch is unstable, the DTC 33 is
set as the open circuit or the short circuit of each
transfer detection switch system.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the each transfer detection switch

• Damaged harness, connector

• Malfunction of the transfer-ECU

• Malfunction of the shift actuator

• Malfunction of the transfer shift mechanism

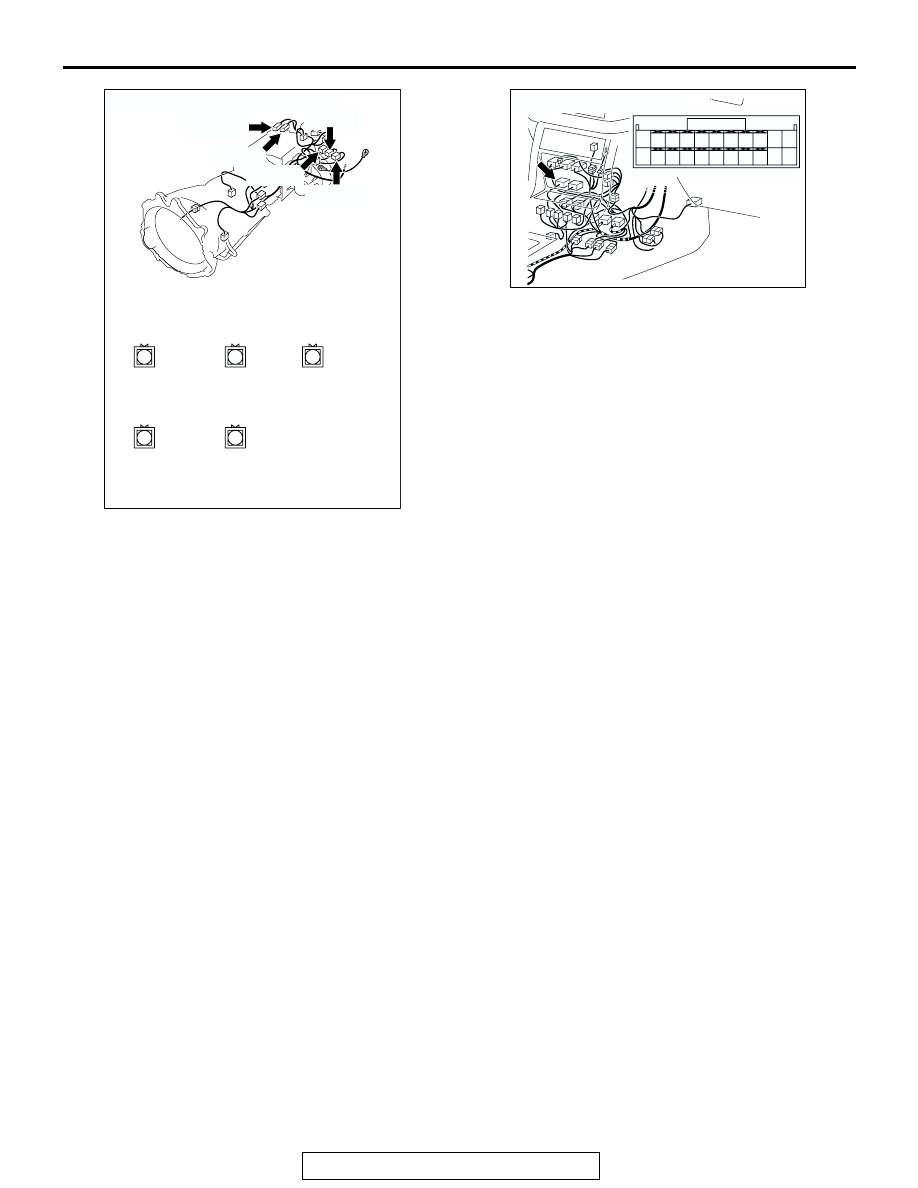

AC204510

CONNECTORS : C-05, C-06, C-10, C-11, C-12

C-05 (BR)

C-05

C-06 (B)

C-06

C-10 (B)

C-10

C-11 (W)

C-11

C-12 (BR)

C-12

AC

1

1

1

1

1

AC204176

CONNECTOR : E-104

BA

51

40

3839

50

41

52

48

37

46

35

47

36

45

34

43

32

44

33

49

42

31

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-317

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

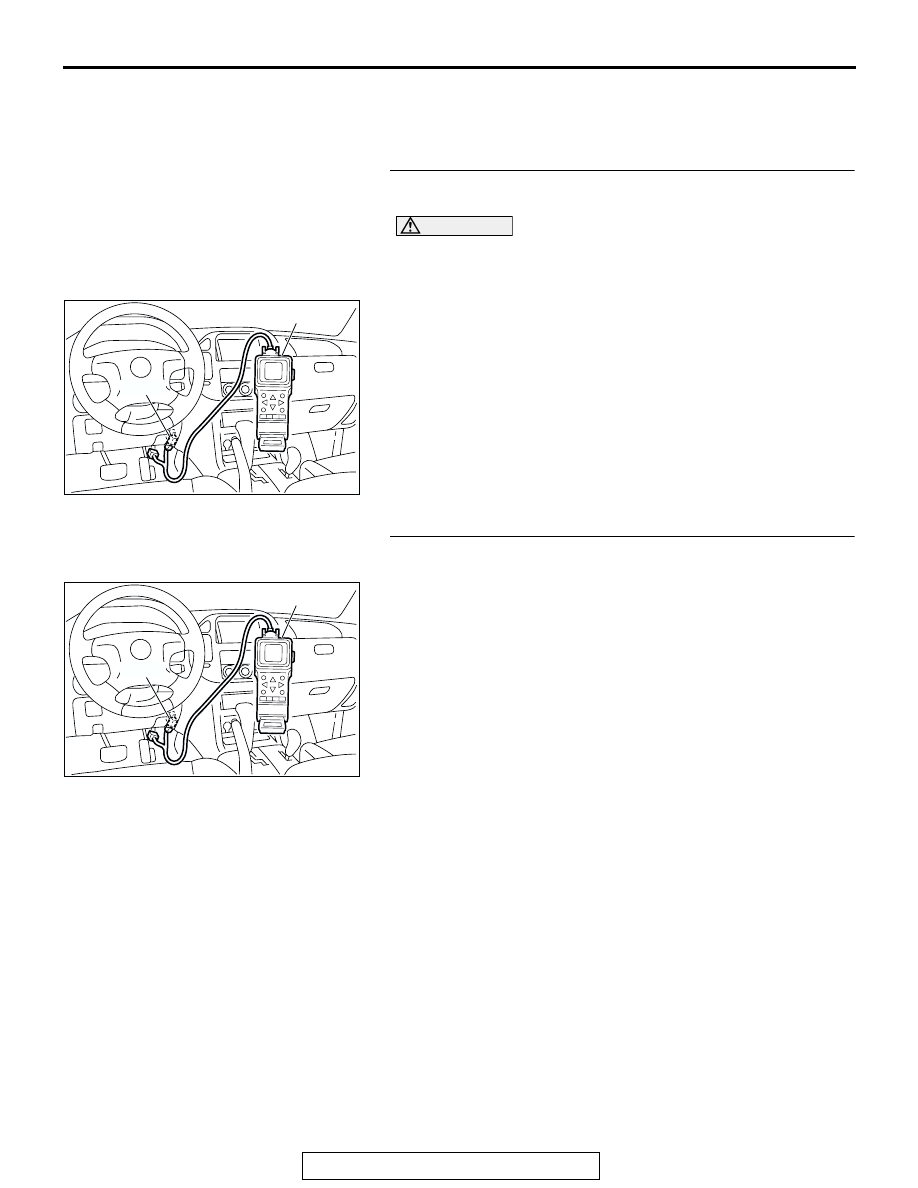

STEP 1. Using scan tool MB991502, check actuator test
item 02 or 03: Shift Actuator <Only when DTC 32 is set>.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.
(4) Set scan tool MB991502 to actuator testing mode for item

02 or 03, Shift Actuator.

• The shift actuator operate.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the shift actuator operate?

YES : Go to Step 2.
NO :  Replace the shift actuator. Refer to GROUP 23B,

Transfer

P.23B-103

.

STEP 2. Using scan tool MB991502, check data list item 07:
Transfer Mode Detected.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Transmission range should be "N" range.
(4) Set scan tool MB991502 to data reading mode for item 07,

Transfer Mode Detected.

• Display should be the same as the actual transfer shift

lever position.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are all position operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Go to Step 3.

ACX01539AD

MB991502

16-PIN

ACX01539AD

MB991502

16-PIN

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-318

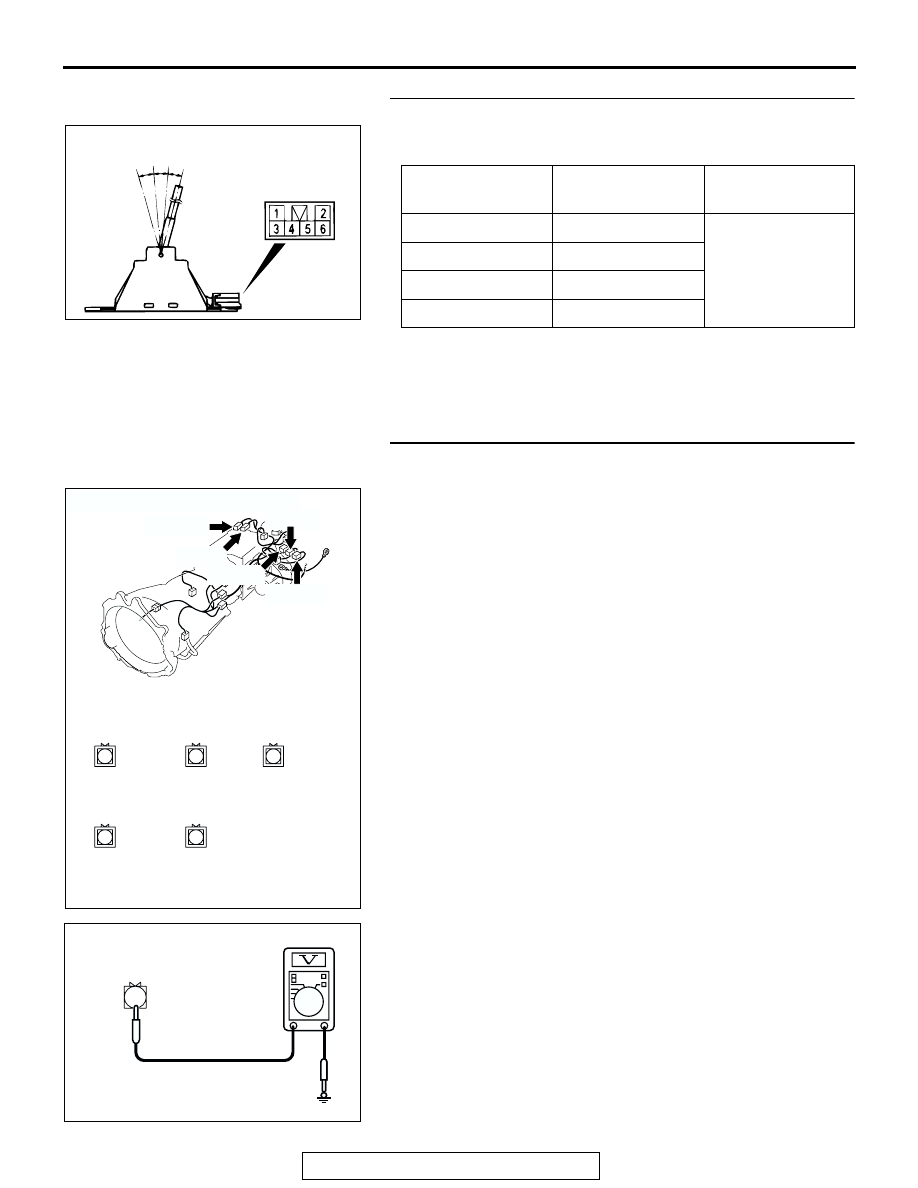

STEP 3. Check the transfer shift lever switch.
Check for resistance between terminals for each transfer shift
lever position.

Q: Is the switch operating properly?

YES : Go to Step 4.
NO :  Replace the transfer shift lever switch. Refer to

P.23Aa-30

, Transmission Control.

STEP 4. Measure the switch output voltage at each
detection switch connectors C-05, C-06, C-10, C-11, C-12.
(1) Disconnect connectors C-05, C-06, C-10, C-11, C-12 and

measure at the harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 1 and ground.

• The voltage should measure between battery positive

voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 10.
NO :  Go to Step 5.

TRANSFER SHIFT
LEVER POSITION

TERMINAL
NUMBER

SPECIFIED
CONDITION

2H

1

− 3

Less than 2 ohms.

4H

1

− 5

4HLc

1

− 6

4LLc

1

− 2

ACX01331AB

4LLc

4HLc

4H

2H

AC204510

CONNECTORS : C-05, C-06, C-10, C-11, C-12

C-05 (BR)

C-05

C-06 (B)

C-06

C-10 (B)

C-10

C-11 (W)

C-11

C-12 (BR)

C-12

AC

1

1

1

1

1

AC204918 AN

C-05, C-06, C-10, C-11, C-12 HARNESS
CONNECTOR :
COMPONENT SIDE

1
