Mitsubishi Montero (2002-2004). Manual - part 891





DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-47

DTC 22: Input Shaft Speed Sensor System

AC205189 AB

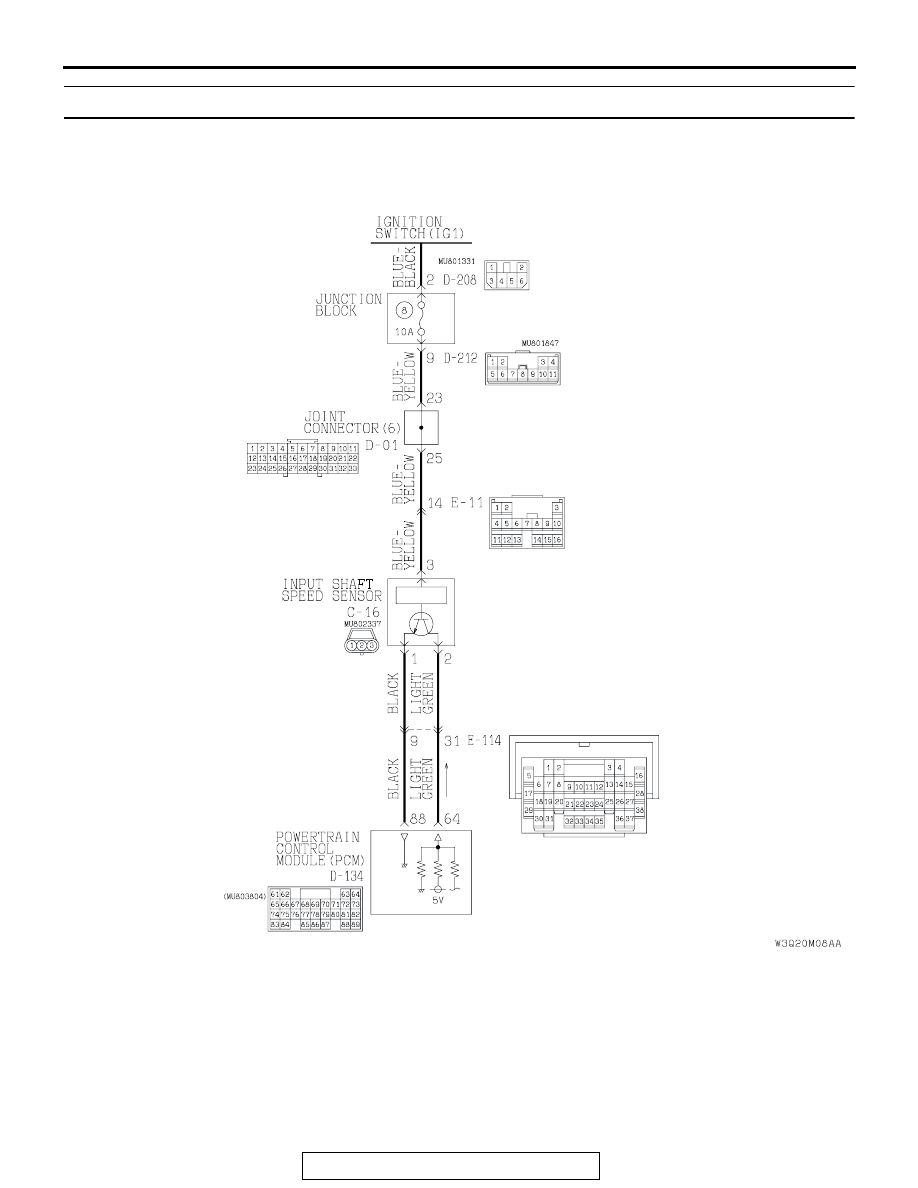

Input Shaft Speed Sensor System Circuit

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-48

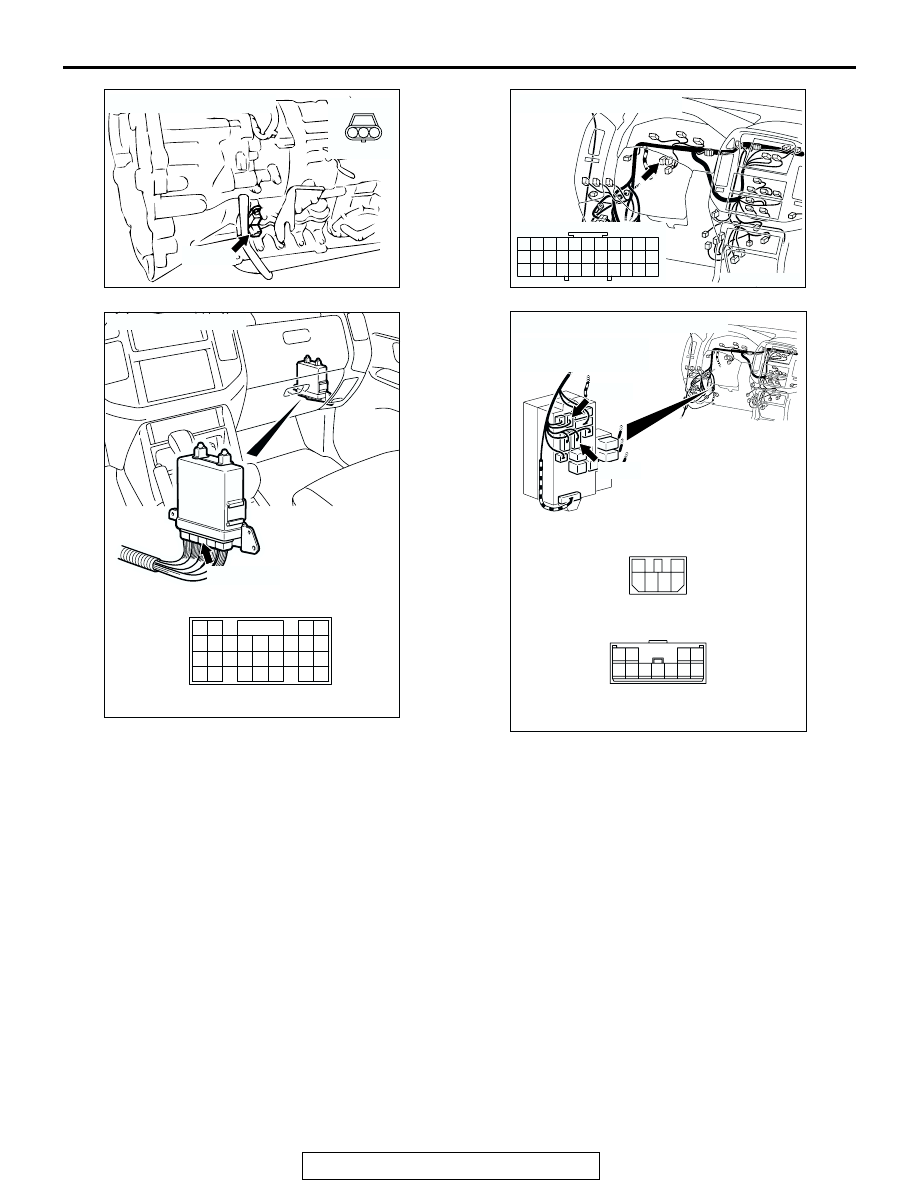

AC204747

CONNECTOR : C-16

C-16 (B)

AB

1

3

2

AC204170

CONNECTOR : D-01

CD

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204191

CONNECTORS : D-208, D-212

5 6

2

4

3

1

JUNCTION BLOCK
(FRONT VIEW)

3

10

9

4

11

8

7

1

5

2

6

D-208

D-208

D-212

D-212

AS

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-49

.

CIRCUIT OPERATION

• The input shaft speed sensor generates 0 ⇔ 5

volts pulse signal when the input shaft rotates.
The pulse signal frequency increases with a rise
in input shaft speed.

• The input shaft speed sensor is connected to the

PCM (terminals 64 and 88) via the input shaft
speed sensor connector (terminals 1 and 2).

• The PCM detects the input shaft speed by the

signal input to terminal 64.

• The input shaft speed sensor generates the pulse

signal as the teeth of the reverse clutch retainer
pass the magnetic tip of the sensor.

.

DTC SET CONDITIONS
If no output pulse is detected from the input shaft
speed sensor for one second or more while driving in
3rd or 4th gear at a speed of 30 km/h (19 mph) or
more, it is judged that an open circuit or short circuit
in the input shaft speed sensor circuit. If DTC 22 is
set consecutively four times, the transmission is
locked into 3rd gear or 2nd gear as a fail-safe mea-
sure, and the "N" range light flashes once per sec-
ond.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the input shaft speed sensor circuit

• Malfunction of the reverse clutch retainer

• Damaged harness, connector

• Malfunction of the PCM

AC204194

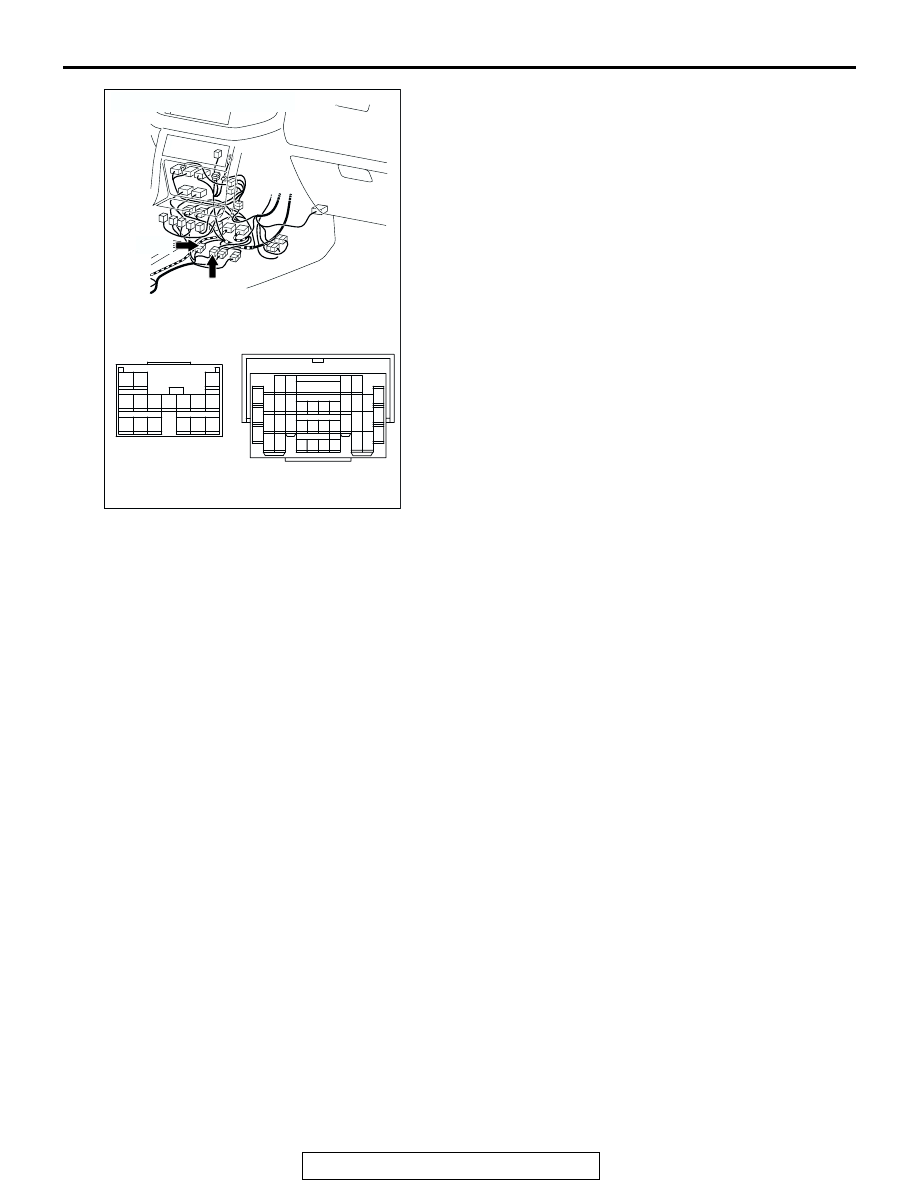

CONNECTORS : E-11, E-114

3

10

16

9

7 8

6

1

4

2

5

11

14

1213

15

BC

E-11

E-114

E-11

E-114

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-50

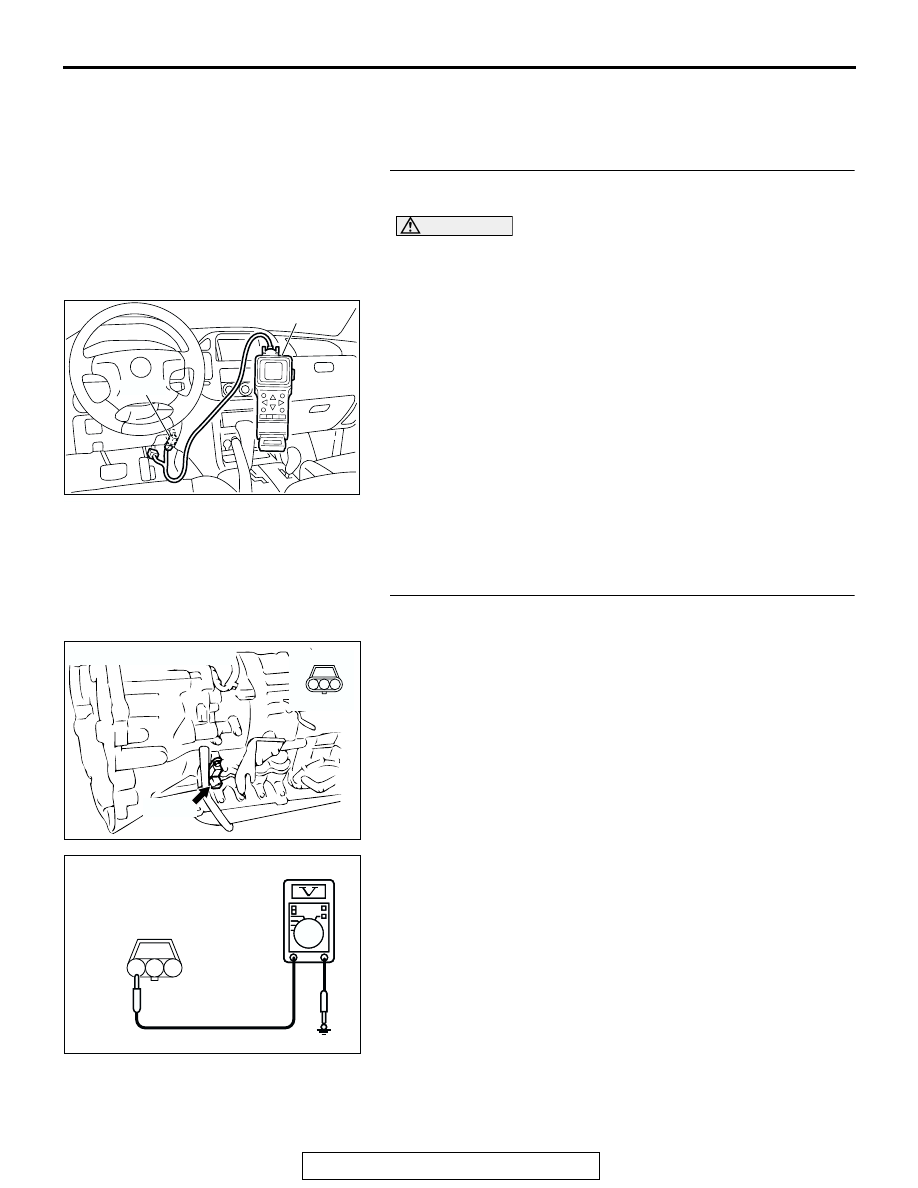

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

STEP 1. Using scan tool MB991502, check data list item 22:
Input Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991502 to data reading mode for item 22,

Input Shaft Speed Sensor.

• When driving at constant speed of 50 km/h (31 mph),

the display should be "1,400

− 1,700 r/min". (Gear

range: 4th gear)

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Go to Step 2.

STEP 2. Measure the power supply voltage at input shaft
speed sensor connector C-16.
(1) Disconnect connector C-16 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 3 and ground.

• The voltage should measure battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 5.
NO :  Go to Step 3.

ACX01539AD

MB991502

16-PIN

AC204747

CONNECTOR : C-16

C-16 (B)

AB

1

3

2

AC204918

3

1

2

AC204918 AX

C-16 HARNESS CONNECTOR :
COMPONENT SIDE
