DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-43

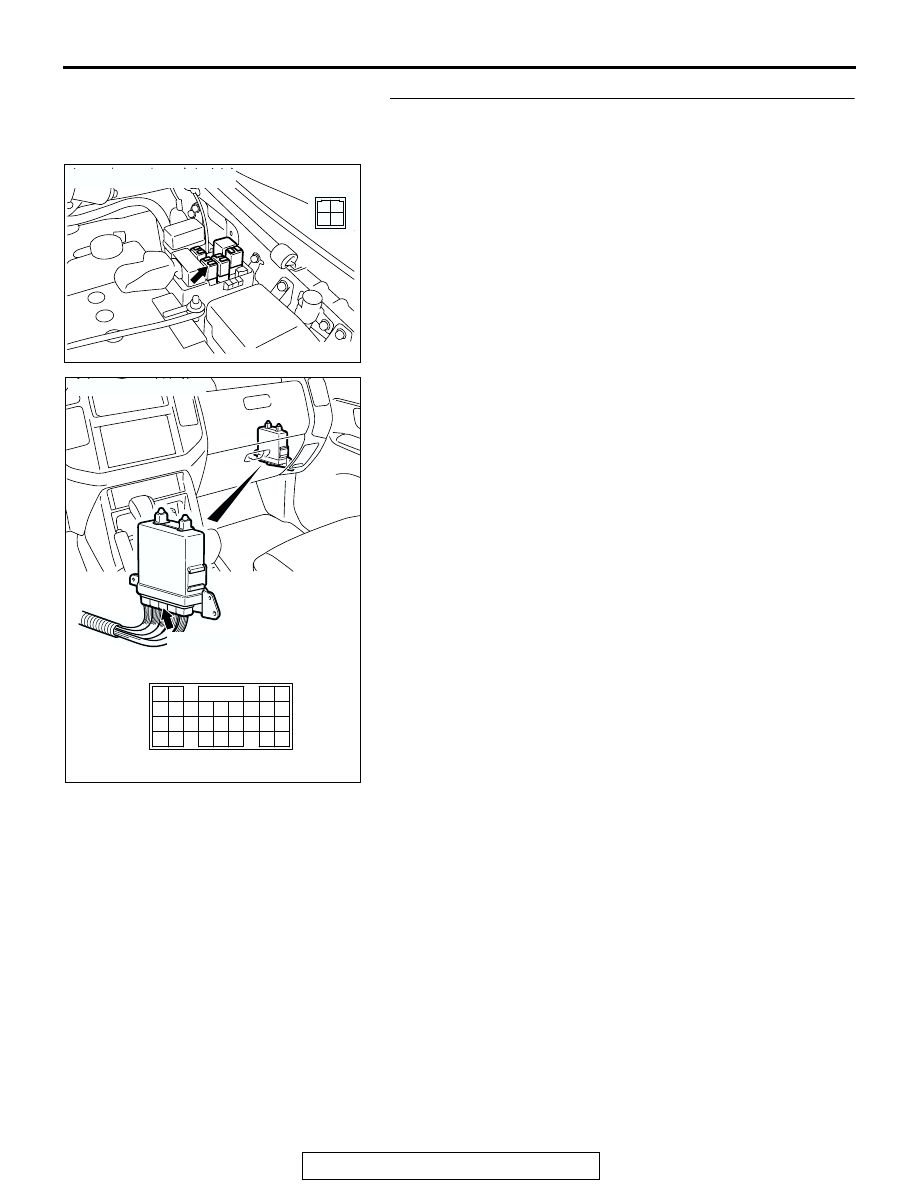

STEP 18. Check MFI relay connector B-22X and PCM
connector D-134 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 19.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204745

CONNECTOR : B-22X

AB

1
3 4

2

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-44

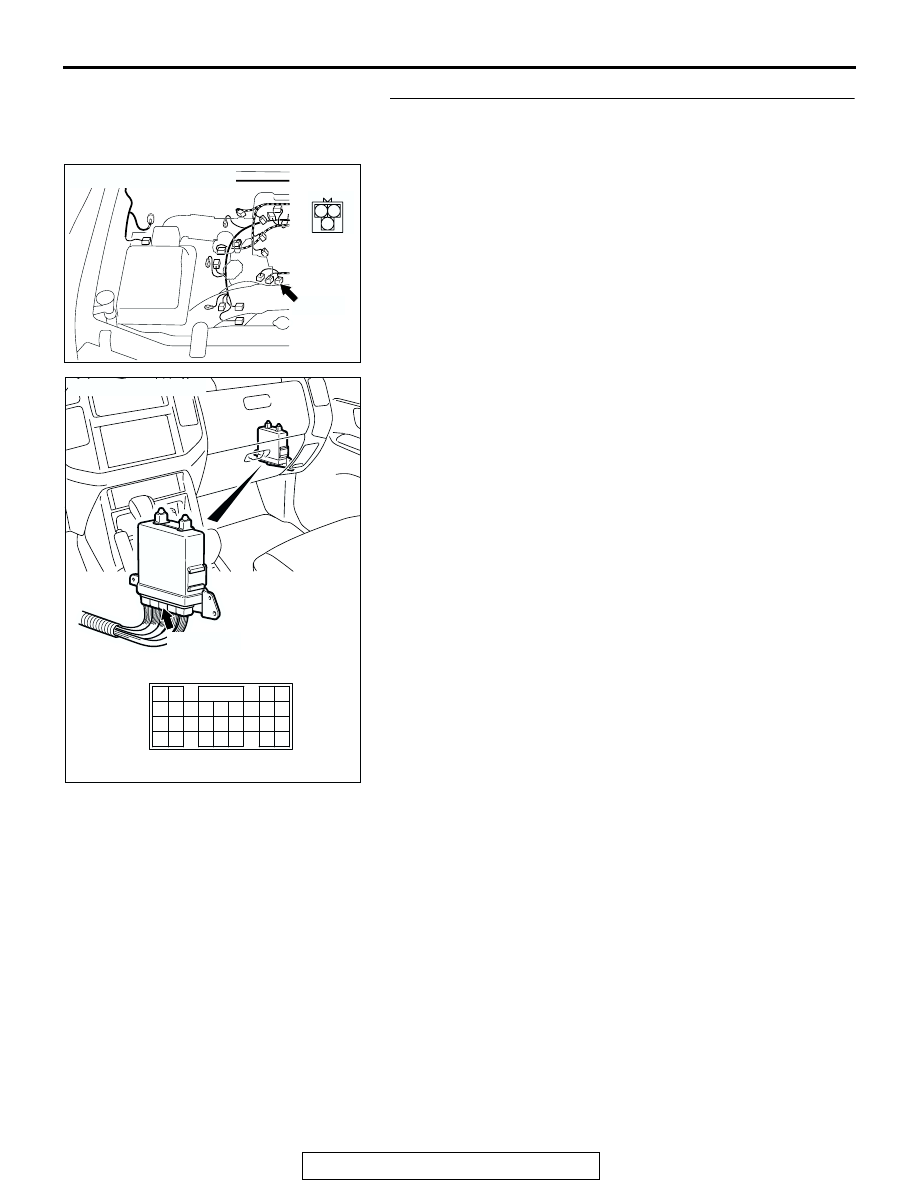

STEP 19. Check harness for damage between crankshaft
position sensor connector B-36 terminal 2 and PCM
connector D-134 terminal 70.
Q: Is the harness wire in good condition?

YES : Go to Step 20.
NO :  Repair or replace the harness wire.

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-45

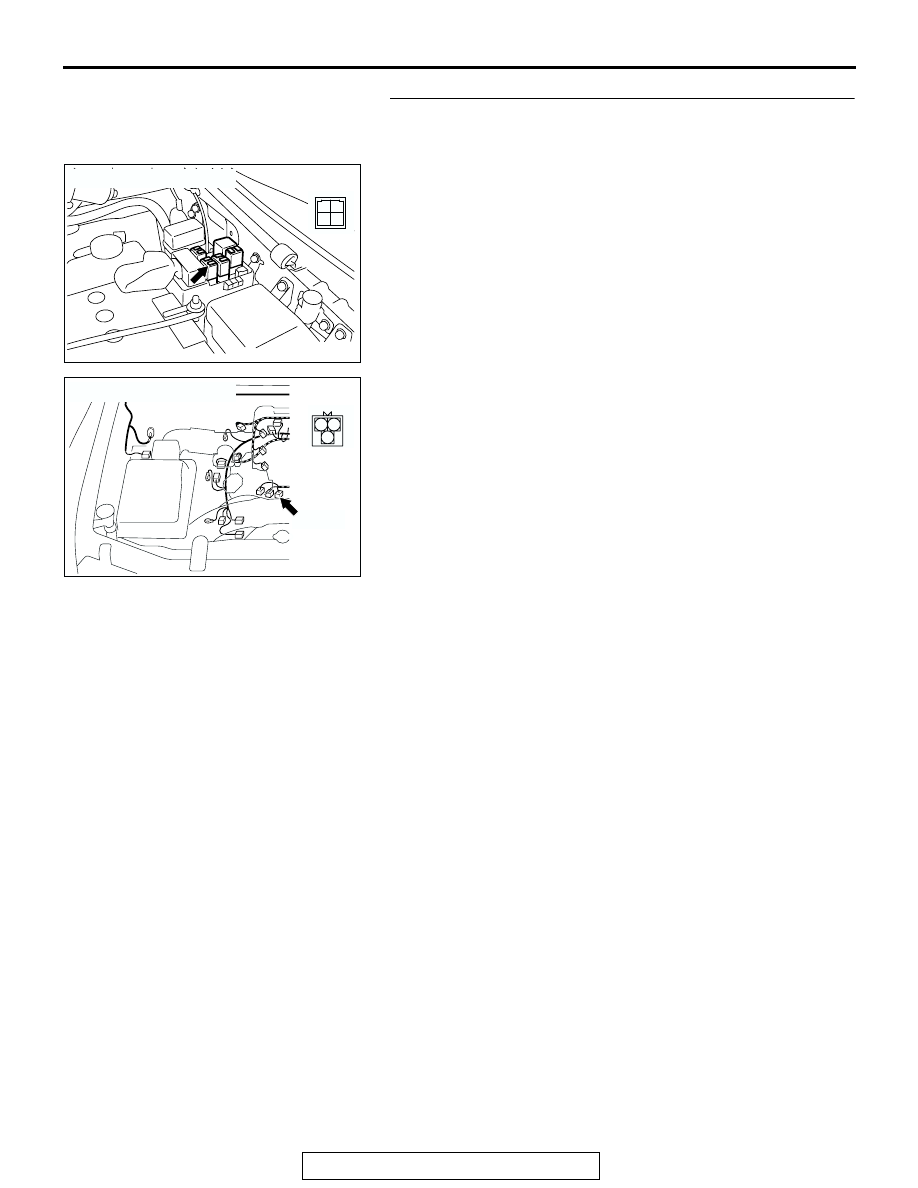

STEP 20. Check harness for damage between MFI relay
connector B-22X terminal 1 and crankshaft position sensor
connector B-36 terminal 3.
Q: Is the harness wire in good condition?

YES : Go to Step 21.
NO :  Repair or replace the harness wire.

AC204745

CONNECTOR : B-22X

AB

1
3 4

2

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-46

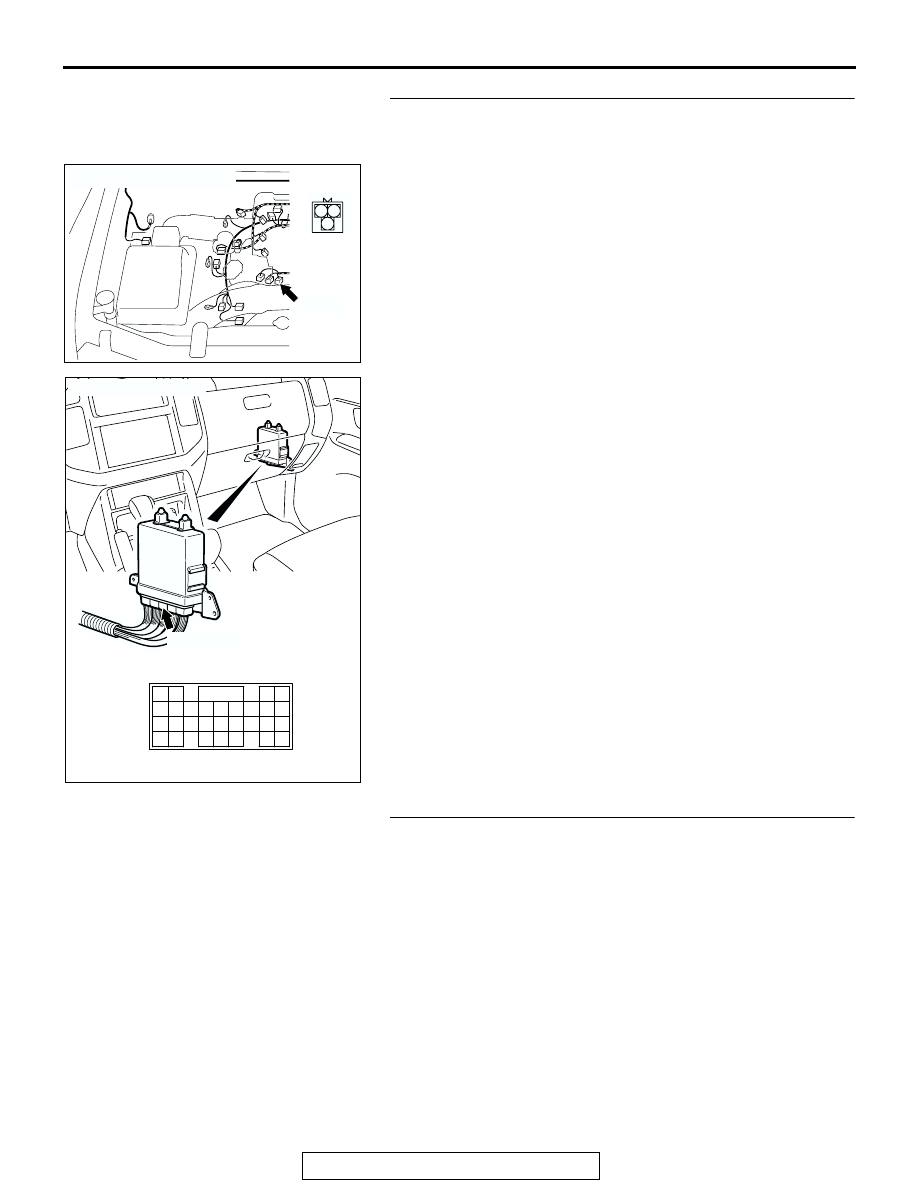

STEP 21. Check harness for damage between crankshaft
position sensor connector B-36 terminal 1 and PCM
connector D-134 terminal 88.
Q: Is the harness wire in good condition?

YES : Go to Step 22.
NO :  Repair or replace the harness wire.

STEP 22. Check the crankshaft sensing blade.
Refer to GROUP 11A, Crankshaft Front Oil Seal

P.11A-25

.

Q: Is the vane in good condition?

YES : Replace the crankshaft position sensor. Refer to

GROUP 16, Ignition System

− Crankshaft Position

Sensor

P.16-42

.

NO :  Replace the crankshaft sensing blade.

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83
