DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-39

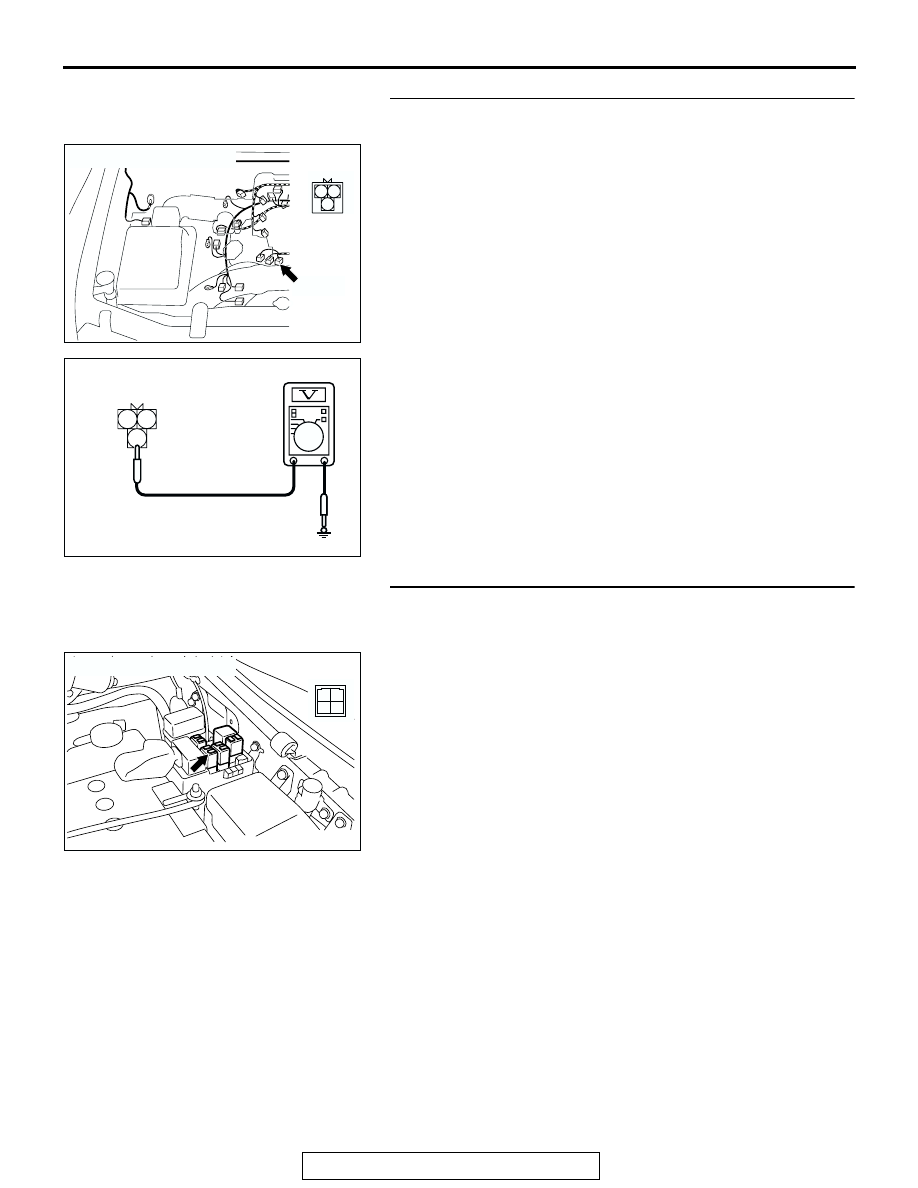

STEP 12. Measure the power supply voltage at crankshaft
position sensor connector B-36.
(1) Disconnect connector B-36 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 3 and ground.

• The voltage should measure battery positive voltage.

(4) Turn the ignition switch to "LOCK" (OFF) position.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 15.
NO :  Go to Step 13.

STEP 13. Check MFI relay connector B-22X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 14.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

AC204918 AE

B-36 HARNESS CONNECTOR :
COMPONENT SIDE

2

3

1

AC204745

CONNECTOR : B-22X

AB

1
3 4

2

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-40

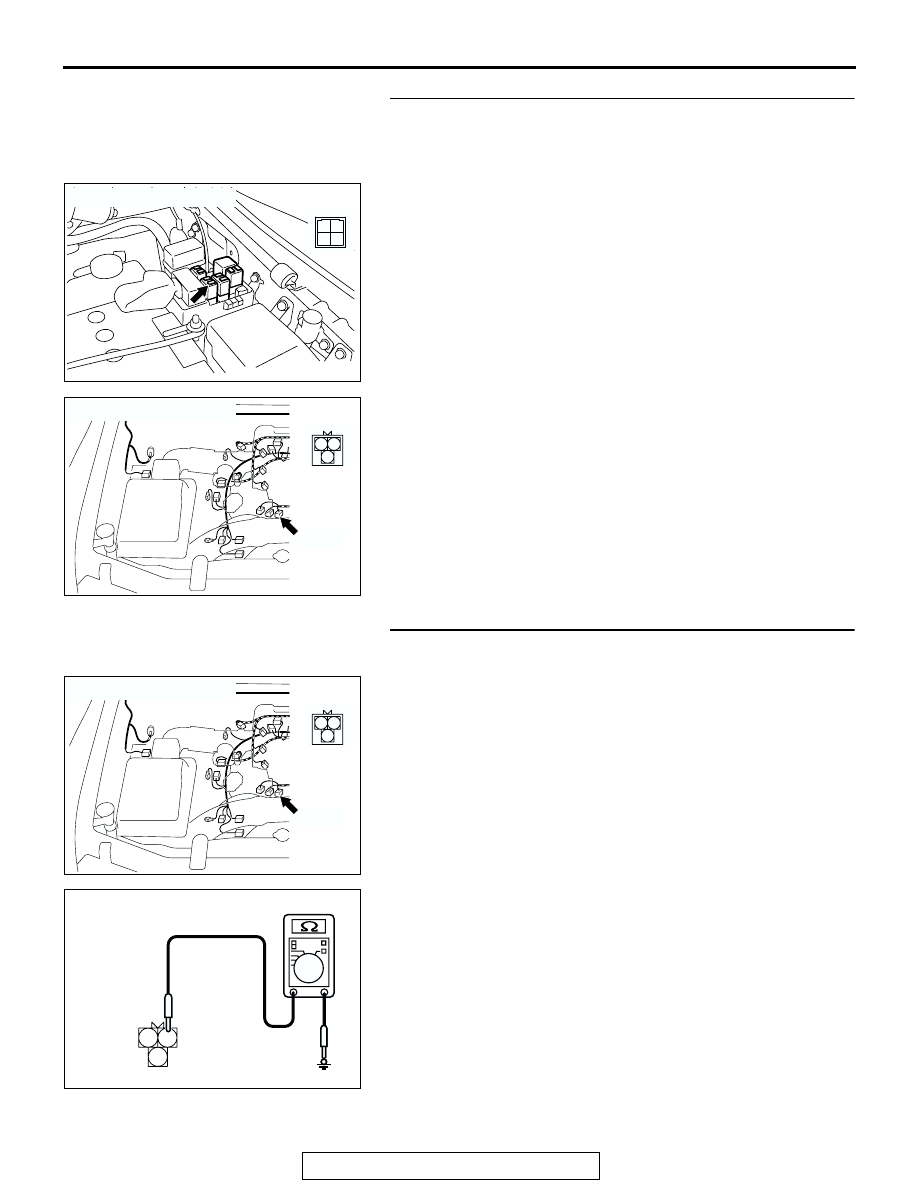

STEP 14. Check the harness for open circuit or short
circuit to ground between MFI relay connector B-22X
terminal 1 and crankshaft position sensor connector B-36
terminal 3.
Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO :  Repair or replace the harness wire.

STEP 15. Measure the resistance of the ground circuit at
crankshaft position sensor connector B-36.
(1) Disconnect connector B-36 and measure at the harness

side.

(2) Measure the resistance between terminal 1 and ground.

• The resistance should measure less than 2 ohms.

Q: Is the measured resistance less than 2 ohms?

YES : Go to Step 18.
NO :  Go to Step 16.

AC204745

CONNECTOR : B-22X

AB

1
3 4

2

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

AC204918

B-36 HARNESS CONNECTOR :
COMPONENT SIDE

CJ

2

3

1

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-41

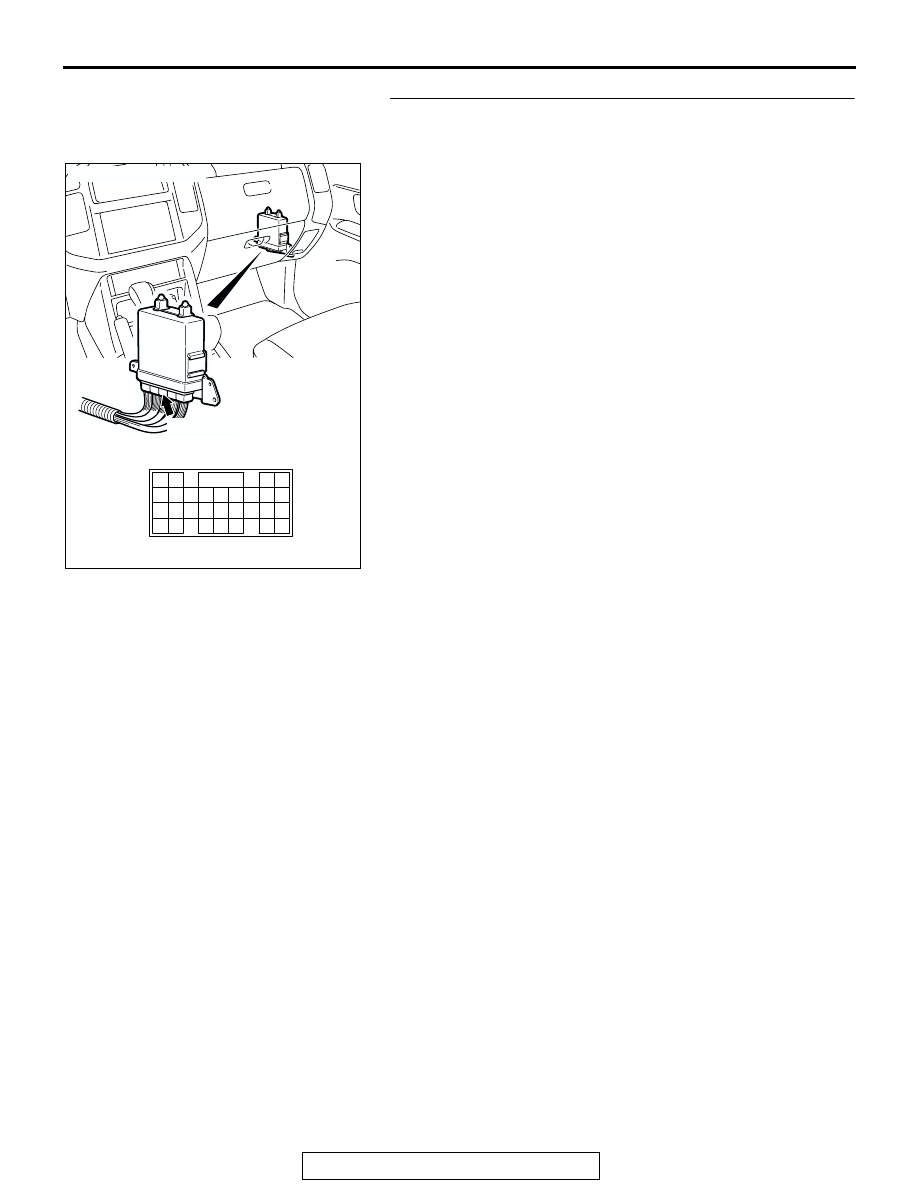

STEP 16. Check PCM connector D-134 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector
Q: Are the connector and terminals in good condition?

YES : Go to Step 17.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-42

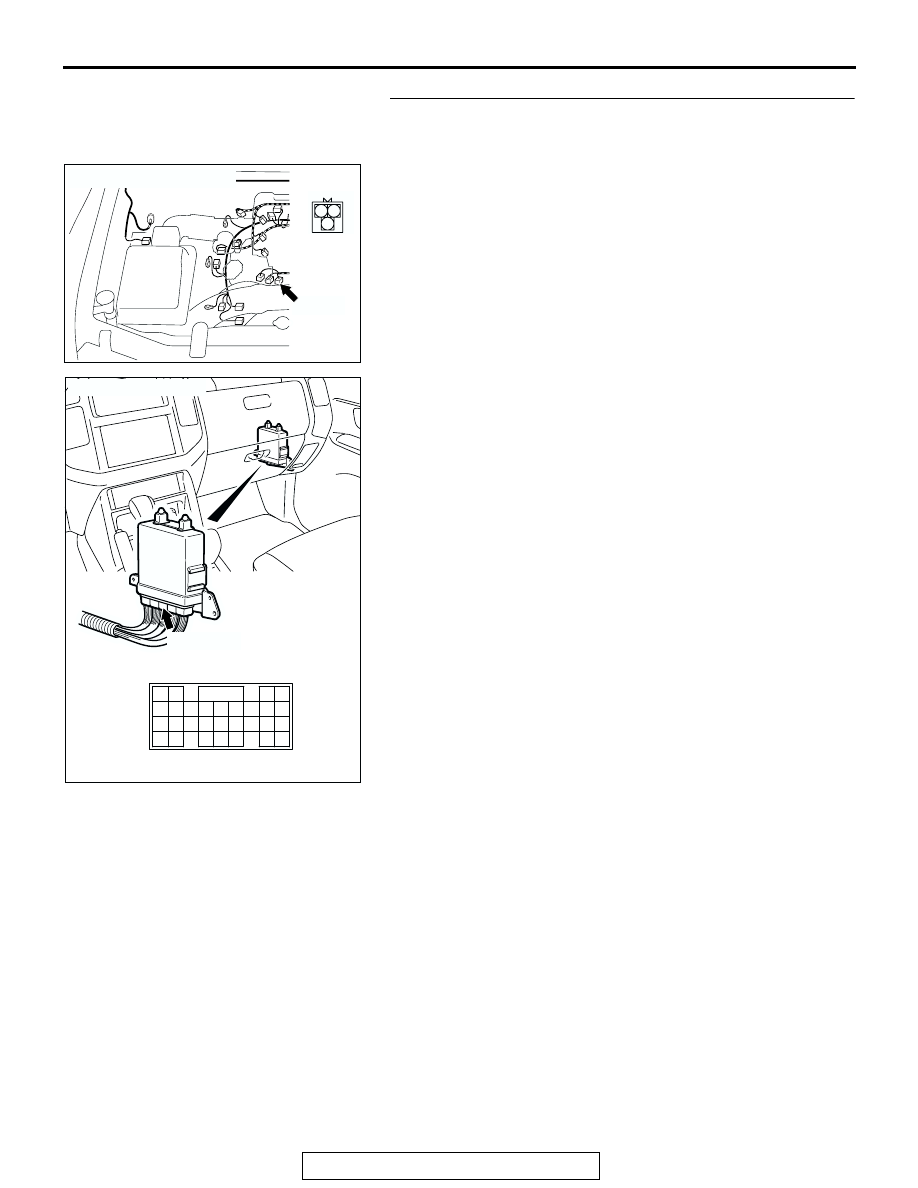

STEP 17. Check the harness for open circuit or damage
between crankshaft position sensor connector B-36
terminal 1 and PCM connector D-134 terminal 88.
Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO :  Repair or replace the harness wire.

AC204168

CONNECTOR : B-36

B-36(B)

AB

2

1

3

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83
