DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-23

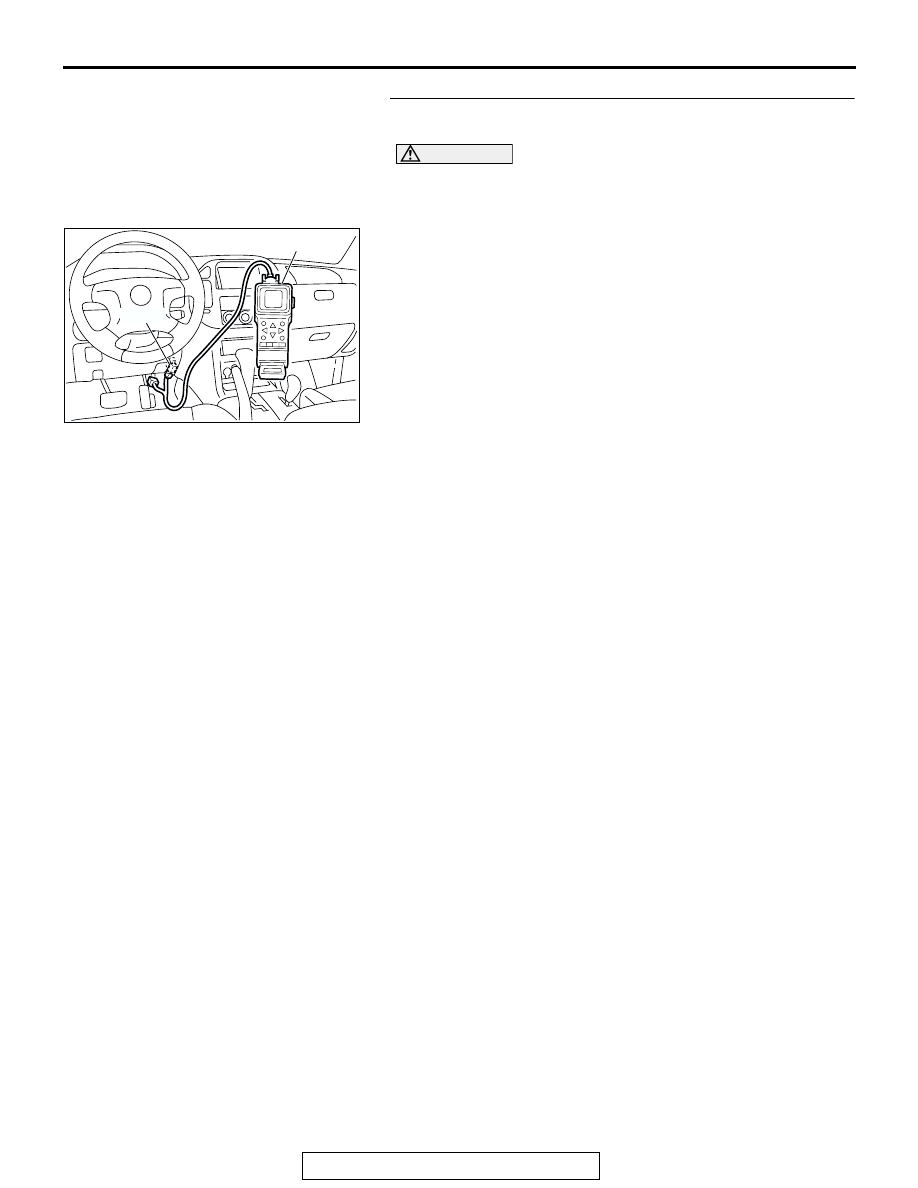

STEP 6. Using scan tool MB991502, check data list item 15:
Transmission Fluid Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991502 to data reading mode for item 15,

Transmission Fluid Temperature Sensor.

• When the engine is cool: Almost equal to the ambient

temperature (atmospheric temperature)
NOTE: Set scan tool MB991502 to data reading mode
for item number 13, Intake Air Temperature (IAT) Sensor
and note the temperature measurement. When the
engine is cool, the temperature should be almost equal
to the ambient temperature (atmospheric temperature),
and the IAT sensor measurement should be approxi-
mately the same as the transmission fluid temperature
sensor.

• When the engine is warm: 70 to 80°C (158 to 176°F)

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

ACX01539AD

MB991502

16-PIN

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-24

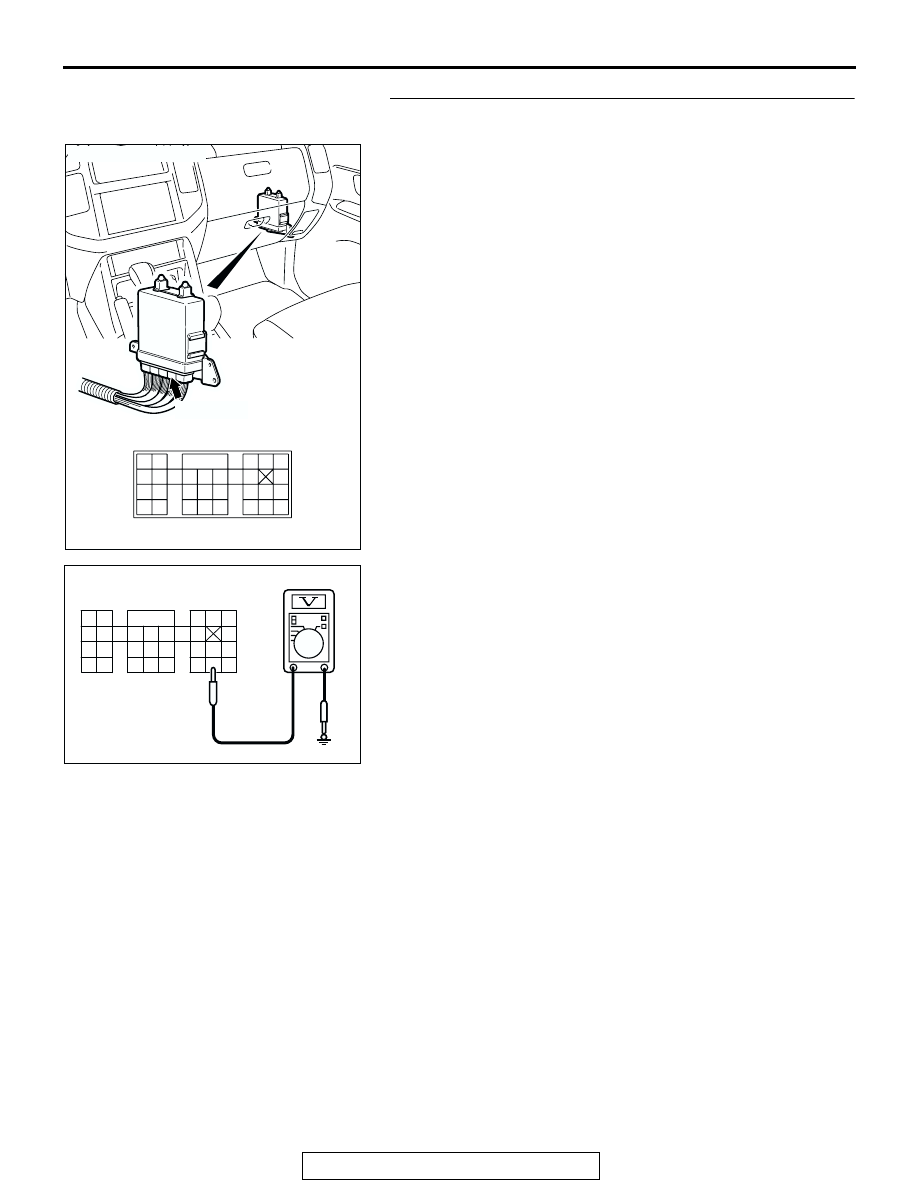

STEP 7. Measure the sensor output voltage at PCM
connector D-135 by backprobing.
(1) Do not disconnect connector D-135.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 119 and ground by

backprobing.

• When transmission fluid temperature is 20°C (68°F),

voltage should measure between 3.8 and 4.0 volts.

• When transmission fluid temperature is 40°C (104°F),

voltage should measure between 3.2 and 3.4 volts.

• When transmission fluid temperature is 80°C (176°F),

voltage should measure between 1.7 and 1.9 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 6.
NO :  Go to Step 8.

AC204681AB

CONNECTOR: D-135

D-135 (GR)

91 92

93

101

94 95

96 97 98 99 100

102103

104

105106

107108 109

110 111112

113114

115116 117

118 119120

AC204918 BR

D-135 HARNESS CONNECTOR :
HARNESS SIDE

116

97

103

104

112

110 111

106

94 95

98

102

101

100

99

109

115

107

119 120

96

105

91

113

108

117

93

92

114

118

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-25

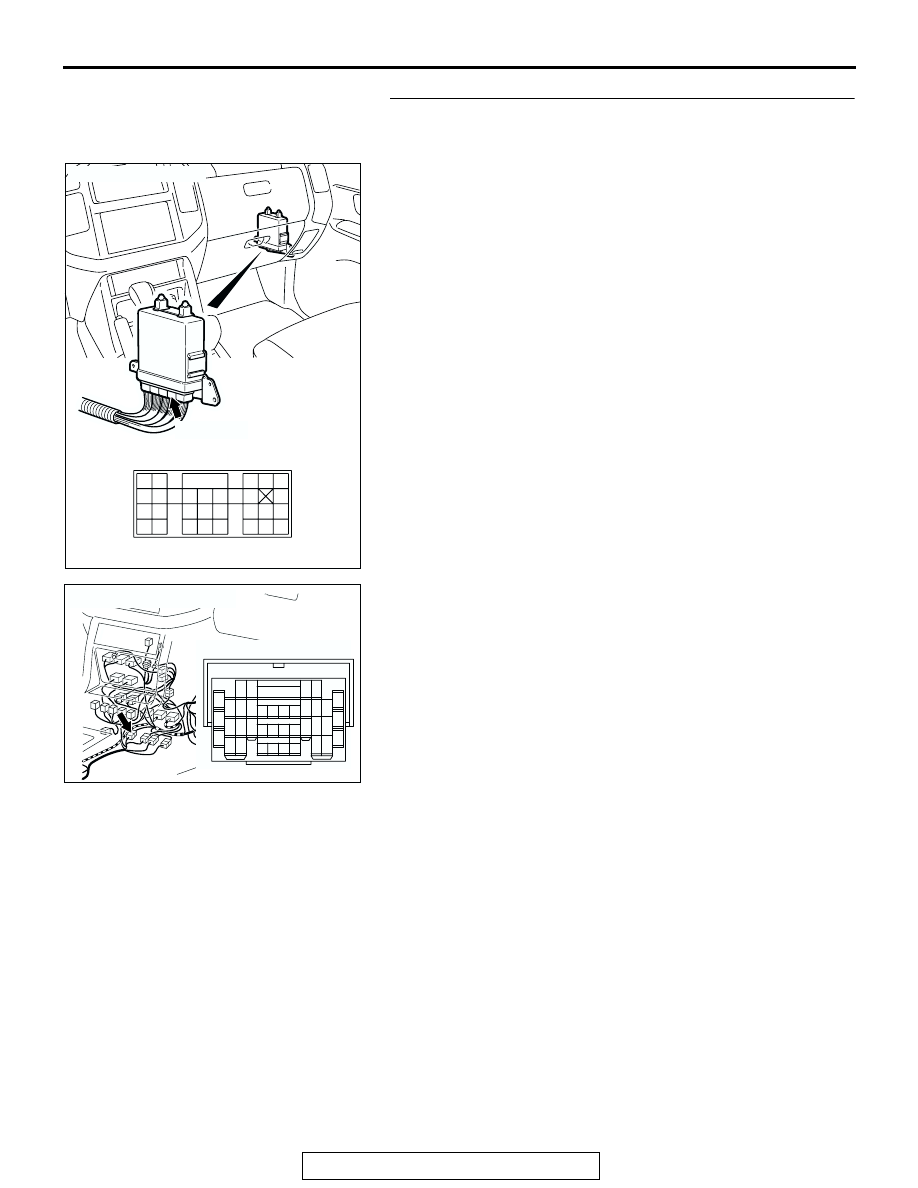

STEP 8. Check PCM connector D-135 and intermediate
connector E-114 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 9.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204681AB

CONNECTOR: D-135

D-135 (GR)

91 92

93

101

94 95

96 97 98 99 100

102103

104

105106

107108 109

110 111112

113114

115116 117

118 119120

AC204176

CONNECTOR : E-114

BD

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-26

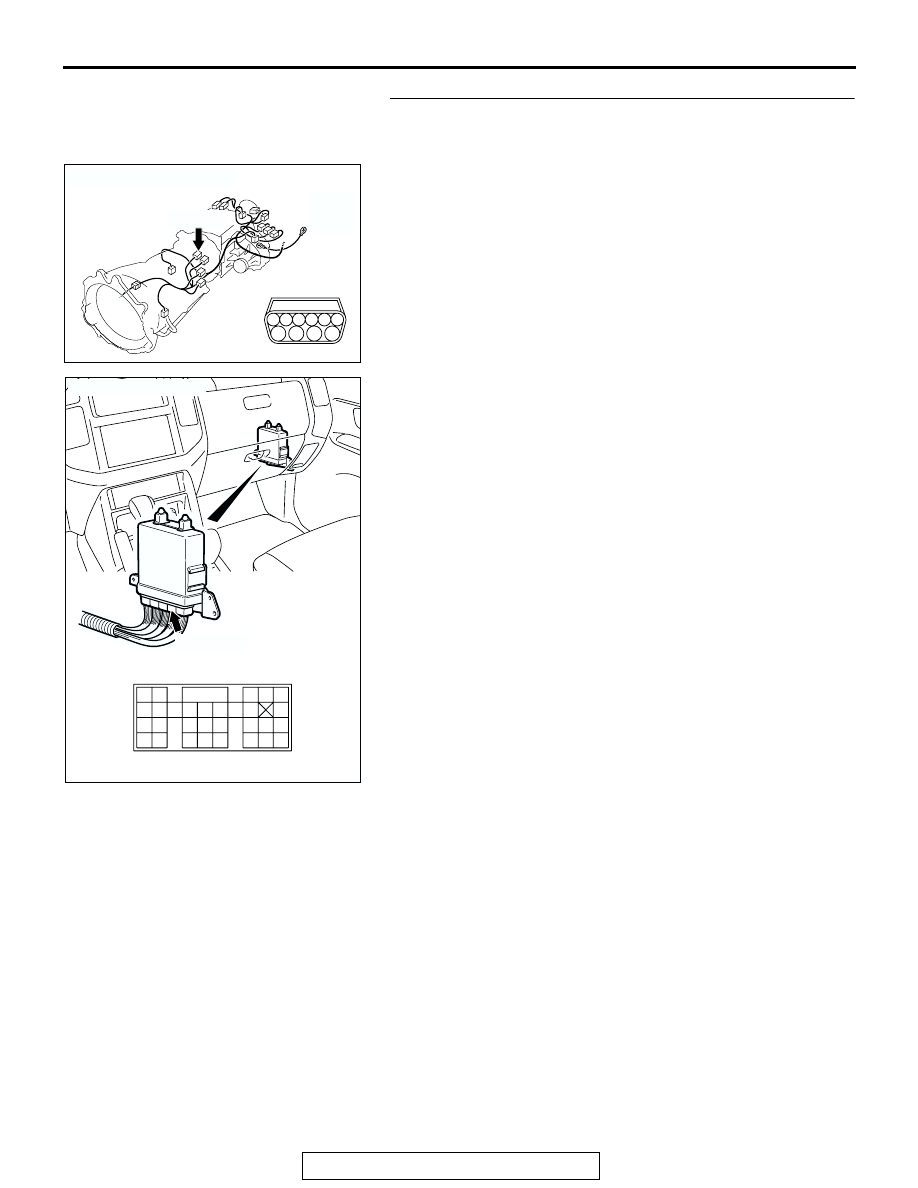

STEP 9. Check the harness for a short circuit to ground
between A/T control solenoid valve connector C-03
terminal 1 and PCM connector D-135 terminal 119.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

AC204395

CONNECTOR : C-03

AE

C-03 (B)

6

10

4

9

5

3

8

2

7

1

AC204681AB

CONNECTOR: D-135

D-135 (GR)

91 92

93

101

94 95

96 97 98 99 100

102103

104

105106

107108 109

110 111112

113114

115116 117

118 119120
