GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-3

.

GENERAL DESCRIPTION

M1231100100114

The automatic transmission comes in one model V5A51.

TRANSMISSION

The transmission is made up of the torque converter and gear train. A 3-element, 1-step, 2-phase torque con-
verter with built-in torque converter clutch is used. The gear train of the V5A51 transmission made up of four
sets of multiple disc clutches, two sets of multiple disc brakes, one set of band brake, two set of one-way
clutch and three sets of planetary carriers.

.

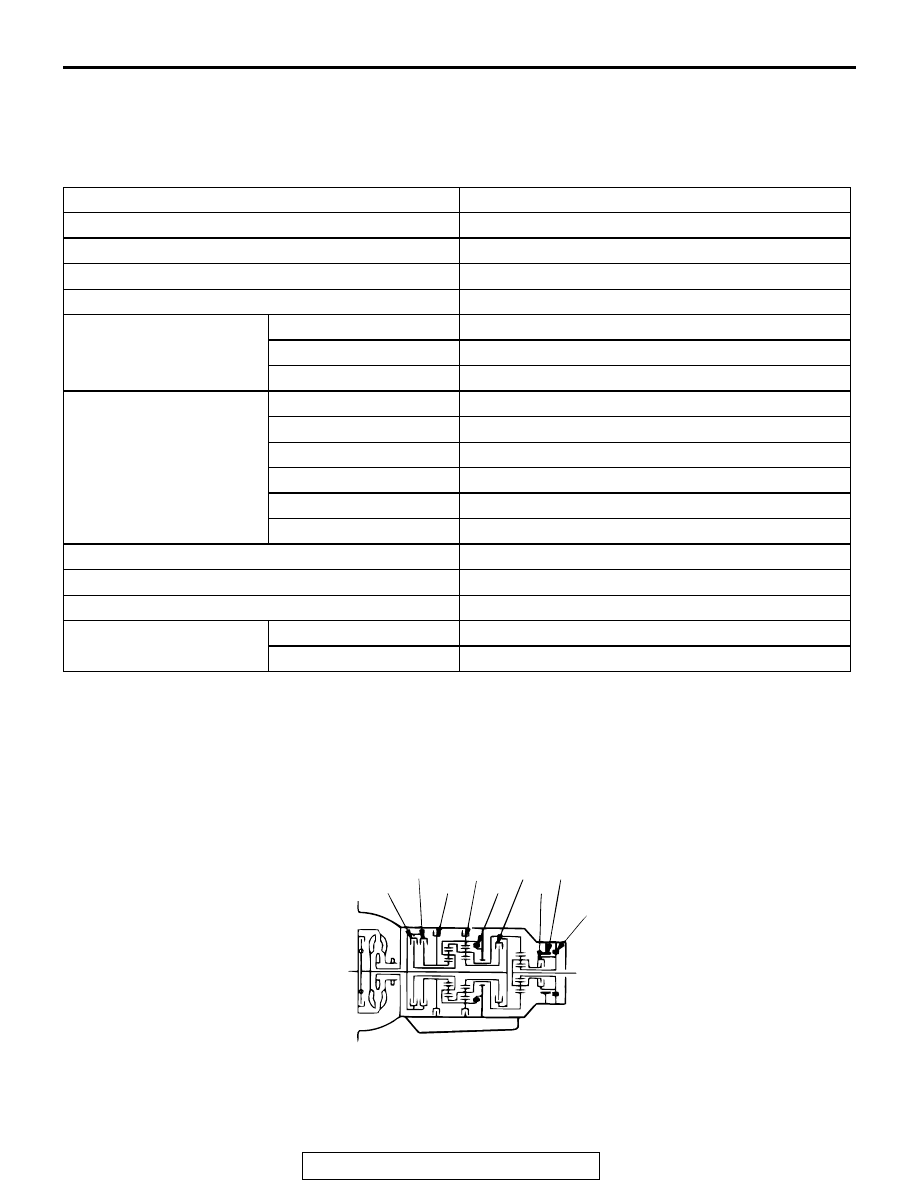

TRANSMISSION CONFIGURATION DRAWING

.

ITEM

SPECIFICATION

Model

V5A51

Engine

6G75 (3.8L Engine)

Torque converter type

With torque converter clutch

Transmission type

Electronically controlled 5-speed full automatic

Control elements

Clutch

Multiple disc type 4 sets

Brake

Multiple disc type 2 sets, band type 1 set

One-way clutch

Sprag type 2 set

Gear ratio

1st gear

3.789

2nd gear

2.057

3rd gear

1.421

4th gear

1.000

5th gear

0.731

Reverse gear

3.865

Oil pump type

Gear type

Oil cooling system

Water-cooled type

Transfer type

Active Track 4WD II

Shift ratio

High

1.000

Low

1.900

AC204100

OD

REV

2ND

LR

OWC-L

UD

DIR

RED

OWC-D

AB

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-4

COMPONENTS AND FUNCTIONS

FUNCTION ELEMENT TABLE

• × : Function element
• Item marked with an * operate only when stopped [approximately 10 km/h (6.2mph) or less].

COMPONENT

FUNCTION

Underdrive clutch

UD

connects the input shaft to the underdrive sun gear.

Reverse clutch

REV

connects the input shaft to the reverse sun gear.

Overdrive clutch

OD

connects the input shaft to the overdrive planetary carrier.

Direct clutch

DIR

connects the direct sun gear to the direct planetary carrier

Low-reverse brake

LR

holds the low-reverse annulus gear and the overdrive planetary
carrier.

Second brake

2ND

holds the reverse sun gear.

Reduction brake

RED

holds the direct sun gear.

One-way clutch (Low-
reverse brake)

OWC-L controls rotation direction of the low-reverse annulus gear.

One-way clutch (Direct
clutch)

OWC-D controls rotation direction of the direct sun gear.

OPERATING ELEMENT

ENGINE
START

PARKING
MECHANISM

UNDER-
DRIVE
CLUTCH
(UD)

REVERSE
CLUTCH
(REV)

OVERDRIVE
CLUTCH
(OD)

DIRECT
CLUTCH
(DIR)

LOW-
REVERSE
BRAKE (LR)

SECOND
BRAKE
(2ND)

REDUCTION
BRAKE (RED)

ONE-WAY
CLUTCH
(OWC-L)

ONE-WAY
CLUTCH
(OWC-D)

TRANSMISSION
RANGE

P

Parking

OK

X

-

-

-

-

X

-

X

-

-

R

Reverse

-

-

-

X

-

-

X

-

X

-

-

N

Neutral

OK

-

-

-

-

-

X

-

X

-

-

D

1st

-

-

X

-

-

-

X*

-

X

X

X

2nd

-

-

X

-

-

-

-

X

X

-

X

3rd

-

-

X

-

X

-

-

-

X

-

X

4th

-

-

X

-

X

X

-

-

-

-

-

5th

-

-

-

-

X

X

-

X

-

-

-

SPORT
MODE

1st

-

-

X

-

-

-

X

-

X

X

X

2nd

-

-

X

-

-

-

-

X

X

-

X

3rd

-

-

X

-

X

-

-

-

X

-

X

4th

-

-

X

-

X

X

-

-

-

-

-

5th

-

-

-

-

X

X

-

X

-

-

-

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-5

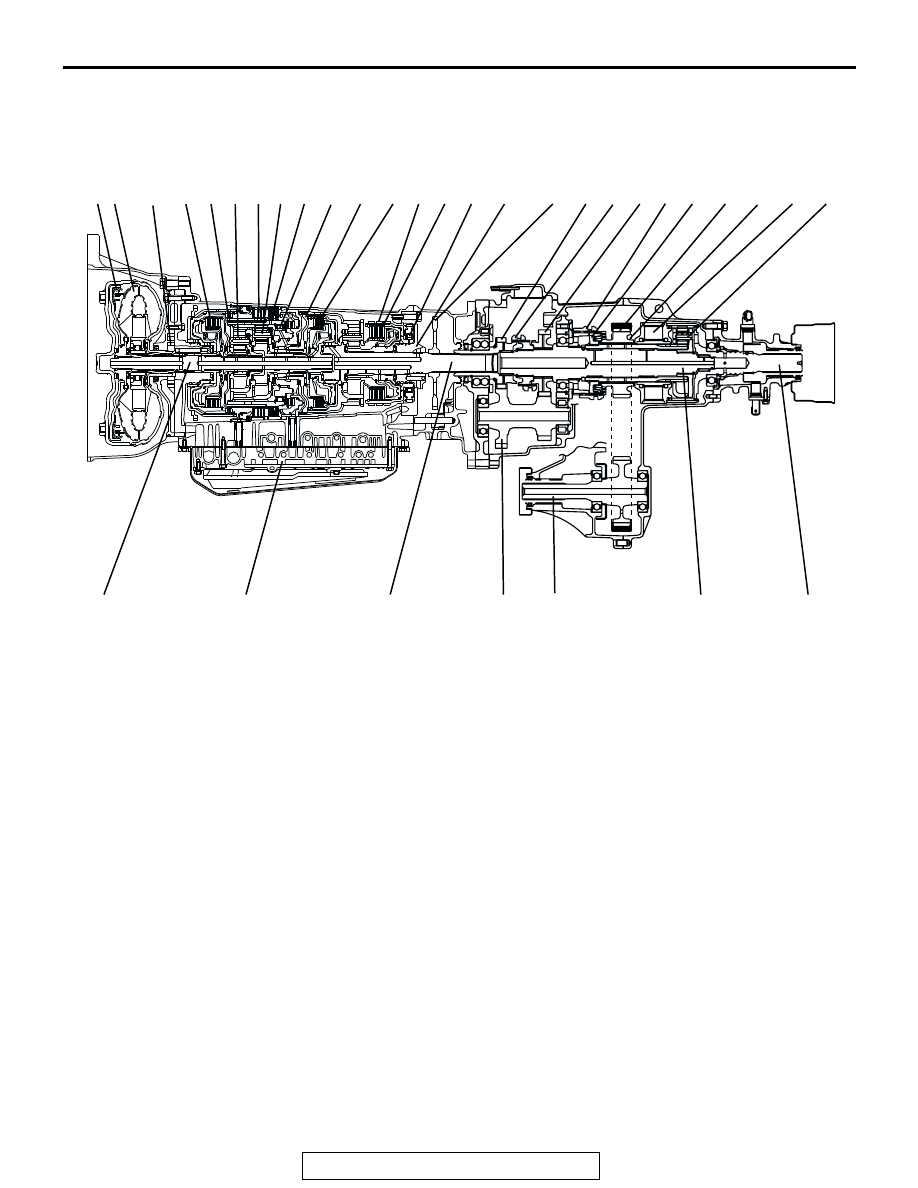

SECTIONAL VIEW

AC100424

1 2

3

4

5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21

27

26

AB

22 23 24 25

29

28

30

32

31

33



 1.

TORQUE

CONVERTER

CLUTCH





2. TORQUE

CONVERTER





3. OIL

PUMP





4. OVERDRIVE

CLUTCH





5. REVERSE

CLUTCH





6.  OVERDRIVE PLANETARY CARRIER





7. SECOND

BRAKE





8.  OUTPUT PLANETARY CARRIER





9. LOW-REVERSE

BRAKE





10. ONE-WAY CLUTCH





11. CENTER SUPPORT





12. UNDERDRIVE CLUTCH





13. DIRECT CLUTCH





14. REDUCTION BRAKE BAND





15. ONE-WAY CLUTCH





16.  OUTPUT SHAFT SUPPORT





17. PARKING GEAR





18.  TRANSFER INPUT GEAR





19. H-L CLUTCH





20.  LOW SPEED GEAR





21.  DIFFERENTIAL LOCK HUB





22.  2-4WD SYNCHRONIZER SLEEVE





23. DRIVE SPROCKET





24. CHAIN





25. VISCOUS COUPLING





26. CENTER DIFFERENTIAL





27. REAR OUTPUT SHAFT





28. TRANSFER DRIVE SHAFT





29. FRONT OUTPUT SHAFT





30. TRANSFER COUNTER GEAR





31. OUTPUT SHAFT





32. VALVE BODY





33. INPUT SHAFT

GENERAL DESCRIPTION

TSB Revision

AUTOMATIC TRANSMISSION

23Aa-6

ELECTRONICALLY-CONTROLLED SYSTEM

.

INVECS-II

• When in drive ("D" range), the new automatic transmission

employs an innovative shift schedule to provide a high level
of comfort and "easy driving style" that matches all driving
conditions as well as the driver's driving style.

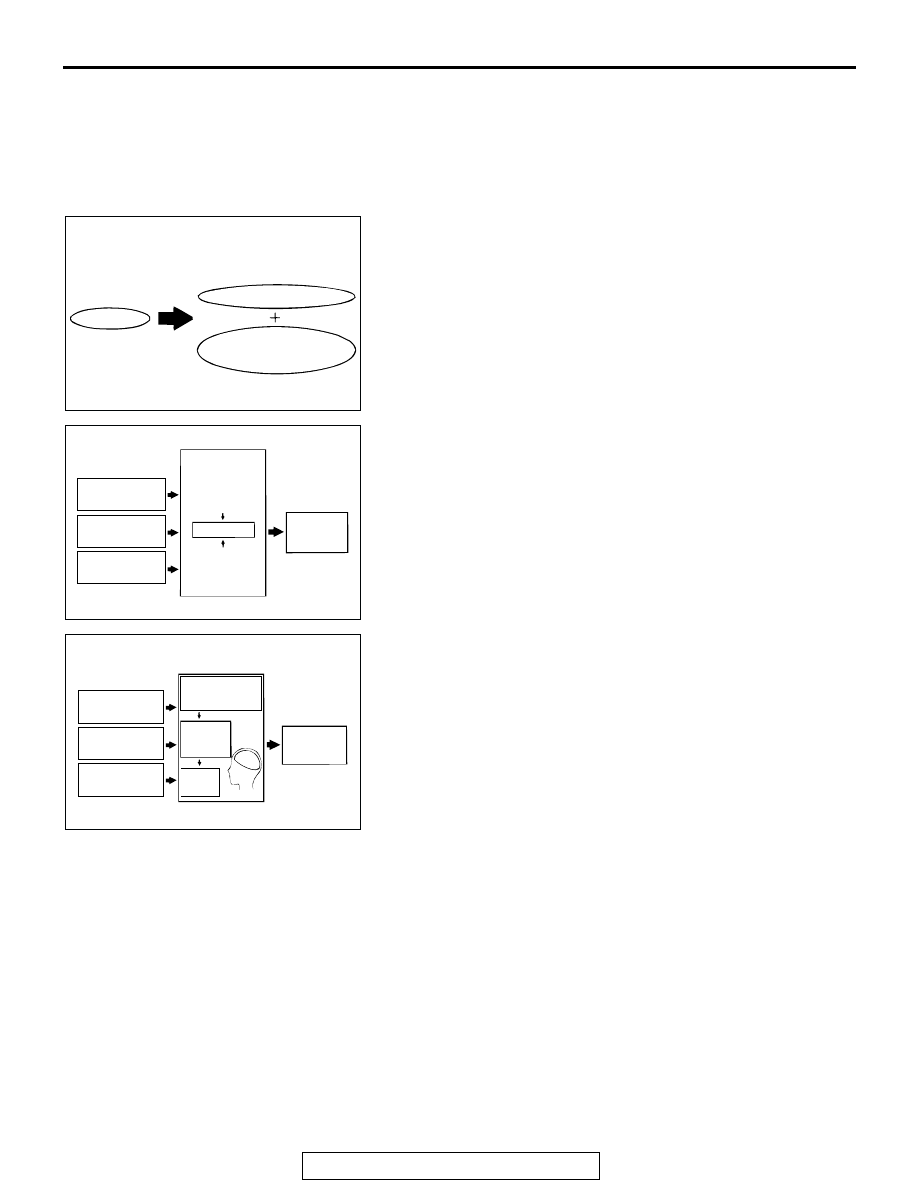

• INVECS-II features "Optimum Shift Control," which provides

shift timing the average driver perceives to be the optimum
timing under any road conditions "Adaptive Shift Control"
adjusts shift timing to match the driving habits and prefer-
ences of individual drivers.

.

FEATURES

OPTIMUM SHIFT CONTROL

1. The shift patterns found satisfying by the typical driver for all

ranges of driving are stored in the computer's memory. The
computer uses this data to analyze road conditions and the
driver's style of operation, and then outputs the optimal shift
patterns stored in its memory to best match the conditions.

2. We introduce the latest in control technologies with an inno-

vative new algorithm called the "neural network" that works
to imitate the decision-making processes of the human
brain. The neural network links a wide variety of input data
regarding road and operating conditions, and instantly
makes accurate shift control decisions.

.

ADAPTIVE SHIFT CONTROL

1. The computer learns the driving habits and pref-

erences of each individual driver by processing
driving data on engine output, tire load, foot brake
operation, etc. It then uses this data to adjust shift
timing to best suit the driver's style.

2. If the computer determines from the driving pat-

terns that the driver is one who enjoys a relaxed,
unhurried style, it adjusts timing to execute up-
shifts at a lower engine speed to provide a
smooth, quiet ride. On the other hand, if the com-
puter determines the driver to prefer a sporty ride,
it adjusts timing to shift up at a higher engine
speed to provide more powerful response.

AC000841AB

WITH INVECS-II

WITHOUT
INVECS-II

OPTIMUM SELECTION OF GEARS

LEVEL ROAD

ALL DRIVING CONDITIONS

DRIVER'S HABITS AND
PREFERENCE

AC000842

ACCELERATOR
POSITION

VEHICLE SPEED

FOOT BRAKE

OPTIMUM
GEAR
SELECTION

MANUAL SHIFT
OPERATION
DATA OF A
NUMBER
DRIVER'S

DECISION

ROAD
CONDITION
AND DRIVING
OPERATION

COMPUTER

OPTIMUM CONTROL

AB

AC000843

ACCELERATOR
POSITION

VEHICLE SPEED

FOOT BRAKE

OPTIMUM
GEAR
SELECTION

DATA
PROCESSED

INTERRE-
LATED

DECI-
SION

COMPUTER

NEURAL NETWORK

AB
