SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-145

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

• MB991865: Dummy resister

• MB991866: Resister harness

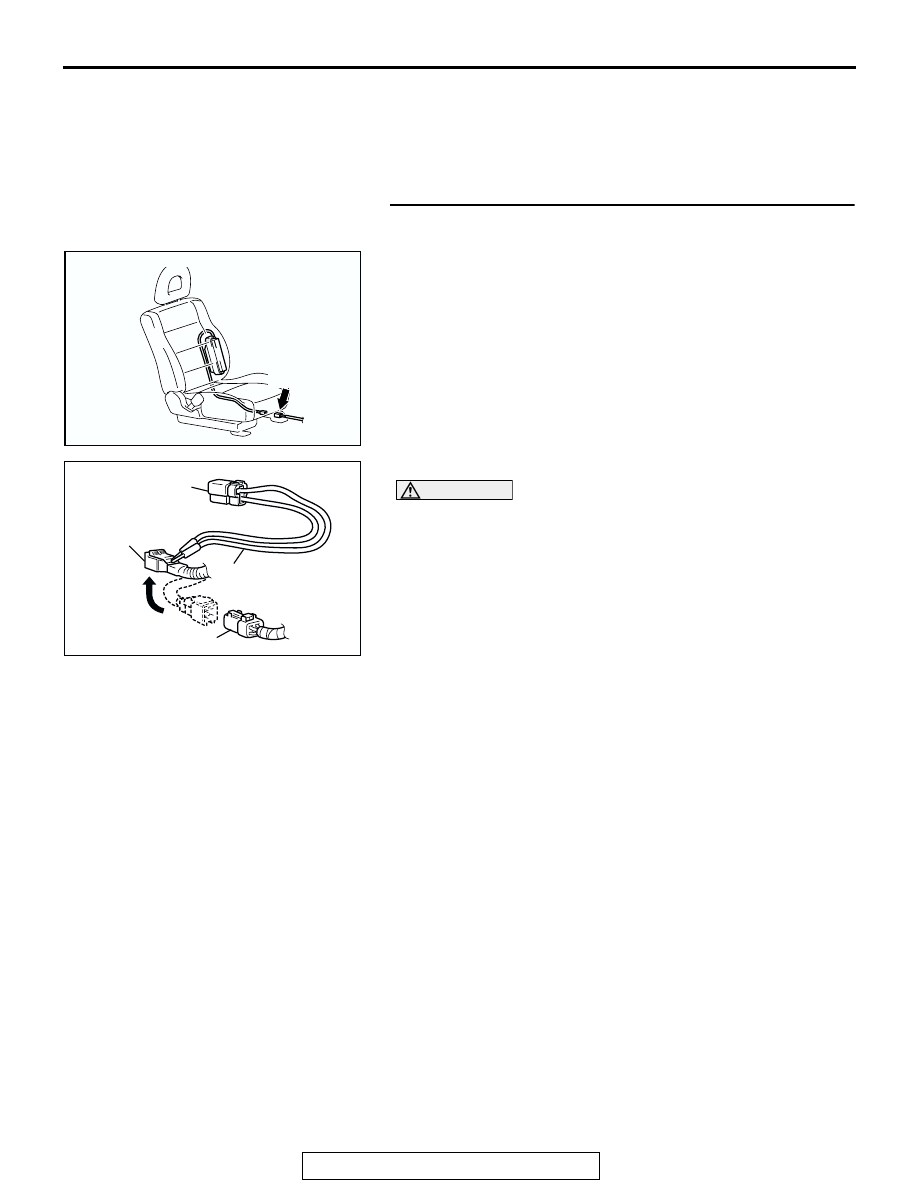

STEP1. Check the side-airbag module (LH).
(1) Disconnect the negative battery terminal.
(2) Disconnect the left hand side-airbag connector F-15.
(3) Connect special tool MB991865 to special tool MB991866.

(4) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(5) Insert special tool MB991866 into the harness side

connector by backprobing.

(6) Connect the negative battery terminal.
(7) Erase diagnostic trouble code memory, and check the

diagnostic trouble code.

Q:  Is DTC 86 set?

YES : Go to Step 2.
NO :  Replace the seat back assembly of the front seat

(LH). (Refer to GROUP 52A, Front Seat

P.52A-13

.)

Then go to Step 4.

AC204635 AB

CONNECTOR: F-15

F-15 (R)

AC006042 AX

MB991866
(RESISTOR HARNESS)

F-15 HARNESS
CONNECTOR

F-15 SIDE-AIRBAG
MODULE (LH) CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

Ω

)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-146

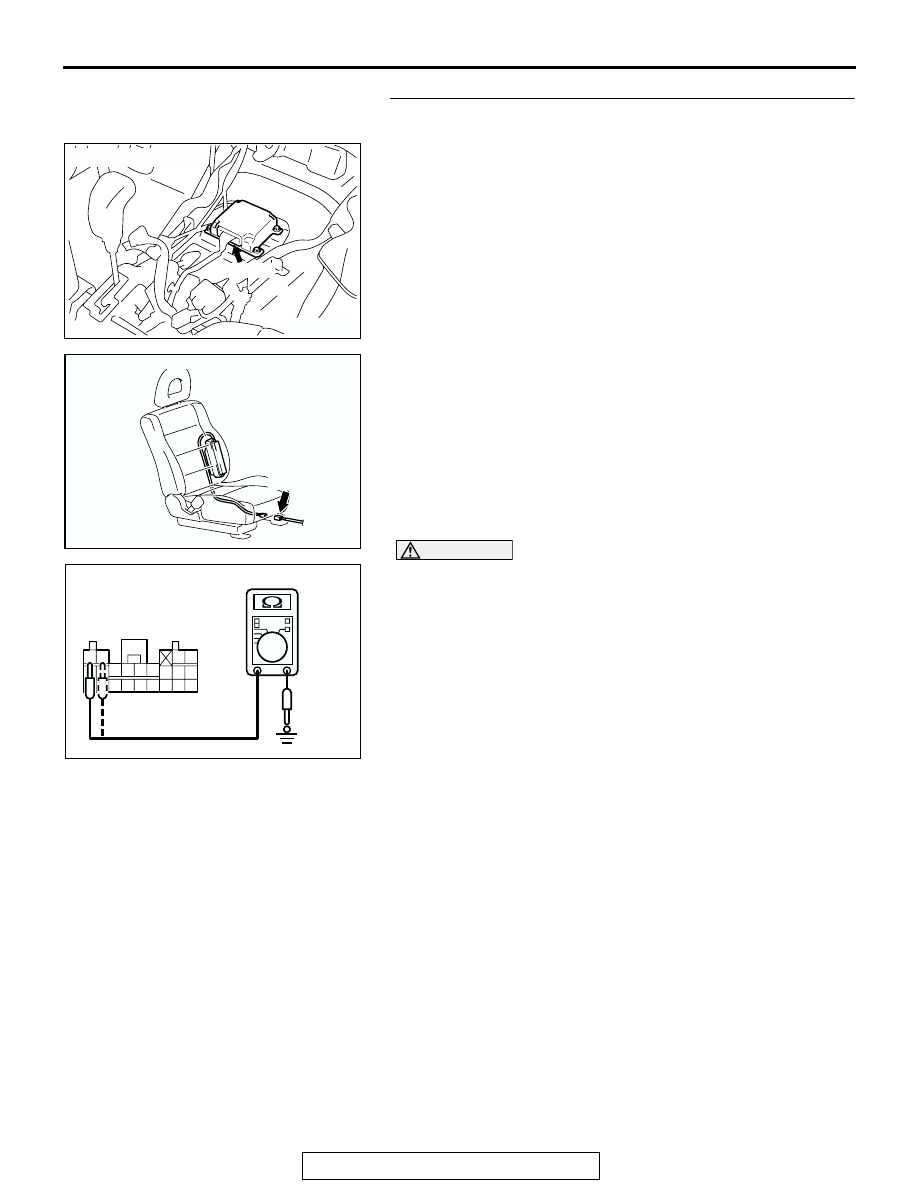

STEP 2. Check the side-airbag module (LH) circuit at the
SRS-ECU connector E-07.
(1) Disconnect SRS-ECU connector E-07.

(2) Disconnect left hand side-airbag module connector F-15.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(3) Check for continuity between E-07 harness connector

terminals 21, 22 and body ground.
It should be open circuit.

Q: Does continuity exist?

NO :  Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 86 sets, replace
the SRS-ECU. (Refer to

P.52Ba-33

.) Then go to Step

4.

YES : Go to Step 3.

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204635 AB

CONNECTOR: F-15

F-15 (R)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AC100392AI

E-07 HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-147

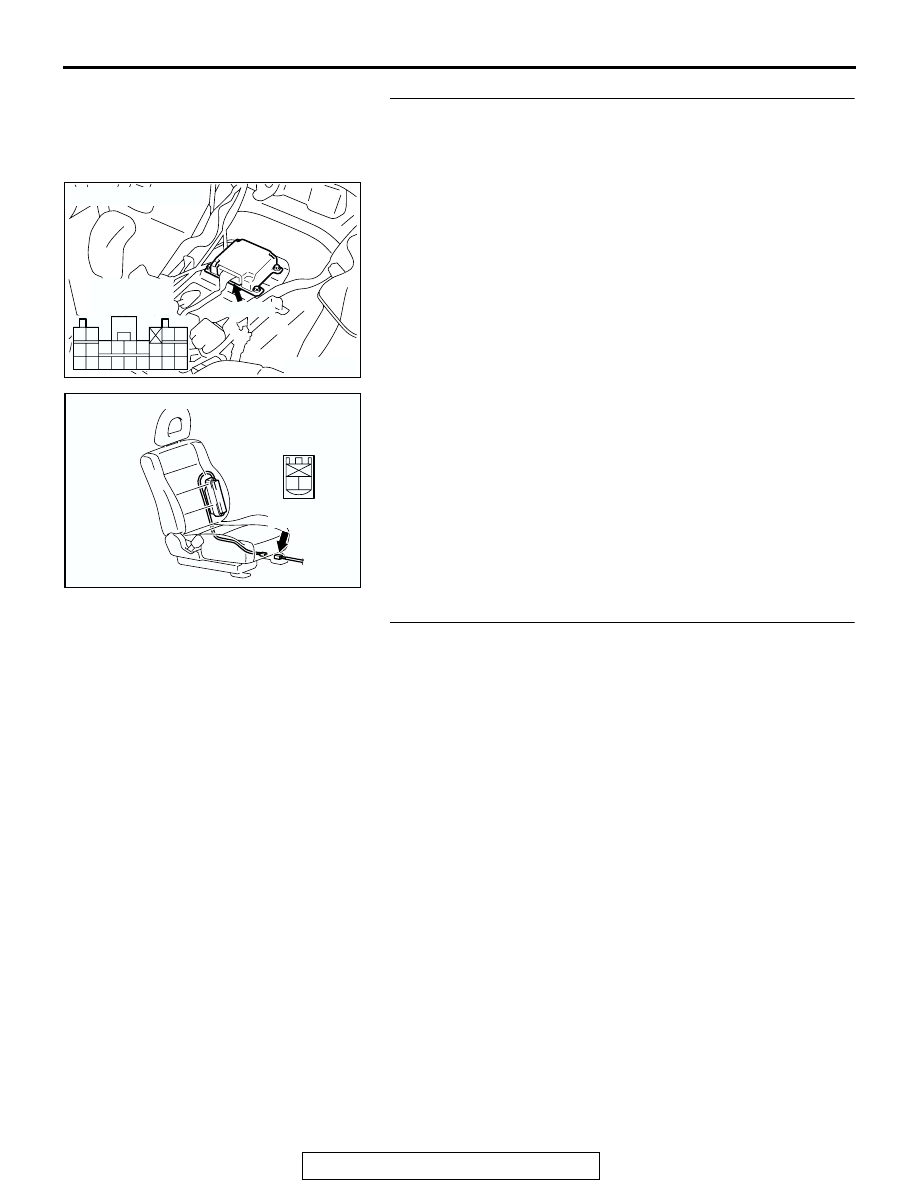

STEP 3. Check the harness wires for short circuit to
ground between SRS-ECU connector E-07 (terminal No.21
and 22) and side-airbag module (LH) connector F-15
(terminal No.1 and 2).
Q: Are the harness wires for short circuit to ground

between SRS-ECU connector E-07 (terminal No.21 and
22) and side-airbag module (LH) connector F-15
(terminal No.1 and 2) in good condition?
YES : Go to Step 4.
NO :  Repair the harness wires between SRS-ECU

connector E-07 and side-airbag module (LH)
connector F-15. Then go to Step 4.

STEP 4. Recheck for diagnostic trouble code.
Q: Is DTC 86 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204635 AC

CONNECTOR: F-15

F-15 (R)

1 2

HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-148

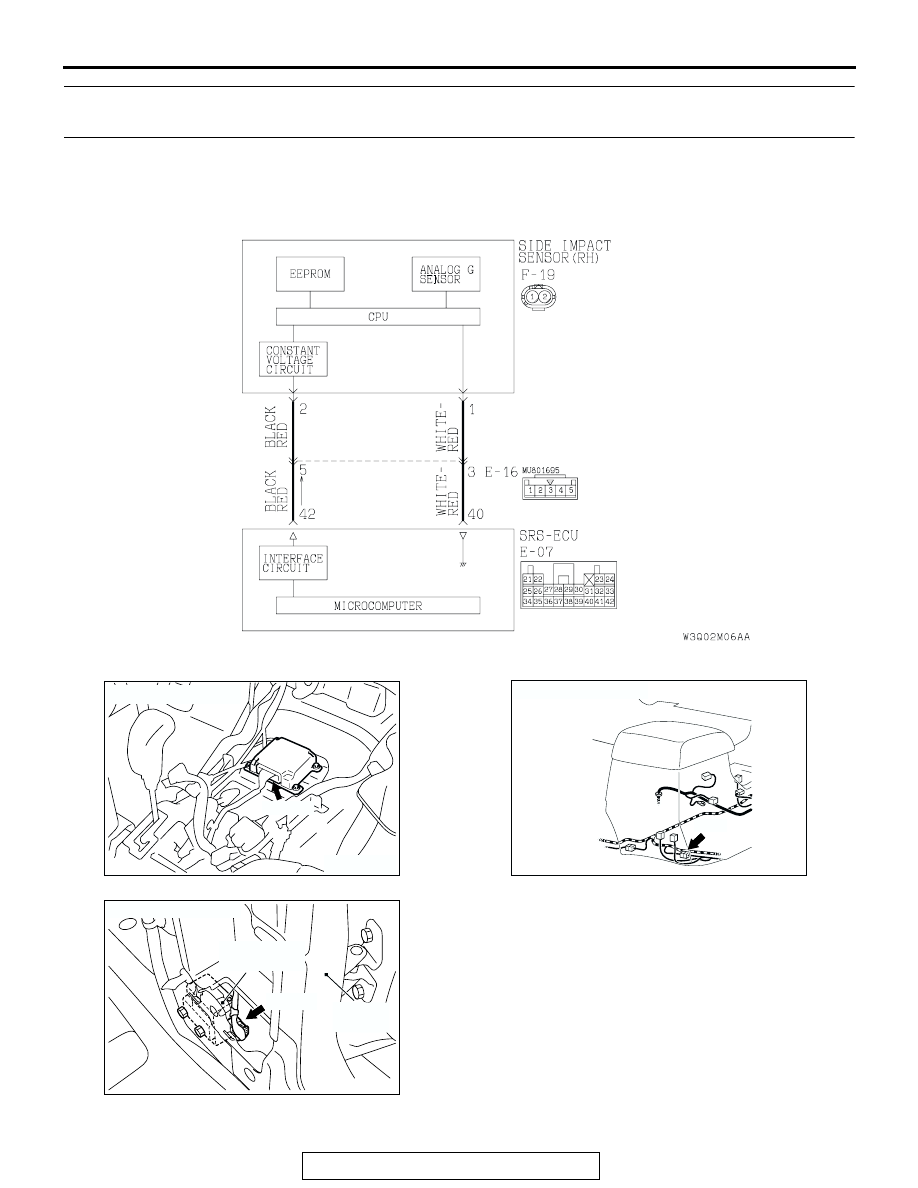

DTC 89: Right Hand Side-Airbag Module (Squib) System Fault 5 for Power Supply Circuit
DTC 96: Right Hand Side-Airbag Module (Squib) System Fault 6 for Communication System

.

AC204440

Side Impact Sensor (RH) Power Supply Circuit

AB

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204603AD

CONNECTOR: E-16

FLOOR
CONSOLE

E-16

AC204129

AB

CONNECTOR: F-19

SIDE IMPACT
SENSOR

F-19 (Y)

CENTER
PILLER
