SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-141

DIAGNOSIS

Required Special Tools:

• MB991502: Scan Tool (MUT-II)

• MB991865: Dummy resister

• MB991866: Resister harness

STEP1. Check the side-airbag module (LH).
(1) Disconnect the negative battery terminal.
(2) Disconnect the left hand side-airbag connector F-15.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the F-15 harness

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q:  Is DTC 85 set?

YES : Go to Step 2.
NO :  Replace the seat back assembly of the front seat

(LH). (Refer to GROUP 52A, Front Seat

P.52A-13

.)

Then go to Step 4.

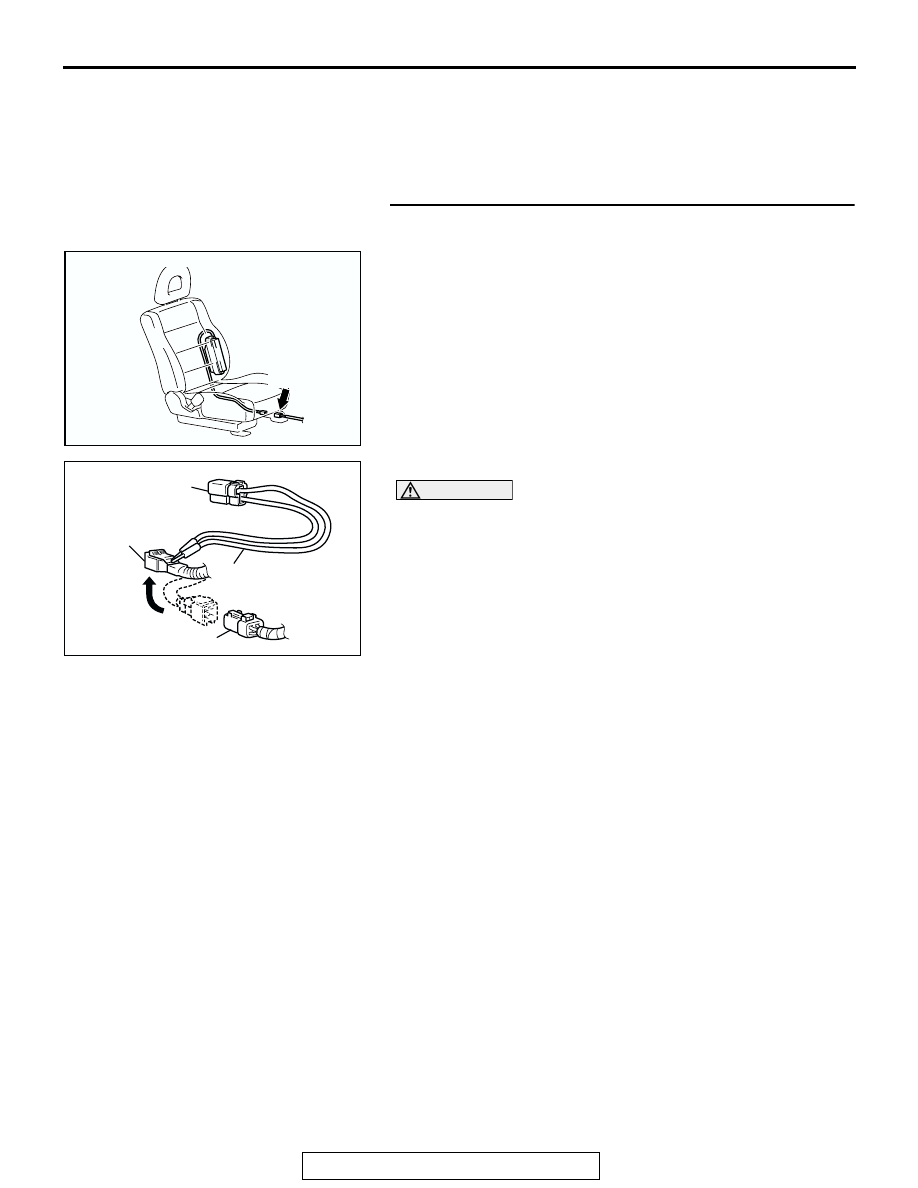

AC204635 AB

CONNECTOR: F-15

F-15 (R)

AC006042 AX

MB991866
(RESISTOR HARNESS)

F-15 HARNESS
CONNECTOR

F-15 SIDE-AIRBAG
MODULE (LH) CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-142

STEP 2. Check the side-airbag module (LH) circuit at the
SRS-ECU connector E-07.
(1) Disconnect SRS-ECU connector E-07.

DANGER

To prevents the air bag from deploying unintention-
ally, disconnect the side-airbag module (LH) connec-
tor F-15 to short the squib circuit.

(2) Disconnect left hand side-airbag module connector F-15.
(3) Turn the ignition switch to the "ON" position.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Measure the voltage between E-07 harness connector

terminals 21, 22 and body ground.
Voltage should measure 0 volt.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 85 sets, replace
the SRS-ECU. (Refer to

P.52Ba-33

.) Then go to Step

4.

NO :  Go to Step 3.

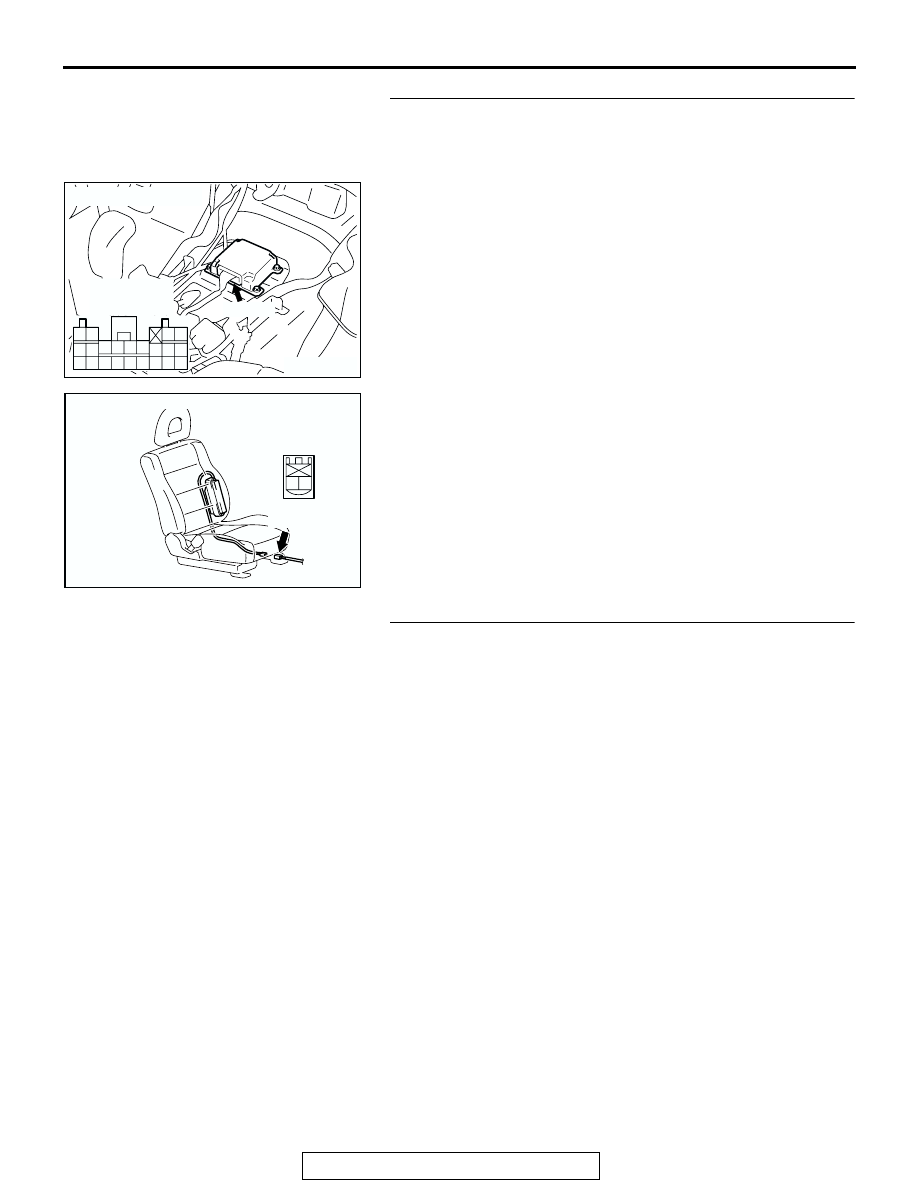

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204635 AB

CONNECTOR: F-15

F-15 (R)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AC203790

E-07 HARNESS
CONNECTOR:
HARNESS SIDE

AF

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-143

STEP 3. Check the harness wires for short circuit to power
supply between SRS-ECU connector E-07 (terminal No.21
and 22) and side-airbag module (LH) connector F-15
(terminal No.1 and 2).
Q: Are the harness wires between SRS-ECU connector E-

07 (terminal No.21 and 22) and side-airbag module (LH)
connector F-15 (terminal No.1 and 2) in good condition?
YES :
Go to Step 4.
NO :  Repair the harness wires between SRS-ECU

connector E-07 and side-airbag module (LH)
connector F-15. Then go to Step 4.

STEP 4. Recheck for diagnostic trouble code.
Q: Is DTC 85 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

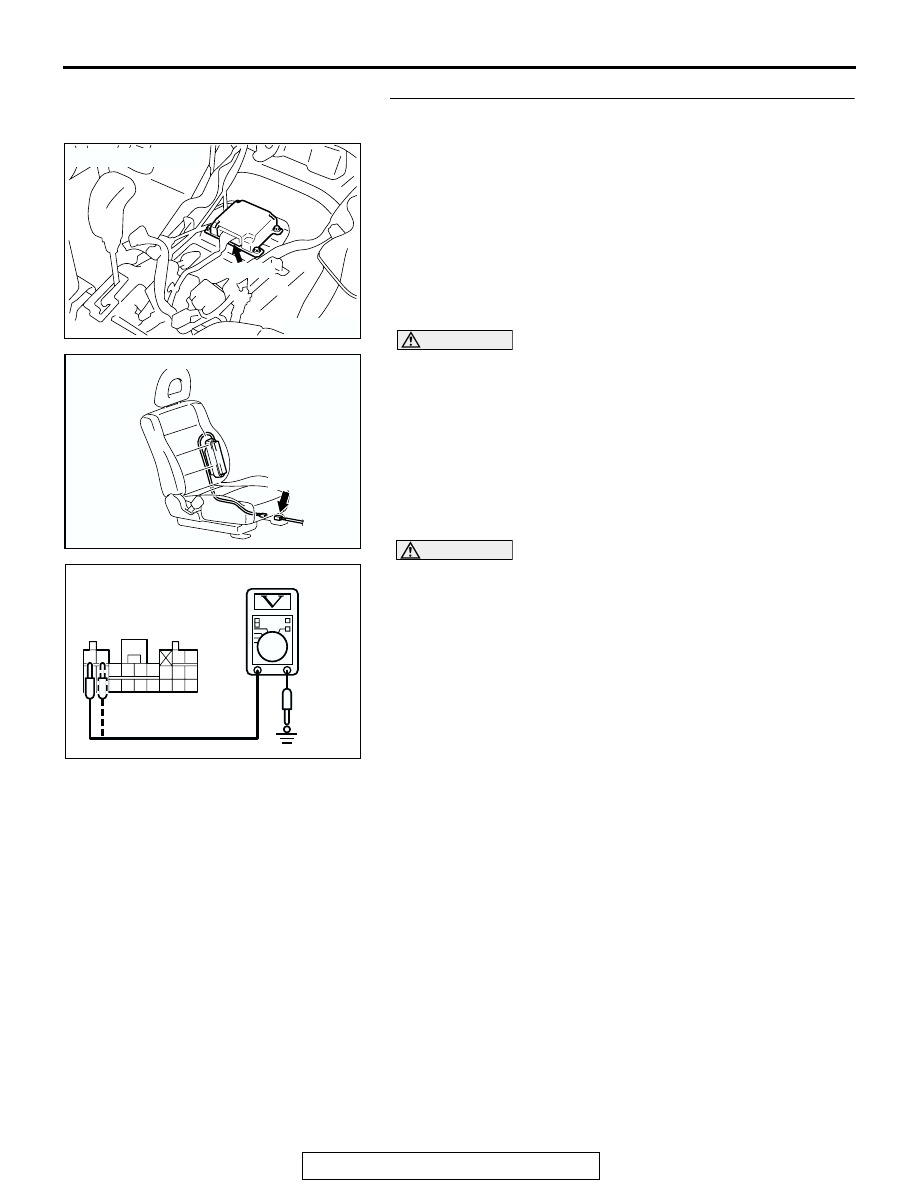

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204635 AC

CONNECTOR: F-15

F-15 (R)

1 2

HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-144

DTC 86:Left Hand Side-Airbag Module (Squib) System Fault Ground Circuit (Short-Circuited to
Ground)

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a predeter-
mined level, the SRS-ECU outputs an ignition
signal. At this time, if the side-airbag safing G-
sensor is on, the SRS side-airbag will inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the side-airbag mod-
ule (LH) (squib).

.

TROUBLESHOOTING HINTS

• Damaged wiring harnesses or connectors

• Short to ground in the left hand side-airbag mod-

ule (squib) harness

• Malfunction of the SRS-ECU

.

AC204439AB

NOTE

: CONNECTOR LOCK SWITCH

CONNECTOR

CONNECTED: ON
CONNECTOR

DISCONNECTED: OFF

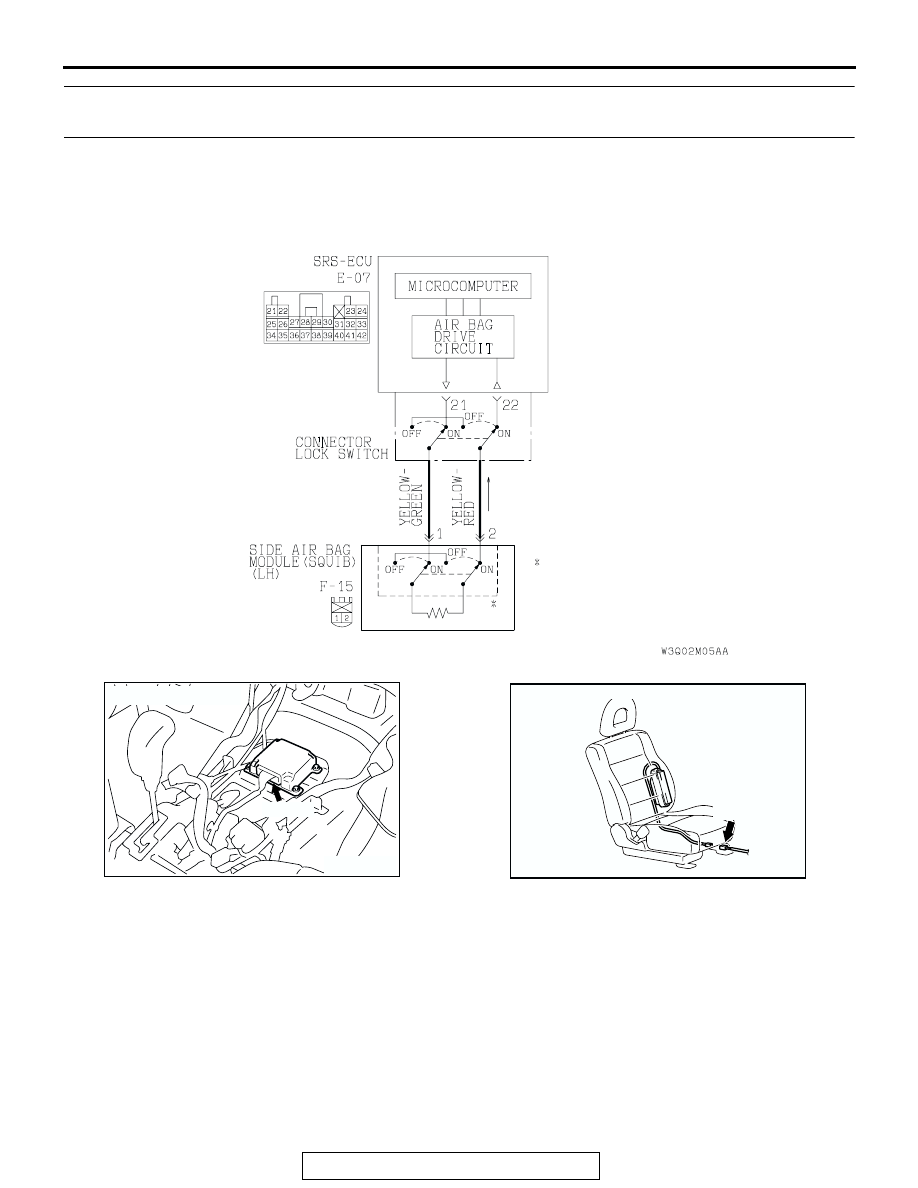

Side-Airbag Module (LH) (Squib) Circuit

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204635 AB

CONNECTOR: F-15

F-15 (R)
