SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-97

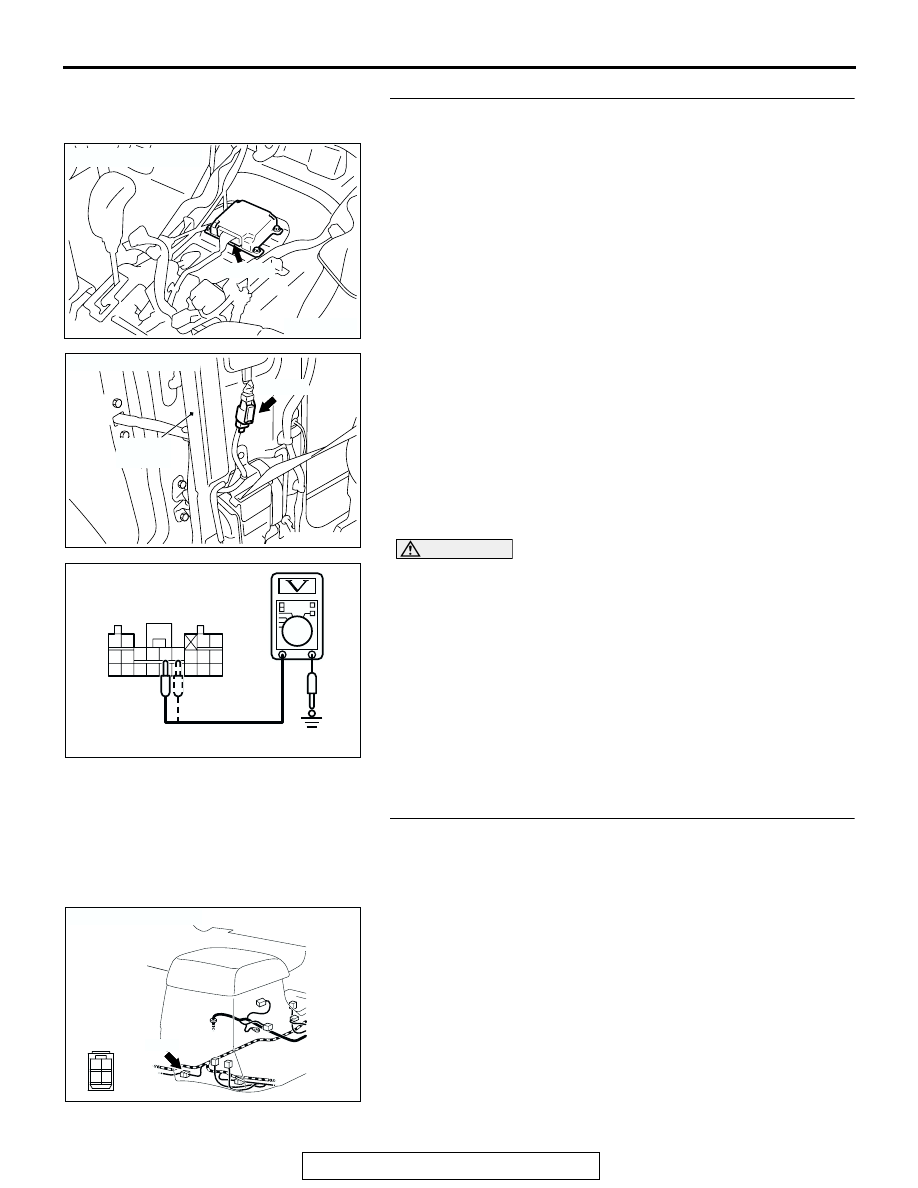

STEP 2. Check the driver's seat belt pretensioner circuit at
the SRS-ECU connector E-07.
(1) Disconnect SRS-ECU connector E-07.

(2) Disconnect driver's seat belt pretensioner connector F-27.
(3) Turn the ignition switch to the "ON" position.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Measure the voltage between E-07 harness connector

terminals 29, 30 and body ground.
Voltage should measure 0 volt.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 65 sets, replace
the SRS-ECU. (Refer to

P.52Ba-31

.) Then go to Step

4.

NO :  Go to Step 3.

STEP 3. Check the harness wires for short circuit to power
supply between SRS-ECU connector E-07 (terminal No.29
and 30) and driver's seat belt pre-tensioner connector F-27
(terminal No.1 and 2).
NOTE: After inspecting intermediate connector E-19 inspect
the wiring harness. If the intermediate connector E-19 is dam-
aged, repair or replace it. (Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

.) Then go to Step 4.

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204126

AB

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

AC006259

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AI

E-07 HARNESS CONNECTOR:
HARNESS SIDE

AC204603AC

CONNECTOR: E-19

FLOOR
CONSOLE

E-19

2

1

4

3

E-19

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-98

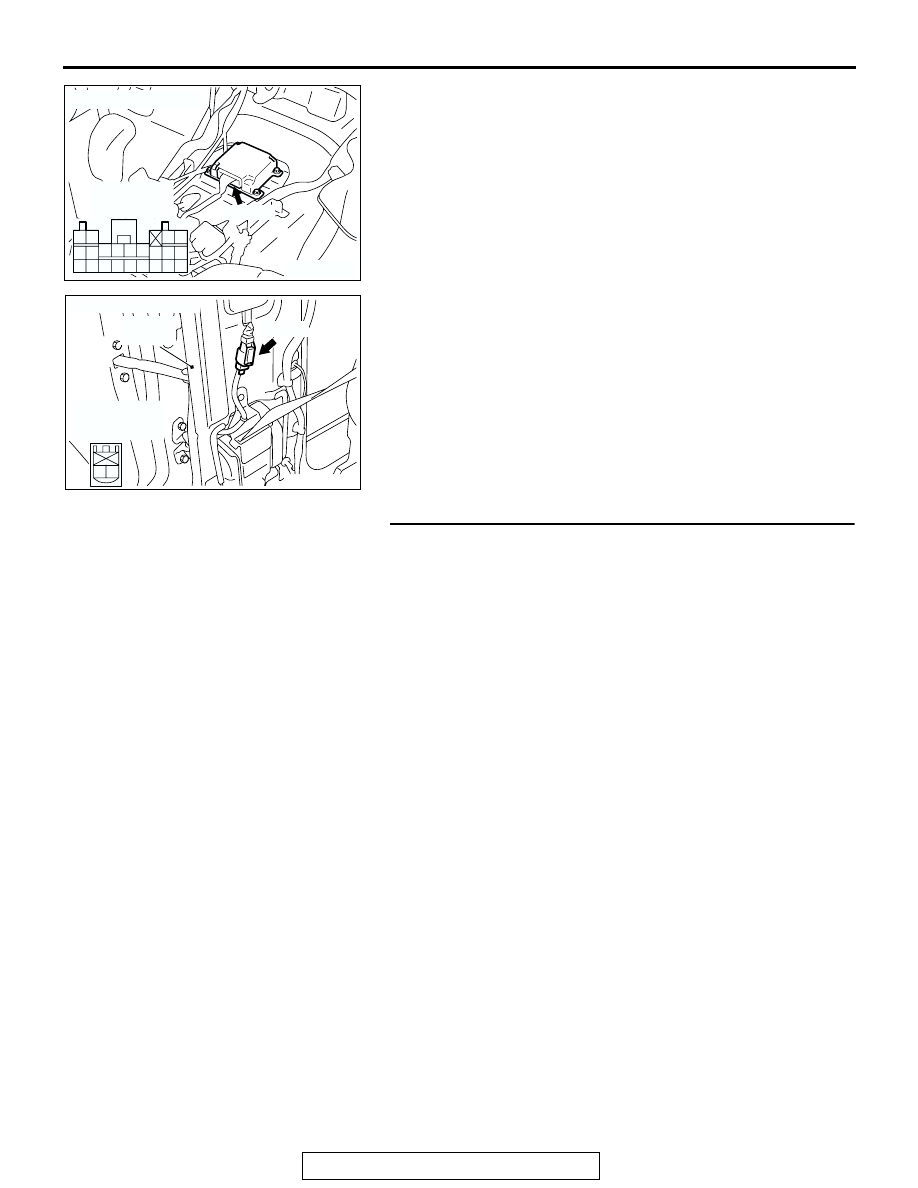

Q: Are the harness wires between SRS-ECU connector E-

07 (terminal No.29 and 30) and driver's seat belt pre-
tensioner connector F-27 (terminal No.1 and 2) in good
condition?
YES : Go to Step 4.
NO :  Repair the harness wires between SRS-ECU

connector E-07 and driver's seat belt pre-tensioner
connector F-27. Then go to Step 4.

STEP 4. Recheck for diagnostic trouble code.
Q: Is DTC 66 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204126

AC

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

1 2

HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-99

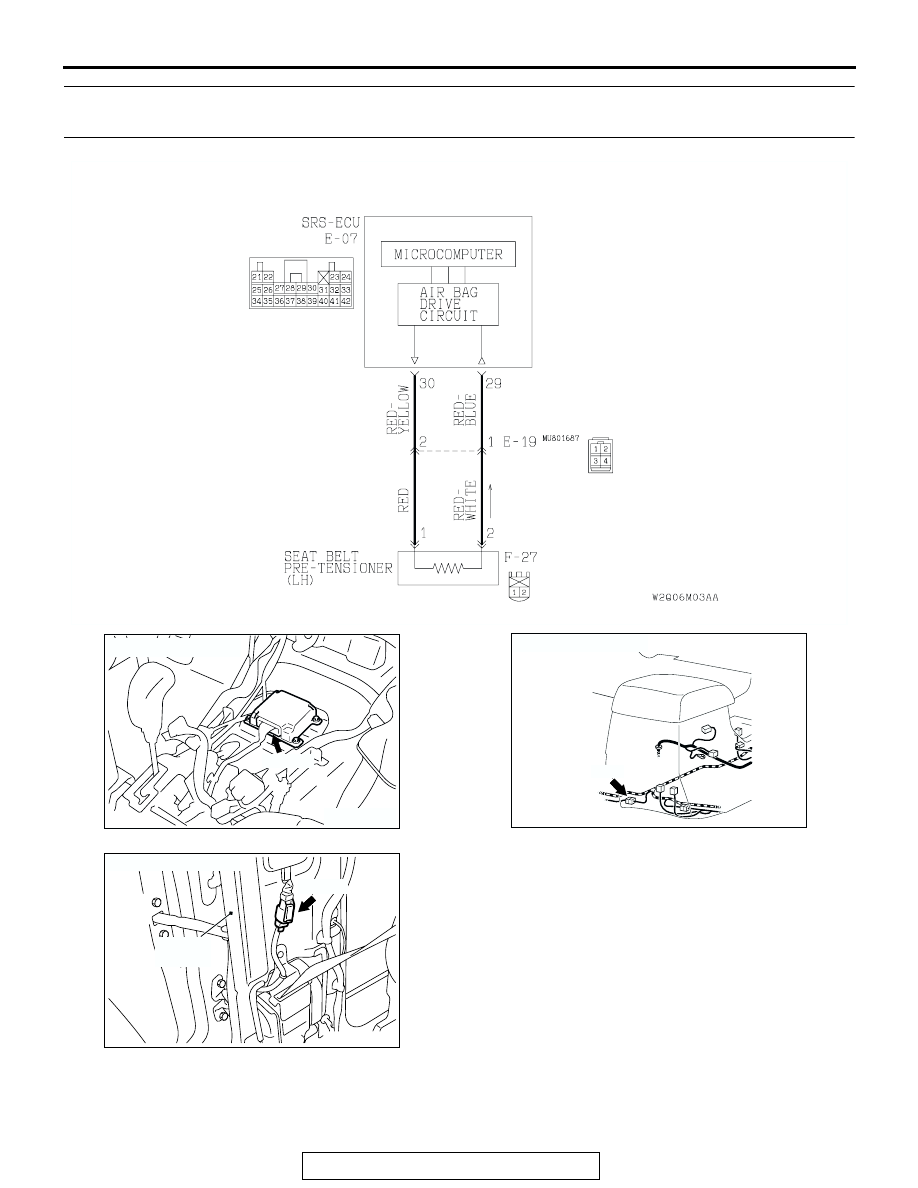

DTC 67: Driver's Seat Belt Pre-Tensioner (Squib) System Fault for Ground Circuit (Short-Circuited to
Ground)

.

AC102677

Driver's Seat Belt Pre-Tensioner (Squib)

AB

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204603AB

CONNECTOR: E-19

FLOOR
CONSOLE

E-19

AC204126

AB

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-100

CIRCUIT OPERATION
The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is
over a predetermined level, the SRS-ECU outputs an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the pre-tensioner will deploy.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the driver's seat belt
pre-tensioner (squib).

.

TROUBLESHOOTING HITS

• Damaged wiring harnesses or connectors

• Short to the ground in the driver's seat belt pre-

tensioner (squib) harness

• Malfunction of the SRS-ECU

.

DIAGNOSIS

Required Special Tools:

• MB991502: Scan Tool (MUT-ll)

• MB991865: Dummy resister

• MB991866: Resister harness

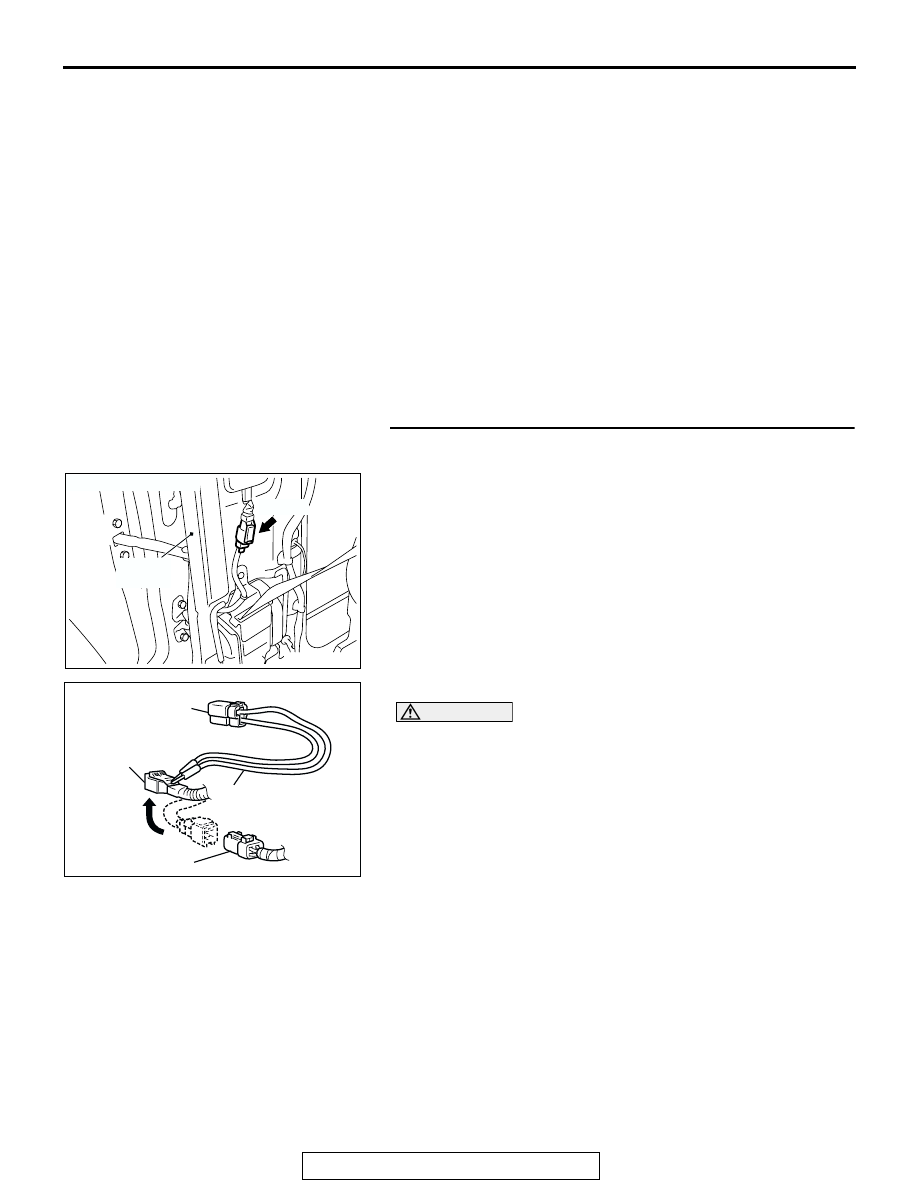

STEP 1. Check the driver's seat belt pre-tensioner.
(1) Disconnect the negative battery terminal.
(2) Disconnect the driver's seat belt pretensioner connector F-

27.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the harness connector by

backprobing.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and then check the

diagnostic trouble code.

Q: Is DTC 67 set?

YES : Go to Step 2.
NO :  Replace the driver's seat belt pre-tensioner. (Refer to

P.52Ba-44

.) Then go to Step 4.

AC204126

AB

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

AC006042 AY

MB991866
(RESISTOR HARNESS)

F-27 HARNESS
CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

Ω

)

F-27 SEAT BELT
PRE-TENSIONER
CONNECTOR (DRIVER'S SIDE)
