SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-89

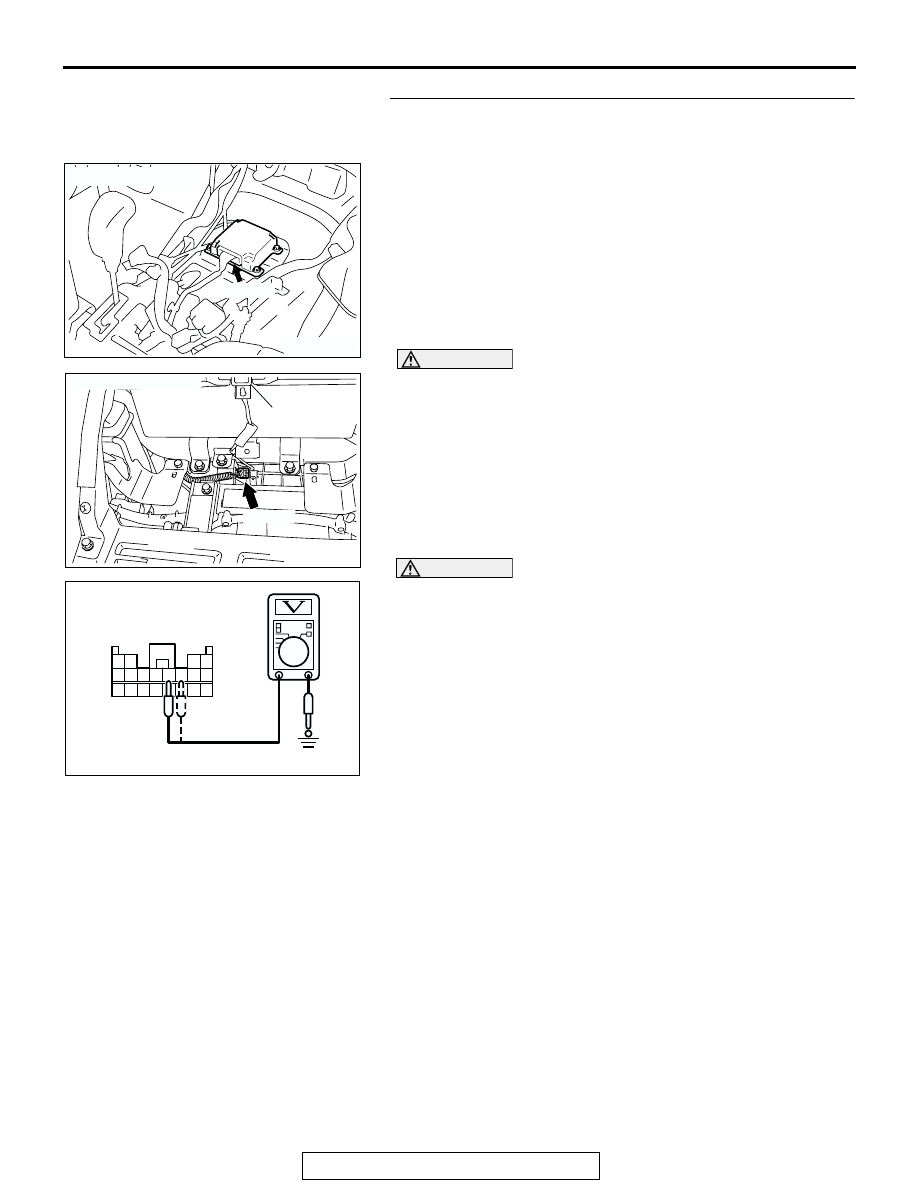

STEP 2. Check the harness for short circuit to power
supply between the SRS-ECU and the passenger's air bag
module.
(1) Disconnect SRS-ECU connector E-08.

DANGER

To prevents the air bag from deploying unintention-
ally, disconnect the passenger’s air bag module con-
nector D-11 to short the squib circuit.

(2) Unclip passenger’s air bag module connector D-11.
(3) Disconnect the passenger's air bag module connector D-11.
(4) Turn the ignition switch to the "ON" position.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(5) Measure the voltage between terminals 9, 10 and body

ground.
Voltage should measure 0 volt.

Q: Is the measured voltage within the specified range?

YES : Eras the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 64 sets, replace
the SRS-ECU. (Refer to

P.52Ba-31

.) Then go to Step

4.

NO :  Go to Step 3.

ACX01478 AG

CONNECTOR: E-08

E-08 (Y)

AC204125

CONNECTOR: D-11

AC

D-11 (R)

GLOVE BOX
STRIKER

13 14 15 16 17 18 19 20

5 6 7 8 9 10 11 12

1 2

3 4

AC006257AI

E-08 HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-90

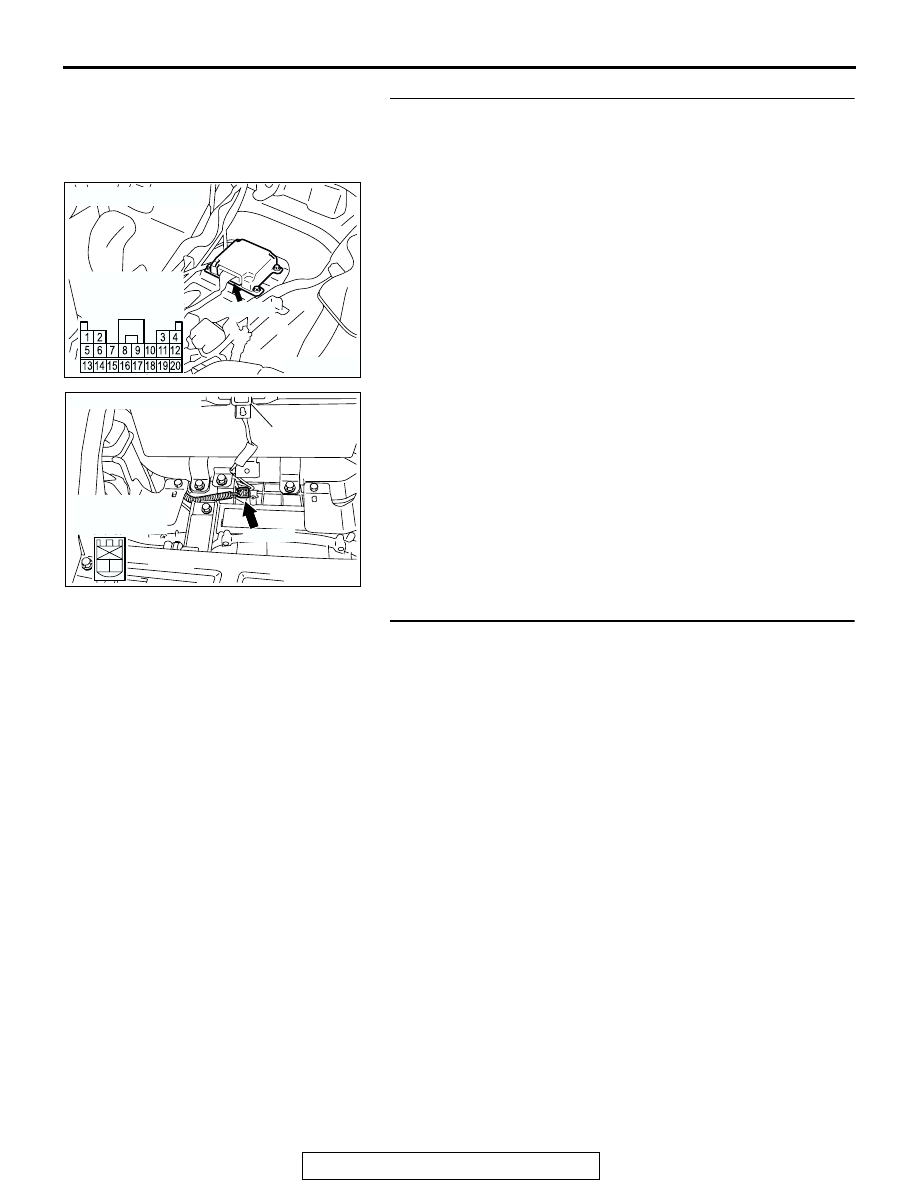

STEP 3. Check the harness wires for short circuit to power
supply between SRS-ECU connector E-08 (terminal No.9
and 10) and passenger's air bag module connector D-11
(terminal No.1 and 2).
Q: Are the harness wires between SRS-ECU connector E-

08 (terminal No.9 and 10) and passenger's air bag
module connector D-11 (terminal No.1 and 2) in good
condition?
YES :
Go to Step 4.
NO :  Repair the harness wires between SRS-ECU

connector E-08 and passenger's air bag module
connector D-11. Then go to Step 4.

STEP 4. Recheck the diagnostic trouble code.
Q: Is DTC 64 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

ACX01478AH

CONNECTOR: E-08

E-08 (Y)

HARNESS
CONNECTOR:
HARNESS SIDE

AC204125

CONNECTOR: D-11

AD

D-11 (R)

GLOVE BOX
STRIKER

1 2

HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-91

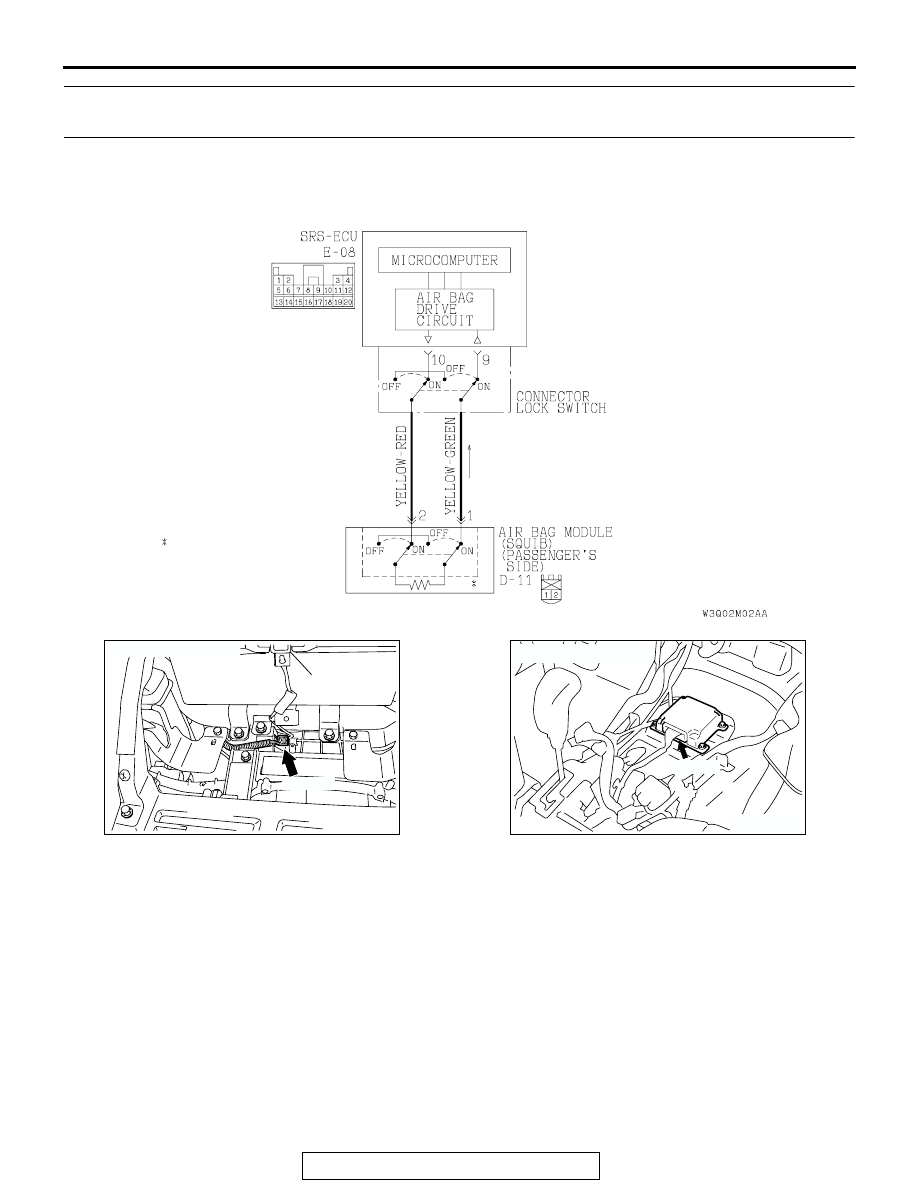

DTC 65: Passenger’s (Front) Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited
to Ground)

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the front impact sensors
and the front air bag analog G-sensor. If the
impact is over a predetermined level, the SRS-
ECU outputs an ignition signal. At this time, if the
front air bag safing G-sensor is on, the SRS air
bag will inflate.

• The ignition signal is input to the air bag module

via the clock spring to inflate the air bag.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the passenger's air
bag module (squib). However, if no DTC resets, the
SRS warning light will be switched off (DTC will be
retained).

.

TROUBLESHOOTING HINTS

• Damaged harness wires and connectors

• Short to the ground in the passenger's air bag

module (squib) harness

• Malfunction of the SRS-ECU

.

AC204435AB

Passenger's (Front) Air Bag Module (Squib) Circuit

NOTE

: CONNECTOR LOCK SWITCH

CONNECTOR

CONNECTED: ON
CONNECTOR

DISCONNECTED: OFF

AC204125

CONNECTOR: D-11

AC

D-11 (R)

GLOVE BOX
STRIKER

ACX01478 AG

CONNECTOR: E-08

E-08 (Y)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-92

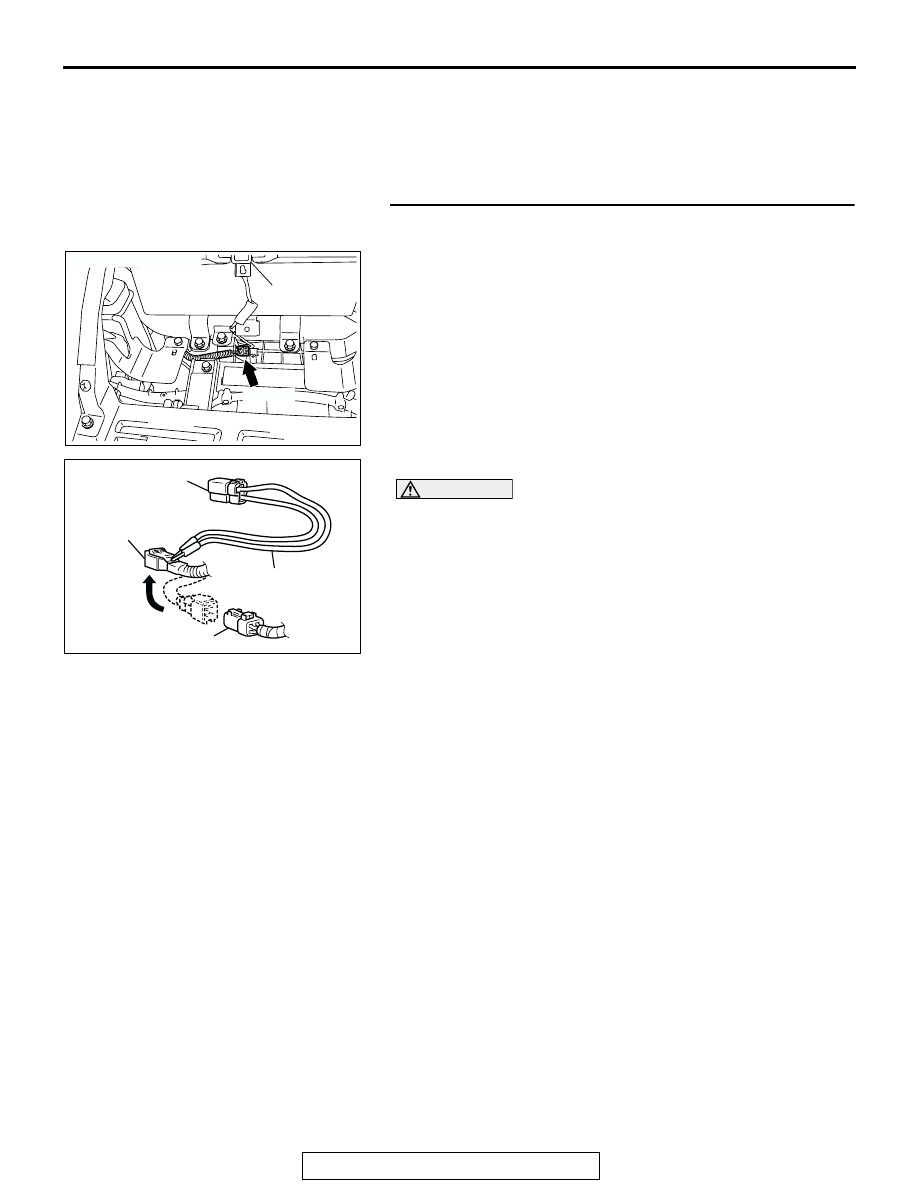

DIAGNOSIS

Required Special Tools:

• MB991502: Scan Tool (MUT-II)

• MB991865: Dummy resister

• MB991866: Resister harness

STEP1. Check the passenger's air bag module.
(1) Disconnect the negative battery terminal.
(2) Unclip passenger’s air bag module connector D-11.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Disconnect the passenger's air bag module connector D-11,

and insert special tool MB991866 into the harness
connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q:  Is DTC 65 set?

YES : Go to Step 2.
NO :  Replace the passenger's air bag module. (Refer to

P.52Ba-33

.) Then go to Step 4.

AC204125

CONNECTOR: D-11

AC

D-11 (R)

GLOVE BOX
STRIKER

AC006042 AV

MB991865 (DUMMY
RESISTOR: 3

)

MB991866
(RESISTOR HARNESS)

D-11 HARNESS
CONNECTOR

D-11 PASSENGER'S AIR BAG
MODULE CONNECTOR
