SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-101

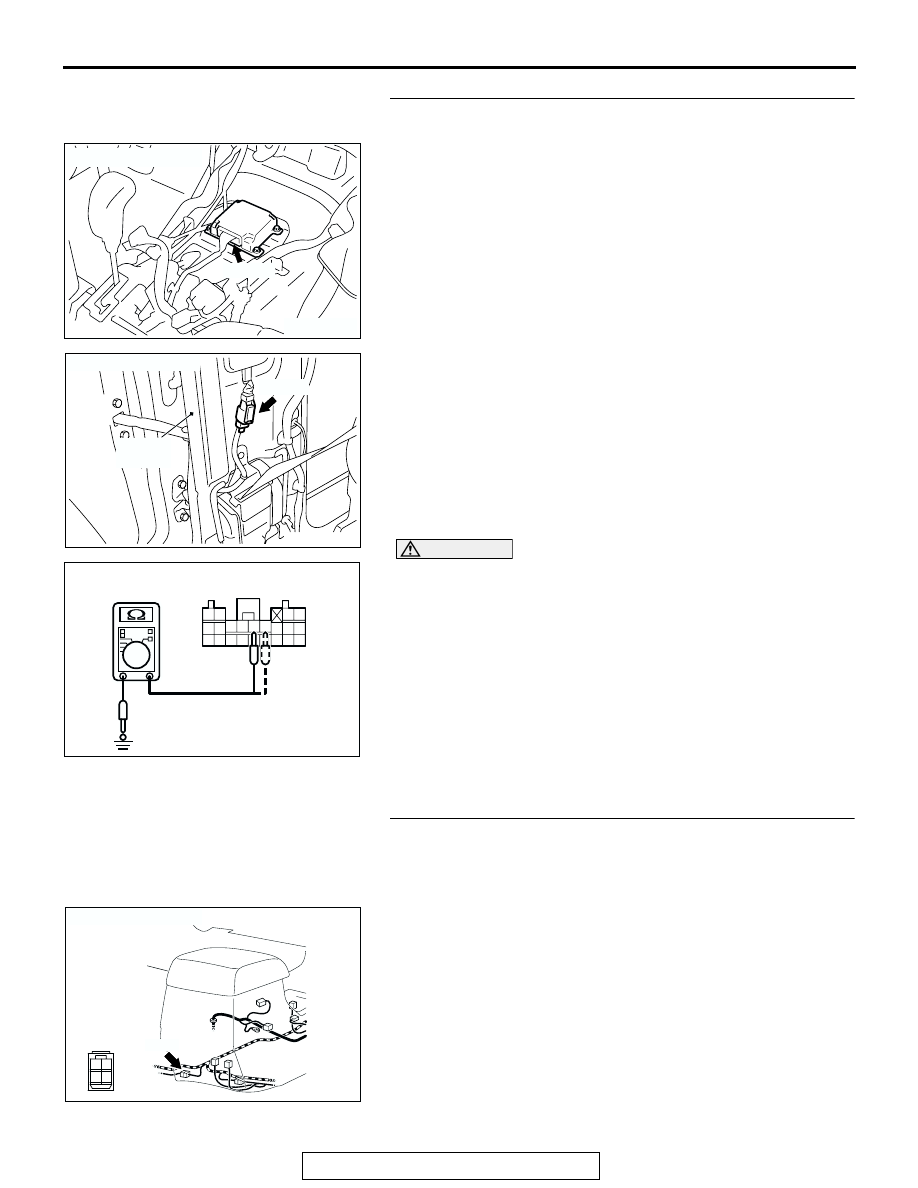

STEP 2. Check the driver's seat belt pretensioner circuit at
the SRS-ECU connector E-07.
(1) Disconnect SRS-ECU connector E-07.

(2) Disconnect driver's seat belt pretensioner connector F-27.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(3) Check for continuity between E-07 harness connector

terminals 29, 30 and body ground.
It should be open circuit.

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 67 sets, replace
the SRS-ECU. (Refer to

P.52Ba-31

.) Then go to Step

4.

NO :  Go to Step 3.

STEP 3. Check harness wires for short circuit to ground
between SRS-ECU connector E-07 (terminal No.29 and 30)
and driver's seat belt pre-tensioner connector F-27
(terminal No.1 and 2).
NOTE: After inspecting intermediate connector E-19, inspect
the wiring harness. If the intermediate connector E-19 is dam-
aged, repair or replace it. (Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

.) Then go to Step 4.

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204126

AB

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

AC201666

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

2122

23 24

E-07 HARNESS CONNECTOR:
HARNESS SIDE

AF

AC204603AC

CONNECTOR: E-19

FLOOR
CONSOLE

E-19

2

1

4

3

E-19

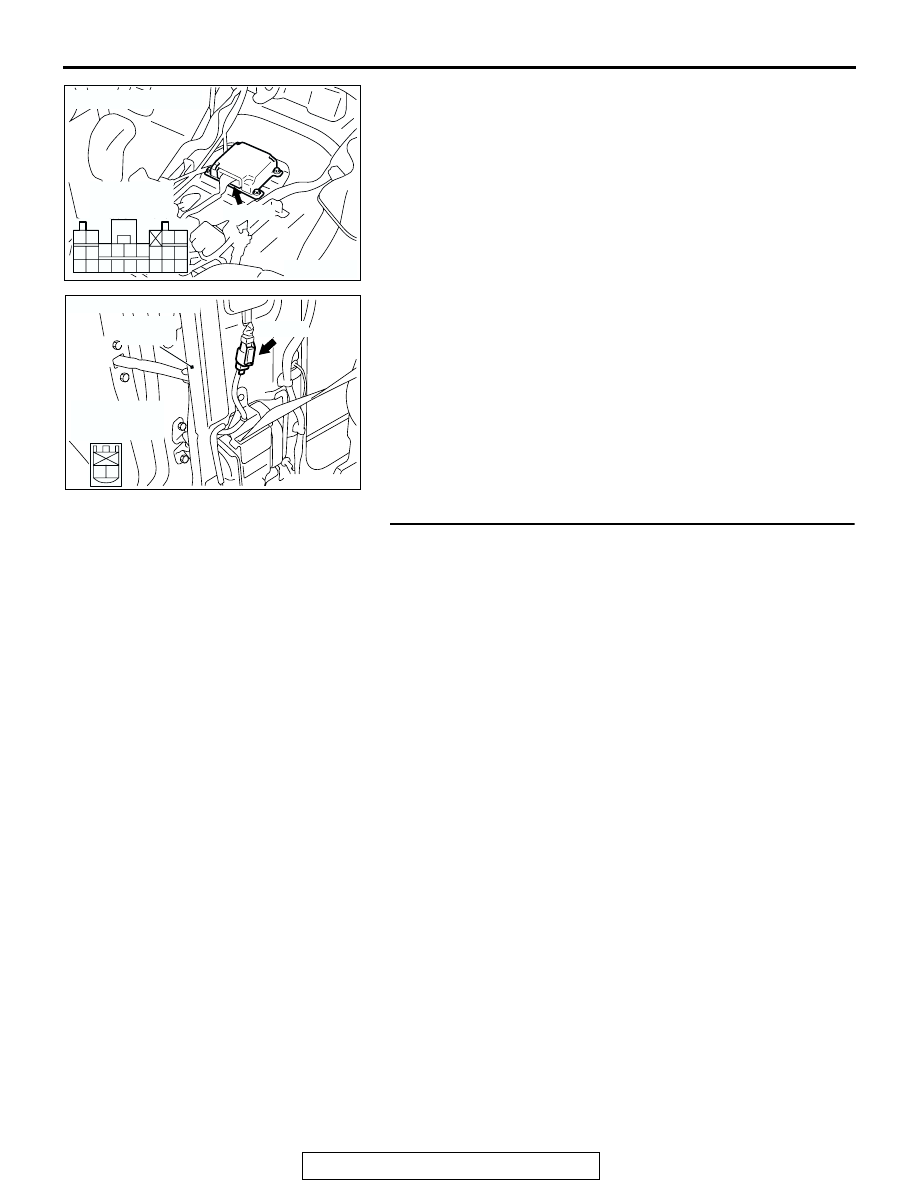

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-102

Q: Are the harness wires between SRS-ECU connector E-

07 (terminal No.29 and 30) and driver's seat belt pre-
tensioner connector F-27 (terminal No.1 and 2) in good
condition?
YES : Go to Step 4.
NO :  Repair the harness wires between SRS-ECU

connector E-07 and driver's seat belt pre-tensioner
connector F-27. Then go to Step 4.

STEP 4. Recheck for diagnostic trouble code.
Q: Is DTC 67 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204126

AC

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

1 2

HARNESS
CONNECTOR:
HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-103

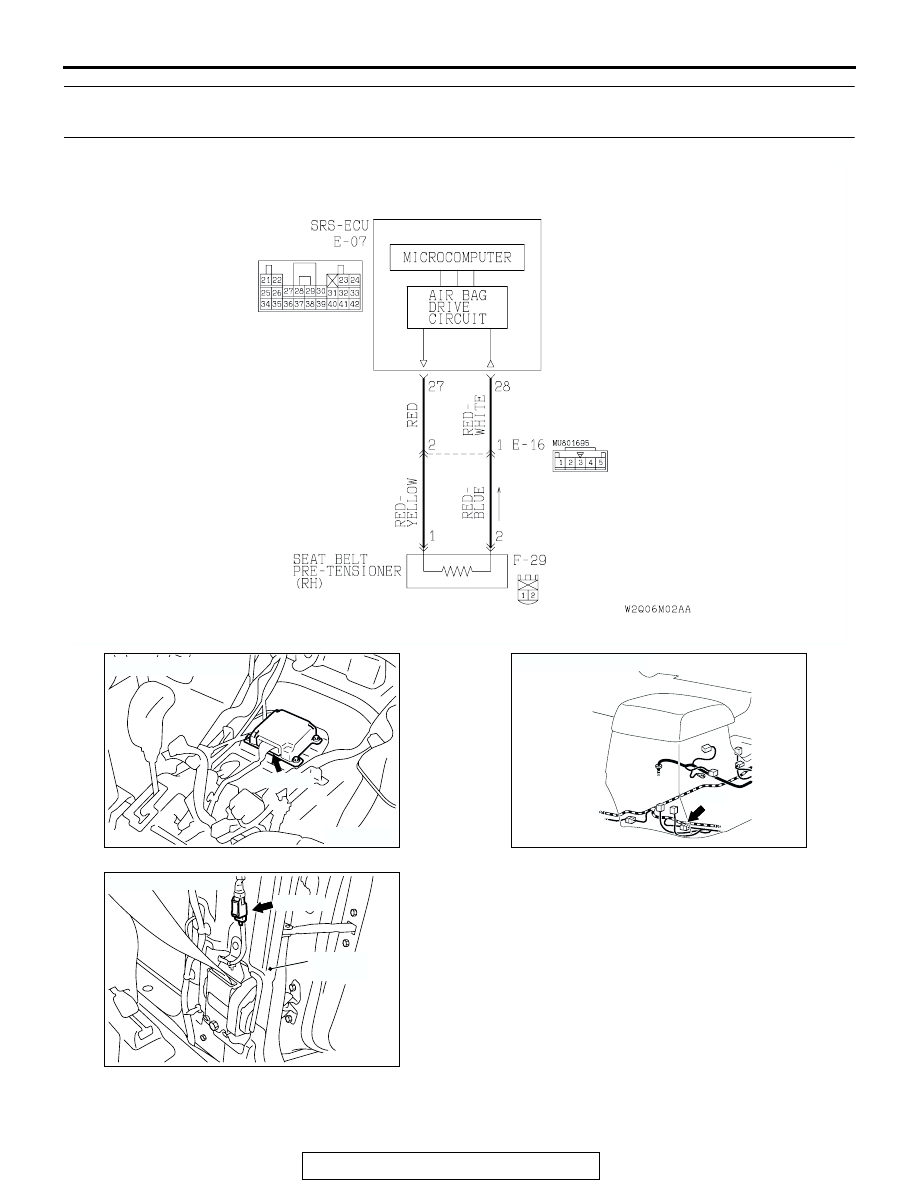

DTC 68: Passenger's Seat Belt Pre-Tensioner (Squib) System Fault for Power Supply Circuit (Short-
Circuited to Power Supply)

.

AC102676

Passenger's (Front) Seat Belt Pre-tensioner (Squib)

AB

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204603AD

CONNECTOR: E-16

FLOOR
CONSOLE

E-16

AC204127

AB

CONNECTOR: F-29

F-29 (R)

CENTER
PILLAR

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-104

CIRCUIT OPERATION
The side impact sensor includes an analog G sensor
and CPU, etc. The CPU monitors the analog G sen-
sor output signal. If the CPU judges that the side-air-
bags should be deployed, it sends a fire signal to the
SRS-ECU to deploy the side-airbags. Besides that,
the CPU diagnoses the internal components of the
side impact sensor. If a malfunction occurs, it
requests the SRS-ECU to set a diagnostic trouble
code.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the passenger's seat
belt pre-tensioner (squib).

.

TROUBLESHOOTING HITS

• Damaged wiring harnesses or connectors

• Short to the power supply in the passenger's seat

belt pretensioner (squib) harness

• Malfunction of the SRS-ECU

.

DIAGNOSIS

Required Special Tools:

• MB991502: Scan Tool (MUT-ll)

• MB991865: Dummy resister

• MB991866: Resister harness

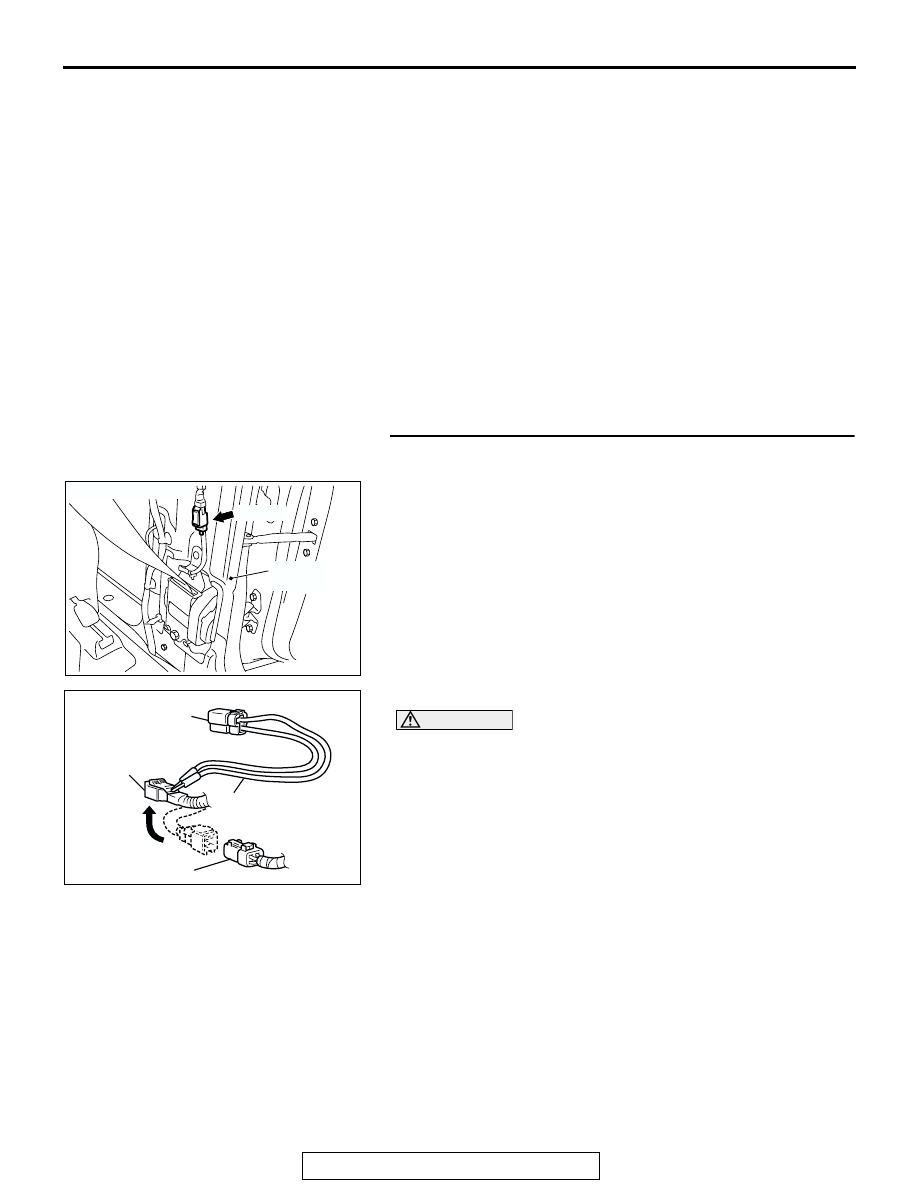

STEP 1. Check the passenger's seat belt pre-tensioner.
(1) Disconnect the negative battery terminal.
(2) Disconnect the passenger's seat belt pretensioner

connector F-29.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the harness side

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and then check the

diagnostic trouble code.

Q: Is DTC 68 set?

YES : Go to Step 2.
NO :  Replace the passenger's seat belt pre-tensioner.

(Refer to

P.52Ba-44

.) Then go to Step 4.

AC204127

AB

CONNECTOR: F-29

F-29 (R)

CENTER
PILLAR

AC006042 AZ

MB991866
(RESISTOR HARNESS)

F-29 HARNESS
CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

Ω

)

F-29 SEAT BELT
PRE-TENSIONER
CONNECTOR (PASSNGER'S SIDE)
