TSB Revision

SYMPTOM PROCEDURES

13Ad-77

.

CIRCUIT OPERATION

• Battery positive voltage is applied to the MFI

relay (terminal No. 2, No. 3).

• When the ignition switch is turned to the "ON"

position, the battery positive voltage is applied to
the PCM (terminal No. 50).
When the battery positive voltage is applied, the
PCM turns the power transistor in the PCM "ON"
and grounds the MFI relay coil, with this, the MFI
relay turns "ON" and the battery positive voltage
is supplied to the PCM (terminal No. 34, No. 43)
from the MFI relay (terminal No. 1).

• Battery positive voltage is constantly supplied to

the PCM (terminal No. 58) as the backup power.

• The or PCM (terminal No. 33, No. 42) is

grounded to the vehicle body.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Malfunction of the ignition switch.

• Malfunction of the MFI relay.

• Improper connector contact, open circuit or short-

circuited harness wire.

• Disconnected PCM ground wire.

• Malfunction of the PCM.

DIAGNOSIS

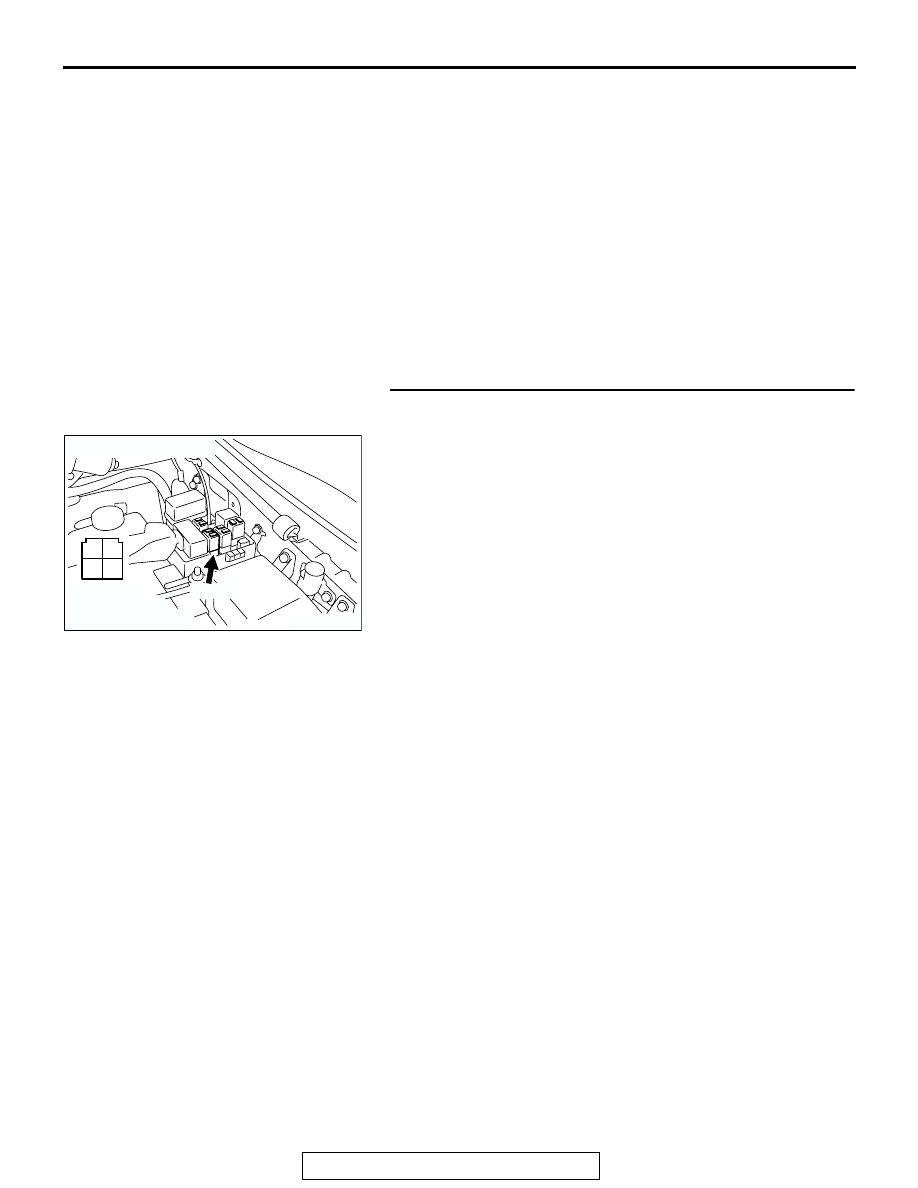

STEP 1. Check harness connector B-22X at MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

TSB Revision

SYMPTOM PROCEDURES

13Ad-78

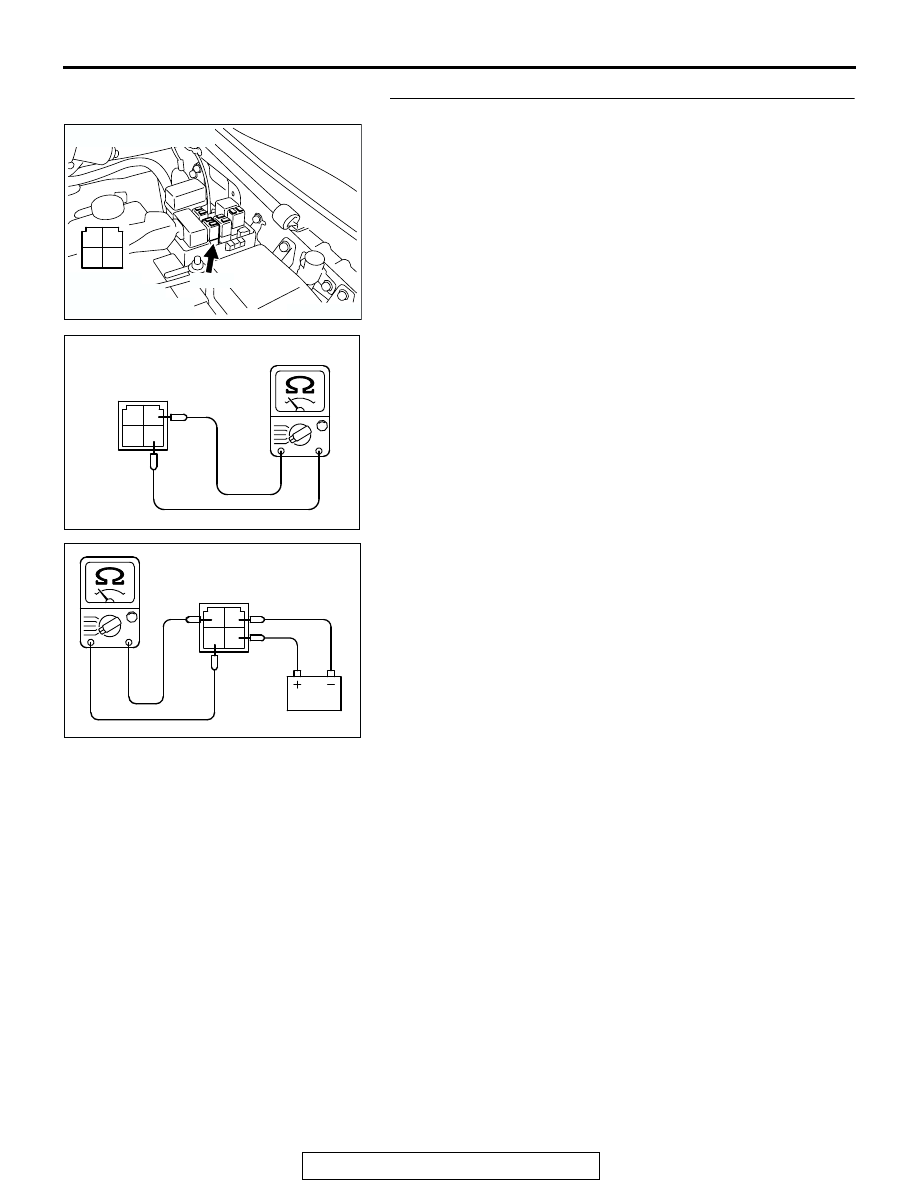

STEP 2. Check the MFI relay.
(1) Remove the MFI relay.

(2) Check for continuity between the MFI relay terminal No. 2

and No. 4.

• There should be continuity (approximately 70 ohms)

(3) Use jumper wires to connect MFI relay terminal No. 2 to the

positive battery terminal and terminal No. 4 to the negative
battery terminal.

(4) Check the continuity between the MFI relay terminal No. 1

and No. 3 while connecting and disconnecting the jumper
wire at the negative battery terminal.

• Should be less than 2 ohms. (Negative battery terminal

connected)

• Should be open loop. (Negative battery terminal discon-

nected)

(5)  Install the MFI relay.
Q: Is the resistance normal?

YES : Go to Step 3.
NO :  Replace the MFI relay. Then confirm that the

malfunction symptom is eliminated.

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

4

AK201380

MFI RELAY SIDE
CONNECTOR

AK201380AD

1

2

3

4

AK201381

MFI RELAY SIDE
CONNECTOR

AK201381AD

TSB Revision

SYMPTOM PROCEDURES

13Ad-79

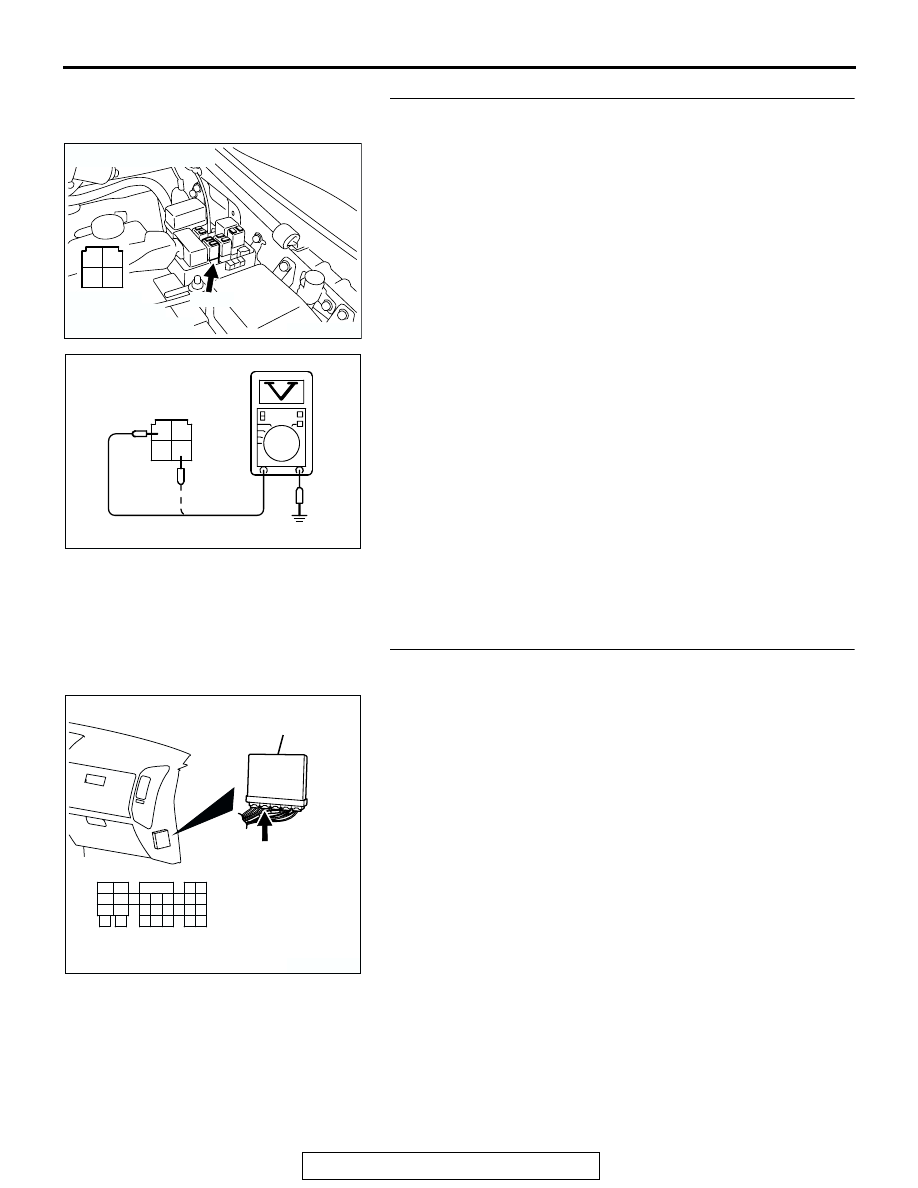

STEP 3. Measure the power supply voltage at MFI relay
harness side connector B-22X.
(1) Disconnect the connector B-22X and measure at the

harness side.

(2) Measure the voltage between terminal No. 2, No. 3 and

ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 4.
NO :  Check harness connector A-03 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector A-03 is

in good condition, repair an open circuit between
fusible link (5) and MFI relay connector B-22X
(terminal No. 2, No. 3). Then confirm that the
malfunction symptom is eliminated.

STEP 4. Check harness connector D-133 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

3

4

AK201382

B-22X HARNESS
CONNECTOR:
COMPONENT SIDE

AK201382AD

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

TSB Revision

SYMPTOM PROCEDURES

13Ad-80

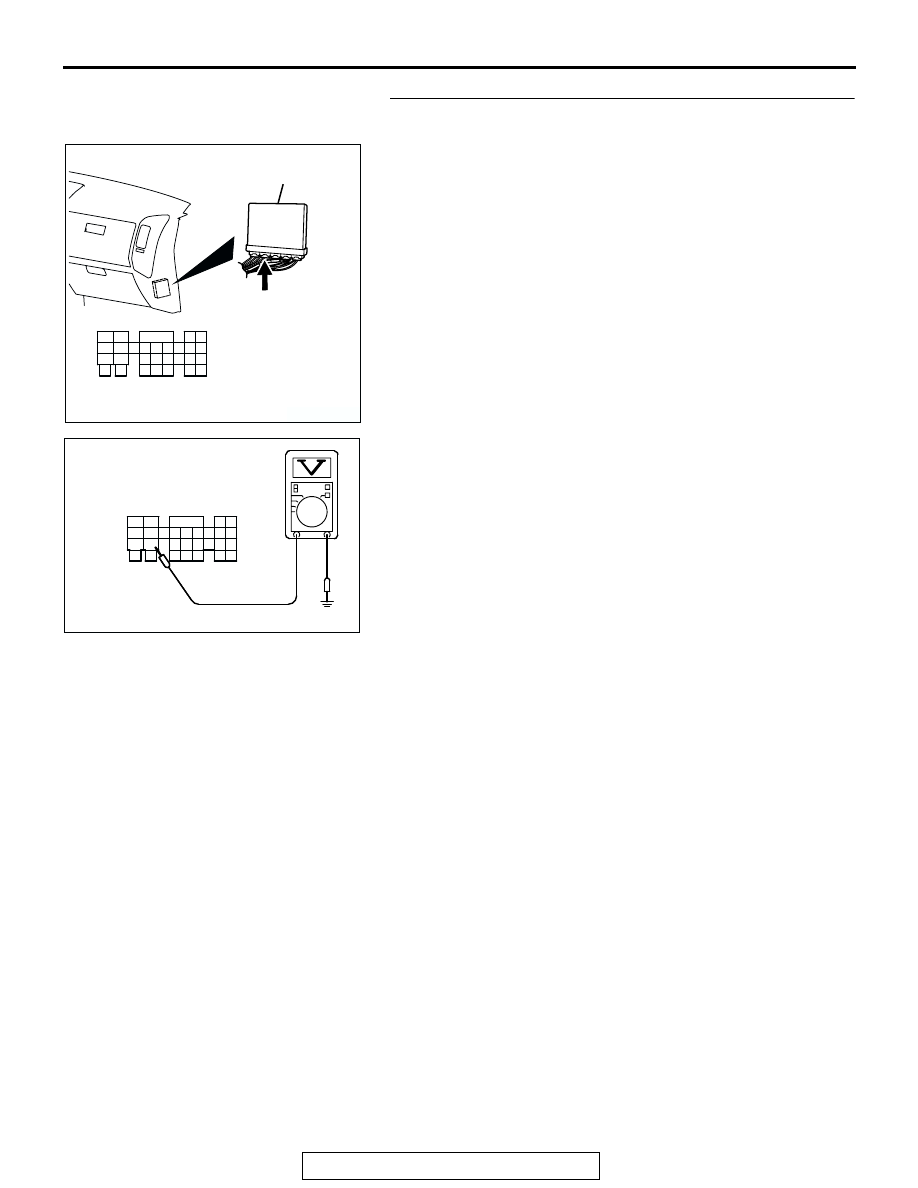

STEP 5. Measure the ignition switch-IG signal voltage at
PCM harness side connector D-133.
(1) Disconnect the connector D-133 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 50 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 6.
NO :  Check harness connector E-111, D-02, D-28 at

intermediate connector for damage, and repair or
replace as required. Refer to GROUP 00E, Harness
Connector Inspection

P.00E-2

. If intermediate

connector E-111, D-02, D-28 are in good condition,
repair it because of open circuit between ignition
switch connector D-204 (terminal No. 2) and PCM
connector D-133 (terminal No. 50). Then confirm that
the malfunction symptom is eliminated.

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

AK201375

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

D-133 HARNESS
CONNECTOR:
COMPONENT SIDE

AK201375AB

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51
