GENERAL INFORMATION
TSB Revision
AUTOMATIC TRANSMISSION OVERHAUL
23B-3
.
GENERAL INFORMATION
M1233000100027
This transmissions is the newly developed 4-speed
and 5-speed automatic transmission that merges
advanced electronic technology and mechanical
technology.
A hydraulic balance mechanism is incorporated for
the transmission clutch, allowing for ultra-high speed
gear changes.
The weight has been reduced by using precision
sheet metal pressing of the clutch retainer, etc., and
using aluminum die cast for the oil pump housing.

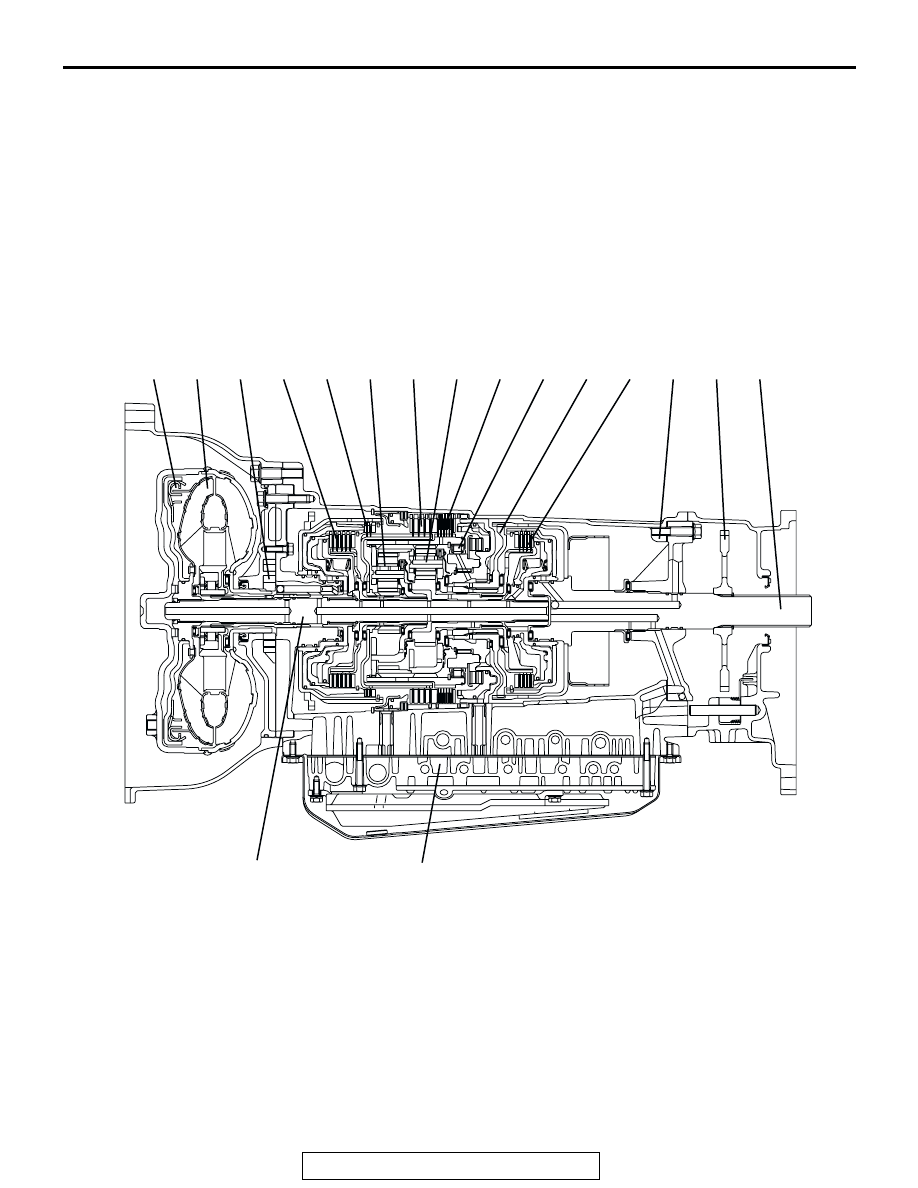

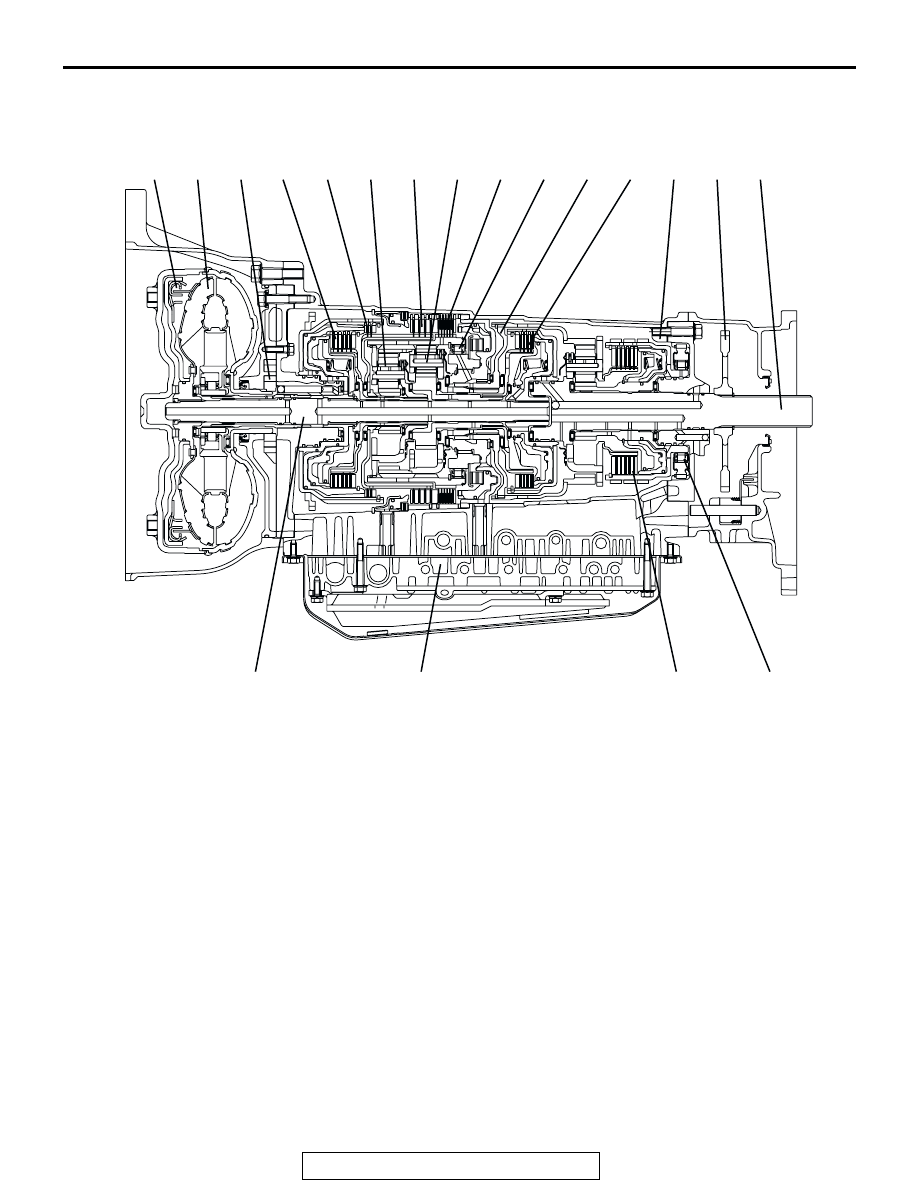

SECTIONAL VIEW <V4A51>
AKX00268
4
5
6
1
2
3
7
8
9
14
15
16
11
12
13
17
10
AB
1.
TORQUE CONVERTER CLUTCH
2.
TORQUE CONVERTER
3.
OIL PUMP
4.
OVERDRIVE CLUTCH
5.
REVERSE CLUTCH
6.
OVERDRIVE PLANETARY CARRIER
7.
SECOND BRAKE
8.
OUTPUT PLANETARY CARRIER
9.
LOW/REVERSE BRAKE
10.
ONE-WAY CLUTCH
11.
CENTER SUPPORT
12.
UNDERDRIVE CLUTCH
13.
OUTPUT SHAFT SUPPORT
14.
PARKING GEAR
15.
OUTPUT SHAFT
16.
VALVE BODY
17.
INPUT SHAFT
