INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-139

NOTE: Also check intermediate connectors D-111, G-10 and
junction block connector D-217 for loose, corroded, or dam-
aged terminals, or terminals pushed back in the connector. If
intermediate connector D-111, G-10 or junction block connector
D-217 is damaged, Repair or replace the damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

Q: Is the wiring harness between rear wiper motor

connector I-07 (terminal 3) and ETACS-ECU connector
D-222 (terminal 5) in good condition?
YES :
Replace the ETACS-ECU. If the rear wiper operates

normally, it indicates that a correct auto-stop signal is
sent from the rear wiper motor.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the rear
wiper operates normally, it indicates that a correct
auto-stop signal is sent from the rear wiper motor.

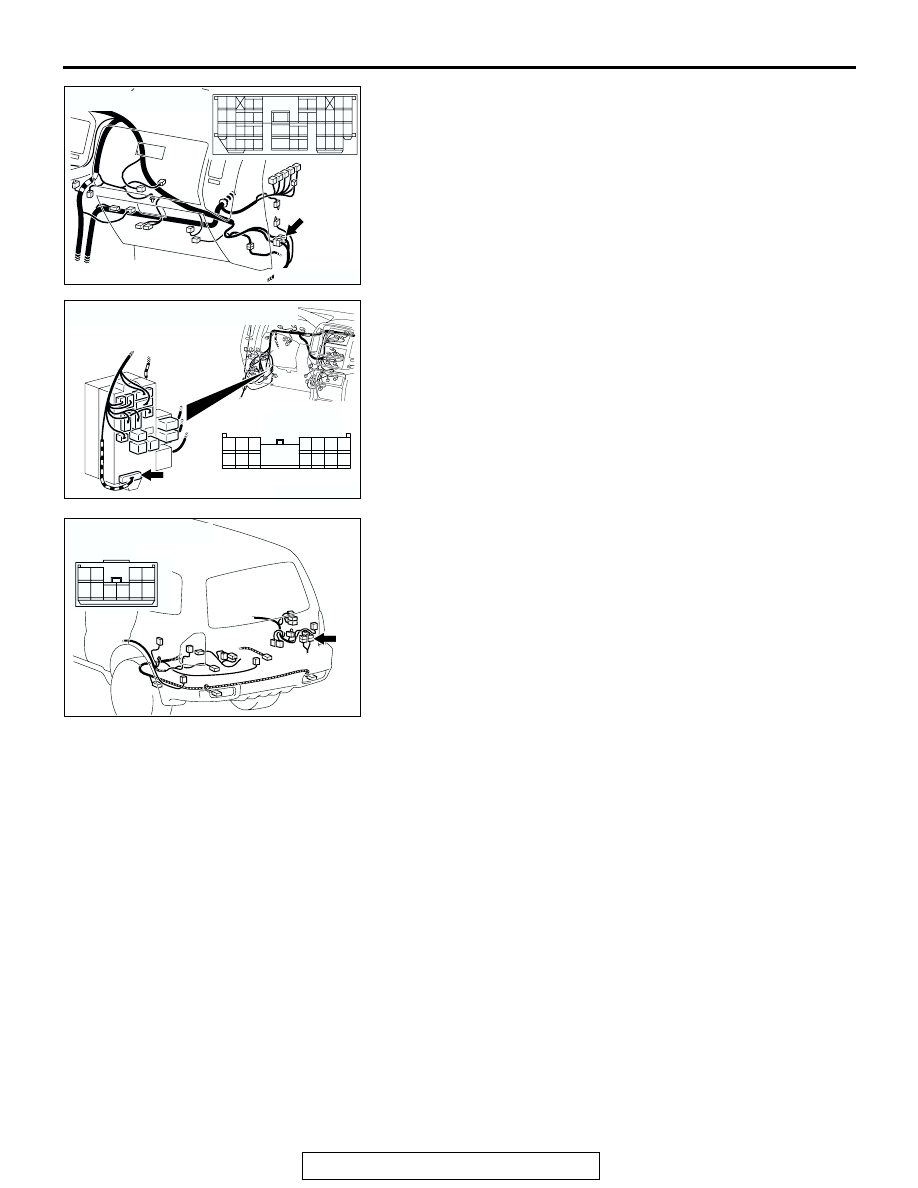

AC204171

CONNECTOR : D-111

AC

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204173

CONNECTOR : D-217

AG

HARNESS SIDE

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

D-217

AC204179

CONNECTOR : G-10

AD

4

10

8

7

3

9

5

1

6

2

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-140

INSPECTION PROCEDURE O-9: ETACS-ECU does not receive any signal from hood switch.

.

CIRCUIT OPERATION
The ETACS-ECU operates the theft-alarm system
according to signal from the hood switch.

.

TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the theft-alarm system
does not work normally.

.

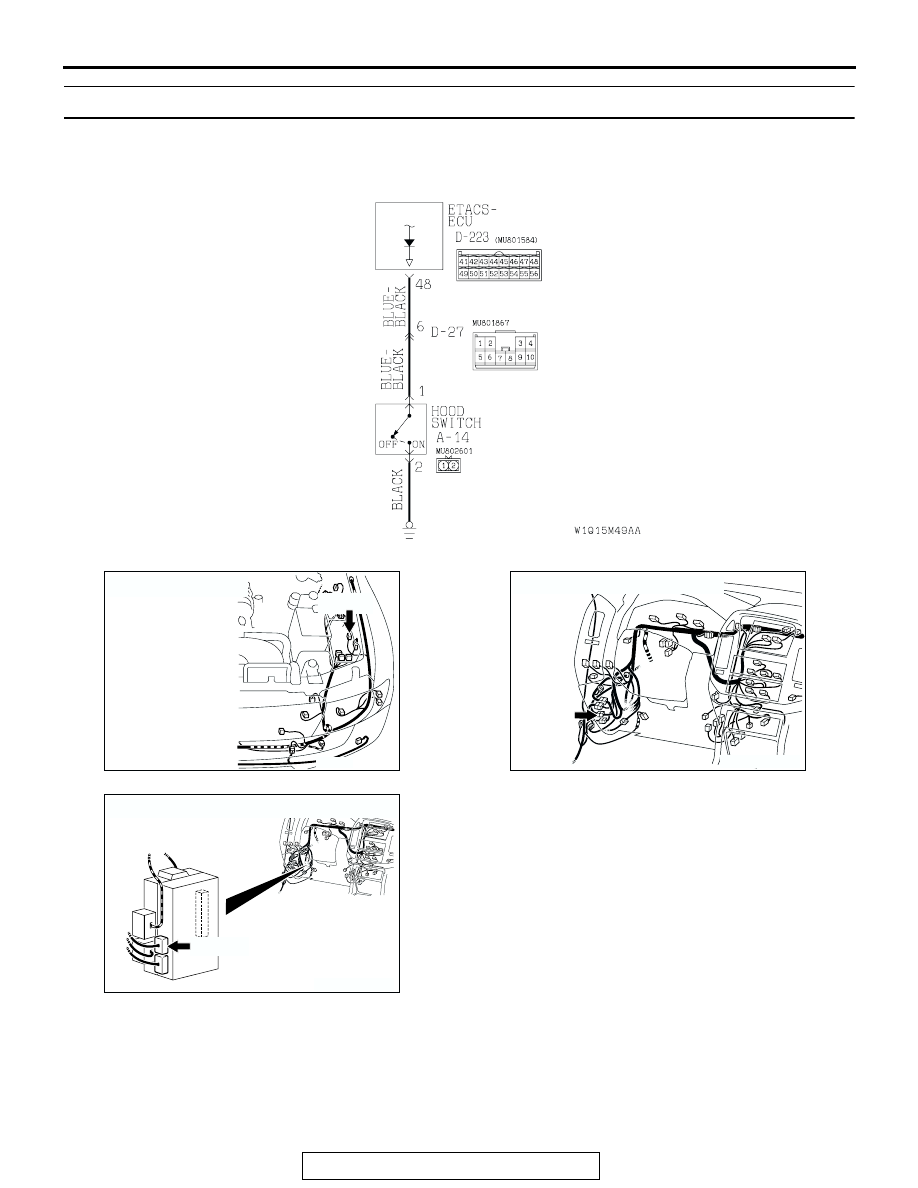

Hood Switch Input Circuit

AC204167

CONNECTOR : A-14

A-14(B)

AL

AC204170

CONNECTOR : D-27

BA

AC204174

CONNECTOR : D-223

D-223(B)

AF

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-141

TROUBLESHOOTING HINTS

• The hood switch may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

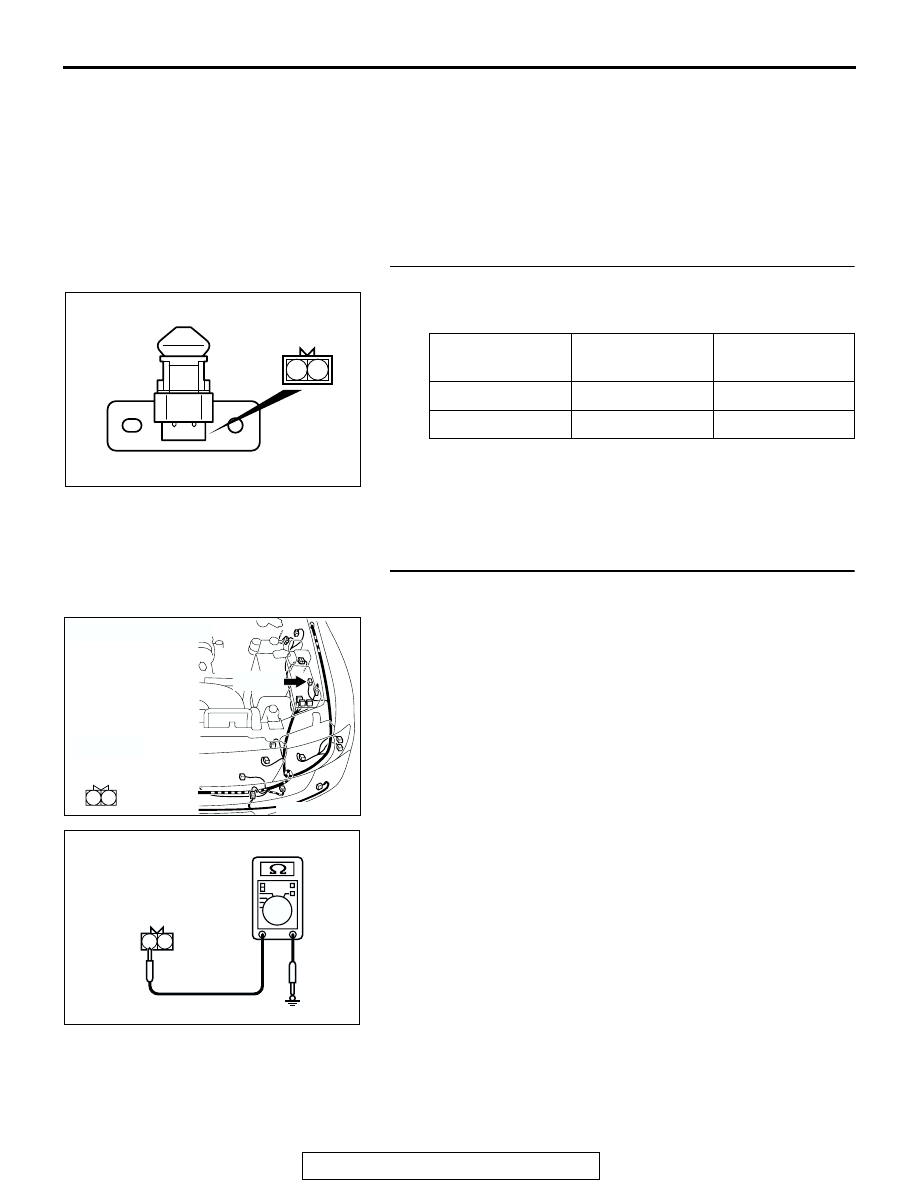

STEP 1. Check the hood switch.
Remove the hood switch. Then check continuity between the
switch terminals.

Q: Is the hood switch in good condition?

YES : Go to Step 2.
NO :  Replace the hood switch. If the theft-alarm system

operates normally, it indicates that a correct signal is
sent from the hood switch.

STEP 2. Check the ground circuit to the hood switch. Test
at hood switch connector A-14.
(1) Disconnect hood switch connector A-14 and measure the

resistance available at the wiring harness side of the
connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 5.
NO :  Go to Step 3.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released

− 2

Less than 2 ohms

Pressed

− 2

Open circuit

1

2

ACX02415

AC204167

CONNECTOR : A-14

HARNESS
SIDE

A-14(B)

A-14(B)

AC

1

2

2 1

ACX01608AB

CONNECTOR A-14
(HARNESS SIDE)

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-142

STEP 3. Check hood switch connector A-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is hood switch connector A-14 in good condition?

YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the theft-alarm system operates normally,

it indicates that a correct signal is sent from the hood
switch.

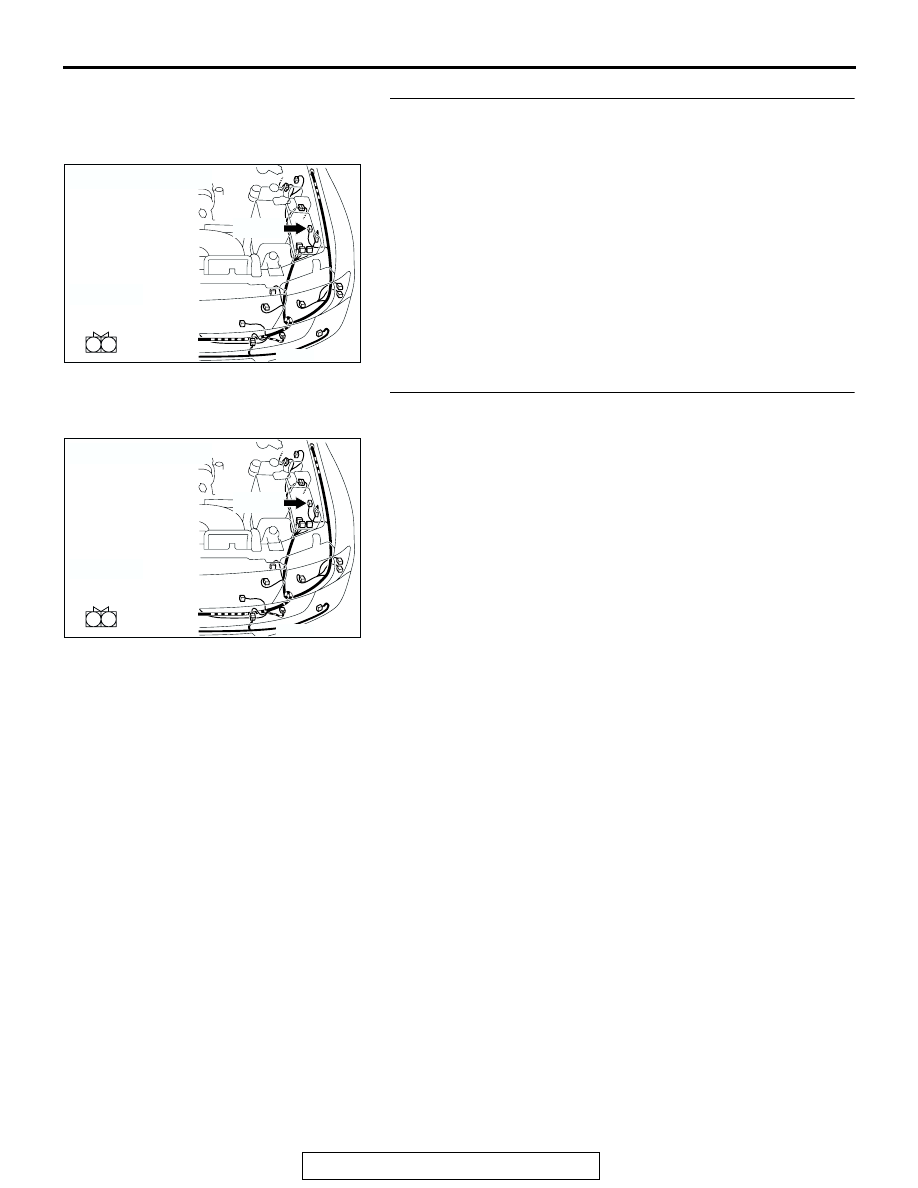

STEP 4. Check the wiring harness between hood switch
connector A-14 (terminal 2) and ground.
Q: Is the wiring harness between hood switch connector A-

14 (terminal 2) and the ground in good condition?
YES :
No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the theft-
alarm system operates normally, it indicates that a
correct signal is sent from the hood switch.

AC204167

CONNECTOR : A-14

HARNESS
SIDE

A-14(B)

A-14(B)

AC

1

2

AC204167

CONNECTOR : A-14

HARNESS
SIDE

A-14(B)

A-14(B)

AC

1

2
