INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-131

STEP 19. Check the wiring harness between power
window main switch connector H-05 (terminals 10) and
ETACS-ECU connector D-223 (terminals 54).
Q: Is the wiring harness between power window main

switch connector H-05 (terminals 10) and ETACS-ECU
connector D-223 (terminals 54) in good condition?
YES : Replace the ETACS-ECU. If the central door locking

system works normally, input signal from the door lock
switch should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

INSPECTION PROCEDURE P-8: ETACS-ECU does not receive an auto-stop signal from the rear wiper
motor.

AC204174

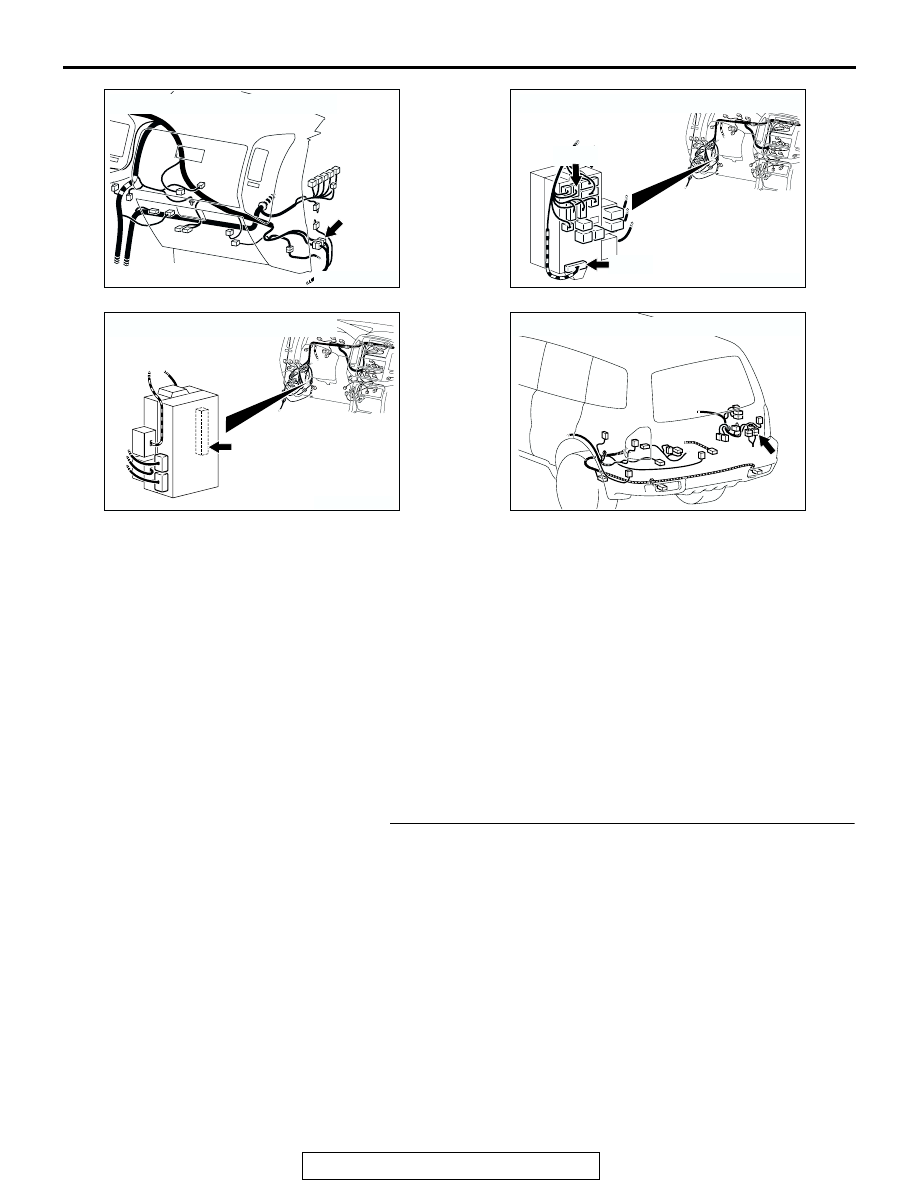

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204180

CONNECTOR : H-05

AC

HARNESS SIDE

<DRIVER'S SIDE>

1
8

3

4

6

7

5

10

11

13

14

12

2
9

H-05

Rear Wiper Auto-stop Signal Input

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-132

.

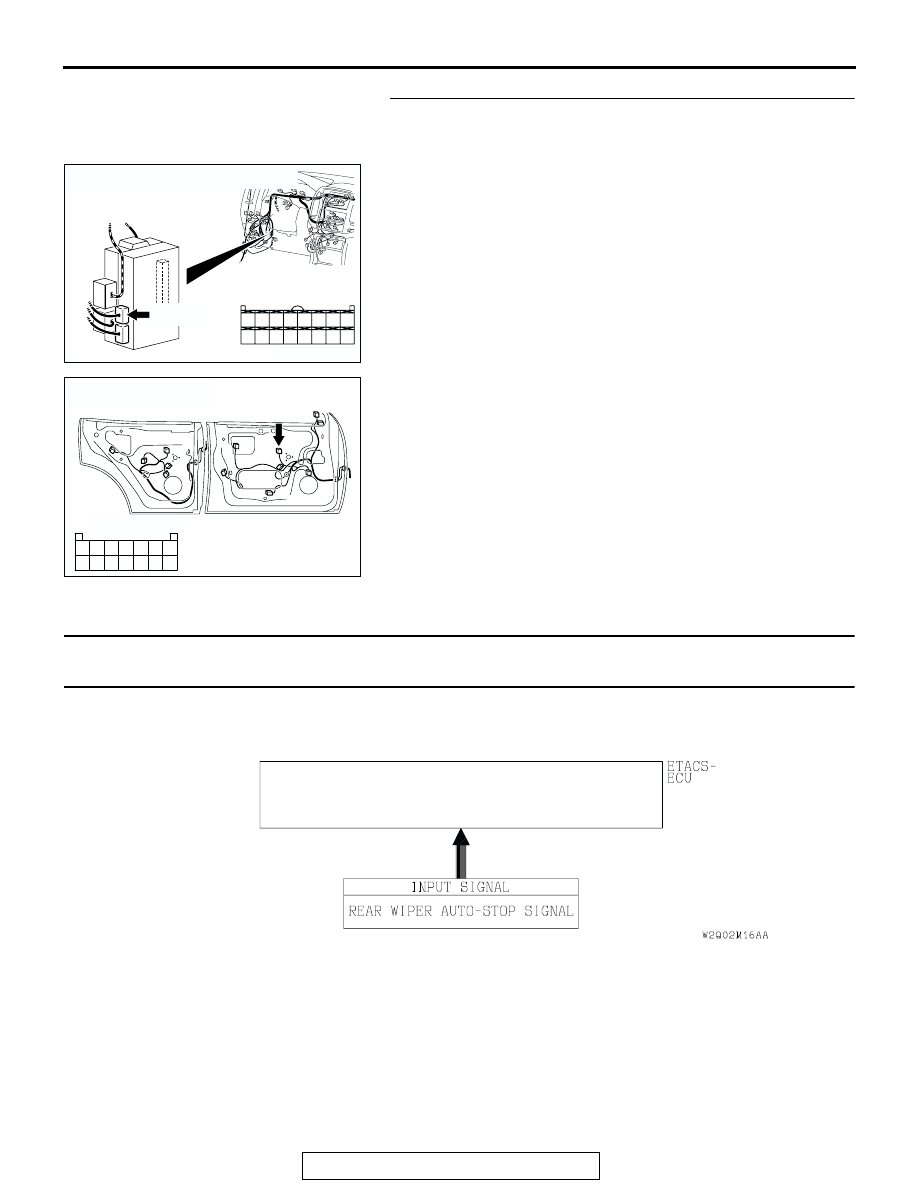

CIRCUIT OPERATION
The ETACS-ECU makes the rear wiper stop at the
predetermined park position according to the auto-
stop signal from the rear wiper motor.

.

TECHNICAL DESCRIPTION (COMMENT)
If this signal is not normal, the rear wiper does not
stop at the predetermined park position.

.

TROUBLESHOOTING HINTS

• The rear wiper motor may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

STEP 1. Check the rear wiper.
Q: Does the rear wiper motor operate (however, the rear

wiper does not stop at the predetermined park
position)?
YES : Go to Step 2.
NO :  Refer to Inspection Procedure H-1 "Rear wiper dose

not work at all

P.54Bb-268

."

AC204171

CONNECTOR : D-111

AG

AC204173

CONNECTORS : D-208, D-217

D-208

D-217

AS

AC204174

CONNECTOR : D-222

AE

AC204179

CONNECTOR : G-10

AJ

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-133

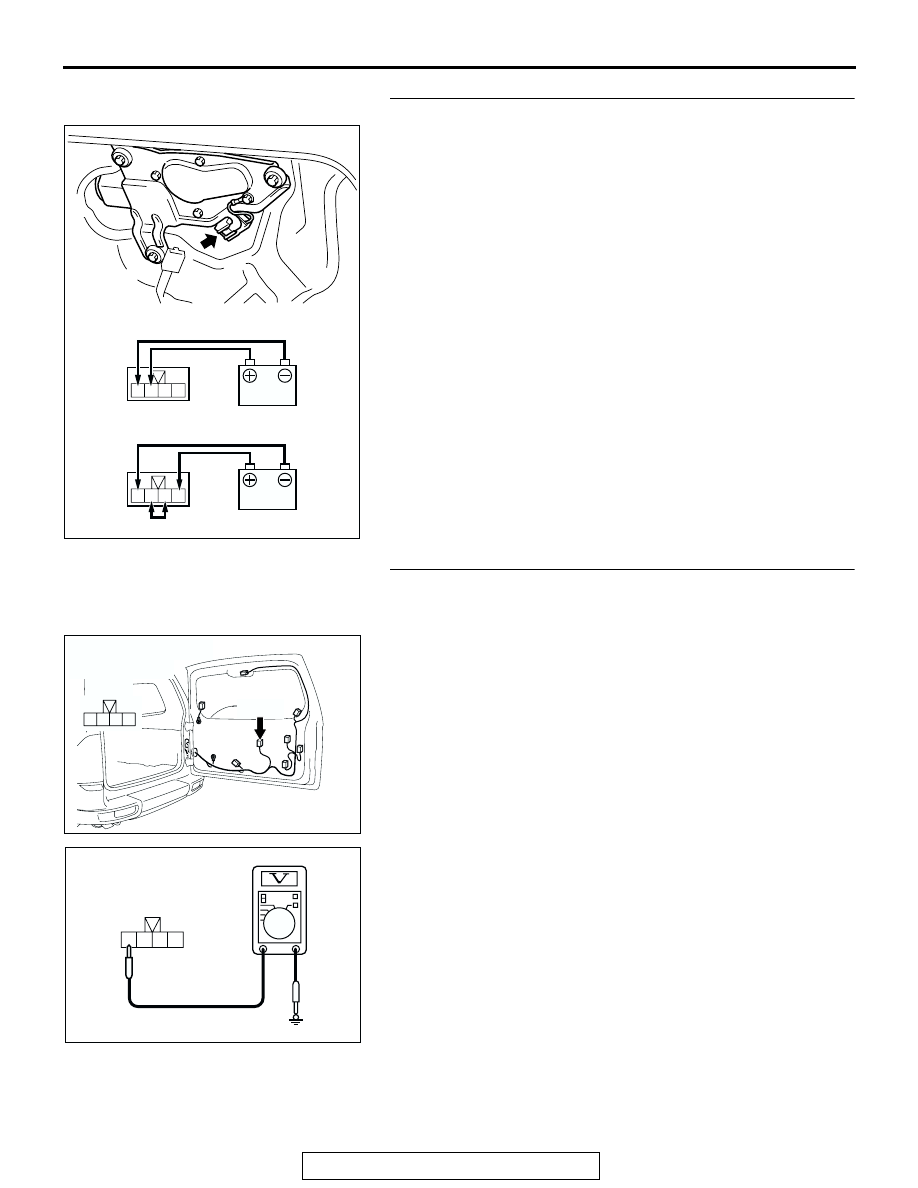

STEP 2. Check the rear wiper motor.
(1) Disconnect rear wiper motor connector I-07.
(2) While the rear wiper motor is running, disconnect the

battery to stop the motor.

(3) When the battery is connected as shown, the motor should

run again and stop at the predetermined park position.

Q: Does the rear wiper motor operate normally?

YES : Go to Step 3.
NO :  Replace the rear wiper motor. If the rear wiper

operates normally, it indicates that a correct auto-stop
signal is sent from the rear wiper motor.

STEP 3. Check the ignition switch (ACC) line of the power
supply circuit to the rear wiper motor. Test at rear wiper
motor connector I-07.
(1) Disconnect rear wiper motor connector I-07 and measure

the voltage available at the wiring harness side of the
connector.

(2) Turn the ignition switch to the "ACC" position.

(3) Measure the voltage between terminal 4 and ground.

• The voltage should equal approximately 12 volts (bat-

tery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 6.
NO :  Go to Step 4.

1 2 3 4

1 2 3 4

ACX00453

OPERATION CHECK

AB

STOP POSITION CHECK

AC204182

CONNECTOR : I-07

AE

HARNESS SIDE

I-07(B)

I-07(B)

1

2

4 3

4 3 2 1

AC204537

CONNECTOR I-07
(HARNESS SIDE)

AB

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-134

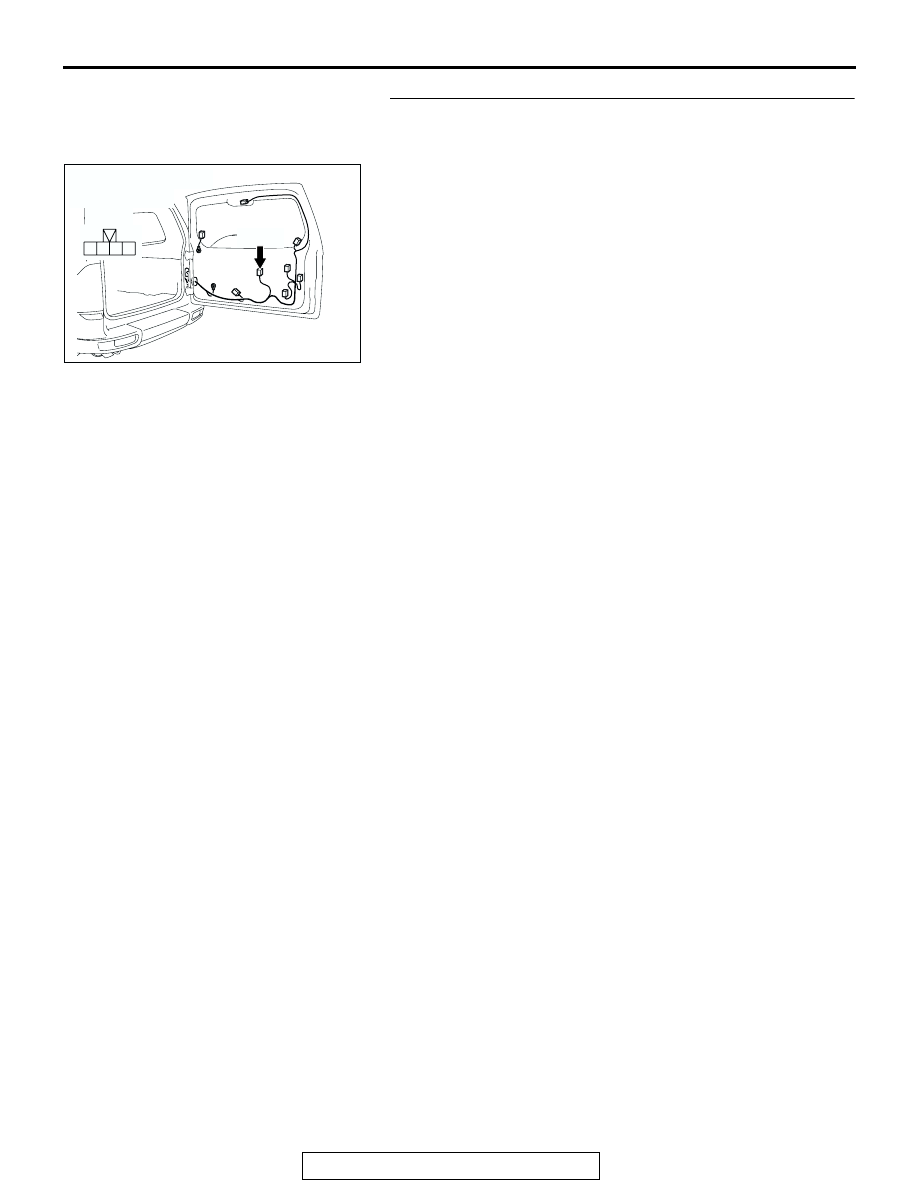

STEP 4. Check rear wiper motor connector I-07 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is rear wiper motor connector I-07 in good condition?

YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the rear wiper operates normally, it

indicates that a correct auto-stop signal is sent from
the rear wiper motor.

AC204182

CONNECTOR : I-07

AE

HARNESS SIDE

I-07(B)

I-07(B)

1

2

4 3
