INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-127

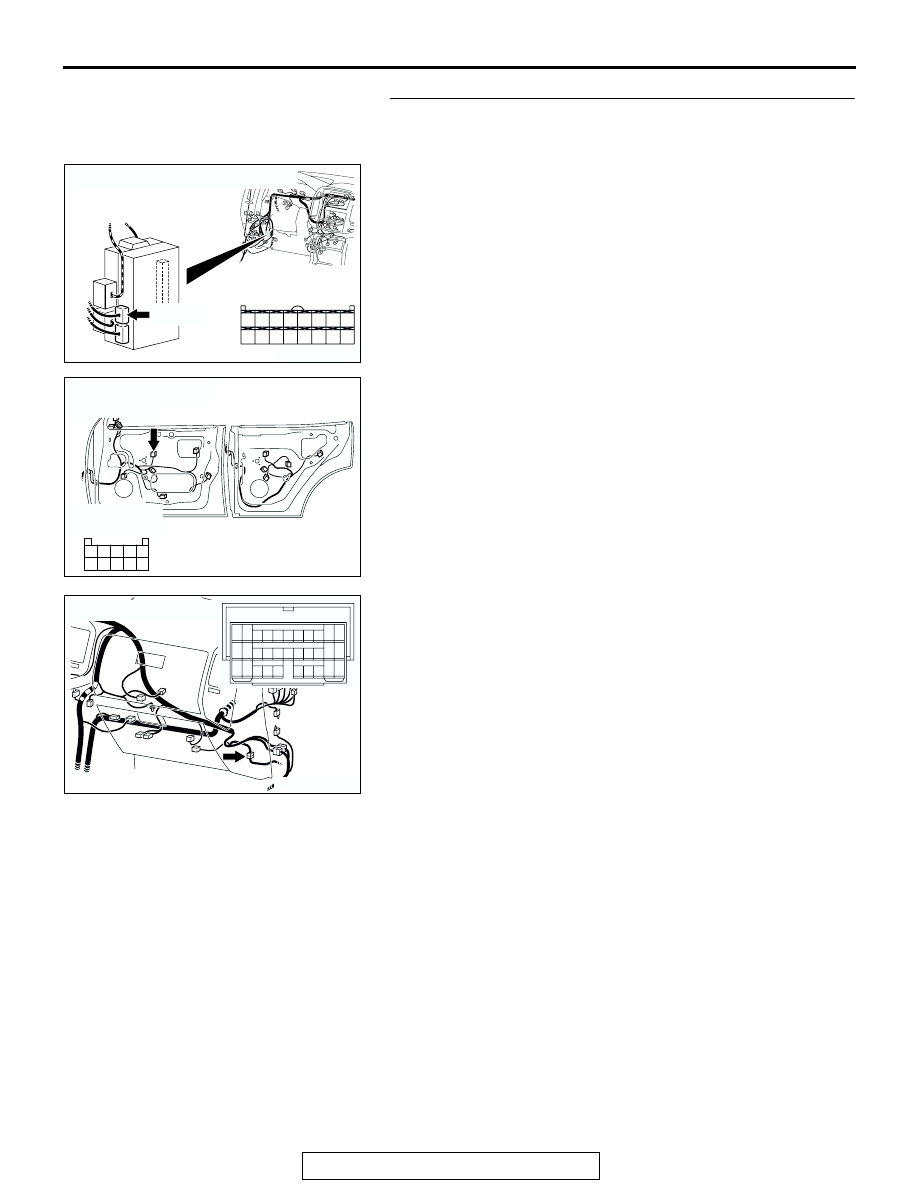

STEP 12. Check power window sub-switch connector H-16
and ETACS-ECU connector D-223 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are power window sub-switch connector H-16 and

ETACS-ECU connector D-223 in good condition?
YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204181

CONNECTOR : H-16

AB

HARNESS SIDE

<PASSENGER'S SIDE>

1
6

3

4
9 8

10

5

2
7

H-16

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-128

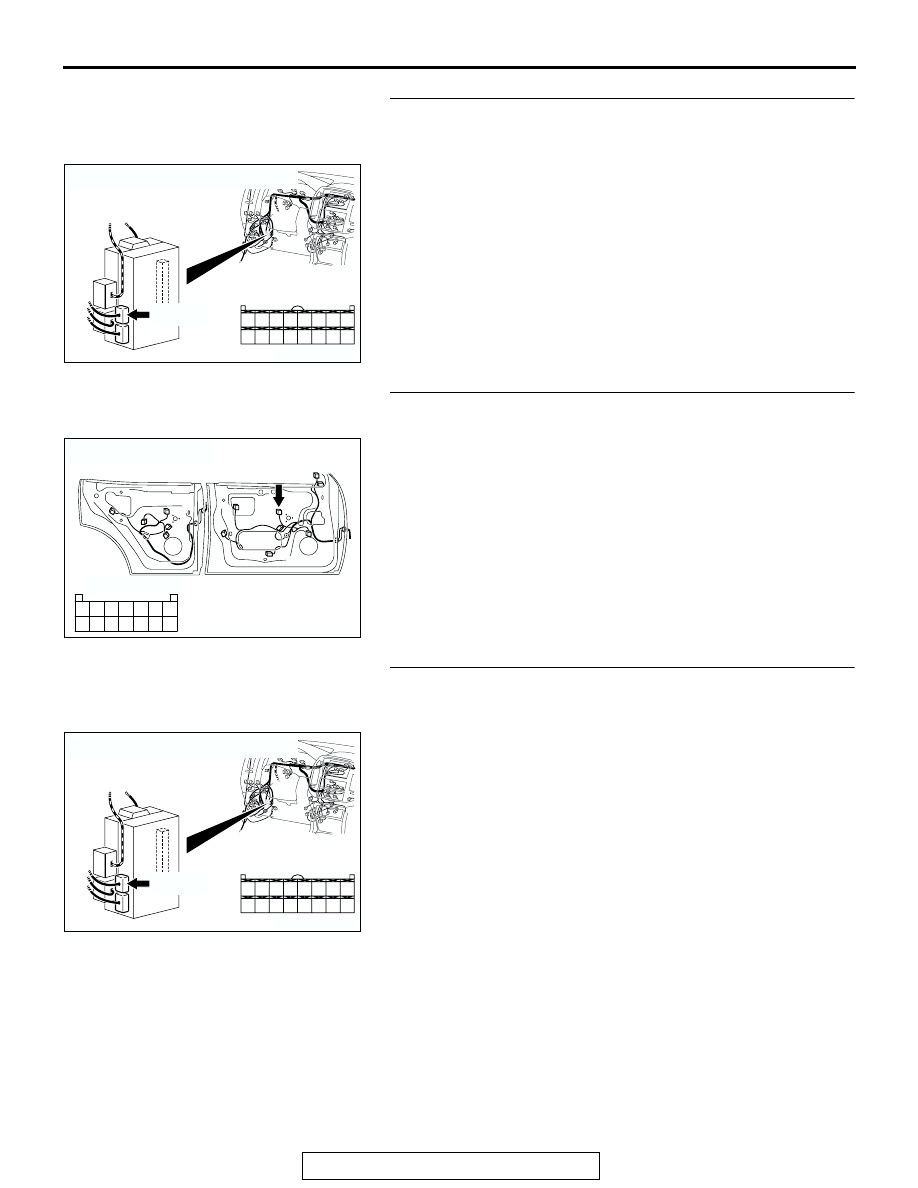

STEP 13. Check the wiring harness between power
window sub-switch connector H-16 (terminals 1 and 3) and
ETACS-ECU connector D-223 (terminals 53 and 54).

NOTE: Also check intermediate connector D-15 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connectors D-15 is damaged, Repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window sub-

switch connector H-16 (terminals 1 and 3) and ETACS-
ECU connector D-223 (terminals 53 and 54) in good
condition?
YES : Replace the ETACS-ECU. If the central door locking

system works normally, input signal from the door lock
switch should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204181

CONNECTOR : H-16

AB

HARNESS SIDE

<PASSENGER'S SIDE>

1
6

3

4
9 8

10

5

2
7

H-16

AC204171

CONNECTOR : D-15

AB

10

9

31

30

20 21

7

6

28

17 18

8

19

29

4

3

25 26

14 15

1

23

12

2

13

24

5

16

27

11

22

32

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-129

STEP 14. Check ETACS-ECU connector D-223 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-223 in good condition?

YES : Go to Step 15.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

STEP 15. Check the wiring harness between power
window main switch H-05 (terminal 3) and ground.
Q: Is the wiring harness between power window main

switch connector H-05 (terminal 3) and ground in good
condition?
YES : Replace the ETACS-ECU.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

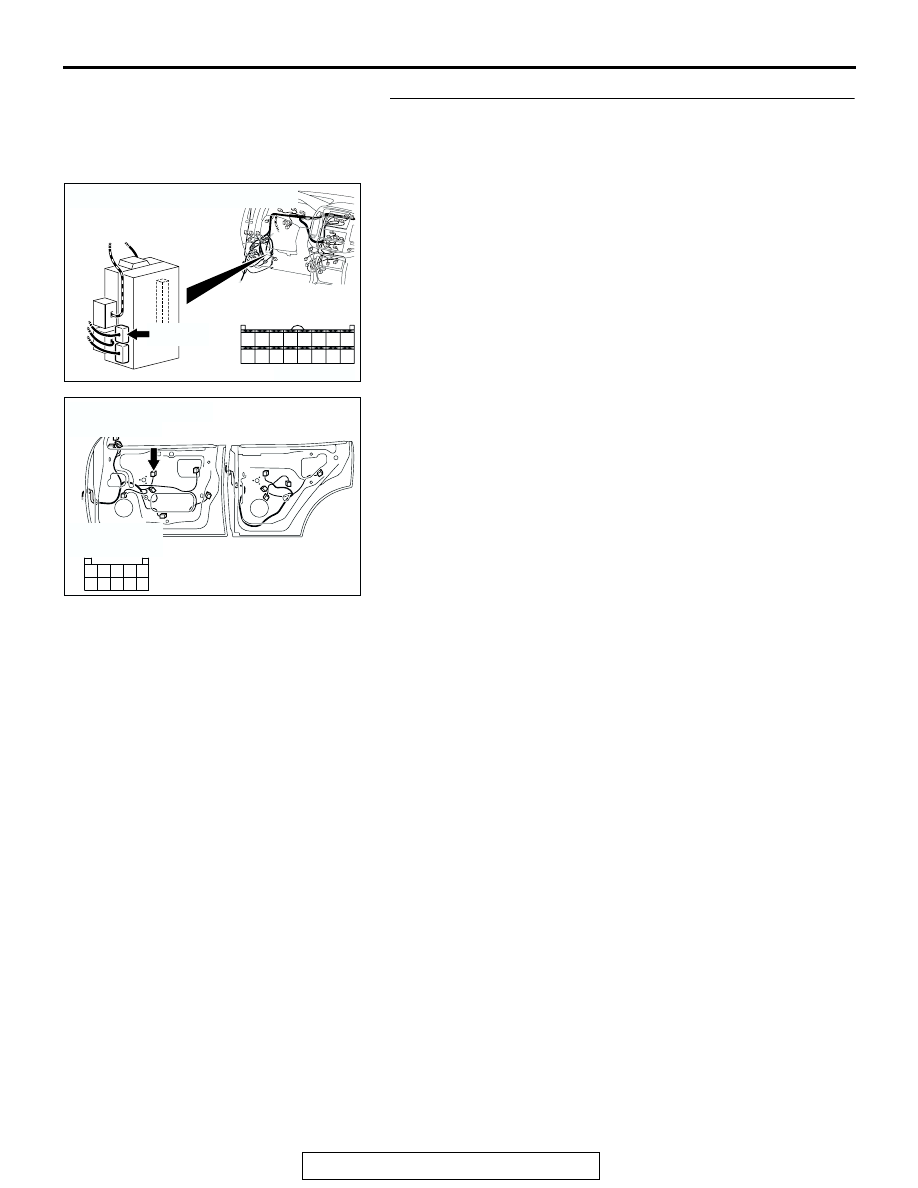

STEP 16. Check ETACS-ECU connector D-223 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-223 in good condition?

YES : Go to Step 17.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204180

CONNECTOR : H-05

AC

HARNESS SIDE

<DRIVER'S SIDE>

1
8

3

4

6

7

5

10

11

13

14

12

2
9

H-05

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-130

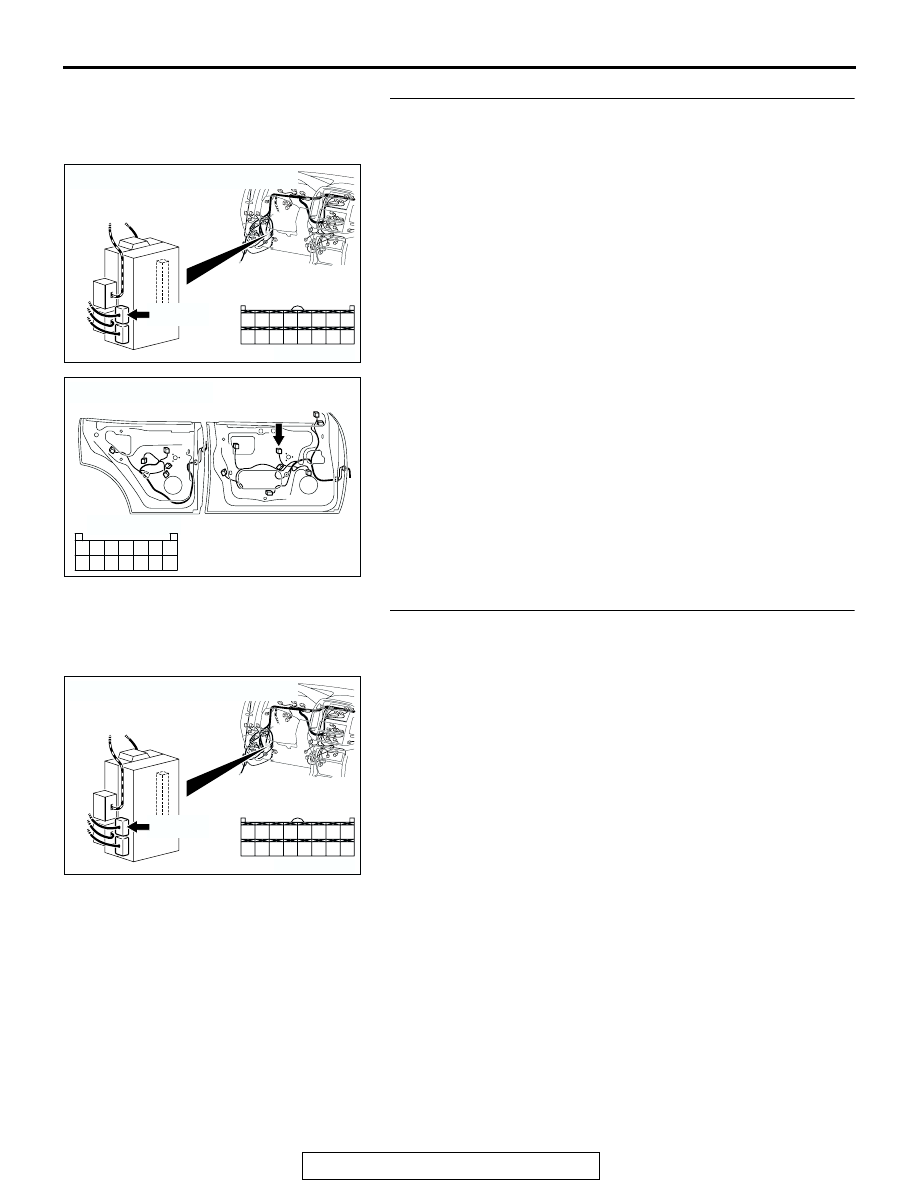

STEP 17. Check the wiring harness between power
window main switch connector H-05 (terminals 12) and
ETACS-ECU connector D-223 (terminals 53).
Q: Is the wiring harness between power window main

switch connector H-05 (terminals 12) and ETACS-ECU
connector D-223 (terminals 53) in good condition?
YES : Replace the ETACS-ECU. If the central door locking

system works normally, input signal from the door lock
switch should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the central
door locking system works normally, input signal from
the door lock switch should be normal.

STEP 18. Check ETACS-ECU connector D-223 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector D-223 in good condition?

YES : Go to Step 19.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the central door locking system works

normally, input signal from the door lock switch should
be normal.

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41

AC204180

CONNECTOR : H-05

AC

HARNESS SIDE

<DRIVER'S SIDE>

1
8

3

4

6

7

5

10

11

13

14

12

2
9

H-05

AC204174

CONNECTOR : D-223

AC

D-223(B)

D-223(B)

HARNESS SIDE

42

43

50

51

45

46

53

54

52

44

48

5655

47

49

41
