SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-479

 STEP 4. Check the fusible link (1) line of power supply
circuit to the theft-alarm indicator light circuit. Test at theft-
alarm indicator light connector D-105.
(1) Disconnect theft-alarm indicator light connector D-105 and

measure the voltage available at the wiring harness side of
the connector.

(2) Measure the voltage between terminal 2 and ground.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q:  Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 7.
NO :  Go to Step 5.

 STEP 5. Check theft-alarm indicator light connector D-105
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q:  Is theft-alarm indicator light connector D-105 in good

condition?
YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The theft-alarm indicator light should

illuminate, and the theft-alarm system should be set
normally.

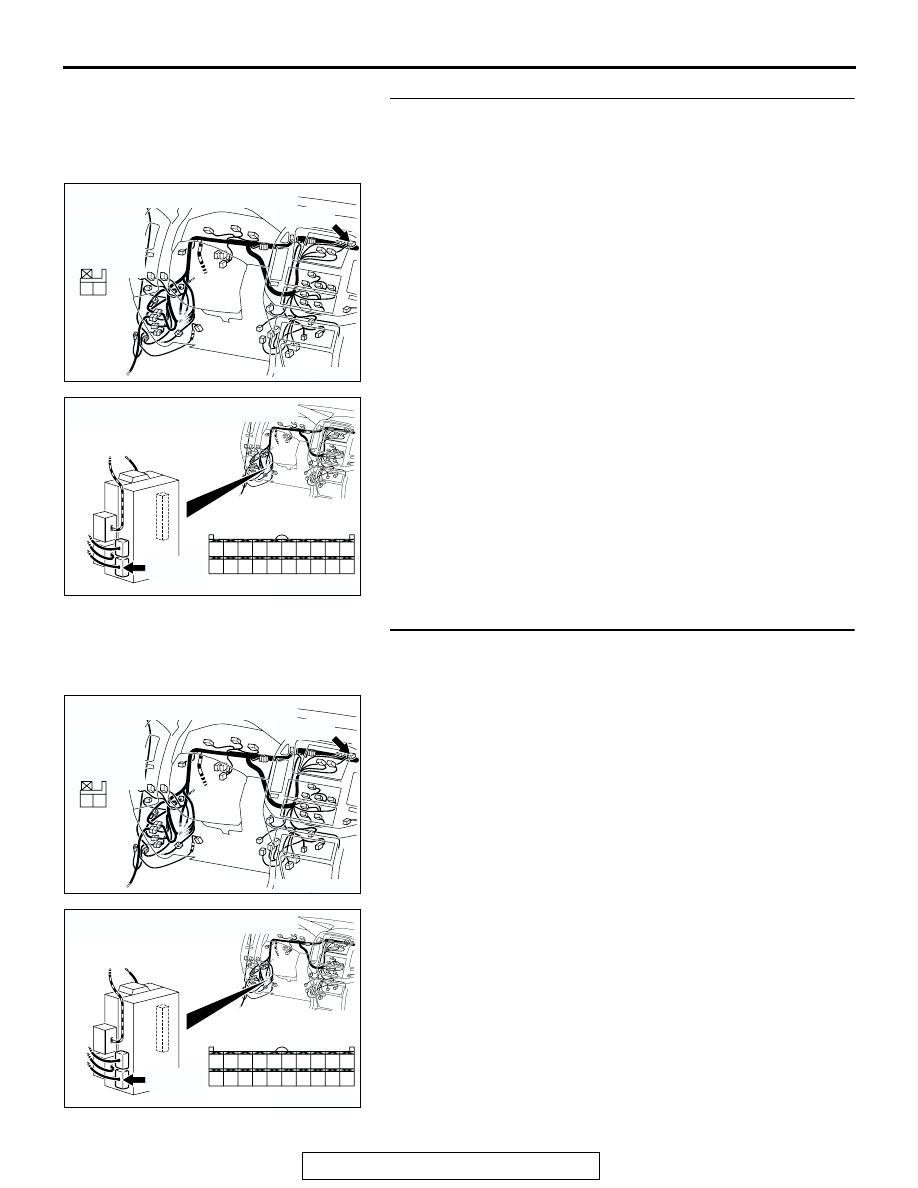

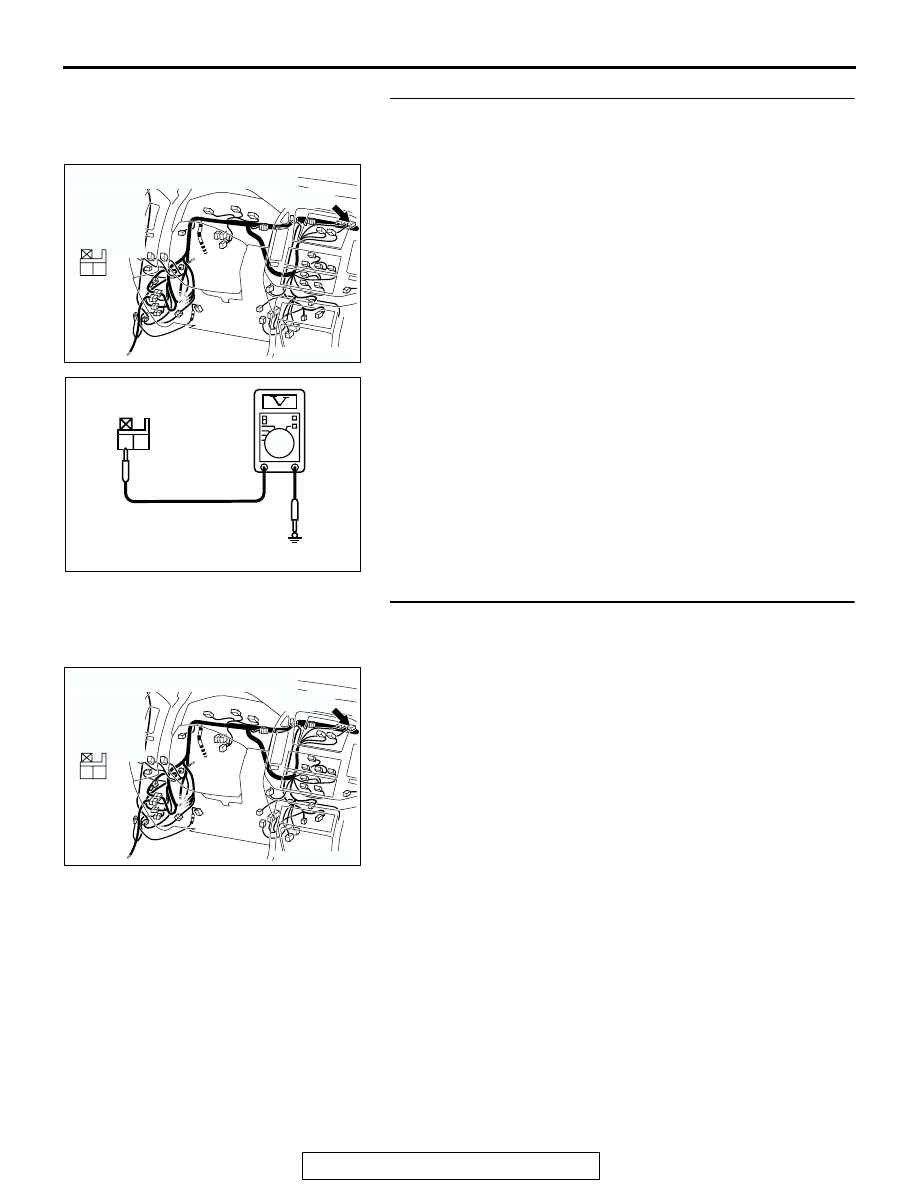

AC204170

CONNECTOR : D-105

AL

HARNESS
SIDE

D-105(B)

D-105(B)

1

2

AC100067

1

2

AB

CONNECTOR D-105
(HARNESS SIDE)

AC204170

CONNECTOR : D-105

AL

HARNESS
SIDE

D-105(B)

D-105(B)

1

2

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-480

 STEP 6. Check the wiring harness between theft-alarm
indicator light connector D-105 (terminal 1) and the fusible
link (1).

NOTE: Also check intermediate connector D-28 and joint con-
nector D-02 for loose, corroded, or damaged terminals, or ter-
minals pushed back in the connector. If intermediate connector
D-28 or joint connector D-02 is damaged, repair or replace the
damaged component(s) as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q:  Is the wiring harness between theft-alarm indicator

light connector D-105 (terminal 1) and the fusible link (1)
in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The theft-
alarm indicator light should illuminate, and the theft-
alarm system should be set normally.

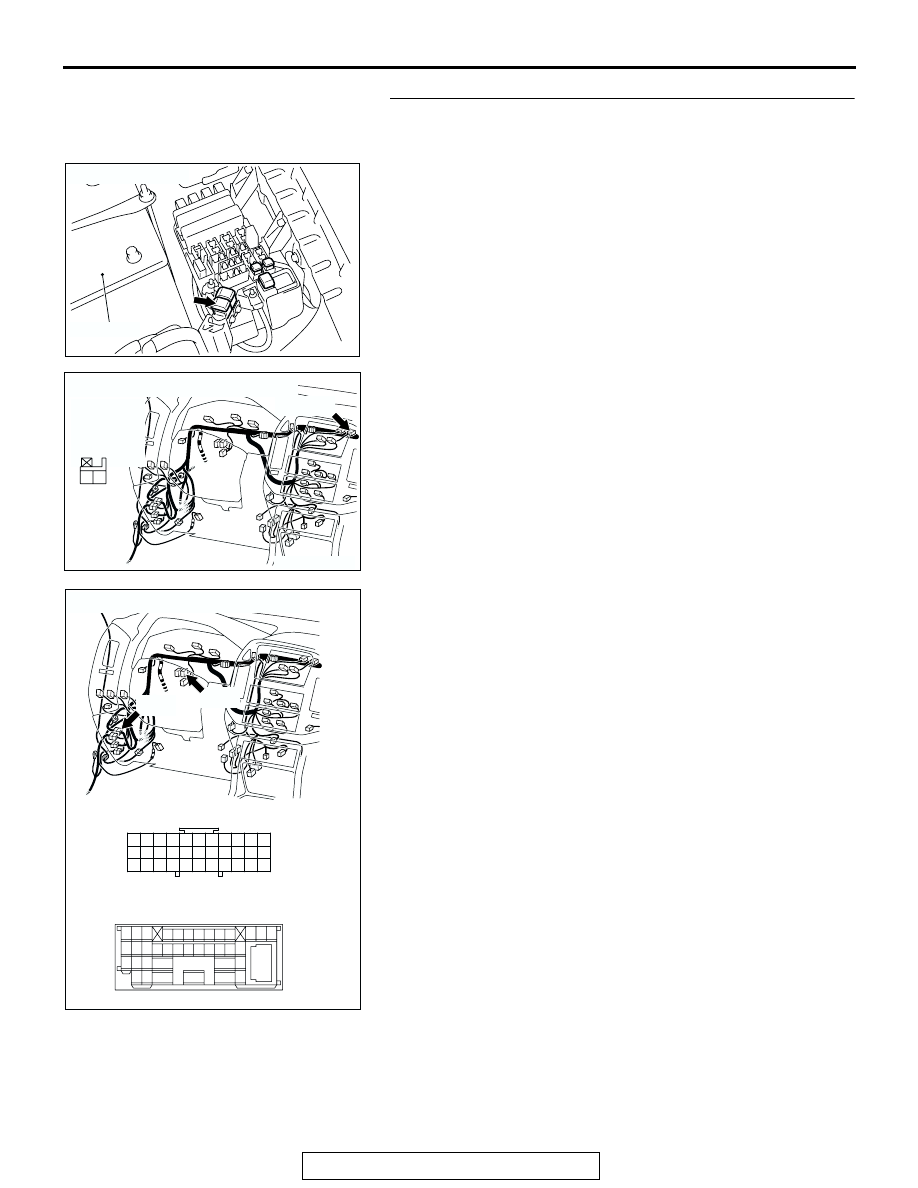

ACX02274

FUSIBLE LINK (1)

AE

BATTERY

AC204170

CONNECTOR : D-105

AL

HARNESS
SIDE

D-105(B)

D-105(B)

1

2

AC204188

CONNECTORS: D-02, D-28

D-02

D-02

D-28

AB

D-28

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-481

 STEP 7. Check theft-alarm indicator light connector D-105
and ETACS-ECU connector D-224 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q:  Are theft-alarm indicator light connector D-105 and

ETACS-ECU connector D-224 in good condition?
YES : Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The theft-alarm indicator light should

illuminate, and the theft-alarm system should be set
normally.

 STEP 8. Check the wiring harness between theft-alarm
indicator light connector D-105 (terminal 1) and ETACS-
ECU connector D-224 (terminal 40).
Q:  Is the wiring harness between theft-alarm indicator

light connector D-105 (terminal 1) and ETACS-ECU
connector D-224 (terminal 40) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The theft-
alarm indicator light should illuminate, and the theft-
alarm system should be set normally.

AC204170

CONNECTOR : D-105

AL

HARNESS
SIDE

D-105(B)

D-105(B)

1

2

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204170

CONNECTOR : D-105

AL

HARNESS
SIDE

D-105(B)

D-105(B)

1

2

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-482

 STEP 9. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Satisfy the following conditions to check the driver's and front
passenger's door switches.

• Driver's door: Open (driver's door switch is on)

However, the door should be closed when checking the
front passenger's door switch.

• Front passenger's door: Open (front passenger's door

switch is on)
However, the door should be closed when checking the
driver's door switch.

(1) Connect scan tool MB991502 to the data link connector

(16-pin).

(2) Connect SWS monitor kit MB991862 to the data link

connector (13-pin).

(3) Operate scan tool MB991502 according to the procedure

below to display "ETACS ECU."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "DATA LIST."
5. Select "ETACS ECU."

(4) The scan tool should show the following values when each

switch is operated.
NOTE: The scan tool display changes when the driver's or
the front passenger's door is opened. If any of the doors is
open, the system can not be checked correctly.

Q: The scan tool shows the respective normal condition

for item "FRONT DOOR SW."
YES : Go to Step 10.
NO :  Refer to Inspection Procedure O-5 "ETACS-ECU

does not receive any signal from the driver's or front
passenger's door switch

P.54Bc-23

."

ITEM No. ITEM NAME

NORMAL CONDITION

ITEM 32

FRONT DOOR SW  ON

AC204222AB

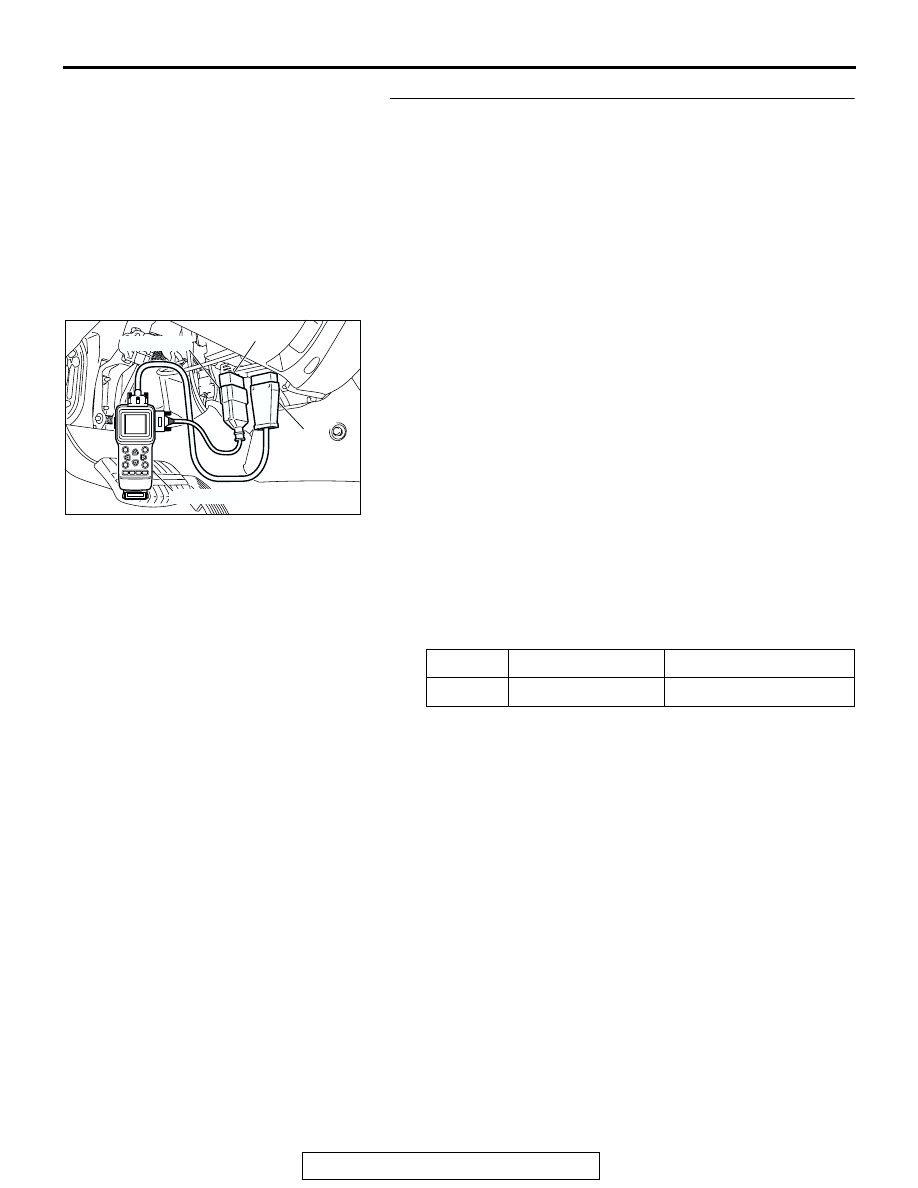

16-pin

13-pin

MB991502

MB991862
